dmg gildemeister lathes used for sale

Control: Siemens 840 D powerline Accessories: Tool holder bar loading magazine Fully functional and still under power, can be visited at any time

Key data: 600 mm, 1250 mm, 3000 1/min

Machine Details Stock-No. 1105-03939 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2006 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm control SIEMENS 840 D greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information Acc. 3-Jaw Chuck 315 mm, tailstok turret 8 P ,chip conveyor, coolant CNC Siemens 840 D

Key data: 600 mm, 1250 mm, 3500 1/min

Machine Details Stock-No. 1105-03997 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2007 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information acc.: hydr. 3-Jaw Chuck 400 mm, Chip Conveyor, Coolant CNC FANUC 210 IS

Key data: 290 , 400

Machine-Details Stock-No. 1105-04007 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER Type CTX 210 Year of manufacture 2005 Type of control CNC Storage location FRANKREICH Country of origin Germany Delivery time IMMIDIATELY Freight basis EX WORKS Technical details Turning diameter 290 mm turning length 365 mm control SIEMENS 840 D SIEMENS 840 D Greates Pass round over bed 380 mm X-Travel 160 mm Z-Travel 365 mm spindle head 120 H 5 mm Boron spindle 56 mm bar material dia. 42 mm Spindle diameter in front bearing 90 mm turning speed range 20 - 6000 U/min spindle drive 10 kW No. of tools in turret 1 12 x VDI 30 total power requirement 22 kW Weight of the machine ca. 4,2 t Dimensions of the machine ca. 2.8 x 1.7 x 1.8 m Additional information NICE MACHINE CNC SIEMENS 840 D SOMME TOOLS VDI 30 TOOL MESURING Arm TAILSTOCK CHIP CONVEYER

Key data: 350 mm, 700 mm, 4000 1/min

Machine Details Stock number 1105-04023 Machine Type: CNC Lathe - Inclined Bed Machine Make GILDEMEISTER Type NEF400 / 840D Shopturn Year of construction 2006 Condition Control type: CNC Control Siemens 840D Shopturn Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from Dreieich warehouse Price Technical details Turning diameter 350/270 mm Turning length 700 mm Control Siemens 840D Shopturn Circumferential diameter max. over bed cover 400 mm Travel - z 700 mm Spindle bore 65 mm Spindle speeds max. 4000 rpm Tool holder VDI 30 Turret head 12 pos. Three-jaw chuck diameter 200 mm Spindle holder A6 DIN55026 Pick-up cone in the tailstock quill MK 3 Drive power 15/12 kW Operating voltage 400 V Machine weight approx. 3.0 t Information - Control: Siemens 840D Shopturn - Tool holder VDI 30 APPROX. 12 PIECES - Coolant de ...

Machine details Bearing number 1105-03132 Machine type CNC lathe - slantbed machine Made GILDEMEISTER Type CTX 400 Built in 2000 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time SOFORT Freight base from location, free loading truck Technical details Turning diameter 570 mm Turning length 635 mm Control Heidenhain CNC Pilot 4290 Turning diameter over bed slide 420 mm Spindle speeds - infinitely 25-5000 rpm Number of driven tools 6 mm Drive 5 kW Information CNC Heidenhain Pilot 4290 C-axis with 5 FESTE vdi holders 1 3 BAKE FOOD 1 X SPAENEFOERDERER WITH REITSTOCK + LNS STANGEN VORCHUB

DMG GILDEMEISTER CTX ALPHA 300 CNC turning center was built in 2008. The machine, designed for machining workpieces with a maximum diameter of 500 mm, is equipped with state-of-the-art technical solutions that guarantee extraordinary accuracy and precision. Machining is performed inside a large, fully illuminated workspace by a reliable spindle and high-quality cutting tools taken from a 12-position turret. In turn, the operator is provided with a state-of-the-art touchscreen control panel with a perfectly optimised FANUC CNC controller. High reliability, precision and structural stability make the GILDEMEISTER CTX ALPHA 300 CNC lathe the perfect choice for even the most intensive production work. The total weight of the machine is approximately 4350 kg. Technical data of the DMG GILDEMEISTER CTX ALPHA 300 lathe - maximum turning diameter: 500 mm - maximum cutting diameter: 200 mm  ...

DMG GILDEMEISTER CTX 510 CNC turning center was built in 2008. Designed for machining workpieces with a maximum diameter of 465 mm, the machine features a fully illuminated workspace, a high-speed spindle and high-end cutting tools. The extremely stable design combined with the perfectly optimised SIEMENS CNC control ensures maximum process efficiency, even during the most intensive production work. The DMG CTX 510 CNC lathe weighs 7500 kg. Technical specifications of the DMG GILDEMEISTER CTX 510 lathe - maximum turning diameter: 465 mm - maximum swing diameter: 680 mm - maximum swing diameter above cross guideway: 465 mm - maximum external diameter of clamped workpiece: 400 mm - feed in the X/Z axis: 300/1050 mm - rapid traverse in X,Z axis: 30 m/min - maximum spindle rotational speed: 3500 rpm - spindle passage: 97 mm - spindle drive power (40%/100% DC): 42/31 kW - chuck s ...

DMG GILDEMEISTER CTX 410 CNC lathe built in 2006 is an extremely powerful machine designed for precision machining of workpieces with a maximum diameter of 320 mm. The machining process is performed inside a large, fully illuminated workspace using reliable components in the form of cutting tools and a high-speed spindle. The specially designed inclined bed effectively dampens all vibrations and oscillations, resulting in better quality of the machined surface and increased tool life. The offered DMG CTX 410 CNC turning center is also equipped with an integrated chip conveyor and a perfectly optimised, intuitive HEIDENHAIN CNC control. The total weight of the machine is approximately 6000 kg. Technical specifications of the DMG GILDEMEISTER CTX 410 turning center - CNC controller: HEIDENHAIN - turning diameter: 320 mm - turning length: 600 mm - feed in the X/Z axis: 250/635 mm -  ...

Key data: 65 mm, 300 mm

Machine Details Stock-No. 1105-04031 Type of machine CNC Lathe Make GILDEMEISTER Type MF Sprint 65 V Year of manufacture 1998 Type of control CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight basis ex Warehouse Price Technical details turning diameter 65 mm turning length 300 mm control SIEMENS 840C Additional information CNC-automatic lathe with with 6 - axis, 4 stations for live tools,in 1 revolver WITH bar loader, bar length up to 3000mm Chip Conveyor

Key data: 700 mm, 800 mm

Machine Details Stock-No. 1105-04033 Type of machine CNC Turning- and Milling Center Make DMG MORI Type CTX beta 800 Year of manufacture 2009 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time IMMEDIATELY Freight basis ex site Technical details turning diameter max. 390 mm turning length 800 mm control Sinumerik 840D sl Siemens Greates Pass Round Over Bed 700 mm Turning Speed Range - Main Spindle 20 - 4,000 min/-1 Power capacity - main spindle 45 / 35 kW max. torque 700 Nm C-Axis 360° Spindle Nose 220H5 Chucking diameter - mm max. bar capacity 102 mm number of toolpositions 12 pos. Number of driven toolspositions 12 pos. power capacity driven tool-stations 14.2 kW Spindle speed - driven tool stations 40 - 10.000 min -1 tool taper VDI 40 DIN69880 max. torque 34 Nm X-AXIS 290 mm Z-AXIS 800 mm rapid traverse X: 30 / ...

Manufacturer: DMG GILDEMEISTER Model: CTX 310 ECOline Year of Manufacture: 2009 Control System - Siemens Sinumerik 810 D Application - Precision machining of workpieces with a maximum diameter of 200 mm. Features - 12-station turret - Integrated chip conveyor - Workplace lighting - Foot switch - Documentation: DTR Technical Data:  Max. turning diameter: 200 mm Max. pass-through diameter: 330 mm Max. pass-through diameter over cross slide: 260 mm Feed rate in X/Z axis: 160/450 mm Speed in X and Z: 24 mm/min Max. spindle speed: 5000 rpm Spindle bore: 51 mm Spindle drive power (40%/100% DC): 16.5/11 kW Max. spindle torque (40%/100% DC): 166.5/112 Nm Tailstock stroke: 400 mm Tailstock force: 400 daN Operating hours (as of 06.03.2025, still in operation): 48,066 h Installed power: 21 kVA Power supply: 400 V; 50/60 Hz Dimensions (L x W x H): approx. 4150 x 1700 x  ...

number of spindles: 8 bar capacity: 36 mm control: FANUC 30i-B Subspindle speed: 7.500 U/min Bar Automatic Lathe - Multi Spindle | DMG GILDEMEISTER - MULTISPRINT 36 equipped with bar feeder and a coolant system. The machine only has 6.944h spindle hours. The machine is in a well-maintained condition and can be inspected under power. For additional equipment information please refer to the original order confirmation which is included in the offer of this machine. The machine works with a EGS loading system -> This can be purchased separately An extensive tool package is included. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: MULTISPRINT36 | MULTISPRINT-36 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles: 8 bar capacity: 36 mm control: FANUC 30i-B Subspindle speed: 7.500 U/min Bar Automatic Lathe - Multi Spindle | DMG GILDEMEISTER - MULTISPRINT 36 equipped with bar feeder and a coolant system. The machine only has 15.650h spindle hours. The machine is in a well-maintained condition and can be inspected under power. For additional equipment information please refer to the original order confirmation which is included in the offer of this machine. The machine works with a EGS loading system -> This can be purchased separately An extensive tool package is included. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: MULTISPRINT36 | MULTISPRINT-36 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles: 8 bar capacity: 36 mm control: FANUC 30i-B Subspindle speed: 7.500 U/min Bar Automatic Lathe - Multi Spindle | DMG GILDEMEISTER - MULTISPRINT 36 equipped with bar feeder and a coolant system. The machine only has 15.666h spindle hours. The machine is in a well-maintained condition and can be inspected under power. For additional equipment information please refer to the original order confirmation which is included in the offer of this machine. The machine works with a EGS loading system -> This can be purchased separately An extensive tool package is included. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: MULTISPRINT36 | MULTISPRINT-36 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC Lathe Manufacturer: Gildemeister Type: CTX 420 linear V3 Year of Make: 2003 Control: Heidenhain Plus IT Circumferential diameter over bed: 680 mm Circumferential diameter over face slide: 565 mm Plan travel: 260 mm Longitudinal travel: 635 mm Drive power: 40/ 100% 25/37 kW Speed range from – to: 20 – 5000 rpm Weight approx.: 6500 Kg Equipment: Driven tools: 12 stations Tool carrier: 12-cavity Sauter revolver VDI 30 Partial hollow clamps Tailstock Quill stroke automatic Quill holder: Mk 5 Conveyor Measuring arm Oil mist extraction Errors excepted

turning diameter: --- mm turning length: --- mm control: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 390 mm turning length: 2250 mm control: Sinumerik 840D swing diameter: 610 mm cross movement. (x-axis): 605 mm longitudinal traverse (z-axis): 1.870 mm y-axis: 210 mm b-axis: 240 ° Axial travel (X2) / Longitudinal travel (Z2): 267/1.840 mm Longitudinal travel (Z3): 1.840 mm main spindle: - clamping chuck diameter: 250-315-400 mm bar material dia.: max 82 mm spindle head: Ø 220H5 spindle bore: Ø 118 mm Clamping tube inner diameter: 82 mm Diameter in front bearing: 180 mm Counter spindle: - clamping chuck diameter: 250-315-400 mm bar material dia.: 92 mm spindle head: Ø 220H5 spindle bore: Ø 118 mm Clamping tube inner diameter: 104 mm Diameter in front bearing: 180 mm Main spindle drives left and right: - power requirement: 45/47 kW speed area: 20 - 3.200 1/min Buckling speed: 650 1/min torque: 650/ 1.080 Nm C-axis speed: 3.200 1/min Torque C-axis: 660 1/min Partial  ...

CNC Turning/Milling Centers CTX 410 Management Heidenhain Plus IT - 3 cheek chuck - Driven tool stations - Tailstock - Chip conveyors - Coolant tank

CNC Turning/Milling Centers CTX 410 /2 Management Heidenhain Plus IT - 3 cheek chuck - Driven tool stations - Tailstock - Chip conveyors - Coolant tank

Inv. Num. : 6136 Type: CTX alpha 500 Producer: DMG Gildemeister Created: 2008 Parameters: Control system: Siemens 840 Switch-on hours: 22803 h Hours: 11505 h Maximum turning length: 500 mm Maximum turning diameter: 200 mm Maximum turning diameter over bed: 500 mm Distance between tips: 780 mm Maximum spindle speed: 6000 1/min Maximum workpiece weight: 45 kg Weight: 4500 kg Equipment: Filtration Bar Feeder CNC Spacesaver SS 2500 (2018)

Main spindle: max. bar capacity: 65mm, draw tube bore: 75mm, collet holder diameter: 160mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 150Nm, nominal power (S1): 22kW. Counter spindle: draw tube bore: 45mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 100Nm, nominal power (S1): 16.8kW. W2 axis counter spindle: travel: 690mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X1 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z1 axis: travel: 220mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X2 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z2 axis: travel: 150mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1) ...

Key data: 500 mm, 100 mm, 2500 1/min

Special price to be submitted at short notice

Used machine CNC lathe Machine type: DMG Gildemeister NEF 600 Control: Heidenhain IT Turn Plus Year of Make: 2006 TECHNICAL DATA: Max. turning length: [mm] 1,250 Max. Rotary Ø over bed: [mm] 600 Max. rotary Ø over slide: [mm] 410 Spindle bore: [mm] 90 Number of controlled axes: 2 Speed range: [1/min.] 3,000 Drive power: [kW] 36.5 / 27.5 Torque: [Nm] 785 Tailstock MK 5 Quill 80mm Number of turrets: 1 Travel X-axis ob. Rev. / unt. Rev.: VDI 40/8 Tool positions: 8 Machine weight: [kg] 5,500 Space requirement (LxWxH): [m] 5.0 x 2.0 x 2.2 m Features: Chip conveyor 3-jaw chuck [mm] 315 This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

turning diameter: 340 mm turning length: 1.135 mm control: Sinumerik 840D Program on: ca. 22.000 h turning diameter over bed: 700 mm spindle distance: 1.470 mm total power requirement: kW weight of the machine ca.: 14.5 t dimensions of the machine ca.: 5.614 x2.417 x 2.419 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

To mediate on behalf of the customer. Used machine Machine Type: CNC Swiss Automatic Lathe Model: Sprint32 Manufacturer: Gildemeister Control: Fanuc 160iB First commissioning: 2003 #009328 Location: Poland Control Fanuc 160i-B Turning length 120 mm Turning diameter 32 mm Number of axes 8 Travel X1 axis 65 mm Travel Y1 axis 350 mm Travel Z1 axis 120 mm Travel X2 axis 265 mm Travel Y2 axis 235 mm Travel Z2 axis 320 mm C1-axis travel 360° Travel C2 axis 360° Spindle bore 42 mm Spindle speed 8000 rpm Motor power 7.5 kW Total power requirement 34 kVA Dimensions L 4900 x W 1630 x H 1920 mm Weight 4350 kg The above information was provided to us by the seller and must be checked during inspection. This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

Multi-spindle lathe (8 spindles) max. rod diameter 16 mm Guide tubes 4,000 mm Conveyor

Gildemeister GMC20 ONE, Options / Accessories, - 5 Cross-slides pos. 1;2;3;4;5, - 2 Radial slides pos. 6 for cutting and rear-working operations, - 1 C-axis for the pick up spindle, - Pneumatic work-piece unloading chute for pos. 6, - Work-piece conveyor belt, - Swarf conveyor, worm type, - 5x Frontal tool spindle, fix, - Pick- up spindle in pos. 6, - High pressure coolant device 70l / 50bar, Country of origin: Italy, Control: Siemens 840D, Number of spindles: 6, Max bar diameter [mm]: 25, Spindle speed [rpm]: 6.000, Spindle motor [kW]: 9,1, Z - travel [mm]: 70 / 140, Total power requirement [kVA]: 98, Weight of the machine ca. [kg]: 9.800, Auto bar loader: Cucchi Giovanni DBM.625

NC Lathe Gildemeister Nef 500 BJ 1996

Universal lathe GILDEMEISTER NEF 320 K With Siemens SINUMERIK 810 DE (SIMATIC PANEL TOUCH SCREEN) control Year of Make: 2003 Spindle bore: 52 mm Center width: 750 mm Circumference Ø over bed : 320 mm Circulation O over face slide: 150 mm Face travel : 185 mm Speed range: 14 – 3550 rpm infinitely variable With the following accessories: Slide protection with interior lighting Multifix tool holder with 2 inserts 3 jaw chuck SCHUNK ROTA plus 0 200 mm 2 set of soft top jaws Coolant Setup Chip rinsing gun 6 pcs. machine shoes Operating instructions The machine is in very good condition

Manufacturer: Gildemeister Model: NEF 320 Type of Machine : Lathe Voltage: 400 V (primary), 230 V (secondary) Power: 14 kVA Machine is fully functional Find more here - / Contact us at -

8 axis version - 6Linear + 2 axes circular bar capacity 42mm Fanuc 160i IEMCA BOSS 545 E Driven Tools HD coolant system Bürener machine was operated with cutting oil!, Control type: CNC /

Tailstock for Gildemeister CTX 600

Note: We have 6 pieces of this machine in stock! Manufacturer: Gildemeister Type: GS 36 – 6 A/C Machine no.: 7.0176 Year of construction: 1987 Weight: 11t General / technical data: Portal-6spindle automatic lathe with measuring device and automatic feeding Spindle dividing circuit: 300mm Number of longitudinal slides: 6 Number of cross slides: 2 gr. cross slide stroke: 60mm gr. longitudinal slide stroke: 125mm Spindle speeds: Infinitely variable 562 – 3373 rpm Main time range: Stepless 1.95 – 78 sec. Low time range: 0.79 – 2.13 sec. Drive power: DC motor spindles 20kW; Feed rates 8kW Installation area: approx. 1720 x 4700mm Remark: The machine cannot be converted for bar work. Equipment: – 1 creep gear drive for set-up operation – 1 automatic central lubrication device – 1 coolant device with lines and pu ...

CNC lathe GILDEMEISTER CTX ALPHA 300 with bar feeder and parts pick-up device Built in 2010 in good condition. Duty Cycle: 22930 Hours: 7326 Control Heidenhain CNC-Pilot 640 Circulation over bed: 380 mm Circulation via face slide: 290 mm Spindle bore: 73 mm Flat travel ( X ) : 190 mm Longitudinal travel ( Z ) : 335 mm Speed max. 6000 rpm C-axis 360° Number of driven tool stations 12 pos. Tool holder VDI 30 Accessories: 3 jaw chuck hydraulic 170 mm Conveyor Coolant system Hydraulic hollow clamping device Tool drive C-axis Parts pick-up device Bar Feeder Irco RBK10012 Tailstock

GILDEMEISTER NEF Plus 500 CNC lathe was manufactured in 1997. The machine, designed for precision machining of workpieces with a maximum diameter of 500 mm, has two spindles (main spindle and sub-spindle) of high speed and power, which will improve even the most intensive machining. The installed GRUNDING CNC controller with colour screen and control panel also allows for cycles to control. The total weight of the machine is approximately 3000 kg. Technical specifications of the GILDEMEISTER NEF Plus 500 lathe - CNC control: GRUNDIG - maximum turning diameter (over bed): 500 mm - maximum turning diameter (over saddle): 290 mm - maximum turning length: 1500 mm - main spindle rotational speed range: 80-2800 rpm - main spindle passage: 70 mm - main spindle drive power: 11 kW - maximum sub-spindle rotational speed: 5000 rpm - sub-spindle drive power: 7.5 kW - total power require ...

Key data: 500 mm, 450 mm, 6000 1/min

1 used CNC lathe Make Gildemeister Model CTX 320 V5 Linear Year of manufacture 2004 Control Siemens 840 D ( ShopTurn ) Workspace: Max. circulation diameter over bed 500 mm Circumferential diameter via X-carriage 300 mm Turning length 450 mm Bar passage 60 mm Chuck diameter 170 mm Chuck diameter sub-spindle 165 mm Plane stroke 160 mm Rapid traverse X/Z axis 60/45 m/min Power main drive (100% ED) 16 kW Speed range 6000 rpm Power sub-spindle (100% ED) 7.5 kW Speed range 6000 rpm Number of tool stations 12 Cylindrical shank diameter 30 mm Number of driven tools 12 Drive power (40% ED) 10 kW RPM, max. 5000 min-1 C-axis speed range 0 - 200 min-1 C-axis positioning 0.001 degrees Connected load, total approx. 32 kVA Net weight with chip conveyor approx. 4300 kg Machine with chip conveyor L x W x H 3890 x 1555 x 1890 mm Accessories: Conveyor Pa ...

Gildemeister 6-spindle rotary machine, curve controlled max. rod passage: 32.0 mm for rods up to 3.30 m - incl. rod guide, - Steel processing, run with cutting oel - easily equipped with tools Cmvlgfoyc - 1 set of clamping and feed pliers - Alternating wheels (on machine) - 1 set of curves for cross slides - 1 set of curves for main slide

Gildemeister 6 Spindle Lathe AS 32-6 - Spindle stop set-up - Pneum pick-up device. - Zubehoer at an extra cost - Cross hole drilling - Thread cutting gears - Thread cutting device - wahlw. Fraeseinrichtung Querschl. - Spaenefoerderer

CNC slot machine Gildemeister GLD 25 with counter spindle Technical data: Manufacturer: Gildemeister Type: GLD 25 Built: 1999 Control: FANUC Series O-T Main spindle: - max. turning diameter: 25 mm - max. speed: 8,000 rpm - maximum stroke (Z-axis): 160 mm Counter spindle: - max. turning diameter: 25 mm - max. speed: 8,000 rpm - maximum stroke (C-axis): 265 mm - Rapid speed C-axis 15 m/min Sled: - Slide: X= 30 mm, Y= 220 mm - Rapid x-axis 10 m/min - Rapid y-axis 15 m/min - Number of WZ on the sled: 5 + 3 (driven) - Speed WZ (driven) : 6,000 rpm Accessories: - Chip conveyor -Bar loader: IEMCA MINI BOSS 325/32 Dimensions LxWxH: - Machine with chip conveyor 3150 x 1100 x 1700 mm - Bar loader 3900 x 800 x 1400 mm Weight: - Machine: approx.2000 Kg - Bar loader: approx. 1000 kg. - Total weight: approx. 3,000 kg

Gildemeister 6-spindle rotary machine, curve controlled max. rod passage: 32.0 mm for rods up to 3.30 m - incl. rod guide, - Steel processing, run with cutting oel - easily equipped with tools Sowiabeb - 1 set of clamping and feed pliers - Alternating wheels (on machine) - 1 set of curves for cross slides - 1 set of curves for main slide

Gildemeister Multispindle Slot machine 6- Spindler Type: AS 25-6 Pick-up device back-valued processing pneumatic stop Balluff cam switch IEMCA PRA Bar loader Oil mist separator (electrostat.) Conveyor Machine has been retrofitted in the past

CNC Lathe Gildemeister CTX 200 Series 2 Immediately free from location: CNC Lathe Gildemeister Type CTX 200 Series 2 Built in 2001 Operating hours 39,000 CNC Control Heidenhain 4290 TP Turning diameter 210 mm Turning length 305 mm Reiststock revolver 12 driven tools Conveyor Bar loading magazine Max travel plan 160 mm Max travel length 350 mm Spindle speeds up to 5000 rpm 2 simultaneous axes with C axis 1 controlled spindle 12 driven tools Collet pliers with hydr. Hollow clamping device up to 43 mm Workpiece pick-up device up to 56 mm very many tools

Machine Type: CNC Lathe Manufacturer: GILDEMEISTER Type CTX 500 S2 Year of construction 1998 Control CNC Pilot Heidenhain Country of origin Germany Delivery time by arrangement Freight base from location Technical details Turning diameter max. 445 mm Turning length 1,000 mm Control CNC Pilot Heidenhain Circumferential diameter 680 mm Main spindle: Speed range – main spindle 18 - 3,600 rpm/-1 Drive power – main spindle 23 kW Max. torque 650 Nm Spindle nose 220h5 Chuck diameter 315 / 400 Spindle bearing diameter 140 mm Spindle bore 107 mm Tool turret: Number of tool positions 12 pos. Tool holder 40 DIN69880 Travel: x-travel 320 mm z-travel 1,097 mm Tailstock: Quill stroke 120 mm Tailstock mount MK 5 Quill pressure 14 kN Feeds: Rapid traverse X : 24 / Z : 30 m/min Feed force X: 8 / Z: 15 kN Total power requirement 58 kVA Machine weight approx ...

Guildmaster CTX 210 2005 Turning diameter: 290mm Turning length: 300mm Orbital diameter over bed: 380mm Main spindle Speed range: 20-6000 min/-1 Max Torque: 79/72Nm max. feed diameter: 165mm Spindle diameter in front bearing: 90mm Rod diameter: max. 45mm C-axis: 0.04° Holding moment: C:112Nm Tool turret: Number of powered tools: 12 pos. Shank diameter: 30mm Speed range: max. 5000 rpm Clamping diameter driven tools: max. 16mm Travel X-axis: 160mm Z-axis: 305mm Riding pole travel: 370mm Feeds: Rapid response: X 20 m/min Rapid response: Z 30 m/min Rapid response: C 100 m/min

Turning diameter 320 mm Turning length 450 mm Control HEIDENHAIN Circulation diameter over slide 260 mm Travel - x 160 mm Travel - z 450 mm Speed range - main spindle 5,000 rpm Drive power - main spindle 11 / 7.5 kW Max Torque 76 / 112 Nm Turret head (x-fold) 12 pos

Year built 2004 OTHER TECHNICAL DATA POWER OF ROTATING TOOLS 4 Kw MACHINE EQUIPMENT Tool holder set supplied DIMENSIONS AND WEIGHT Length 3000 mm Width 2500 mm Height 2010 mm Weight 6700 Kg

turning diameter: 400 mm turning length: 600 mm control: swing diameter: 600 mm spindle bore: 73 mm chip conveyor: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

control: 840 C control: 2x 840 D : Kühlmittelsystem chip conveyor: ja kW generator - rated current: 95,00 A connected load: 65,00 kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: Siemens 840D Solution line, Auto bar loader: Top Automazioni XF 375

GILDEMEISTER TWIN 65 CNC automatic lathe was built in 2005 in Germany by GILDEMEISTER Drehmaschinen GmbH. The machine is used for precise, multi-axis machining of workpieces with complex geometries. To increase overall production efficiency, a combination of two spindles and two 12-position turrets with excellent technical specifications are used inside the large working area. Both spindles feature a C-axis with a high indexing accuracy of ± 0.002 mm, which facilitates complex machining operations that require precise positioning of the workpiece. All this is complemented by an intelligent SIEMENS CNC control with an intuitive interface. The GILDEMEISTER CNC turning center weighs 10000 kg. Technical specifications of the GILDEMEISTER TWIN 65 CNC lathe General data - number of axes: 8 (X1, X2, X3, Y1, B, Z1, Z2, Z3) - feed in the X1/X2/X3 axis: 300/180/175 mm - feed in the Y1/B ax ...

CNC controller: SIEMENS SINUMERIK 840D-ERGOLINE Capacity X-axis travel mm: 725 Y-axis travel mm: ± 50 Z-axis travel mm: 300 Turning length mm: 160 Max. turning diameter mm: ø: 250 Swing over bed mm: ø: 320 Tool magazine Magazine places: 16 Tool holder: VDI-30 Tool length max. mm: 390 Tool diameter max. mm: 140 Lower turret Number of tool slots St .: 12 Speed driven tools RPM: 4.000 Drive power driven tools kW: 11,7 Milling function: Yes Main spindle Speed spindle rpm: 5.000 Drive power spindle kW: 11,7 (40% ED) Maximun torque Nm: 280 / 360 (100% / 40% ED) Coolant system Tank capacity liter: 980 L High-pressure bar: 8 / 20 Equipment Chip conveyor CE conformity Coolant gun Air blast / coolant switch-over Internal coolant supply Paper band filter Automatic workpiece magazine loader - 16 positions x ø 220 Working time hours ...

4x compound slide - Pos.1; Pos.2; Pos.4; Pos.5 4x indipenden feed - Pos.1; Pos.2; Pos.4; Pos.5 threading device 1x threading spindle pick-up spindle broaching device set of cams set of collets bar-loader Cucchi Giovanni (YOM 2004)

CNC lathe GILDEMEISTER CTX 420 linear With Siemens 840 D powerline controller Year of Make: 2006 Max. rotatable diameter: 324 mm Max. rotatable length: 600 mm Max. circumferential diameter: 680 mm Spindle bore: 79 mm Max. spindle speed: 4500 rpm With the following accessories: Slide protection with interior lighting 12-speed turret with 12 driven stations Y axis , C axis Tool measuring device Parts collection facility 3 jaw chuck hydraulic 0 210 mm with foot switch Hydraulic Collet Chuck Hainbuch IRCO Breuning RBK 10012 Bar Feeder Signal lamp Tailstock with quill Conveyor Oil mist extraction Coolant system with IKZ and belt filter system Operating instructions

turning diameter: 210 mm turning length: 580 mm control: 840 D Siemens centre height: 190 mm turning diameter over bed: 330 mm turning dia. over face-slide: 260 mm Main spindle:: turning speed range - main spindle: max. 4.000 min/-1 power capacity - main spindel: 10 / 7,5 kW max. Torque: 115 / 86 Nm spindle bore: 68,5 mm max. usable bar diameter: 51 mm C - Axis: 0,001 ° axis stroke:: travel -x axis: 185 mm travel -z axis: 455 mm turret:: number of toolpositions: 12 pos. tool taper: VDI 30 Driven Tool Stations:: 6 pos. Tailstock:: tailstock adjustment: 400 mm intake pressure max.: 4.000 N feeds:: rapid traverse: X: 20 / Z: 30 m/min Feed force ( X / Y / Z ): 4,5 kN total power requirement: 21 kW weight of the machine ca.: 3,2 t dimensions of the machine ca.: 8,0 x 2,2 x 2,0 m Documents: Chip conveyor: Coolantsystem: Tailstock: parts catcher: C-axis: driven tool stations: Signa ...

turn - diameter over facing slide: 450 mm turning diameter over bed: 830 mm turning diameter: mm turning length: 3000 mm control: Siemens total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: SIEMENS 840D Max.turning length: 450 mm Max swing diametr over bed/Slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l M

Control: Heidenhain Max.turning length: 450 mm Max swing diameter over bed/slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l Ma

Key data: 205 mm, 650 mm

For sale: Gildemeister CNC lathe type Sprint 65 Linear equipped with a Fanuc 310I control. This CNC lathe is equipped with 2 equal spindles with a bar passage of 65 mm. The machine also has three turrets with 12 positions where you can place driven holders in any position! The upper turret is equipped with a Y-axis with a displacement of 80 mm ( (+50, - 30 mm). The turning diameter is 205 mm. The maximum turning length is 650 mm. The movement X1, X2, X3 is 165mm, the Z1 axis movement is 220mm, the Z2 axis movement is 150mm, and the Z3 axis movement is 768mm. The W2 axis movement is 690 mm and the maximum rapid traverses are 30 meters/min. The maximum speed of both spindles is a speed of 5,000 rpm and both spindles have a full C-axis. The tool holder holder on all turrets is VDI-30. The machine is also equipped with a hinged belt chip conveyor with right ejection and the machine has an Ir ...

Key data: 320 mm, 750 mm

Manufacturer: Gildemeister Model N.E.F. 320 K Year of construction 2004 Condition Used Siemens control system Specifications Circulation diameter 320 mm Turning length 750 mm Speed range - main spindle 3500 rpm Drive power - main spindle 9 kW Bar diameter 50 mm Tool holder Multifix size B Tailstock mount MK 5 Rapid traverse X / Z 8 / 10 m/min Machine weight approx. 2.5 t Space requirement approx. 2500 x 1800 x 1885 mm Accessories: 3 Jaw chuck Forkardt 200 Tool package Documentation

Turning diameter 80 mm Bar diameter 20 mm Spindle speed 10000 rpm X1, Y1, Z1, X2,Z2 axes Controller Fanuc FANUC 160iB LNS barfeeder

Control Siemens ... Sinumerik 840 D Turning diameter ... 365mm Rotation length ... 450mm Inclined bed Spindle bore ... 52mm Tool turret ... 12/6 Spindle speed ... 0-6000/min. Main engine power ... 12/16kW Axis C ... 360° Max. rod diameter ... 60mm L x W x H ... 4000 x 1640 x 1730mm Machine weight ... 3500kg The machine is in good condition, possible to test under electricity.

Gildemeister Sprint 65 Linear CNC lathe (with 2nd spindle, 3 turrets and Y-axis) Diameter of spindle bore 65 mm Spindle speed 5,000 rpm Spindle motor 25/20 kW Spindle speed counter spindle 5,000 rpm X-axis movement 165 / 165 / 165 Movement Y-axis 80 mm Z-axis travel 220 / 150 / 650 mm Movement of the W-axis (counter spindle to the main spindle) 690 mm C-axis indexing 0.0001° Number of towers 3 Number of tools on turret 12 (3x 12) Tool cone VDI 30 Bar Feeder LNS Quick Load Servo 65 If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other listings for a full overview of our stock.

Gildemeister Sprint 65 Linear CNC lathe (with 2nd spindle, 3 turrets and Y-axis) Diameter of spindle bore 65 mm Spindle speed 5,000 rpm Spindle motor 25/20 kW Spindle speed counter spindle 5,000 rpm X-axis movement 165 / 165 / 165 Movement Y-axis 80 mm Z-axis travel 220 / 150 / 650 mm Movement of the W-axis (counter spindle to the main spindle) 690 mm C-axis indexing 0.0001° Number of towers 3 Number of tools on turret 12 (3x 12) Tool cone VDI 30 Bar Feeder LNS Quick Load Servo 65 If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other listings for a full overview of our stock.

General: Year of construction 2006 Management Heidenhain plus IT Travel X 150 mm Z 650 mm Y 80 mm Program duration 10,600 h Spindle: Spindle speed 5,000 rpm Spindle bore 65 mm Turning diameter over face slide 375 mm Turning length 635 mm Revolver: Tool holder VDI30 Number of stations 12-fold with AGW Dimensions and weight: Dimensions 5,000 mm x 2,500 mm x 2,800 mm Weight approx. 5,800 kg

Tool holder, milling holder, milling tool -Intake: SK50 5 pieces -Sizes: see pictures -Price: complete -Dimensions box: 400/300/H270 mm -Weight: 42.1 kg

Tailstock, counter bearing for dividing head, dividing attachment -Tailstock comes: from a Gildemeister lathe -Tip height: 270 mm -Quill: electrically driven -Foot switch -Recording: MK5 -Number: 1x tailstocks available -Price: per piece -Dimensions: 820/250/H400 mm -Weight: 136 kg

Boring head, spindle head, drilling head, grooving drill head, grooving head, spindle drilling head, boring head, spindle tool -Adjustment: SK50 -Tool holder: M20 -Price: for both recordings -Weight: 16 kg

Number of axes : 6 - Number of spindles : 2 MAIN COPDLE - Max. rod diameter : 25 [mm] - Travel : 160 [mm] - Spindle speed : 8000 [rpm] - Minimum C-axis resolution : 0.0001 [degrees] SUB-SPINDLE - Max. rod diameter : 25 [mm] - Number of turrets : 1 UPPER TURRET HEAD - Number of positions : 7 - Number of motorized positions : 7 - Travel X : 100 [mm] - Travel Z : 270 [mm] - Driven tools speed : 6000 [rpm] BUSHING HOLDER 1 - Number of positions : 8 - Number of motorized positions : 3 - Driven tools speed : 6000 [rpm] - Travel X/Y : 220/30 [mm] COUNTER MACHINING - Number of positions : 3 ELECTRICAL SUPPLY - Supply voltage : 400 [V] Accessories - Control : Fanuc 18 iT - Interface : RS232 / PCMCIA - Driven guide bush - Parts removal - Coolant tank - Hydraulic Bar Loading Magazine Brand/Type : - FMB Turbo 3-26

Specifications: Main spindle: Max. turning diameter: 33 mm Max. speed: 8000 1/min Drive power: 5.5 kW Drive power at 60% ED: 7.5 kW Slide 1: Carriage path Z1: 320 mm Slide path X1: 50 mm Carriage path Y1: 255 mm Rapid traverse speed: 30 m/min Ball screw diameter: 25 mm Tool holder slide 1: Number of tools fixed with tool shank 16 x 16: 5 pieces Slide 2: Slide path X2: 165 mm Carriage path Z2: 200 mm Rapid traverse speed: 30 m/min Ball screw diameter: 30 mm Tool holder slide 2: Number of stations for turret with integrated spindle: 8 pieces Number of axially driven tools (integrated): 8 pieces Coolant pan, approx.: 400l Coolant pump, max. capacity: 80 l/min Dimensions (LxWxH), approx.: 2460 x 1510 x 1750 mm Equipment: - CNC control Fanuc iT - Workpiece unloading system - IEMCA bar loading magazine - 5-item tool carrier plate for carriage 1 - Elec ...

Please see the pictures for details

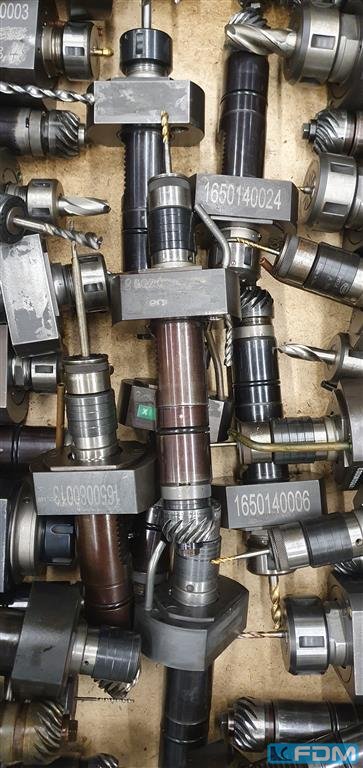

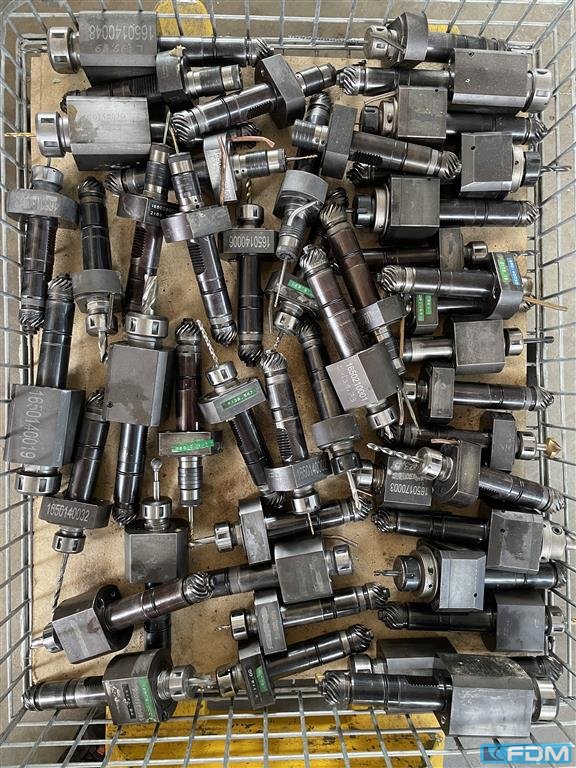

tool taper: 40 shaft cross cut:40 appr. 40 pieces axial driven tool taper with various cutters Used with Gildemeister GDM CNC lathe Sale as complete package or single, min. 5 pieces Price offered for complete package

turning diameter:500 mm turning diameter over bed:500 mm turning dia. over base-slide:290 mm centre distance:1000 mm centre height:250 mm z-travel:1350 mm speeds:10 - 3000 U/min

Control Siemens Bar passage 32 mm 2 x 12-speed revolver with attached revolver Competition. Main / sub-spindle Y-axis turret top Parts pick-up device Conveyor IRCO Bar Loading Magazine

Used machine in good condition. Available for immediate delivery. - Spindle power?: 28/21 kW - Control: 840 D SIEMENS - Axes: 5 - Workpiece diameter: 240 mm - Max. spindle speed: 5.000 rpm - Stroke (X): 190 mm - Stroke (Y): 40 mm - Stroke (Z): 555 mm - Maximum tool diameter ?: 200 mm - Main spindle bore: 79 mm - Weight: 6.500 kg

turning diameter: 20 mm turning length: 230 mm control: Fanuc 16iT total power requirement: 0,55 kW weight of the machine ca.: 2,6 t dimensions of the machine ca.: 2275 x 1300 x 1760 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 290 mm turning length: 450 mm control: CNC spindle passage: 65 mm turning diameter over slide: 185 mm turning speeds: 3000 U/min Tool changer: 12 work piece power: VDI 40 live tooling: chip conveyor: kW coolant: swing diameter: 600 mm total power requirement: 45 kW weight of the machine ca.: 4,7 t dimensions of the machine ca.: 4,5x2,5x2,3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 320 mm turning length: 750 mm control: Siemens type: 810DL CCUO turning diameter over slide rest: 150 mm cross movement: 185 mm spindle passage: 52 mm turning speeds: 14-3550 U/min transmission ratio: 2 quill stroke: 120 mm rapid traverse: 6 m/min main drive motor: 7 kW 3-jaw-chuck diameter: 200 mm total power requirement: 10 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,6x1,44x1,44 m 8950 turning hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
