TRUMPF TruDisk 3006 6C laser source was built in 2016 in Germany by TRUMPF Laser GmbH. This extremely versatile device enables a wide range of industrial machines to be supplied with a high-quality 3 kW laser beam. The beam has many applications in modern industry. It can be used to both weld and cut sheet metal made of, e.g. steel, copper, brass and highly reflective materials. Active laser power control guarantees 100% constant power over the entire service life of the device, regardless of ambient conditions. All components, i.e. beam guide, current supply, cooling system and control system, are of modular design. They have been optimally adapted to each other inside the compact housing. The small size of the housing also enables the device to be easily integrated with, e.g. robotic systems. All this makes the offered TRUMPF 3006 laser resonator extremely reliable and robust under  ...

Description, subject to prior sale. Additive Manufacturing - 3D print: Trumpf TruPrint 1000 - Green Laser Basis machine: Trumpf TruPrint 1000 y.o.m. 2019 Assembly space: ∅ build cylinders 100mm, effective building area 97 mm, Building height 100 mm Operation hours 27500 h (incl. production time 2290 h) Condition excellent Laser machine: Trumpf TruDisk, 1020 Power: Single Laser Output power of 1000 W at workpiece Green wavelength: 515 nm Condition excellent. Can be seen under power. Technical indications, subject to error.

2017 Trumpf TruDisk2002 (FD24) A laser device with chiller in excellent technical condition Manufacturer: Trumpf Type: TruDisk 2002 (FD24) 380 V -10%... 460 V +10%, 3AC +PE 11,8 kW/12,6 kVA 18 A/400 V IP 54 50... 60 Hz July 2017 4/2LLK: 550/470 kg Icn/SCCR 13 KA Find more here - / Contact us at -

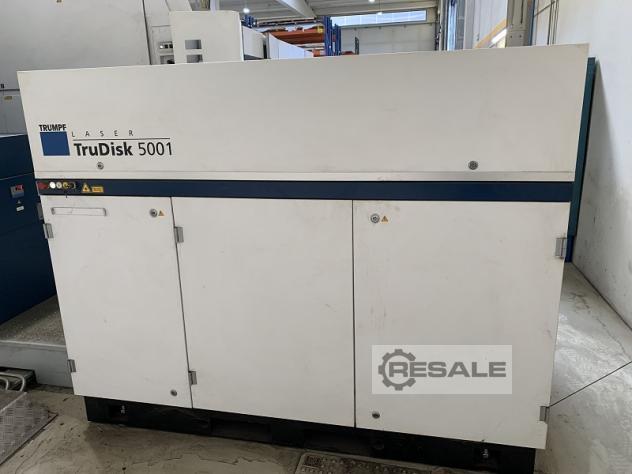

Manufacturer: Trumpf Type: TruDisk 5001(6C) Year of construction: 2018 Laser power: 5 kW Wavelength: 1030 nm Beam quality: 4 mm mrad Location: Dresden Optionally, the laser optics PFO 33-2 R1030-1070 HA as well as other accessories are available from us!

A laser system with 1 loading station and two stations each is available. Welding fixtures: 4, laser power: 3.3kW, beam source: TruDisk 3302 disk laser, workpiece dimensions X/Y/Z: 300mm/100mm/100mm, material thickness: 1.5mm, welding speed: 5600mm/min, welding optics: Trumpf BEO D70, operating hours: approx. 70000h. Documentation available. On-site inspection is possible.

Laser power: 4000W (4kW), wavelength: 1030nm, beam quality (BPP): 8mm/mrad, beam diameter setting: 0.1µm, machine dimensions X/Y/Z: approx. 1000mm/1600mm/1600mm, weight: approx. 1000kg. Including 2x scanner optics (PFO) for the process cells, 3x fiber optic cables and spare parts. Documentation available. On-site inspection is possible.

TRUMPF TruLaser 3030 fiber laser built in Germany in 2013, is used for precision machining of workpieces made of structural steel, stainless steel, as well as brass and copper, thanks to special technology data packages equipped in the machine. The extremely efficient and reliable fibre-cutting technology expands the machining possibilities and allows to achieve very smooth and even edges. The laser cutting machine features a robust, durable design that prevents any vibrations from occurring during changes in direction. The enclosed laser body with lift-up roof and fixed guards effectively protect the operator during work. The axes are driven by a direct Torque drive (X-axis) and direct linear drives (Y-axis and Z-axis), which, combined with hardened guideways of the highest manufacture precision, ensure that high accelerations and working speeds are achieved. Generated by the reli ...

specifications: Working area 4,000 x 2,000 x 115 mm Control Siemens Sinumerik 840D SL Laser power 5,000 watts max. sheet thickness structural steel 25 mm max. sheet thickness stainless steel 25 mm max. sheet thickness Alu 25 mm max. sheet thickness copper 10 mm max. sheet thickness brass 10 mm Standard: Equipment Machine - Closed machine frame - Movement unit for high-precision processing - Integrated cabinet - Automatic pallet changer in longitudinal direction - Torque drive in combination with linear direct drives - Closed beam guidance via light guide cable (LLK) - Machine cooling unit (water-air) - Integrated control cabinets with interior lighting - Power supply TruDisk via the machine - Longitudinal conveyor belt - Workroom lighting - Position laser diode - PierceLine - FocusLine - NitroLine - PlasmaLine - Automatic nozzle cleaning TRUMPF laser  ...

Trumpf TruLaser Robot 5020Year of manuf. : 2010 ____________Description:TruDisk 3302 laser system:- TRUMPF TruDisk 3302 with a beam quality of 8 mm mrad:- Output power of 3.3 kW at the workpiece:- Laser system with 1 cavity:- Beam delivery system comprising an optical assembly for a single optical path, a fast switch (50 ms switching time) and a pilot laser including electrical control:- Integrated power supply and real-time capable control system for the evaluation and visualisation of operational data:- Fast laser power control:- TruControl 1000 control system:- Storage capacity for 199 laser programmes:- Safety monitoring in accordance with laser safety class 1, including a central safety lock:- Protection class IP54:- 10.4 panel computer with TFT touchscreenExtension of the beam path:Plus 1 additional laser light cable output, including interface card:consisting of::# Optical a ...

TruDisk 3302 laser device - TRUMPF TruDisk 3302 laser device with a beam quality of 8 mm mrad- output power 3300 watts on the workpiece- laser device with 1 cavity- beam guidance consisting of optical structure for 1 light path, fast crossover (50 ms switching time) and pilot laser incl. Electrical control- Integrated power supply and real-time capable control for evaluation and visualization of functional data- Fast laser power control- TruControl 1000 control- CPU with real-time operating system- 2 USB interfaces- 24 Dig. 1/0 interfaces, 4 of which are for real-time operation- Storage option for 199 laser programs- 1 TPB Profibus module EL6731-0010 Integrated intelligent water management (CLK) with water-to-water heat exchanger and display of operating states on the control unit- Safety monitoring according to laser protection class 1 incl. central safety lock- Housing for max. 4 l ...

Available quantity: 2 systems Year of Make: 2019 Weight: 6021 kg Rated current: 20 A Connected load: 12 kVA Disk laser: Trumpf 12-12-30-A32/11 with focusing optics (PFO) Laser measurement and determination: PRIMES FocusParamaterMontitor (FPM) Laser source: Trumpf TruDisk 5001 Welding fume extraction: HERDING Comp 1500-8/9 SB Year of extraction: 2018 Extraction volume: 2000 Bm³/h Included: HERDING Multicoater_MCI 55/1 dosing device for adding additives to the filtration process Enclosure cooling: RITTAL SK 3185830 The system was used to produce batteries.

Manufacturer: Trumpf Model: TruDisk 8002 (6000) Type: TruLaser-Robot 5020 Date of Manufacture: December 2007 Weight: 2000 kg Technical Specifications Electrical Details: - Voltage: 380 V (-10%) to 460 V (+10%) - Phase: 3 Phase + PE - Frequency: 50 - 60 Hz - Current: 56 A (at 400 V) Power Consumption: - Power: 39 kW / 40 kVA Find more here - / Contact us at -

TECHNICAL DATA: Work area: 2070 x 1280 mm Control: Bosch PNC-P Maximum punching force: 165 kN maximum sheet thickness: 6,4 mm maximum workpiece weight: 150 kg max cutting diameter: 76.2 mm advanced equipment: -Function multi tool -Sign -Function Multibend -Function Multishear TOP-Zustand! (Errors and omissions in the technical data, information and prices and subject to prior sale!)

TECHNICAL DATA: Pressing force: 500 kN Bending length: 1,275 mm Free stand passage: 1,040 mm Stroke: 215 mm height: 385 mm Control: Delem DA-69 TS Velocity range in x 860 mm Table width: 100 mm ADVANCED FEATURES: Hydraulic top tool holder "Modufix" Substation stuff recording for single-V matrices with hydraulic clamping Preparation angle measuring system ACB Network card with BNC and RJ45 connector EoF6OROZg

TECHNICAL DATA: Work area: 3.000 x 1.500 x 115 mm control: Siemens Sinumerik 840 D laser power: 3,200 watts maximum sheet thickness structural steel: 20 mm maximum thickness stainless steel: 12 mm maximum thickness aluminium: 8 mm STANDARD equipment: -closed machine frame with integrated laser unit -Laser unit: CO2 laser TLF 2000 high-frequency reflector telescope, cooling unit, maintenance-free Turbo centrifugal blower, logbook function angeregt -Automatic pallet changer -Longitudinal conveyor for small parts/waste -Drives: maintenance-free three-phase servomotors -Cutting head quick change facility -Laser cutting head with 5 "lens and laser cutting head with 7.5" lens -Cutting gas pressure setting can be programmed -APC capacitive height control and process control -automatic focus position adjustment of AutoLas plus -Laser power control -Position laser diode -HI-LAS high p ...

TECHNICAL DATA: Work area 3.000 x 1.500 x 115 mm Control Siemens Sinumerik 840 D Laser power 4,000 watts Maximum sheet thickness mild steel 20 mm Maximum sheet thickness stainless steel 15 mm Maximum sheet thickness ALU 10 mm -maximum workpiece weight approx.: 900 kg -maximum speed simultaneously approx.: 140m / min - smallest programmable way mass approx.: 0.01 mm -Position deviation: +/-0.05 mm -Repeatability: +/-0.03 mm -Space requirement approx.: L 9,300 x B 4,600 x H 2200 mm -Approximate weight: 12,000 kg STANDARD EQUIPMENT: -Closed machine frame with integrated laser unit -Motion unit for high-precision machining Torque drive in combination with direct linear drives -Closed beam delivery -Cooling unit -Automatic pallet changer -Longitudinal conveyor for small parts / waste -Lighting of workroom -Position laser diode -Spraying device -PierceLine -Pla ...

TECHNICAL DATA: -Format: 3.000 x 1.500 mm -Year of construction: 2015 -LoadMaster incl. loading station and cow magnets -Magnet device to the LoadMaster -Establishment of special machine -suitable for TRUMPF TruLaser 3030 / 5030 -Machine had in reducing NC a 7, 000 h (Errors and omissions in the technical data, information and prices and subject to prior sale!)

Control system: TRUMPF Power on: 35071 h Cutting time: 14638 h Laser power: 3 kW Table dimensions: 3000 x 1500 mm Travel distances: X: 3000 mm Y: 1500 mm Z: 115 mm Max. Thickness of material Mild steel: 20 mm Stainless steel: 12 mm Aluminum: 8 mm Machine dimensions: 9300 x 4600 x 2200 mm Machine weight: 12000 kg

TECHNICAL DATA: Work area 3.000 x 1.500 x 115 mm Control Siemens Sinumerik 840 D SL Laser power 5,000 watts Maximum sheet thickness mild steel 25 mm Maximum sheet thickness stainless steel 25 mm Maximum sheet thickness aluminium 25 mm Maximum sheet thickness copper 10 mm Maximum sheet thickness brass 10 mm Current hours of operation: laser-a: approx. 4819 STD / laser beam-a: 2242 hours STANDARD EQUIPMENT: -Automatic pallet changer with aengsfoerderband -Lighting of workroom -Position laser diode -Spraying device -PierceLine -FocusLine -NitroLine -PlasmaLine -Universal cutter with fully Adaptive lens system -ControlLine (treble and sheet metal outer edge detection) -Automatic switch-off -ContourLine -FastLine -FlyLine -Microweld -AdjustLine -Colour: Blue RAL-design 250 20 20 / white - NCS S 0505-R80B advanced equipment: -Solid state lasers TruDisk 5001  ...

Trumpf TKF 103 welding edge shaper. 220 Volt under electricity ready for use Special price

TECHNICAL DATA: Working field 4.000 x 2.000 x 115 mm Control Siemens Sinumerik 840 D Laser power 6,000 watts Maximum sheet thickness mild steel 25 mm Maximum sheet thickness stainless steel 20 mm Maximum sheet thickness ALU 12 mm STANDARD EQUIPMENT: -Closed machine frame with integrated laser unit -TRUMPF laser TLF 6000 -Laser unit: CO2 laser, high-frequency unit, logbook function angeregt, -Automatic pallet changer and longitudinal conveyor belt -Drives: Gantry drive in combination with direct linear drives -Laser power control -HI-LAS high pressure cutting -Plasmasensorik PMS -Fast processing with SprintLas -ContourLas for making small holes -Cutting gas pressure setting can be programmed -Laser cutting head with 5 "lens -Laser cutting head with 7.5 "-lens" -Cutting head quick change facility -Capacitive height control (slides III) -Automatic ...

REF.-No. 00461 Designation of the copier plant and coordinate punching machine manufacturer Trumpf model CN 700 year unknown Workspace 2000x1000mm force 4 mm sheet steel technical information plate below Technical condition of the goods due date immediately

TECHNICAL DATA: Working range: 4,000 x 2,000 x 115 mm control: Siemens Sinumerik 840 D laser power: 4,000 watts maximum sheet thickness structural steel: 20 mm max sheet thickness stainless steel: 15 mm max sheet thickness ALU: 10 mm STANDARD equipment: -closed machine frame with integrated laser unit -Laser unit: CO2 laser TruFlow 2000 high-frequency reflector telescope, cooling unit, maintenance-free Turbo centrifugal blower, logbook function angeregt -Automatic pallet changer -Longitudinal conveyor for small parts/waste -Drives: maintenance-free three-phase servomotors -Cutting head quick change facility -Laser cutting head with 5 "lens and laser cutting head with 7.5" lens -Cutting gas pressure setting can be programmed -APC capacitive height control and process control -automatic focus position adjustment of AutoLas plus -Laser power control -Position lase ...

TECHNICAL DATA: Work area 3.000 x 1.500 x 115 mm Control Siemens Sinumerik 840 D Laser power 7,000 watts Maximum sheet thickness mild steel 25 mm Maximum sheet thickness stainless steel 30 mm Maximum sheet thickness aluminum 20 mm Hours of operation: NC a 31.300 h / beam a 15.100 h (Feb/2018) STANDARD EQUIPMENT: - Closed machine frame with integrated Laseragregat - Laser unit: CO2 laser TruFlow 5000 high frequency angeregt, maintenance-free Turbo centrifugal blower, cooling unit Logbuchbunktion - Automatic pallet changer - Longitudinal conveyor for small parts/waste - Drives: Gantry drive in combination with direct linear drives - Universal cutting head quick change facility UTI with fieldbus connection - Laser cutting head with a 250 mm lens - Programmable cutting gas pressure setting - ControlLine capacitive height control and process control - Automatic focus ...

TECHNICAL DATA: Work area: 3.000 x 1.500 x 115 mm Control: Siemens Sinumerik 840 D Laser power: 3,200 watts Maximum sheet thickness mild steel: 20 mm Maximum sheet thickness stainless steel: 12 mm Maximum sheet thickness aluminium: 8 mm STANDARD EQUIPMENT: -Closed machine frame with integrated laser system - laser unit: CO2 laser, high-frequency excited, reflecting telescope, cooling unit - automatic pallet changer and longitudinal conveyor belt - drives: maintenance-free three-phase servomotors automatic Focus position adjustment of AutoLas plus - HI-LAS high pressure cutting - Plasmasensorik PMS - fast processing with SprintLas - ContourLas for making small holes cutting gas pressure setting programmable laser cutting head with 5 "lens and laser cutting head with 7.5 "lens cutting head quick change facility slides III - logbook function laser - automatic - light ...
