34 STUDER used machine for sale

grinding diameter: 0,2 - 190 mm grinding length:400 mm centre height:100 mm weight of the machine ca.:1,6 t dimensions of the machine ca.:2 x 1,5 x 1,8 m

CNC CYLINDRICAL GRINDING MACHINE Fritz Studer AG — Model S22 CNC Hours in picture MACHINE IDENTITY Machine type CNC Cylindrical Grinding Machine Manufacturer Fritz Studer AG Model S22 CNC Serie 004 Serial No. 040.0004 Year of manufacture 2009 Machine base Granitan® S103 mineral casting Control system FANUC 31i-A CNC Configuration Fixed straight wheelhead (OD grinding) WORKPIECE DIMENSIONS Distance between centers 650 mm (25.6") Center height 175 mm (6.9") Max. workpiece weight 150 kg (330 lbs) Max. workpiece length 700 mm Max. workpiece diameter 449 mm GRINDING WHEEL Grinding wheel diameter 610 mm Grinding wheel width 160 mm Grinding wheel speed Up to 3,200 rpm Spindle power 15 kW (20.5 hp) Wheelhead type Fixed straight HSG peripheral speed Up to 140 m/s (optional) AXIS TRAVEL & DYNAMICS X-axis travel 310 mm X-axis max. speed 15,000 mm/min Z- ...

grinding diameter: 250 mm grinding length: 650 mm centre height: 125 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Maschine wird mit Wartung und neuer Geometrie verkauft Betriebsstunden bisher 12260 Reitstock mit Feinverstellung Schleifspindelstock schwenkbar mit 5° Hirtverzahnung Papierbandfilter Marposs Messeinrichtung Innenschleifeinrichtung The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: - mm grinding length: - mm centre height: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1000 mm centre height: 175 mm b-axis: 1 ° max. dia. of grinding wheel: 500 mm internal grinding spindles: 60000 U/Min c-axis: 0.001 ° weight of the machine ca.: 5.7 t dimensions of the machine ca.: 4.25 x 2.2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: mm grinding length: mm centre height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

internal diameter: 99999 mm grinding depth: 99999 mm swing diameter: 99999 mm grinding diameter: 99999 mm grinding length: 200 mm centre height: 175 mm control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC internal grinding machine B-axis 4 x 90° Q-axis for adjusting tapers Used with minor maintenance 2 HF internal grinding spindles: -Fischer MFM 1090 90,000 rpm -Fischer MFM 1242/60 42,000-60,000 rpm 1 external grinding motor spindle Fischer MFVS1407 7,000 rpm -Pneumatic power clamping device with 20mm stroke -Dressing device with 2 swivelling arms, hydraulically foldable back -Grinding detection ring sensor Dittel on the workpiece headstock -Passive grinding detection with magnetic base -Paper belt filter 375 l The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer:STUDER Model: S33_1045 Year of Manufacture: 2022 Operating Hours : approx. 2500h Included Equipment: DGS filter system. Tip length : 400mm with 2 grinding wheels Find more here - / Contact us at -

grinding diameter: 350 mm grinding length: 540 mm centre height: 175 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m 2015 wurde bei Studer der WSS, Reitstock und Werkstücktisch überholt 2024 Austausch KGT von X+Z- Achse durch Studer Kühlmittelanlage mit Magnetwalze Werkstückspindelstock Reitstock Meßsteuerung Auswuchtgerät Dittel Lünette PCU-Terminal The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: 125 mm centre distance: 400 mm Control: FANUC 21i Capstan diameter: max. 406 mm wheel dimensions: 406 x 127 x 40 mm workpiece weight: 30 kg longitudinal slide -travel: 483 mm cross slide - travel: 254 mm total power requirement: max. 20 kVA weight of the machine ca.: 4,0 t dimensions of the machine ca.: 3,0 x 2,0 x 2,1 m including 2 Pcs. internal grinding spindle incl. B axis 1° Hirt, controlled incl. C-axis incl. Quick-Set Probe including Sensitron including Magnetic Jaw including hydraulically foldable dresser including other small accessories including documentation without a coolant system, as it was previously connected to a central unit Power On hours approx. 71,000 h Spindle hours approx. 25,900 h The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine no. 2037.04 See photos !

This 4-axis STUDER S33 cylindrical grinding machine was manufactured in 2023. It features a distance between centers of 650 mm, center height of 175 mm, and can handle a maximum workpiece weight of 150 kg. Equipped with a Fanuc 31i-B control system, it also includes a measuring probe, fire extinguishing system, oil mist separator, and coolers. Consider the opportunity to buy this STUDER S33 cylindrical grinding machine. Contact us for more information about this machine.

Cylindrical grinding machine manufactured in 1999. This STUDER S30 LEAN PRO features a B-axis with a rotation of +/- 195°/15°, X-axis travel of 275 mm, and Z-axis travel of 1050 mm. If you are looking to get high-quality grinding capabilities, consider the STUDER S30 LEAN PRO machine we have for sale. Contact us for further details.

The machine is in good technical condition, testing is possible by prior arrangement.

Cylindrical grinding machine manufactured in 2004. This STUDER S33 CNC features a Z-axis travel of 1000 mm and an X-axis travel of 285 mm. It is equipped with a grinding spindle diameter of 73 mm and can handle a maximum workpiece length of 1000 mm, with a weight capacity of 120 kg. If you are looking to get high-quality grinding capabilities, consider the STUDER S33 CNC machine we have for sale. Contact us for further details.

Center height 175 , Center width 700 , Inclined position of rotary table 10° , Workpiece headstock swivel 90° , Speed range 30-675 rpm , Morse code 5 ,grinding headstock _ grinding wheel diameter 400 , largest width 50 , drive power 6,25kW

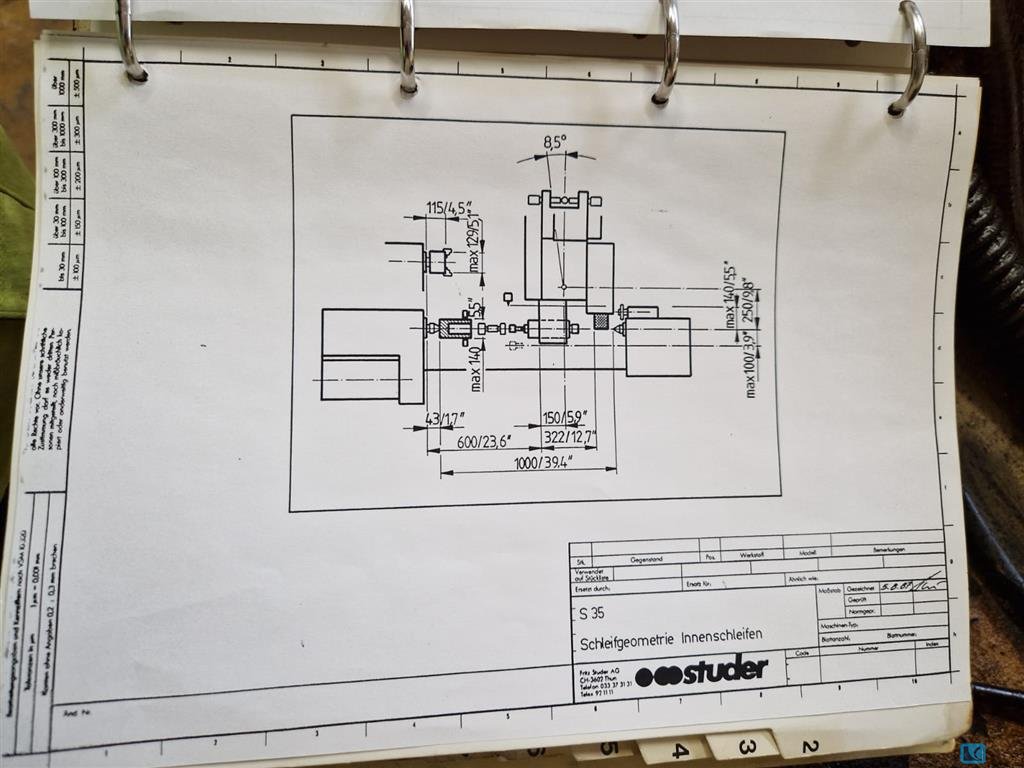

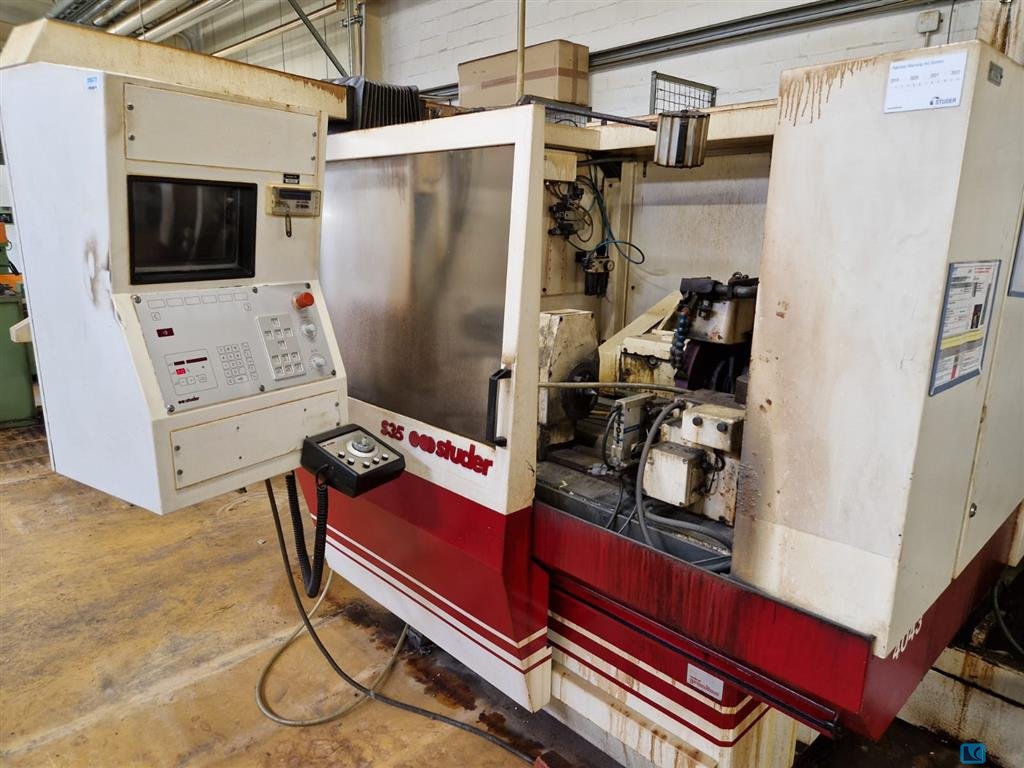

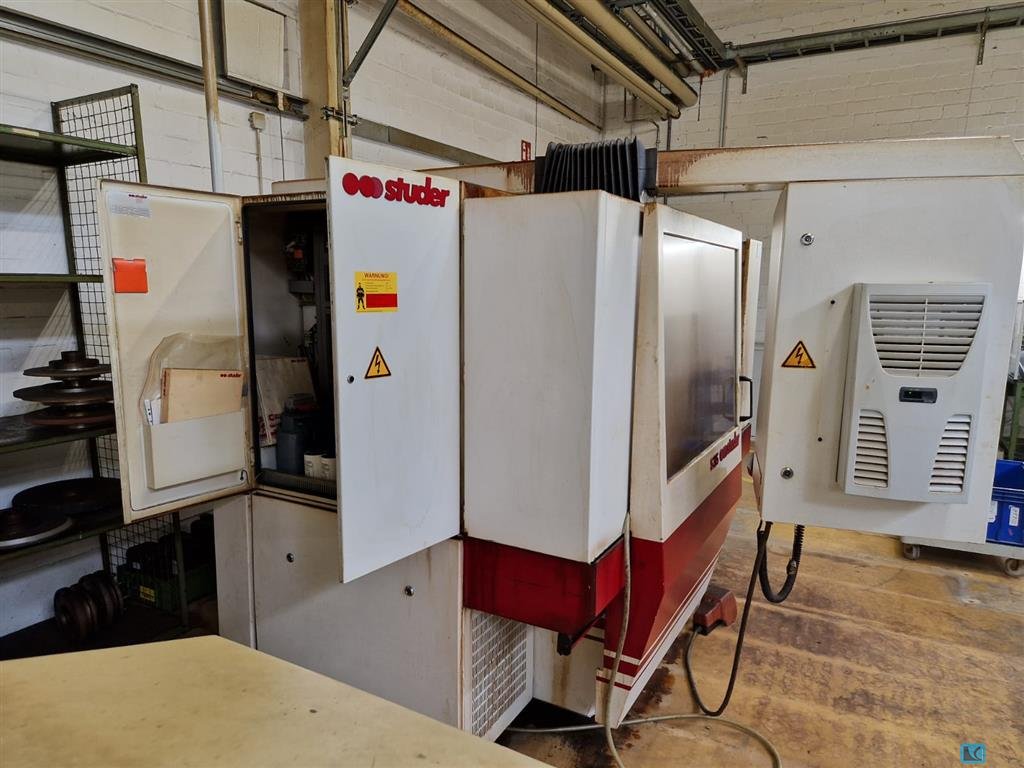

Offered is a used high-precision Studer S35 CNC cylindrical grinding machine. Center distance: 1000mm, center height: 175mm, swing diameter max. approx. 350mm, workpiece weight: approx. 80kg, resolution: measuring systems glass scales range 0.0001mm 0.1µm. Inspection by appointment possible.

Studer S20 cylindrical grinding machine

grinding diameter: 10-300 mm grinding length: 650 mm centre height: 175 mm Control: total power requirement: 12 kW weight of the machine ca.: 3,7 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Center height: 175mm, grinding length: 650mm, B-axis: -15°/195°, workpiece speed: 1750rpm, grinding wheels T1/T2: 500mm/400mm, bore: 203mm, max. workpiece weight: 80kg, workhead: MK4, tailstock: MK3. Machine dimensions X/Y/Z: approx. 3000mm/3000mm/2100mm, weight: approx. 4000kg, operating hours: 56300h, control: GE Fanuc Series 16i-T. Documentation available. On-site inspection is possible. Expected to be available from February/March 2025.

grinding diameter: 250 mm grinding length: 400 mm centre height: 125 mm Control: Fanuc 21i-T total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Maschine gewartet und teilüberholt. -Neue Schleifspindellagerung -Neue x-Achs Spindel -Obertisch überschliffen -Neue Geometrie Tischgeometrie -Neue Geometrie WSS zu Schleifspindeln B-Achse mit 1° Hirth Verzahnung Längspositionierung HF-Innenschleifspindel GAP Papierbandfilter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Universal cylindrical grinding machine for external and internal grinding with accessories Features: - Automatic grinding cycles - X/Z axes electrically controlled - Table can be swivelled up to 30° - Swivelling grinding head - Short changeover times from external to internal grinding - Easy to use - Compact design Hours: 12936 Weight: 2300Kg Technical data: see picture Further details on request

Various flanges

grinding diameter: 250 mm grinding length: 1000 mm centre height: 125 mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: 200 mm grinding length: 400 mm centre height: 100 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC external cylindrical grinding machine, brand Studer, type S40-4, Bi 1987, Documents are available. The price is net

Distance between points: 650 mm, Max external diameter to be rectified: 320 mm, Working wheel dimensions (od x id x width): Ø400 x Ø127 x 80 mm, Ø interior max to be rectified: 140 mm, Height of points: 175 mm, Control type (CNC/manual): CNC, CNC brand: SIEMENS, CNC model: SINUMERIC 3G7, Maximum length to be rectified: 650 mm, Max. piece weight: 130 Kg, Main engine power: 5.5 Kw, Total power: 22 KVA, Max. revolutions of the workhead: 30 - 750 rpm, Strain: 380 V / 50 Hz, X-axis feed: 0.01 – 5,000 mm/min, Z-axis feed: 0.06 – 10,000 mm/min, Air pressure: 5 bar, Max travel X axis: 275 mm, Max travel Z axis: 700, Max. rotation of workpiece table: 8.5º, Inner cone of workpiece head: M 5, tailstock cone: M 3, Counterpoint reed route: 35 mm, Dimensions (length x width x height): 2,815mm x 1,875mm x 2,090mm, Weight: 3.600 Kg

Max distance between points: 1000 mm, Max travel Z axis: 650 mm, Max travel X axis: 254 mm, Height of points: 175 mm, Max. diameter to be rectified: 350 mm, Main engine power: 7.5 Kw, Max. piece weight: 130 Kg, Control type (CNC/manual): CNC, CNC brand: FANUC, CNC model: Oi-TF PLUS, Grinding wheel dimensions: Ø500 x Ø203 x 80 mm, Angle of inclination of the work wheel head: + / -8.5°, Long: 2500 mm, Width: 2300 mm, Height: 2000 mm, Weight approx.: 3500 Kg

Distance between points: 1000 mm, Point height: 175 mm, grinding length: 500 mm, Ø max to be rectified: 300 mm, inner cone: Morse 5, Working wheel motor power: 7.5 Kw, Longitudinal travel of the carriage (X axis): 267 mm, Transverse travel of the carriage (Z axis): 650 mm, cnc brand: FANUC, cnc model: 16-T
