PAAL konti used machines

BALLER PAAL KONTI 425 C Technical specifications: Manufacturer: Paal Type: Konti 425C Year of manufacture: 1995 Klsdm Ajx Dk Ttsty Atel Feed opening: 102 x 175 cm Drive power: 170 kW Caedm Atyexx Su Uo Atsa Compression force: 85 t Settings: Horizontal, fully automatic Roll weight: 500-650 kg Press weight: 25 t PRICE ON REQUEST! ----- BALLER PAAL KONTI 425 C Technische Daten: Hersteller: Paal Typ: Konti 425C Herstellungsjahr: 1995 Bwsbjycfuqsmcbw Nveh Einfüllöffnung: 102 x 175 cm Antriebsleistung: 170 kW Kompressionskraft: 85 t Einstellungen: Horizontal, Vollautomatisch Rollengewicht: 500-650 kg Pressgewicht: 25 t PREIS BEI ANFRAGE!

For sale: Paal Konti 425 D horizontal baler Technical specifications: Manufacturer: Paal Type: Konti 425D Year of manufacture: 2002 Feed opening: 102 x 200 cm Drive power: 2 x 45, 2 x 75 kW Kledex Dlanem Aty Atsl Pressing force: 115 t Settings: Horizontal, fully automatic Roll weight: 550-850 kg Pressing weight: 36 t PRICE ON REQUEST! ----- Verkaufen horizontal Baller Paal Konti 425 D Technische Daten: Hersteller: Paal Typ: Konti 425D Baujahr: 2002 Einfüllöffnung: 102 x 200 cm Antriebsleistung: 2 x 45, 2 x 75 kW Druckkraft: 115 t Einstellungen: Horizontal, Vollautomatisch Rollengewicht: 550-850 kg Pressgewicht: 36 t PREIS BEI ANFRAGE!

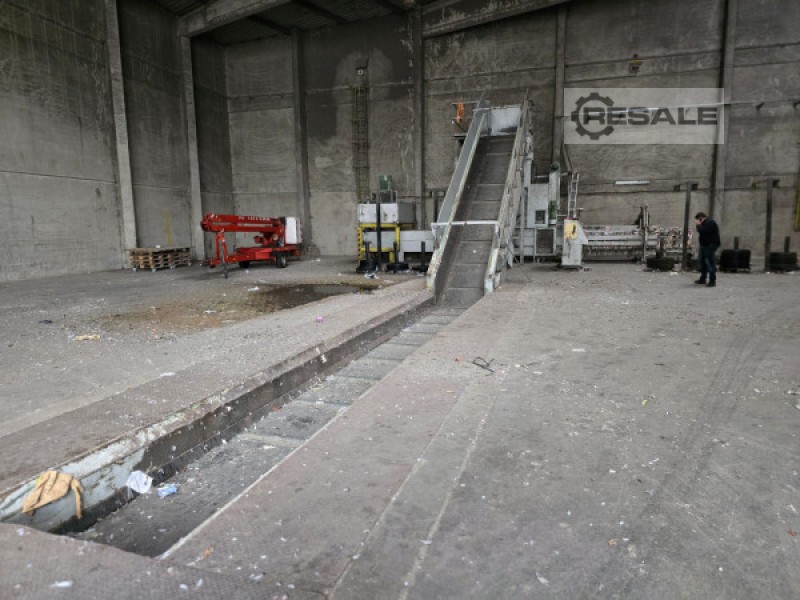

Baler Paal Konti 200 D, built in 2000, optionally with matching conveyor belt Paal KEM-1400 Technical data: Manufacturer: Paal Type Paal Konti 200 D Year of construction 2000 Hours: 28155 Pressing force 60 t Drive power 45 kW Total connection 60 kW Filling opening 1020 x 1400 mm Bale dimensions 750 x 1100 mm, length variable 4-fold automatic tying throughput at 35 kg/m³ approx. 9.5 t/h 60 kg/m³ approx. 16.5 t/h 100 kg/m³ approx. 26 t/h Bale weight 450 to 650 kg Transport dimensions approx. 10123 x 2152 x 2720 mm (LxWxH) Machine weight approx. 15,000 kg Materials: paper, cardboard, foil The press is in good condition and has been inspected and tested. You can find a video on our website or YouTube channel. The complete documentation is available. Please note: All technical data refer to the manufacturer's specifications. We a ...

Baler Paal Konti 325 D/SO, built in 1999 Technical data: Manufacturer: Paal Type Paal Konti 325 D/SO Built in 1999 Hours: 50702 Press force 94 t Drive power: 2 x 45 kW Total connection 104 kW Filling opening 1020 x 1750 mm Bale dimensions 750 x 1100 mm, length variable 4-fold automatic tying Throughput at 35 kg/m³ approx. 14 t/h 60 kg/m³ approx. 24 t/h 100 kg/m³ approx. 38 t/h Bale weight 525 to 800 kg Transport dimensions approx. 12352 x 2340 x 2800 mm (LxWxH) Machine weight approx. 28,000 kg Materials: paper, cardboard, light waste, plastic waste Please note: All technical data refer to the manufacturer's specifications. We assume no liability for the information provided or any errors. The offer is subject to change, subject to prior sale and can be revoked at any time. Visits are possible by arrangement. The sale against advance payment is made ex wor ...

Just Arrived Baler Paal Konti 325 G, built in 2013 Technical data: Manufacturer: Paal Type Konti 325 G Year of construction 2013 Hours: 12110 Press force 100 t Drive power 2 x 55 kW Filling opening 1020 x 1750 mm Bale dimensions 750 x 1100 mm, length variable Setting 5-fold automatic Throughput at 35 kg/m³ approx. 13.5 t/h 60 kg/m³ approx. 21.5 t/h 100 kg/m³ approx. 33 t/h Bale weight up to 800 kg Transport dimensions approx. 12216 x 2530 x 2800 mm (LxWxH) Machine weight approx. 28,000 kg Materials: paper, cardboard, light waste, plastic waste Please note: All technical data refer to the manufacturer's specifications. We assume no liability for the information provided or any errors. The offer is subject to change, subject to prior sale and can be revoked at any time. Visits are possible by arrangement. The sale against advance payment is made ex works, w ...

automatic baling press Manufacturer: PAAL Type: KONTI 275 F Built: 2007 Main parts of the press: 1 automatic duct press (without wire winding devices) 1 automatic lacing 1 Hydraulic system 1 Electric control technical data: Pressing force: 800 kN / 80 t at 300 bar Specific pressing force: 9.70 kg/cm2 Channel cross-section (h x w): 750 x 1,100 mm Filling opening: 1,020 x 1,600mm Number of connecting wires: 4 pieces vertically Drive power: Main pump: 1 x 45 kW Pump delivery capacity: 1 x 380 l/min Throughput: up to approx. 280 m3/h under operating conditions Performance at: - 35 kg/m3 bulk weight: approx. 9.5 t/h - 60 kg/m3 bulk weight: approx. 16.5 t/h - 100 kg/m3 bulk weight: approx. 26.0 t/h Hydraulic oil tank volume: 2,100 l Operating voltage: 3 x 400 VAC / 50 Hz / N / PE Other equipment: Operator Panel MP 270 auto ...

automatic baler Manufacturer: PAAL Type: KONTI 275 D/k Year of construction 1999 specifications: Pressing force: 75 t Specific pressing force: 9.09 kg/cm² Channel format: 750 x 1,100 mm Bale weight: 500 - 750 kg, depending on material and bale length Filling opening: 1,550 x 1,020 mm Drive power: 75 kW Throughput: 350 m³/h Pressing capacity: - approx. 12.0 t/h at department store (35 kg/m³ bulk density) - approx. 21.0 t/h for mixed paper (60 kg/m³ bulk density) - approx. 33.0 t/h for collected goods (100 kg/m³ bulk density) Binding: 4-fold vertical + 3-fold horizontal Machine weight: approx. 25.0 t

automatic baler Manufacturer: PAAL Type: KONTI 600 G/S/K with cross-binding Year of construction 2012 Operating hours: approx. 44,700 hours specifications: Press force: 1,546 kN System pressure: 315 bar Bale size: 1,100 x 1,100 x length in mm Filling opening: 2,000 x 1,020 mm Drive power: 3 x 55 kW Pump capacity: 3 x 420 Ltr. Oil tank volume: 3,100 ltr. Throughput:approx. 780 m³/h Capacity at idle: approx. 1,220 m³/h Capacity at 35 kg/m³: approx. 26.5 t/h Output at 60 kg/m³: approx. 44.0 t/h Output at 100 kg/m³: approx. 69.0 t/h Control: Siemens S7 Setting: 5-fold vertical Additional 4-fold automatic horizontal tying Bale weight: approx. 800 - 1,250 kg depending on the material to be pressed and bale length Machine weight: up to approx. 42 t Includes a top pressure plate slot cover Printing plate was renewe ...

automatic baler Manufacturer: PAAL Type: KONTI 200 C Year of construction: 1993 specifications: Press force: 50 t Channel format: 750 x 1,100 mm Specific pressing force: 6.06 kg/cm² Bale weight: 425 - 550 kg, depending on material and bale length Infill opening: 1,400 x 1,020 mm Drive power: 45 kW Throughput: 200 m³/h Pressing capacity: - approx. 7.35 t/h layered at department store (35 kg/m³ bulk density) - approx. 12.0 t/h for mixed paper (60 kg/m³ bulk density) - approx. 20.0 t/h for collected goods (100 kg/m³ bulk density) Setting: 4-fold vertical Machine weight: approx. 17 t

automatic baler Manufacturer: PAAL Type: KONTI 275 C Year of construction 1996 specifications: Press force: 65 t Specific pressing force: 7.88 kg/cm² Channel format: 750 x 1,100 mm Bale weight: 450 - 600 kg, depending on material and bale length Filling opening: 1,550 x 1,020 mm Drive power: 45 + 30 kW Throughput: 380 m³/h Pressing capacity: - approx. 13.0 t/h at department store (35 kg/m³ bulk density) - approx. 23.0 t/h for mixed paper (60 kg/m³ bulk density) - approx. 35.0 t/h for collected goods (100 kg/m³ bulk density) Setting: 4-fold vertical Machine weight: approx. 21.0 t Optionally with feeding belt according to photos

automatic baler Manufacturer: PAAL Type: KONTI 275 D Year of construction: 2002 Operating hours: approx. 30,000 hours Main parts of the press: 1 automatic channel press 1 automatic lacing 1 hydraulic system 1 electrical control specifications: Press force: 75 t at 300 bar Specific pressing force: 9.09 kg/cm² Duct cross-section (h x w): 750 x 1,100 mm Filling opening: 1,020 x 1,550mm Number of binding wires: 4 pieces vertical Drive power: 1 x 75 kW Throughput: up to approx. 350 m³/h Hydraulic oil tank volume: 2,200 l Operating voltage: 3 x 400 VAC / 50 Hz / N / PE Other features: - Automatic cutting edge release - Large digit display for bale length and fault indication

automatic baler Manufacturer: PAAL Type: KONTI 125 Year of Make: 1988 Operating hours: approx. 23660 specifications: Press force: 40 t Specific pressing force: 5.7 kg/cm² Channel format: 700 x 1,000 mm Binding: 3-fold vertical Bale weight: 375 - 450 kg, depending on material and bale length Filling opening: 1,400 x 920 mm Machine weight: approx. 10 t Drive power: 22 kW Throughput: approx. 115 m³/h Pressing capacity: approx. 4.00 t/h at department store (35 kg/m³ bulk weight) approx. 6.75 t/h for mixed paper (60 kg/m³ bulk weight) approx. 10.0 t/h for collected goods (100 kg/m³ bulk weight)

automatic baler Manufacturer: PAAL Type: KONTI 600 F/k with cross-binding Year of construction 2008 Machine was only in operation for 4 years specifications: Press force: 145 t Bale size: 1,100 x 1,100 x length in mm Filling opening: 2,000 x 1,020 mm Drive power: 2 x 75 kW Throughput capacity:approx. 510 m³/h Capacity at 35 kg/m³: 17.5 t/h Capacity at 60 kg/m³: 30.0 t/h Capacity at 100 kg/m³: 47.0 t/h Binding: 5-fold vertical Additional 4-fold automatic horizontal bonding Bale weight: approx. 800 - 1,250 kg depending on baled material and bale length Machine weight: up to approx. 42 t Attached pictures are only sample pictures!

Fully automatic baler Manufacturer: PAAL Type KONTI 275 D Year of Make: 2000 specifications: Press force: 75 t Drive power: 1 x 45 kW Total connected load: kW __ / 170 A Throughput under operating conditions: 280 m³/h Filling opening: 1,020 x 1,550 mm Bale size:750 x 1,100 mm Binding: 4-fold vertical incl. front printing plate slot cover Machine weight: approx. 25 t Bale weights: up to approx. 600 kg Including: - Free kicks - Large digit display

automatic baler Manufacturer: PAAL Type: KONTI 125 SO Year of Make: 1990 specifications: Press force: 40 t Specific pressing force: 5.7 kg/cm² Channel format: 700 x 1,000 mm Bale weight: 375 - 450 kg, depending on material and bale length Filling opening: 1,400 x 920 mm Machine weight: approx. 10 t Drive power: 22 kW Throughput: 115 m³/h Pressing capacity: approx. 4.00 t/h at department store (35 kg/m³ bulk weight) approx. 6.75 t/h for mixed paper (60 kg/m³ bulk weight) approx. 10.0 t/h for collected goods (100 kg/m³ bulk weight)

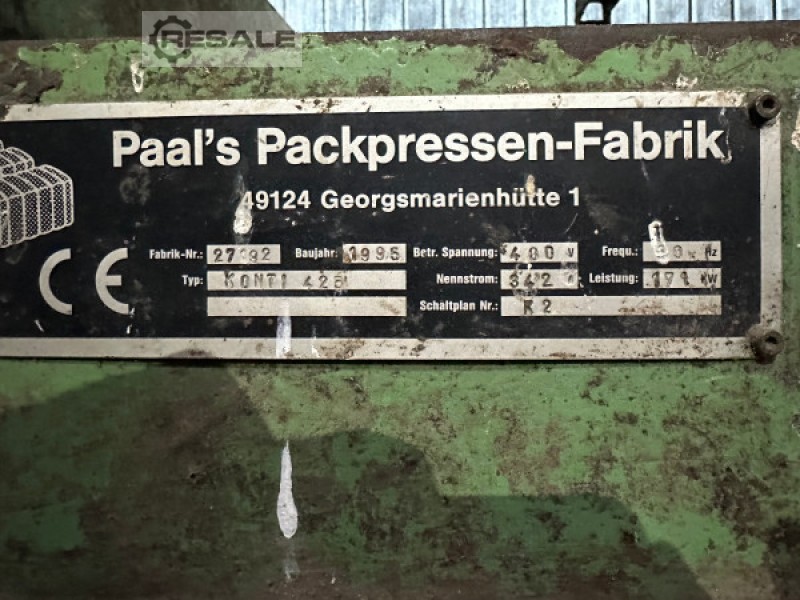

automatic baler Manufacturer: PAAL Type: KONTI 425 C / SO Year of Make: 1995 Operating hours: approx. 36,000 hours specifications: Press force: 100 t Specific pressing force: 121.2 N/cm² Drive power: 2 x 75 kW (main pumps) Total connected load: 171 kW Capacity under operating conditions: approx. 380 m³/h Filling opening: 1,750 x 1,020 mm Channel cross-section: 750 x 1,100 mm (H x W) Bale size: 1,100 x 750 mm Binding: 4-fold vertical Weight: approx. 36 t

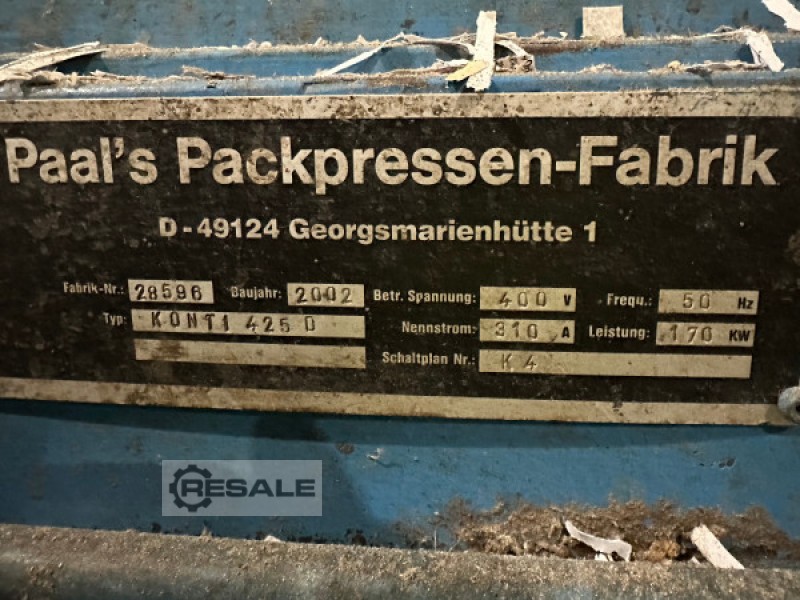

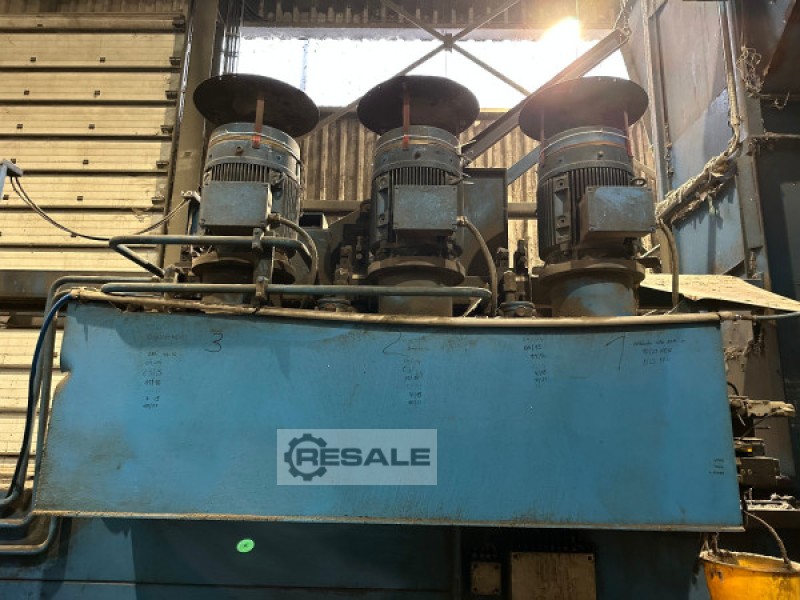

automatic baler Manufacturer: PAAL Type: KONTI 425 D Year of Make: 2002 Hours: 58,245 h specifications: Press force: 115 t Specific pressing force: 139.39 N/cm² Drive power: 3 x 45 kW (main pumps) Total connected load: 170 kW Capacity under operating conditions: approx. 475 m³/h Filling opening: 2,000 x 1,020 mm Channel cross-section: 750 x 1,100 mm (H x W) Bale size: 1,100 x 750 mm Binding: 4-fold vertical Weight: approx. 36 t Special equipment of the press: • Reduction of the filling opening due to adjustable pressure plate position • Control Siemens S7 • Automatic cutting edge free kick

automatic baler Manufacturer: PAAL Type: KONTI 600 F/k with cross-binding Year of construction 2008 only 4 years in operation specifications: Press force: 145 t Bale size: 1,100 x 1,100 x length in mm Filling opening: 2,000 x 1,020 mm Drive power: 2 x 75 kW Throughput capacity:approx. 510 m³/h Capacity at 35 kg/m³: 17.5 t/h Capacity at 60 kg/m³: 30.0 t/h Capacity at 100 kg/m³: 47.0 t/h Binding: 5-fold vertical Additional 4-fold automatic horizontal bonding Bale weight: approx. 800 - 1,250 kg depending on baled material and bale length Machine weight: up to approx. 39 t

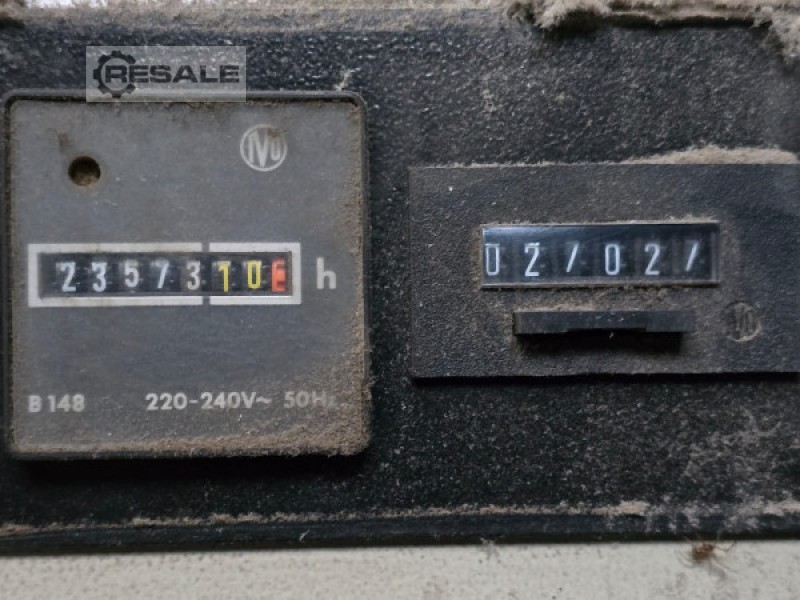

automatic baler Manufacturer: PAAL Type: KONTI 275 D Year of Make: 2000 Operating hours: approx. 23,575 hours Main parts of the press: 1 automatic channel press 1 automatic lacing 1 hydraulic system 1 Electrical control specifications: Press force: 75 t at 300 bar Specific pressing force: 9.09 kg/cm² Channel cross-section (h x w): 750 x 1,100 mm Filling opening: 1,020 x 1,550mm Number of binding wires: 4 pieces vertical Drive power: 1 x 75 kW Throughput: up to approx. 350 m³/h Hydraulic oil tank capacity: 1,250 l Operating voltage: 3 x 400 VAC / 50 Hz / N / PE

automatic baler Manufacturer: PAAL Type: KONTI 700 G/S Year of construction 2010 specifications: Press force: 1940 kN/ 198 t at 300 bar Specific pressing force: 160 N/cm² Bale size: 1,100 x 1,100 x length in mm Filling opening: 2,000 x 1,020 mm Drive power: 3 x 75 kW Throughput capacity (according to manufacturer's specifications): approx. 650 m³/h Capacity at 35 kg/m³: 22.5 t/h Capacity at 60 kg/m³: 36.5 t/h Capacity at 100 kg/m³: 55.5 t/h Binding: 5-fold vertical Bale weight: approx. 800 - 1,450 kg depending on baled material and bale length Machine weight: up to approx. 47 t

Manufacturer: Paal Model : Konti 275 G Year of Manufacture : 2010 Find more here - / Contact us at -

automatic baler Manufacturer: PAAL Type: KONTI 700 G/S Year of construction 2010 Technical data: Press force: 1940 kN/ 198 t at 300 bar Specific pressing force: 160 N/cm² Bale size: 1,100 x 1,100 x length in mm Filling opening: 2,000 x 1,020 mm Drive power: 3 x 75 kW Throughput capacity (according to manufacturer's specifications): approx. 650 m³/h Capacity at 35 kg/m³: 22.5 t/h Capacity at 60 kg/m³: 36.5 t/h Capacity at 100 kg/m³: 55.5 t/h Binding: 5-fold vertical Bale weight: approx. 800 - 1,450 kg depending on baled material and bale length Machine weight: up to approx. 47 t Optional: with Bollegraaf steel plate strip according to picture

Manufacturer: PAAL Model: KONTI 700 G/S/K Year of Manufacture: 2011 Type of Machine :Baling Press Key Features - Cross-lacing system (optionally switchable) - Oil cooling system - CE marked Find more here - / Contact us at -

Technical data: Maximum pressure: 60 tons Year of Make: 1999 Press force: 72.7 t/cm² Number of Bindings: 4 Channel cross-section: 750 x 1100 mm Dimensions of the tailgate: 1020 x 1400 mm Bale weight: 450-650 kg Weight: approx. 20 tons Power connection: 400 V/ 45 kW Bale tying: automatic Open hopper allows filling with the conveyor belt. Knife on the press plate and on the frame of the press to cut off the excess material. Automatic regulation of the light from the channel. Automatic binding with wire Choice of the length of the finished bale Press plate stably guided on the large rollers Large flaps of the bale chamber for easy maintenance If you have any further questions about this or similar channel balers, please do not hesitate to contact us by email or phone!

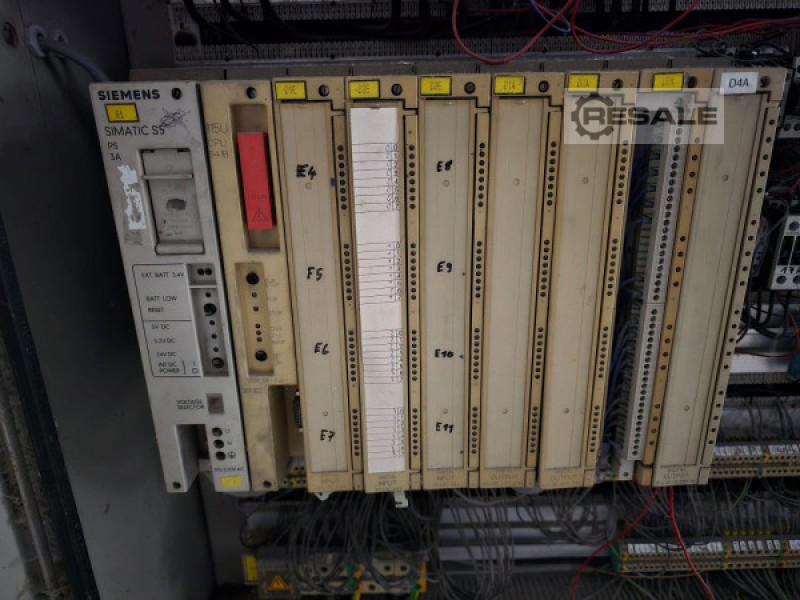

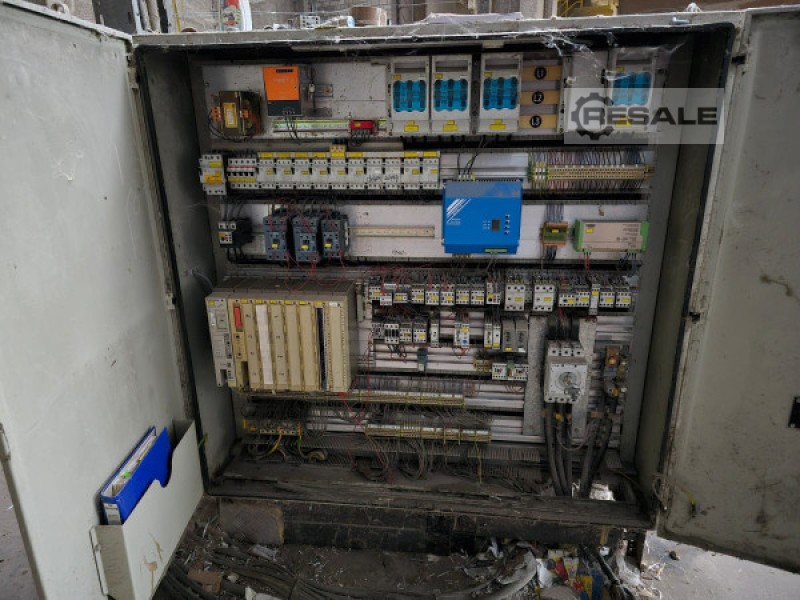

Control cabinet for PAAL accounts 200, 275, 325, 425, 500, 600, 700 after renovation An original control cabinet, the one from the PAAL Konti 425 B/K, built in 1992, with the cross binding. It is based on SIEMENS S5 controller. It is also suitable for the other models such as: Konti 200, 275, 325, 425, 500, 600, 700, depending on model and drive power, also for the variant with the cross binding. A complete control cabinet, functional, after renovation We have several channel balers and balers in our warehouse and we cordially invite you to contact us!
