INGERSOLL gantry used machines

Key data: 750 mm, 650 mm, 60 A

Refurbished OPS Ingersoll Gantry 500 Eagle die-sinking EDM machine – technically and visually in top condition The machine has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts were carefully checked and replaced if necessary, including ball rollers and drive spindles. This was followed by a complete geometric measurement, alignment and additional control using a laser measuring system. The machine bed and the entire base were thoroughly cleaned. All pumps were disassembled, cleaned and overhauled. All hoses, including hydraulic and compressed air hoses, have been completely renewed. In addition, the machine has been completely repainted and also presents itself visually in a very neat condition.  ...

Key data: 1000 A, 760 , 60

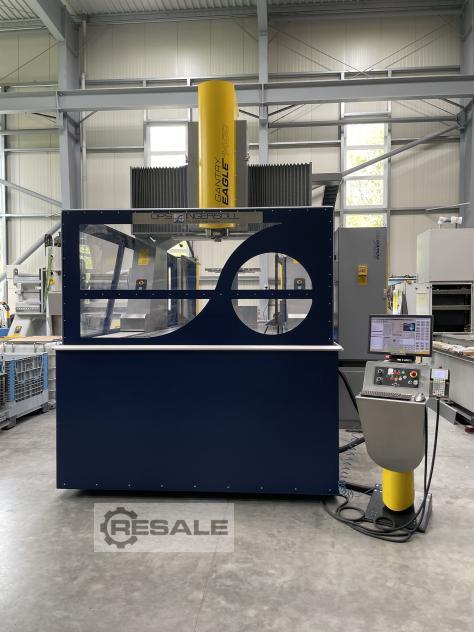

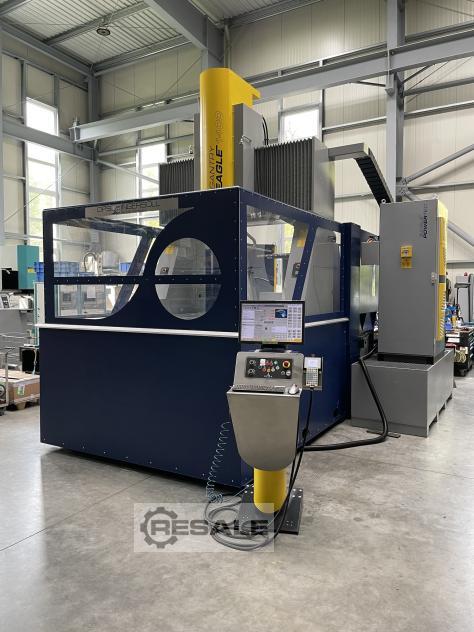

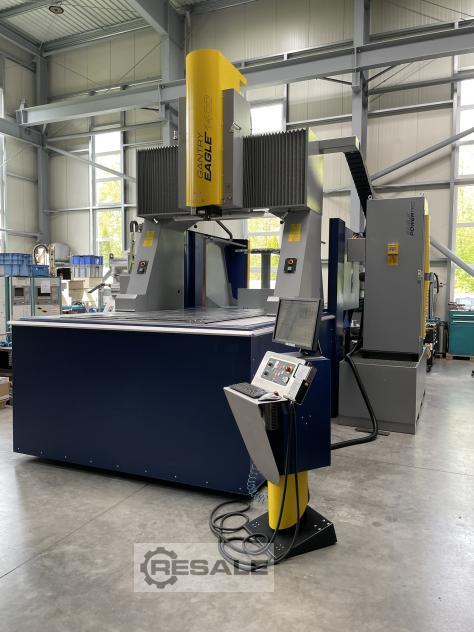

Refurbished OPS Ingersoll Gantry 800 Eagle die-sinking EDM machine – technically and visually in top condition The machine has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts were carefully checked and replaced if necessary, including ball rollers and drive spindles. This was followed by a complete geometric measurement, alignment and additional control using a laser measuring system. The machine bed and the entire base were thoroughly cleaned. All pumps were disassembled, cleaned and overhauled. All hoses, including hydraulic and compressed air hoses, have been completely renewed. In addition, the machine has been completely repainted and also presents itself visually in a very neat condition.  ...

Key data: 1000 A, 760 , 60

Refurbished OPS Ingersoll Gantry 800 Eagle die-sinking EDM machine – technically and visually in top condition The machine has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts were carefully checked and replaced if necessary, including ball rollers and drive spindles. This was followed by a complete geometric measurement, alignment and additional control using a laser measuring system. The machine bed and the entire base were thoroughly cleaned. All pumps were disassembled, cleaned and overhauled. All hoses, including hydraulic and compressed air hoses, have been completely renewed. In addition, the machine has been completely repainted and also presents itself visually in a very neat condition.  ...

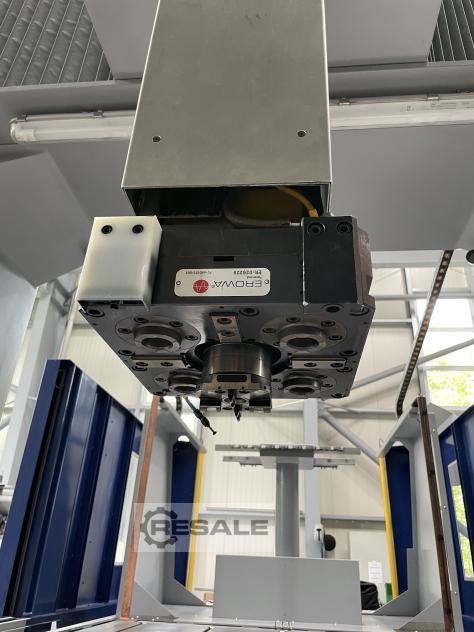

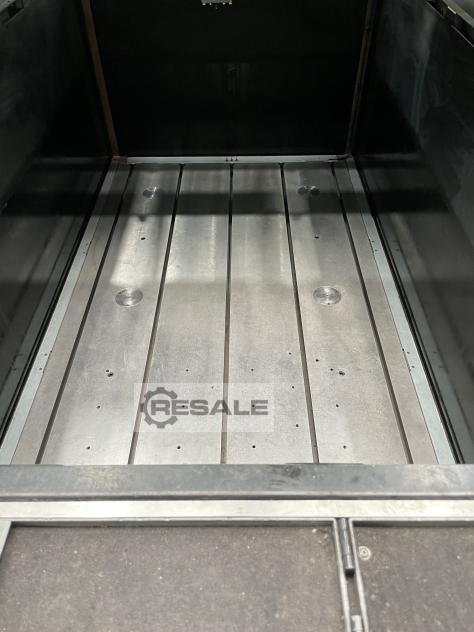

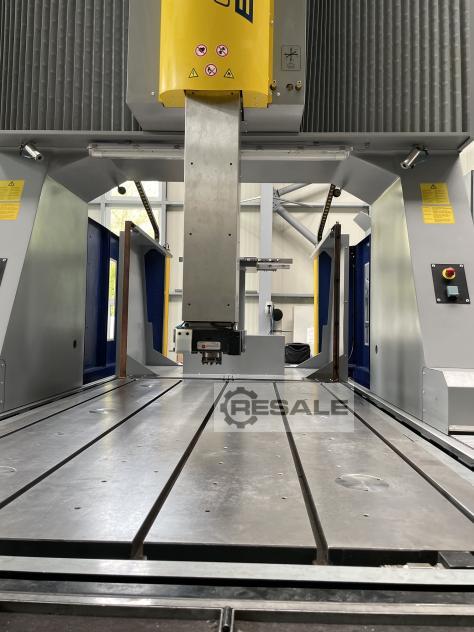

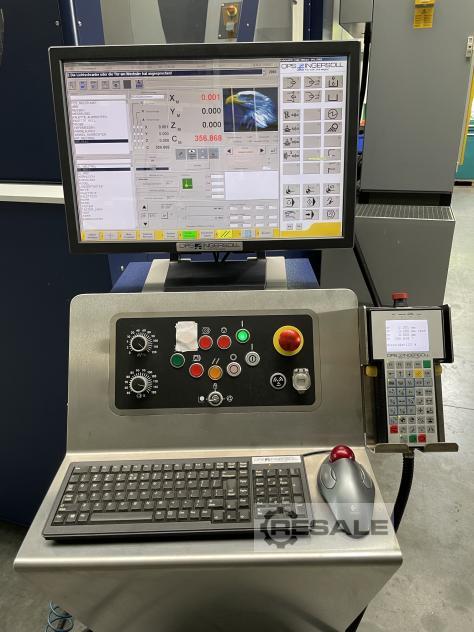

OPS INGERSOLL GANTRY EAGLE 800 Year of construction 2013 EAGLE Powertec PC/NC Controller 3060 22" screen with touchscreen operation MultiProg Powertec technology programming on PC/NC Powertec Easy Burn Quick Programming Powertec Handheld Multifunctional Handheld Controller Manual EDM with Powertec Handheld EAGLE Powertec - Fine Finishing Generator PT 60, 60 Ampere High Speed Jump max. 18,000 mm/min. Travel (X, Y, Z) 550 x 850 x 450 mm Distance table / electrode chuck min. 135 mm / max. 585 mm Electrode changer 20-fold pick-up disc magazine Work container (W x D x H) 800 x 1,100 x 480 mm Work table (W x D) 760 x 1,000 mm Load capacity 2,000 kg Top load 200 kg Machine dimensions W x D x H 1,436 x 2,940 x 2,730 mm Integrated cartridge filter system Accessories: CO2 fire extinguishing system incl. fire damper Electrode clamping system EROWA ITS ECOTEC Energy Saving Func ...

2011 OPS Ingersoll Gantry Eagle 5 (often referred to as the Eagle G5 or Gantry Eagle 500) is a high-precision Sinker EDM (Electric Discharge Machining) machine. Feature Specification X / Y / Z Travels 525 mm / 400 mm / 450 mm Work Tank Type Drop-tank (rises/falls for easy access) Max Workpiece Weight 1,000 kg (2,205 lbs) Generator Eagle PowerSPARK (60 Amp standard, 110 Amp optional) Z-Axis Jump Speed 18 m/min (This is exceptionally fast for EDM) Find more here - / Contact us at -

OPS INGERSOLL GANTRY EAGLE 1400 Plus Outdated Year of construction 2014 Status: Refurbished Generator power: EAGLE Powertec High Power Generator PT110 (110 Amps) Control: EAGLE Powertec PC/NC Control 3060 EAGLE PC-NC-Dialog 2 x 32 bit 22" screen with touchscreen operation High Speed Jump max. 18 m/min MultiProg Powertec Technology programming on PC/NC Powertec 2 Easy Burn Quick Programming Handheld Control Unit Powertec Handheld - Multifunctional hand control device Manual EDM with Powertec Handheld Ethernet and USB interfaces Integrated C-axis: Measurement resolution 0.001 degrees Electrode changer: EW2/18 Max. head load: 300 kg min. / max. clear width: 300 / 1,200 mm Workpiece clamping table: 1,380 x 2,380 mm (W x D) Load capacity: 10,000 kg (optional 20,000 kg) Travel X: 1,250 mm Travel Y: 2,350 mm Travel Z: 900 mm High Speed Jump max. 18 m/min Integrated  ...

This 4-axis OPS INGERSOLL Gantry 1200 was manufactured in 2007. It features a 3000-liter dielectric capacity, machine feet, two heavy-duty pallets, and a 3R clamping system. Ideal for precision die-sinking EDM applications. Contact us for more information about this machine.

Year of manufacture 2001 generator multi pulse - 70 amp + 100 amp booster Control Mitsubishi 32 bit - CNC travel (X, Y, Z) 900 x 1,780 x 550 mm Bowl (W x D x H) 1300 x 2200 x 730 mm workpiece clamping table (B x T) 1150 x 2050 mm accessories 13-fach pick-up linear changer, CO2 fire extinguishing status completely overhauled

BRAND: OPS-INGERSOLL YEAR: 2002 MODEL: Gantry 5000 PRODUCTION HOURS: 72500 APPLICATION TYPE: EDM LOCATION: SLOVENIA MACHINE TYPE: EROSION MACHINE Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - ROBOT MODEL: EROWA IMC - SOFTWARE: MULTIPROG 6. 4. 1. 0 - CLAMPING SYSTEM FOR ELECTRODES: 3R MACRO, OR EROWA - WORKPIECE CLAMPING SYSTEM: 3D DYNAFIX - PNEUMATIC CONNECTION FOR CONTROLLING THE BASE PALLET FOR CLAMPING WORKPIECES

BRAND: OPS-INGERSOLL YEAR: 2004 MODEL: GANTRY 500 APPLICATION TYPE: EDM LOCATION: GERMANY MACHINE TYPE: EROSION MACHINE AVAILABILITY: IMMEDIATELY

Control: Mitsubishi - 64 bit CNC Generator power: 70 amps, multipulse Travel (X, Y, Z): 525 x 400 x 450 mm Work container (W x D x H): 750 x 650 x 420 mm (lifting container) Work table (W x D): 730 x 630 mm Load capacity: 1,000 kg Electrode changer: 20-fold disc magazine Accessories: - CO2 fire extinguishing system, - HSJ technology (High Speed Jump), - integr. cartridge filter system, - MultiProg programming station software Status: completely overhauled Price: On request

Key data: 1000 mm, 6500 kg

Year of construction 2006 Generator 70 Amp - multipulse Control Mitsubishi - 64 bit CNC Travel (X, Y, Z) 550 x 850 x 450 mm Work container (W x D x H) 800 x 1100 x 480 mm Workpiece clamping table (W x D) 760 x 1000 mm Accessories 30-fold plate changer, CO2 fire extinguishing system, integr. cartridge filter system, HSJ technology (High Speed Jump) max. 12,000 mm/min., MultiProg programming station software, Status completely overhauled Price on request

Control PC-NC Dialog Travel X/Y/Z: 1000/1510/700 mm C-axis 30-fold electrode changer Hirschmann clamping system Bearing surface WxD 1140/1640 mm Load capacity 7500 kg Filter system Fire extinguishing system

EDM machine Gantry Eagle 500 Year 2011 Travel: x/y/z = 525x400x450 Changer: 24 times Weight: 5000 kg

x-travel: 550 mm y-travel: 400 mm z-travel: 400 mm Control: INGERSOLL ANDRONIC total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 1770 A, 1220 , 70

The OPS INGERSOLL EDM machine GANTRY 1200 HSJ / 64 bit, built in 2006, has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts have been carefully checked. The following overhaul work was carried out on the above-mentioned machine: Replacement of ball screw and ball bearings of the X, Y and Z axis. Replacement of all (4) ball screws of the tank drive. Inspection and test of the C-axis for tightness and accuracy Geometric verification of all axes according to OPS INGERSOLL protocol. Basic cleaning of the complete machine base. Cleaning of the complete working tank including replacement of the felt scrapers. Complete painting of the machine. Overhaul of the dielectric pumps. Replacemen ...

Load 6000 kg, pneumat. Drive

Key data: 860 , 2

v

v

v

v

SPECIFICATIONS Free Air Delivery 70.7cfm/2002lpm Pump 3000 cast iron NO. of Cylinders 3 Compression Stages 3 Free Speed (rpm) 780 Oil Limit alert Switch STANDARD Auto Condense Drain NO Motor Size 15kw/20hp Power Type 415v 50Hz electric Engine N/A Drive Type Belt Working Pressure 175psi/1200kpa Starter Star Delta Starter Constant/ Dual Controls STANDARD Centrifugal Unloader STANDARD Air Tank Capacity (L) 445L Mounted Type Tank Mounted Weight (kgs) 750 Dimensions Lxlxh (mm) 1900x1100x1540 NOise Level dB(A)1m 86.2

Jig Ingersoll IG750 Bj1992; Travel 500 x 700 x 350 with 6-fold electrode changer for Erowa ITS copper + graphite electrodes.

Pressure: 7.5 bar Power: 132 kW Voltage: 380V/ 400V Frequency: 50 Hz

TO WHOW IT MAY CONCERN ; WE VE NEW UNUSED INGERSOLL RAND 150T AT OUR STOCK . READY TO SHIPMENT MODEL : 150T MPF88R54-020 IF YOU VE ANY FURTHER QUESTIONS PLS DO NOT HESITATE TO CONTACT WITH US . Aliaga Marine Services E mail: info/aliagamarine.com Phn/Fax:+90 232 618 03 90 Mobile: +905556084850 aliagamarine.com TURKEY
