IBARMIA zv used machines

2013 Ibarmia ZVH 45/L1600 Extreme 4 axis vertical machining center Type: ZVH 45/L1600 Extreme Manufacturer: Ibarmia Year: 2013 Control: Fanuc X- 1600 mm Y- 800 mm Z- 900 mm Rotation angle +/-105° Maximum spindle speed 12000 rpm Number of tools in the magazine: 24 Work table dimensions: 2000 x 850 mm Included a wall that divides the table into two parts, so it is possible to machine separately in one part and clamp in the other part Machine in good condition, under power. Find more here - / Contact us at -

Stock number: 4022 CNC BED MILLING MACHINE Manufacturer: Ibarmia, Type: ZVH 58LL Machines NO.: 05525, Year of manufacture: 2005 Specifications: Table size 3600x1050 mm Longitudinal movement (X) 3000 mm Transverse movement (Z) 860 mm Vertical movement (Y) 1000 mm Spindle Taper SK50 ISO Spindle speeds 9000 rpm Spindle motor power 25 Kw Tool changer 30 stations Control Heidenhain TNC 530 Fabr. Controlled in 5 Axis Spindle Hours 12060 Hours Accessories: Cooling by spindle 24 bar Chip conveyance. Cooling water system. Electronic handwheel Cloth Probe System Rotary table. 800mm Table rotation (B) 0.001 degrees Very well preserved. Length: 8100mm, Height: 3800mm, Width: 5500mm, Weight: 25400 kg

Key data: 2200 mm, 600 mm, 600 mm

Travelling column milling machine Manufacturer Ibarmia Type ZV40 Year of construction 2000 Control Heidenhain TNC 410 Table size 2600 x 650 permissible. Load 2300kg Travel X/YZ 2200/600/600 Tool holder SK40 24 Way Tool Changer max speed 8,000rpm Partition wall for pendulum operation Electronic Handwheel HR410 Chip conveyor Glass scales in all axes Guide of the Y-axis would have to be redone In 2018, the machine got a new guide in Z and X axis, and a new main spindle. Machine is fully functional except for the linear guide of the Y-axis. Machine has the following dimensions: L x W x H 4200 x 3000 x 3050, weight 12000kg. Without the vices in the photos.

x-travel: 3.000 mm y-travel: 1.000 mm z-travel: 860 mm Control: Heidenhain iTNC-530 table-size: 3.600 x 1.050 mm T-slots: 7 x 18 T - slots distance: 125 mm distance table - lower edge spindle: 25-366 mm table weight: 4.200 Kg b-axis: +-105 ° c-axis: +-360 0 rapid travel x/y/z: 30.000 mm/min rotary table: Durchm. 1.000 mm max. turning diameter: 1.400 mm number of spindle speeds: 9.000 U/min/rpm tool taper: ISO-50 DIN 69871-AD spindle drive: 28,5 kW max. torque on the spindle: 240 Nm tool change unit: AITEK, 40 fach : 20 handwheel: Ink. Shuttle operation: Inkl Chip coveyor: Ink. Internal cooling system: 20 bar total power requirement: 65 kW weight of the machine ca.: 24,8 t dimensions of the machine ca.: 8.056 x 5.496 x 3.790 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Technical data shown on picture.

Technical data shown on picture.

Ibarmia EAP 60 Mk5 Admission in drilling-spindle (morse): Mk5 Max drill capacity: dia 70 mm SPEEDS: 50 > 1004 rpm

Drill press, bench drill, column drill, pillar drill -Manufacturer: Ibarmia, column drilling machine type 40 TF / C -Motor: Siemens 1.1 kW -Speeds: 104 - 1450 rpm, right-left rotation -Table size: 360 x 300 mm, travel 600 mm -Spindle mount: MK3 -Spindle stroke: 150 mm -Feed: automatic -Projection: 300 mm -Pillar Ø: 125 mm -Coolant device -Dimensions: 480/680 / H2220 mm -Weight: 358 kg

Prismatic column drill. Drilling capacity: 60mm. Table: 700x600mm. Vertical travel: 800mm. Taper Morse 4. Speeds: 9. (50-1.084) Motor power: 7,5cv.

Prismatic column drill. Ready for automatic drill of flanges, rounds... Drilling capacity: 70mm. Spindle pneumatic work cycle. Indexing table. Chip conveyor. Working area guarding. Year: 1998.

Offer 24018 Specifications: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drilling spindle holder MK 3 - Drilling spindle stroke 150 mm - 9 drilling spindle speeds 104 - 1400 rpm - 2 feeds 0.1 / 0.2 mm/rev - Projection 290 mm - Max distance table - drilling spindle 780 mm - Table with 2 T-slots 480 x 400 mm - Height adjustable via rack with hand crank - Drive 400 V / 1.1 / 1.3 kW - Space requirement approx. W 600 x H 2100 x D 900 mm - Weight approx. 420 kg - with: - Right – Counterclockwise - Coolant device - Keyless chuck 1-13 -Lighting

bore capacity in steel (diameter): 25.0 / 30.0 mm throat: 150 mm bore stroke: 120 mm threading: M18 / M22 spindle taper: 3 MK table:: 300 x 270 mm turning speeds: 200 - 4.000 U/min column diameter: 100 mm total power requirement: 0.75 / 1.1 kW weight: 170 kg range L-W-H: 800 x 500 x 1400 mm ** from a training workshop (!!) ** New price approx. 4.700 euros Furnishing: - robust bench drill with V-belt drive - Clamp / relax using a quick release lever - stepless speed adjustment - digital speed display - EMERGENCY OFF push button at the front - stable feed handle - stable quill for tool mounting - Thread cutting device - Right / left running of the work spindle - Pole changing motor - manual spindle feed - Height-adjustable work table, using a hand crank - adjustable drilling depth stop The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offered is a travelling column machining center: rotary table: 1500mm, travels X/Y/Z: 1600mm/800mm/800mm, tool holder: SK50, spindle drive: 60kW, speed range: 20 to 6000rpm, tool changer: 30 positions, machine weight approx. 19200kg, machine dimensions X/Y/Z approx. 6000mm/4000mm/3200mm. Incl.: internal coolant supply, chip conveyor, chip flushing system, approx. 60 pieces SK50 tool holders, 3-jaw chuck. Inspection possible by arrangement.

Filter Manufacturer: Hunter Type: ZVA 01 ABTE

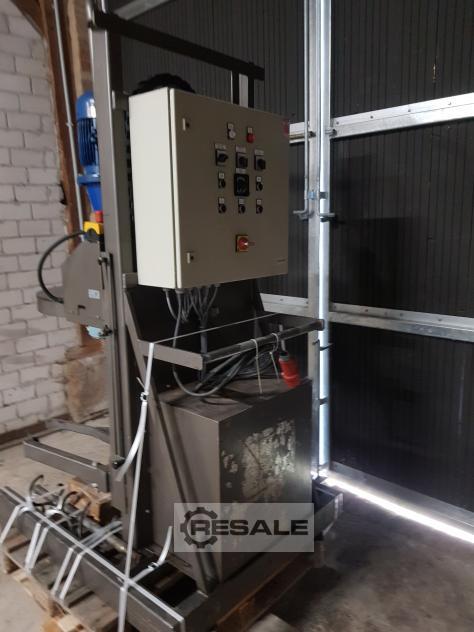

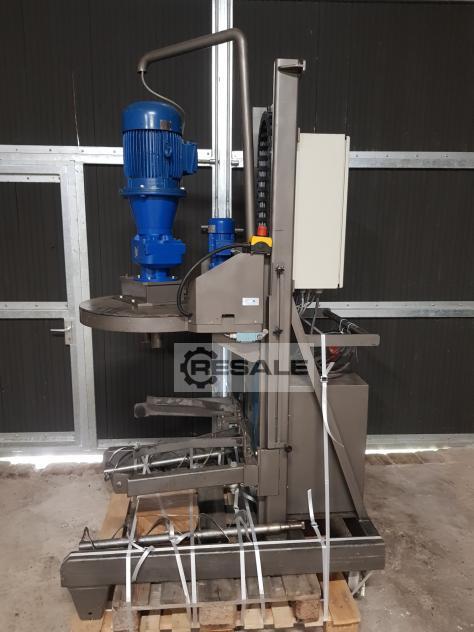

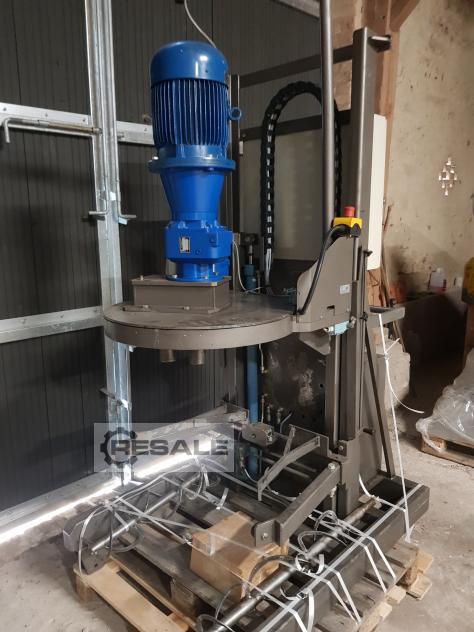

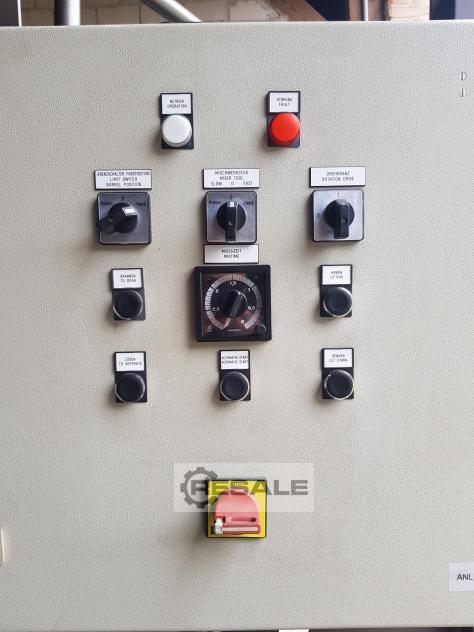

Tripod agitator Agitator Geppert ZVM I200 for mixing highly viscous products Drive power 6 kW Turntable drive 0.25 kW hydraulic stroke Container fixed clamping device Very good ready-to-use condition, directly from the production!!!

* General * SKU316W650 * LocationBarneveld * MakeCoperion (type plate missing) * TypeZVH-250.2-8SC * Year of constructionUnknown * Main Features * MaterialStainless steel/chrome * Motor0.55 KW * Inlet diameter165 mm * Specified Features - Rotating valve * MaterialHard chrome, Stainless steel 1.4016, Stellite 1 Alloy * Rotary valvecheck * Rotor diameter200 mm * Rotor width250 mm * Number of locks:10 * Lock sizes55x180x60 mm * Capacityrotor ± 4,75 L * Inlet165 mm * Outlet50 mm * Installation height360 mm * With motor0,55 kW, 380/500 volt, 1400 rpm * Rotor speed16,6 rpm * Outside bearingscheck * Information * Mounted on framecheck * Floorspace1,10 x 0,90 m * Total height0,92 m * Weight180 kg * Technical specs * Extra informationcapacity ± 4,7 m³/hRotating valvesCoperionRotary valves > Rotating valvesBrand > Coperion What you can expect from Foeth: -- Machine is in working condition -- At ...

with washer assembly diameter range 10 mm shaft length under head 100 mm max. thread length 65 mm output pieces/min 180

vibratory feeder diameter range 10 mm shaft length under head 100 mm max. thread length 65 mm output pieces/min 180

Safety switch, safety switch, TZ -Type: AZ 16 ZVK-M16 -Protection class: IP 67 -Number: 34x available -Price: per piece -Dimensions: 90/51/H30 mm -Weight: 0.1 kg

Overview  This cap feeding system consists of a vertical cap elevator, a centrifugal distributor, and a horizontal flat top air conveyor. The system was used for feeding 38 mm flat plastic caps in PET bottling applications. It has been dismantled, stored in a warehouse, and is immediately available. Technical data  Formats: Flat 38 mm plastic caps Dimensions: L 210 cm × W 75 cm × H 300 cm Power supply: 0.2 kW Application: PET bottles Scope of Delivery Vertical cap elevator | Marmoinox | AML-ZVE1 | 2016 Centrifugal distributor | Sacmi | - | 1997 Horizontal flat top air conveyor, 2 m | Sacmi | - | 1997

We have large stock of now OEM-obsolete used mechanical spare parts and electric / electronic parts for KHS, Kisters and ZVT tray- and shrinkpacking machines. Including AEG DPW 101/102, Kisters PC09 / Kisters PC20 / Kisters PC30 / Kisters PC40, and Indramat servo drives and controllers, Mayr Primo servo controllers. Details upon request. MAC 71C-0-JS-4-C/95-A-0/WI504LV/S001 MAC 71C-0-JS-4-C/95-A-0/WI504LX/S001 MAC 71C-0-JS-4-C/95-A-1/WI504LV/S001 MAC 71C-0-JS-4-C/95-A-1/WI504LX/S001 MAC112B-0-GD-4-C/180-A-0/WI504LV/S011 MAC112B-0-GD-4-C/180-A-0/WI504LX/S011 Mayr Primo 2 + am 1 type P22.004.0 Mayr Primo Compact type P21.004.0 TR Electronic AE100S / HE100S / CS100S Bosch Rexroth PPC controllers including PPC-R02.2N-N-NN-P2-NN-FW, PPC-R02.2N-N-V2-NN-NN-FW and PPC-R22.1. For most of these units we can also provide FW up- / down-load / copy service. (including on-site).

VERTICAL MACHINING CENTER IBARMIA TYPE ZHV45 L1600 YEAR 2004 Brand: IBARMIA Year: 2004 Model: ZHV45 L1600 Features Type :Vertical NC Type :FIDIA Table Area(mm) :2000 x 850 mm X Stroke (mm) :1600 Y Stroke (mm) :800 Z Stroke (mm) :800 Spindle Speed (RPM) :15000 Spindle Motor Power(kw) :19 Tool Magazine Capacity :40 tools Tool Attachment Type :BT 40 Max Tool Length :365 Weight (g) :14.000 g Equipment B-axis on head +/-105 Maximum tool weight 20 kgs X,Y,Z Axis Ruler Chip conveyor

VERTICAL MACHINING CENTER IBARMIA TYPE ZHV45 L1600 YEAR 2004 Brand: IBARMIA Year: 2004 Model: ZHV45 L1600 Features Type :Vertical NC Type :FIDIA Table Area(mm) :2000 x 850 mm X Stroke (mm) :1600 Y Stroke (mm) :800 Z Stroke (mm) :800 Spindle Speed (RPM) :15000 Spindle Motor Power(kw) :19 Tool Magazine Capacity :40 tools Tool Attachment Type :BT 40 Max Tool Length :365 Weight (g) :14.000 g Equipment B-axis on head +/-105 Maximum tool weight 20 kgs X,Y,Z Axis Ruler Chip conveyor Auction-ID: A1-44765-2

IBARMIA double drilling machine model BP-50. Year of manufacture 2005. Serial number 043285. Equipped with two drilling heads for simultaneous operations. Pneumatic workpiece clamping system. Integrated cooling system (coolant). Motor power 4.2 kW. Working speeds 750 / 1500 rpm. Electrical connection 380 V / 50 Hz. Acoustic level 78 dB(A). Machine with CE marking. Ideal configuration for series production and repetitive operations. Robust industrial construction on common base. The dimensions are approximate. Auction-ID: A7-44864-2

1 used shrink tunnel, made ZVT (now KHS), type ST/II-600DG. Built in 1995. With belt braiding tape (for untabivalent products such as PET bottles). Total length 6,000 mm. Passage 570 mm High x 400 mm wide. E-connection 415V (x5%) / 50 Hz. Top condition (belt recently renewed!). Operator side: right or left. (2 machines available).
