HERMLE cnc used machines

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Positions APC: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN TNC 430 Technical data Number of axis total: 5 Rotary table:diameter: 280 mm Table load max.: 200 kg Longitudinal travel (X-axis): 600 mm Transversal travel (y-axis): 450 mm Vertical travel (z axis): 450 mm Dimension of the workpice: Height: 215 mm Diameter: 280 mm B axis swivelling range: + / - 115 ° C axis Tool changer: Number of tools: 30 Average chip-to-chip time: 5.5 sec Spindle nose: HSK: 40 Spindle speeds: stepless from: 20 rpm up to: 36000 rpm Feed range: 1 - 30000 mm/min Rapid traverse:: 35 m/min Measurement system: Resolution: 0.1 µm Input resolution: 0.1 µm Display step: 0.1 µm Air connect: 6 bar Voltage 50 Hz 3x: 400 Volt Total power required: 22 kVA Noise level: 78 dB (A) Machine´s weight abo ...

x-travel: 400 mm y-travel: 330 mm z-travel: 350 mm total power requirement: 6,3 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 736 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN 407 / 415 Technical data Table length: 850 mm Table width: 440 mm Number of T-channels: 6 T-channel width: 14H7 mm Distance of the T-slots: 63 mm Longitudinal travel (X-axis): 600 mm Transversal travel (y axis): 450 mm Vertical travel (z axis): 400 mm c axis resolution max.: 0.001 ° Table load max.: 500 kg Taper in spindle: 40 ISO Spindle speeds: stepless from: 20 rpm up to: 4500 rpm Spindle nose SK: 40 Feeds (X, Y, Z): 1 - 10000 mm/min Feeds: stepless Rapid traverse:: 10 m/min Vertical quill travel: 75 mm Voltage 50 Hz 3x: 380 Volt Milling spindle motor: 8 kW Total power required: 15 kW Machine´s weight about: 2700 kg Overall dimensions machine: Length: 3100 mm Width: 2850 mm Height: 1930 mm Various  ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Positions APC: 0   CNC Brand: 0 CNC Model: 0 Control: HEIDENHAIN TNC 430 Operating hours: 5751 Technical data Number of axis total: 3 Table length: 1000 mm Table width: 560 mm Longitudinal travel (X-axis): 800 mm Transversal travel (y axis): 600 mm Vertical travel (z axis): 500 mm W axis Dimension of the workpice: Length: 560 mm Width: 560 mm Height: 500 mm Diameter: 1000 mm Table load max.: 1000 kg Tool changer: Number of tools: 30 Tool lenght: 300 mm Max. tool-weight: 8 kg Average chip-to-chip time: 5.5 sec Spindle nose SK: 40 Distance spindle nose to table: 100 - 500 mm Spindle speeds: up to: 15000 rpm Feed range: 1 - 30000 mm/min Rapid traverse:: 35 m/min Air connect: 6 bar Voltage 50 Hz 3x: 400 Volt Spindle motor: 15 kW Total power required: 31 kVA Time under power: ...

With CNC control, HEIDENHAIN, Type: TNC 155, measuring taster Separate control cabinet: 1260 x 500 x 1700 mm Travel distances 700 x 550 x 550mm Table area 1000 x 490 mm Accessories: Treatment / Cooling system / tool shots The machine stored since 2013. At the time of storage, the machine was fully functional.; ready for use

Bearing number 1105-02690 Machine type Milling machine - Universal Make HERMLE Type UWF 1000 Built in 1988 Control type CNC Storage location FRANCE Country of origin Germany Delivery time SOFORT Freight base EXW Technical details x-way 700 mm y-way 630 mm z-way 500 mm Control heidenhain 355 Tool holder SK 40 (DIN 69871) Table clamping area: 1000 x 490 mm Spindle speed Gear stage 1 25 - 400 rpm. Spindle speed Gear stage 2 401 - 1260 rpm Spindle speed Gear stage 3 1261 - 4200 rpm Feed 5 m/min Rapid speed 10 m/min Swivel of the milling head + / - 90 ° Pinole diameter 110 mm Pinole stroke 95 mm Total power requirement 18 kW Machine weight approx. 5 t Information with full cabin coolant device Sale takes place without clamping equipment approx. 8500h switch-on hours

x-400,y-330,z-350,angle table 630x335,SK 40, 40-6,000 rpm,measuring probe

Machine Details Warehouse number 1105-03692 Machine type Milling machine - Universal HERMLE brand Type fp 1000 Year of construction 1988 Control type CNC Control heidenhain 355 Storage location HAGUENAU Country of origin Germany Delivery time IMMEDIATELY Freight base EXW Technical details x-travel 700 mm y-travel 630 mm z-travel 500 mm Control heidenhain 355 Tool holder SK 40 (DIN 69871) Table clamping surface: 1000 x 490 mm Spindle speed gear stage 1 25 - 400 1/min. Spindle speed gear stage 2 401 - 1260 1/min. Spindle speed gear stage 3 1261 - 4200 1/min. Feed 5 m/min Rapid traverse 10 m/min Swivel of the milling head + / - 90 ° Pinole diameter 110 mm Pinole stroke 95 mm Total power requirement 18 kW Machine weight approx. 5 t Information with coolant device Sale without clamping devices

:::SPECIFICATIONS::: CNC Model: Siemens Tool connection: SK 40 Spindle power: 9Kw Number of spindle revolutions: 12000 Number of tools: 30 X Shaft Stroke: 600mm Y-axis stroke: 450mm Z-axis stroke: 450mm Rapid feeds linear axes X Y Z: 35m/min Guides: roller Tilting rotary table: yes Round table type: continuous Tilting rotary table grades: + - 110° Table size: diameter 280mm Load allowed on the table: 200Kg Chip evacuator: carpet Other technical data: maximum tool diameter 80 (125) mm Chip/chip time change 5.5 sec Working feed speed 1 - 30.000 mm/min Resolution 0.001 mm :::D IMENSIONS AND WEIGHT::: Length: 3500mm Width: 3500mm Height: 2800mm Weight: 6500Kg

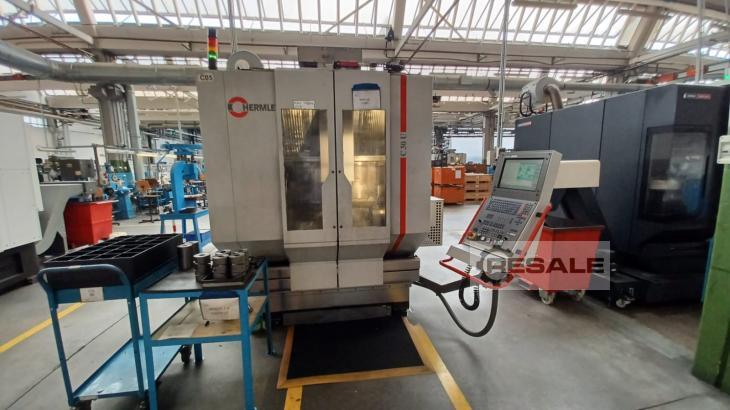

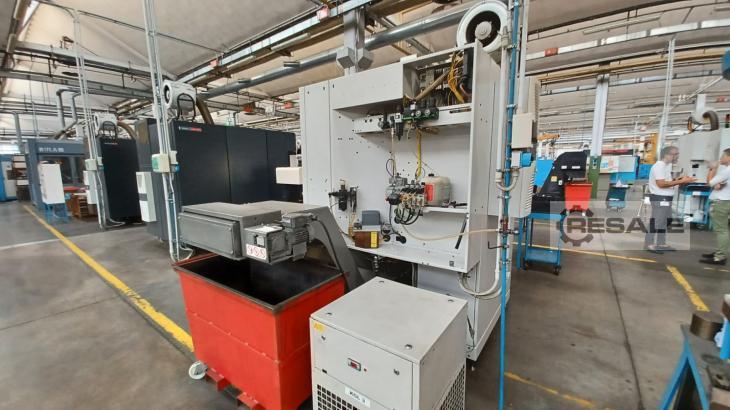

BRAND: HERMLE YEAR: 2006 MODEL: C30U APPLICATION TYPE: MILLING LOCATION: ITALY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: 01 10 2023 CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: IT-MIL-HER-2006-00001 Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: TC 530 MAIN DRIVE SPINDLE MOTOR POWER: 15 KW SPINDLE BORE: 18000 NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 650 MM Y-AXIS MOVEMENT: 600 MM Z-AXIS MOVEMENT: 500 MM C-AXIS MOVEMENT: 360º TABLE ROTATION MM MEDIA CHIP CONVEYOR: YES Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MAXIMUM TOOL CAPACITY 32 - SPINDLE CONNECTION (SPINDLE) DIN 69871 - RENISHAW SYSTEM PREDISPOSITION - AIR BLOW THROUGH DRY MACHINING SPINDLE: YES - 5 AXIS CONTINUOUS PACKAGE: YES

Control: iTNC 530 Max.travel range: X 850 mm Y 700 mm Z 500 mm A +/- 115? C nx 360? Spindle speed ? 18000 rpm Taper ? HSK 63 Tool changer ? 38+44 positon Coolant tank: 900l machine has spindle cooling, Erowa clamping system is available, measu

Stock number: 3885 PROCESSING Manufacturer: HERMLE, Type: C800 V Machine NO.: 14187, Year of manufacture: 2000 Specifications: Table size 1000 x 560 mm Longitudinal movement (X) 800 mm Transverse movement (Y) 600 mm Vertical movement (Z) 500 mm Spindle cone SK 40 Infinitely variable spindle speeds 10,000 rpm Spindle motor 25/16.8 Kw Total power 43 KVA Tool changer 30 places Feed rate 1-2000/30000 mm/min Rapid traverse 35 m/min Control Heidenhain TNC 430 Fabr. Operating hours spindle 9318 hours Accessories: Chip conveying. Touch Probe Renishaw Cooling by spindle Spindle Cooling Miscellaneous accessories. Operating instructions Delivery time: August 2024 Length: 2700 mm, Height: 2930 mm, Width: 2210 mm, Weight: 7000 kg

Stock number: 3886 PROCESSING Manufacturer: HERMLE, Type: C800 V Machine NO.: 15521, Year of manufacture: 2002 Specifications: Table size 1000 x 560 mm Large table load 1500 kg Longitudinal movement (X) 800 mm Transverse movement (Y) 600 mm Vertical movement (Z) 500 mm Spindle cone SK 40 Infinitely variable spindle speeds 10000 rpm Spindle motor 25/16.8 Kw Total power 43 KVA Tool changer 30 places Feed rate 1-2000/30,000 mm/min Rapid traverse 35 m/min Control Heidenhain TNC 530 Fabr. Operating hours spindle 10220 hours Accessories: Chip conveying. Cooling water system. Probe Renishaw OMP 60 Cooling by spindle Spindle Cooling Machines vice. Miscellaneous accessories. Operating instructions Delivery time: August 2024 Length: 2700 mm, Height: 2930 mm, Width: 2210 mm, Weig ...

Hermle B300 Universal Machining Centre (5-axis): Year of construction 2012 Heidenhain iTNC530 control with DXF import option Tool magazine with 30 places Tool holder HSK-A 63 spindle with 15,000 rpm IKZ with 40Bar Blowing air through spindle center Blum Laser Tool Measurement Heidenhain Probe TS440 Oil and Emulsion Separation Plant Rinsing gun Zero-point clamping system: Partool Powergrip 160 (4-fold) Weight: approx. 7.5t Machine times (as of 04/2024): Machine on: 20.272h Spindle on: 6.618h

Stock number: 3896 PROCESSING Manufacturer: HERMLE , Type: C800 V Machines NO.: 14337, Year of manufacture: 2001 Specifications: Table size 1000 x 560 mm Large table load 1500 kg Longitudinal movement (X) 800 mm Transverse movement (Y) 600 mm Vertical movement (Z) 500 mm Spindle cone SK 40 Stepless spindle speeds 0-16000 rpm Spindle motor 25/16.8 Kw Total power 31 KVA Control Heidenhain 430 - 3 Axis Fabr. Operating hours spindle 9666 hours Accessories: Tool holders 2 pcs Operating instructions Length: 2700 mm, Height: 2930 mm, Width: 2210 mm, Weight: 7000 kg

Key data: 600 mm, 450 mm, 400 mm

x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm Table size: 850 x 440 mm Spindle holder: SK 40 Control: HEIDENHAIN TNC 355 Spindle speeds: 20 - 4000 rpm Spindle motor: 5.9 kW Quill stroke: 80 mm Feeds - longitudinal/transverse/vertical: 1 - 2000 mm/min Feed force x/y/z: 7200 N Rapid traverse longitudinal and transverse: 10 m/min Rapid traverse vertical: 10 m/min Total power requirement: 12 kW Machine weight approx.: 2.5 t Dimensions L x W x H: 2.7 x 2.5 x 2.0 m Handwheel, coolant device

CNC Milling Machine Universal Manufacturer: HERMLE Type: UWF 902 S Year of Make: 1995 Hours: 65 071 Control: HEIDENHAIN TNC 426 Working area X/Y/Z: 600 x 450 x 500 mm Range: Spindle speeds infinitely variable within 3 switching stages: 20 to 6,300 rpm Tool holder: SK40 Tool Changer Tool holder, horizontal and vertical: ISO 40 DIN 2079 Tool clamping hydromechanical, clamping force (vertical): 10 000 N Tool clamping hydromechanical, clamping force (horizontal): 12 000 N Spindle diameter on front bearing, horizontal / vertical: 75 / 55 mm Quill Ø 100 mm extendable vertical: 75 mm M & H 3D Probe Individual feed motors for each axis – three-phase current (brushless) Feed range in X, Y, Z manual / program-controlled: 1 to 2000 / 10 000 mm/min. Feed force in all axes (at 80% DC): 6 000 N Rapid traverse in all axes: 10 m / min. Angle table: 900 x 458 mm Table wei ...

CNC Milling Machine Universal Manufacturer: HERMLE Type: UWF 902 H Year of Make: 1995 Hours: 46,680 Control: HEIDENHAIN TNC 426 Working area X/Y/Z: 600 x 450 x 500 mm Range: Spindle speeds infinitely variable within 3 switching stages: 20 to 6,300 rpm Tool holder: SK40 Tool Changer Tool holder, horizontal and vertical: ISO 40 DIN 2079 Tool clamping hydromechanical, clamping force (vertical): 10 000 N Tool clamping hydromechanical, clamping force (horizontal): 12 000 N Spindle diameter on front bearing, horizontal / vertical: 75 / 55 mm Quill stroke vertical: 75 mm Renishaw 3D Probe Individual feed motors for each axis – three-phase current (brushless) Feed range in X, Y, Z manually / programmatically: 1 to 2000 / 10 000 mm/min. Feed force in all axes (at 80% DC): 6 000 N Rapid traverse in all axes: 10 m / min. Angle table: 900 x 458 mm Universal clamping  ...

CNC Milling Machine Universal Manufacturer: HERMLE Type: UWF 902 H Year of Make: 1995 Hours: 46,680 Control: HEIDENHAIN TNC 426 Working area X/Y/Z: 600 x 450 x 500 mm Range: Spindle speeds infinitely variable within 3 switching stages: 20 to 6,300 rpm Tool holder: SK40 Tool Changer Tool holder, horizontal and vertical: ISO 40 DIN 2079 Tool clamping hydromechanical, clamping force (vertical): 10 000 N Tool clamping hydromechanical, clamping force (horizontal): 12 000 N Spindle diameter on front bearing, horizontal / vertical: 75 / 55 mm Quill stroke vertical: 75 mm Renishaw 3D Probe Individual feed motors for each axis – three-phase current (brushless) Feed range in X, Y, Z manually / programmatically: 1 to 2000 / 10 000 mm/min. Feed force in all axes (at 80% DC): 6 000 N Rapid traverse in all axes: 10 m / min. Angle table: 900 x 458 mm Universal clamping  ...

CNC Milling Machine Universal Manufacturer: HERMLE Type: UWF 902 H Year of Make: 1995 Hours: 46,680 Control: HEIDENHAIN TNC 426 Working area X/Y/Z: 600 x 450 x 500 mm Range: Spindle speeds infinitely variable within 3 switching stages: 20 to 6,300 rpm Tool holder: SK40 Tool Changer Tool holder, horizontal and vertical: ISO 40 DIN 2079 Tool clamping hydromechanical, clamping force (vertical): 10 000 N Tool clamping hydromechanical, clamping force (horizontal): 12 000 N Spindle diameter on front bearing, horizontal / vertical: 75 / 55 mm Quill stroke vertical: 75 mm Renishaw 3D Probe Individual feed motors for each axis – three-phase current (brushless) Feed range in X, Y, Z manually / programmatically: 1 to 2000 / 10 000 mm/min. Feed force in all axes (at 80% DC): 6 000 N Rapid traverse in all axes: 10 m / min. Angle table: 900 x 458 mm Universal clamping  ...

A CNC universal tool milling and drilling machine Hermle is available. Travel X/Y/Z: 700mm/550mm/500mm, quill stroke: 95mm, spindle power: 12kW, spindle speed: 4200rpm, spindle swivel: +/-75°, tool holder: SK40, clamping force: 12kN, feed rate: 10m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 4400mm/4250mm/2300mm, weight: approx. 4500kg, control: Heidenhain TNC 425. Documentation available. An on-site inspection is possible.

Travel: X= 600, Y= 400, Z= 420 mm Speed range: 20 – 4000 rpm Gear Stages: 3 Mount: SK 40 Quill stroke: 75 mm Spindle motor: 5.9 kW Feed range: 1 – 5000/6000 mm/min (man./program.) Rapid traverse x, y: 7 m/min Rapid traverse z: 6 m/min Clamping area: 900 x 458 mm Weight: approx. 2300 kg Various tools (without cabinet)

Key data: 600 mm, 400 mm, 420 mm

Hermle UWF 900 Universal CNC Milling Machine BAZ Year of Make: 1996 Machine number: 11410 Machine weight: 2,900 kg Availability: By arrangement. Machine is still energized and in perfect condition.

Machine data: Control Heidenhain TNC 355 Year of manufacture 1989 Travel: X 600 mm travel Y 450 mm travel Z 400 mm travel Spindle speed 20 – 4000 min-1 Angle table size 850 x 440 mm Swivel table 650 x 395 mm Electronic handwheel The machine is still energized and in good condition.

Hermle milling machine
