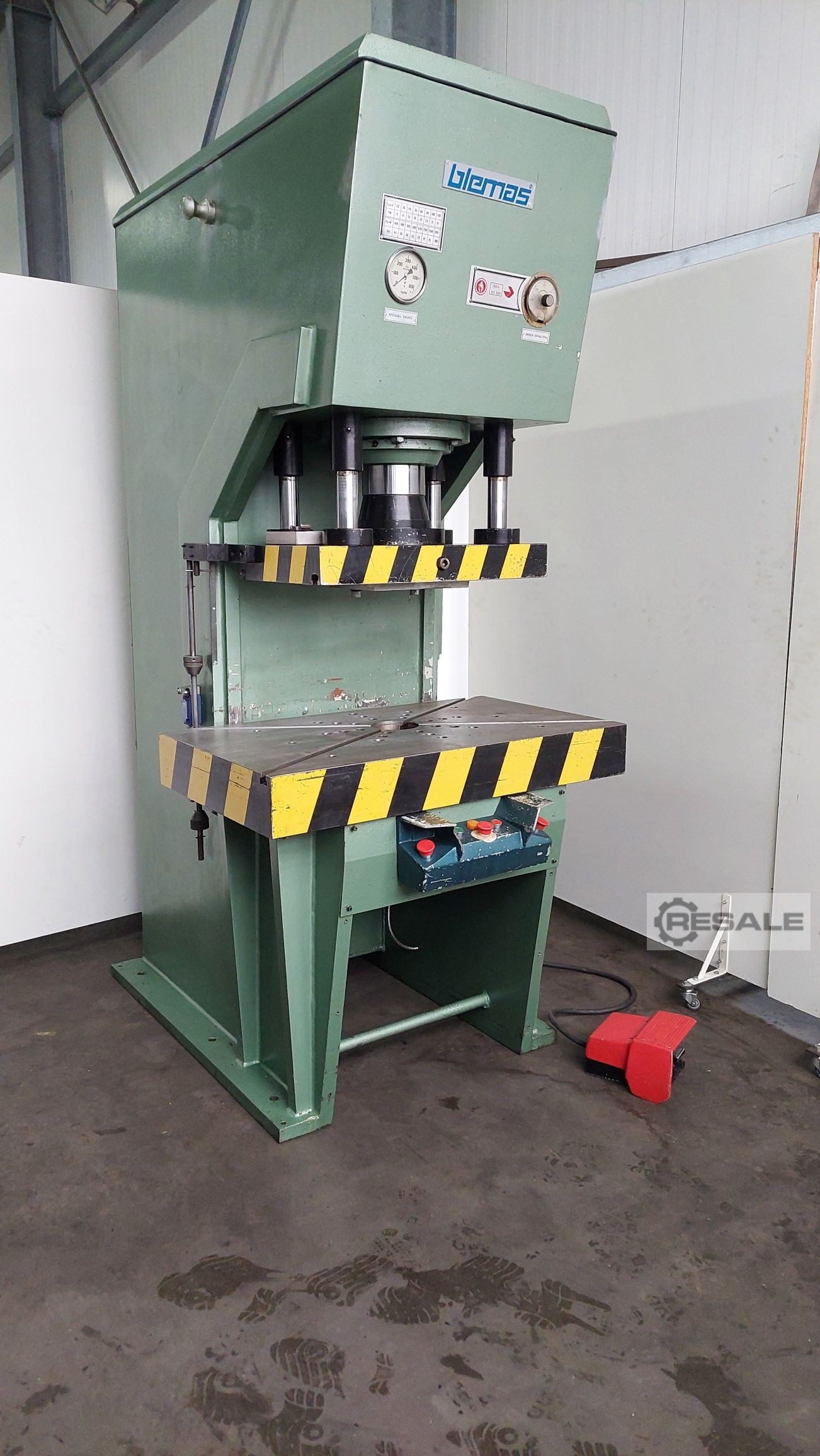

Single Column Presses WENIG-BLEMAS HP 100
metal working machines / presses / Single Column Presses

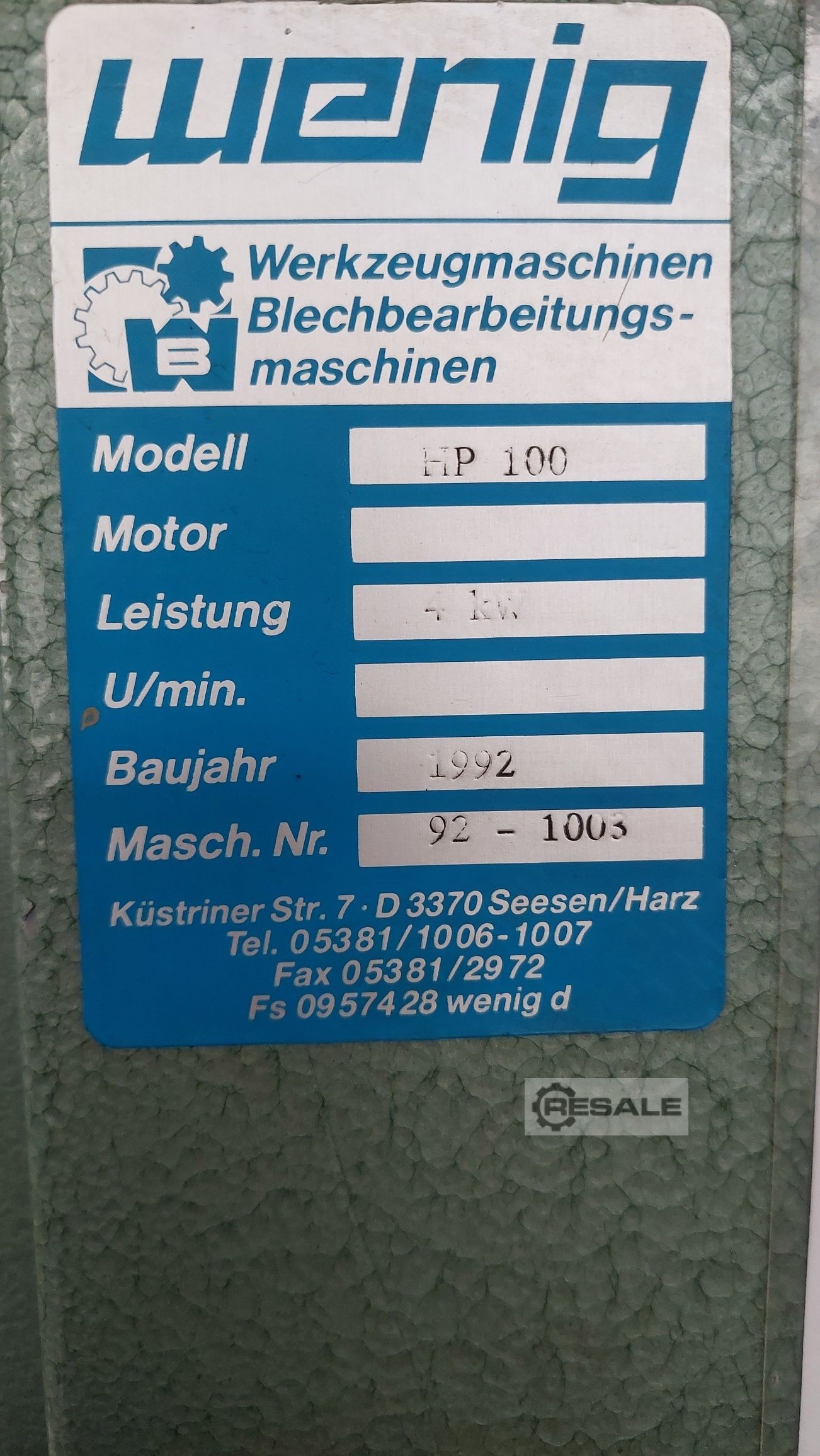

Manufacturer: WENIG-BLEMAS
Model:HP 100
Type of machine: Single Column Presses
item-No.: 168772932
Quantity: 1
Date: 19.02.2026
Year of manufacture: 1992
Location:
Germany
63322 Rödermark
Price:
Seller-item-No.:Lg.-Nr. 26005
Offer 26005
Technical data:
- Max. pressing force 100 t
- Max. ram stroke approx. 300 mm
- Working speed 8 m/sec
- Installation height approx. 400 mm
- Projection to the middle of the ram 270 mm
- Pusher clamping surface 680 x 410 mm
- Plunger clamping pin 50 mm

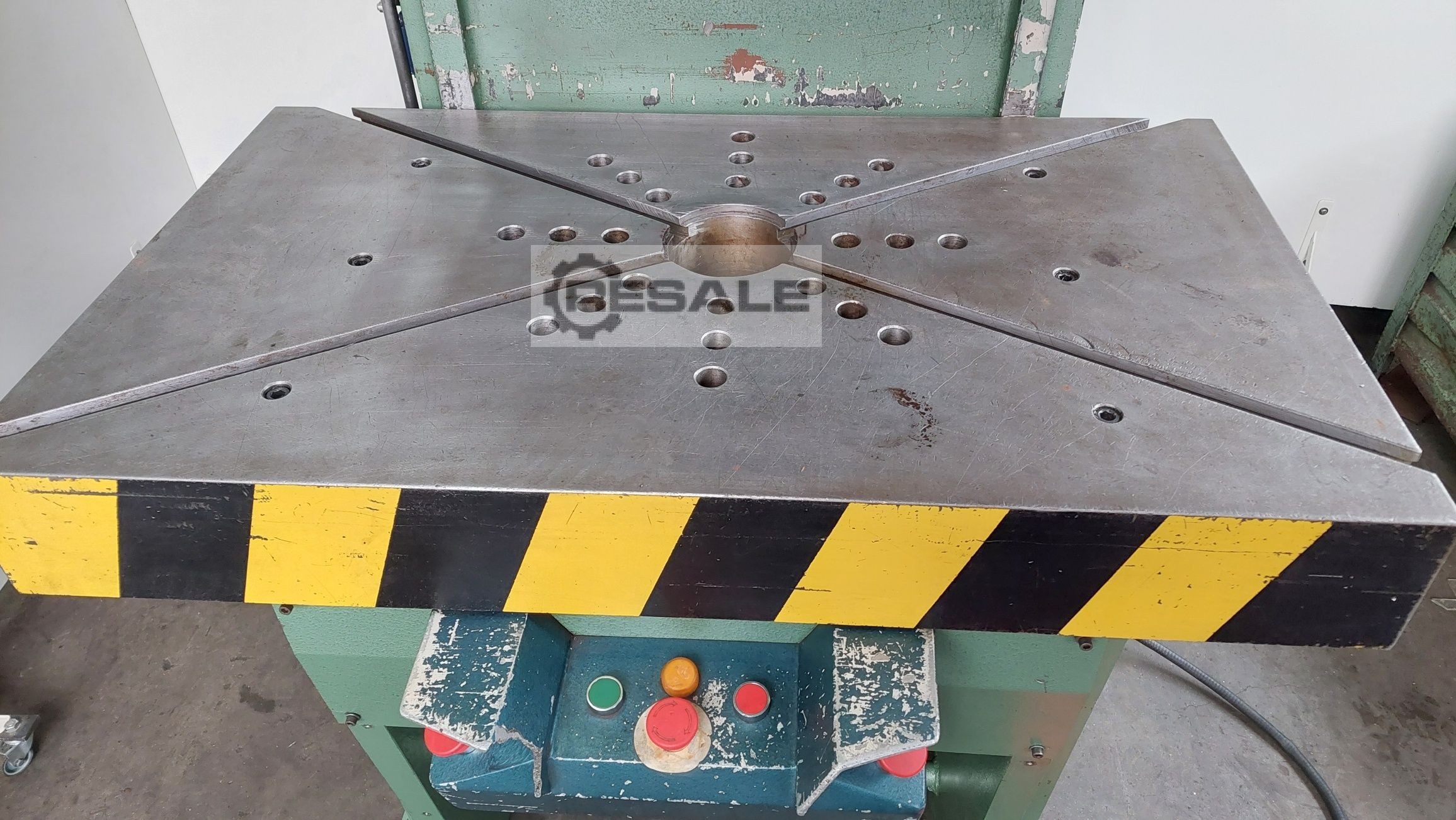

- Table size 1000 x 600 mm
- Table hole / through hole in the table 110 mm
- M6337496 Table height above floor 930 mm
- Drive 400 V / 7.5 kW
- Space requirement approx. W 1150 x H 2300 x D 1250 mm
- Weight approx. 3500 kg
Technical data:
- Max. pressing force 100 t
- Max. ram stroke approx. 300 mm
- Working speed 8 m/sec
- Installation height approx. 400 mm
- Projection to the middle of the ram 270 mm
- Pusher clamping surface 680 x 410 mm
- Plunger clamping pin 50 mm
- Table size 1000 x 600 mm
- Table hole / through hole in the table 110 mm
- M6337496 Table height above floor 930 mm
- Drive 400 V / 7.5 kW
- Space requirement approx. W 1150 x H 2300 x D 1250 mm
- Weight approx. 3500 kg
