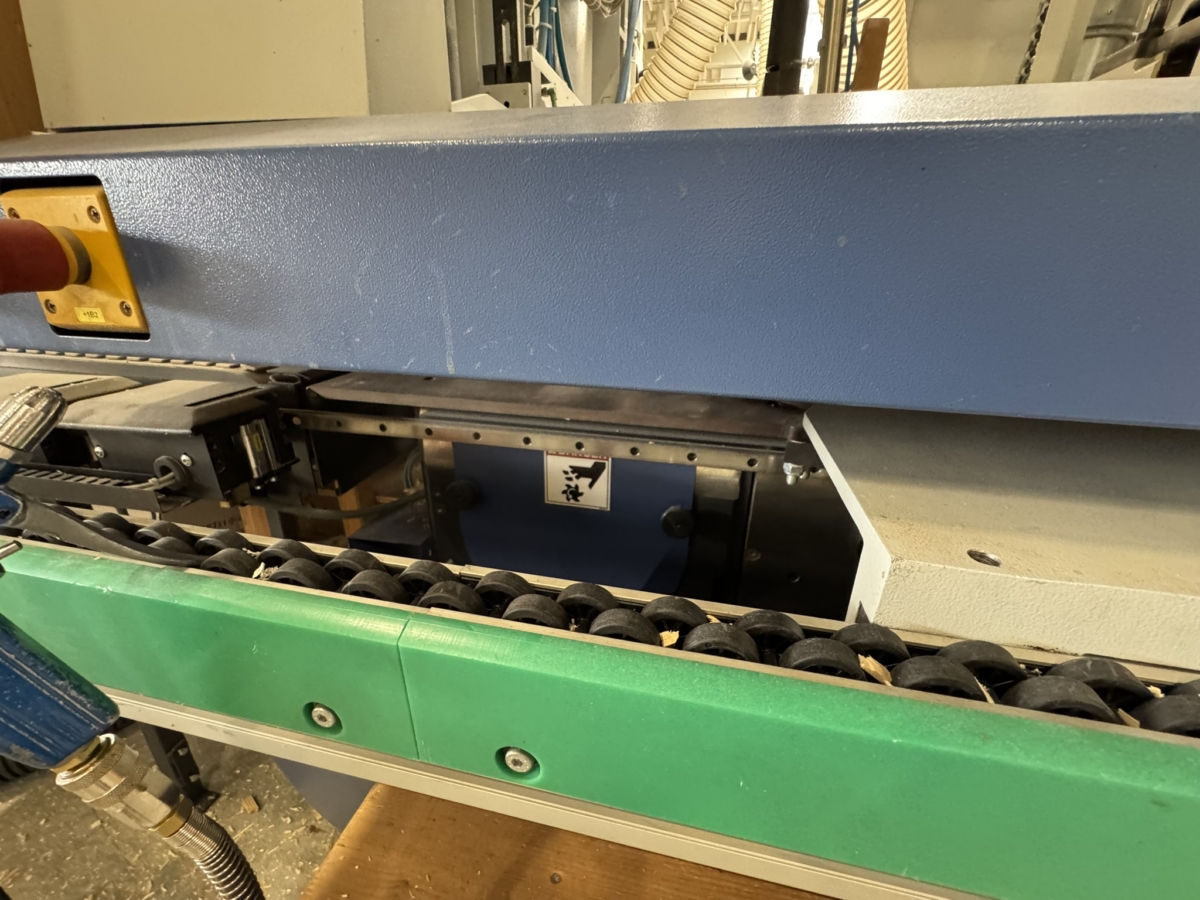

Window installations WEINIG Unicontrol 11 NC mit Werkzeuge

Tenoning spindle: 1 St.
Number of milling agregates: 5 St.
Spindle diameter: 50 mm
Control: Weinig PC-Nexus
Weinig Unicontrol 11 Window System with Extensive Tooling
-----------------------------------------
Optionally available (at additional cost):
- Weinig Univar 6 Rebating Machine (Price upon request!)
- Götzinger PowerDrill Drilling and Milling Center for Windows and Doors (Price upon request)

Manufacturers Technical Description:
-----------------------------------------

It em 1: Weinig Unicontrol 11 Window System
-----------------------------------------
Includes existing tooling sets:
- IV 67 (Wood and Wood-Aluminum)
- IV 77 (Wood and Wood-Aluminum)
- IV 90 (Wood)

Cross-cut Saw
--------------------------------------------------------------
With laser alignment light, motor power: 3 kW, spindle diameter: 40 mm,
electronically variable spindle speed with brake: 3,000–6,000 rpm. Max. tool cutting circle: 400 mm
Axial adjustment: 150 mm via NC axis
Radial adjustment: pneumatic, to 8 positions for top edge rounding

Horizontal Bottom Rounding Unit
------------------------------------------------------------- -
Motor with brake: 1.5 kW, Spindle diameter: 20 mm, Clamping length: 25 mm
Spindle speed: 9,000 rpm
Max. tool cutting circle: 130 mm
Axial adjustment travel: mechanically coupled with cut-off saw
Radial adjustment travel: pneumatically controlled

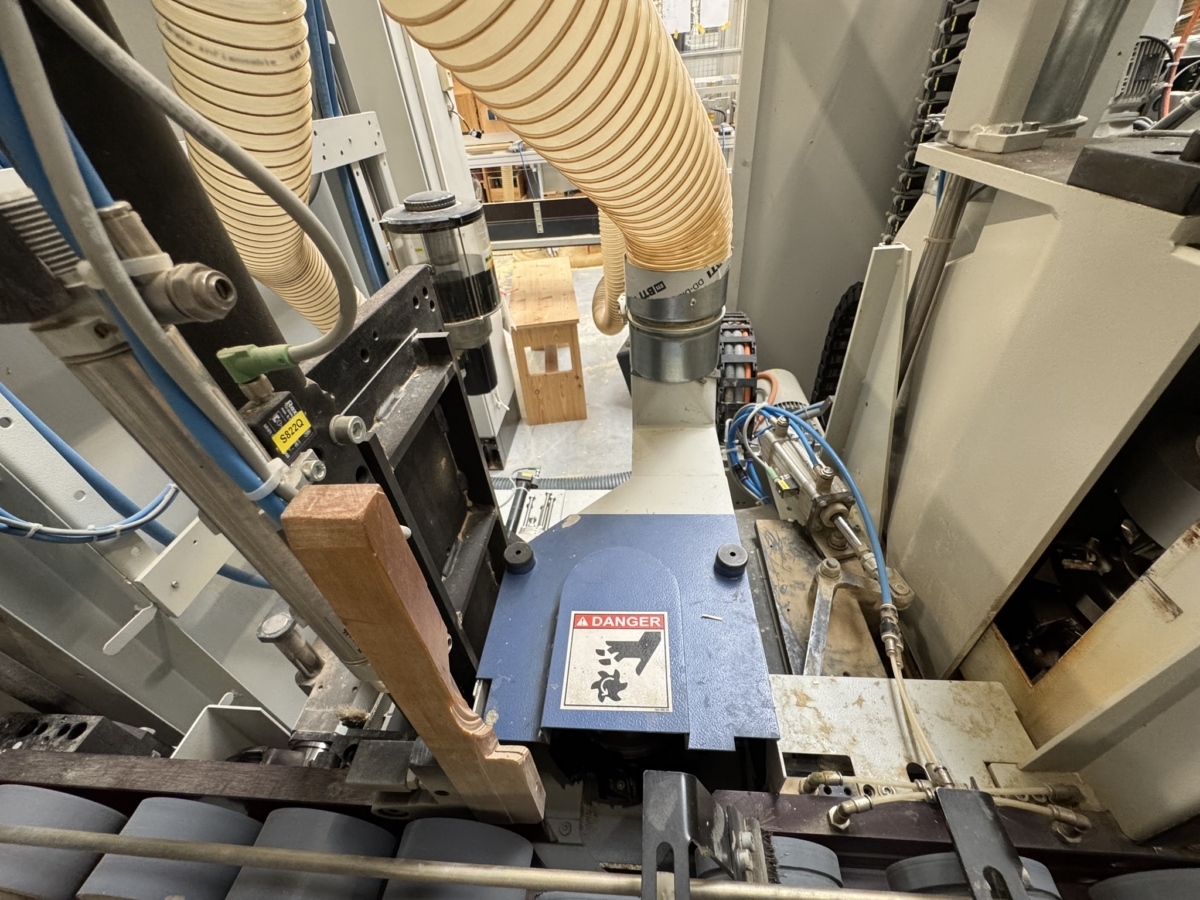

Tenoning and Slotting Spindle
---------------------------------------------------------- ----
With hydraulically clamped outboard bearing
Motor power with brake: 15 kW
Spindle diameter: 50 mm
Spindle speed: 2,800 rpm
Max. tool cutting circle: 400 mm
Tool clamping length: 640 mm
Axial adjustment travel: NC axis
Home position below table: 5–10 mm
Radial adjustment travel: fixed

1st Profiling Spindle (Climb and Conventional Milling)
--------------------------------------------------------- -----
Motor power with brake: 11 kW
Spindle diameter: 50 mm
Spindle speed: 6,000 rpm
Min. tool cutting circle: 140 mm, Max. tool cutting circle: 232 mm
Tool clamping length: 400 mm (with outboard bearing)
Axial adjustment travel: 350 mm (NC axis)
Radial adjustment travel: NC axis
Home position below table: 5–10 mm
2 feed rollers opposite the spindle, axial adjustment pneumatically controlled (8 positions)

Horizontal Top Profiling Unit
------------------------------------------------------------- -
Motor power with brake: 3.7 kW
Spindle diameter: 40 mm
Clamping length: 40 mm
Spindle speed: 9,000 rpm
Max. tool cutting circle: 130 mm
Adjustment: pneumatic, to 8 positions (axial and...) radial

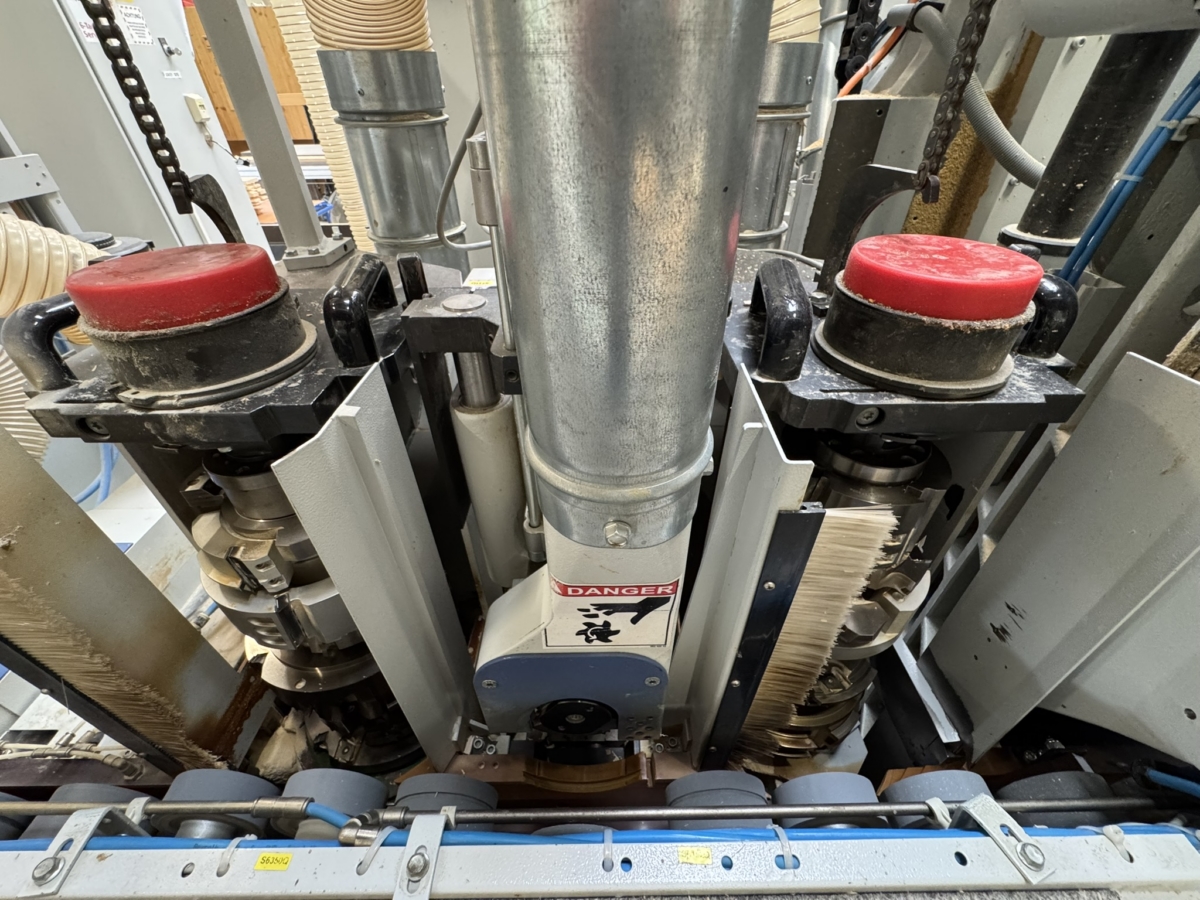

2. Profile Spindle
---------------------------------------------------------- ----
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 6,000 rpm
Tool cutting circle: min. 140 mm, max. 232 mm
Tool clamping length: 400 mm (with outboard bearing)
Axial adjustment travel: 350 mm (NC axis)
Radial adjustment travel: NC axis
Home position (below table): 5–10 mm
Indexed guide fence with muntin support strip
2 feed rollers (opposite the spindle), axially pneumatically controlled (8 positions)

Vertical Profile Milling Unit (Right-hand side, at machine end)
------------------------------------------------------------- -
Motor power (with brake): 3.7 kW
Spindle diameter: 40 mm
Clamping length: 160 mm
Spindle speed: 5,850 rpm
Tool cutting circle: min. 112 mm, max. 210 mm
Adjustment: Pneumatic (8 positions—axial and radial)

Horizontal Profile Milling Unit (Bottom)
--------------------------------------------------------- -----
Motor power (with brake): 3 kW
Spindle diameter: 40 mm
Clamping length: 125 mm
Spindle speed: 5,850 rpm
Tool cutting circle: max. 200 mm
Adjustment: Pneumatic (8 positions—axial and radial)

Additional Accessories
------------------------------------------------------ --------
- Length stop: CNC-controlled, mounted on the slotting table
(for lengths up to 3,500 mm), includes positioned cut-off saw integrated into the control system.

- Studio window device: Swivels 60° (both sides)
- Double-part package: With automatic singulation and transfer
- Perimeter milling package: With climb milling device and automatic plunge mechanism
- Rebating carriage: For rebating narrow sash widths (under 500 mm) Automatic pneumatic clamping
- Control cabinet air conditioning unit
- NEXUS PC control system
- Automatic turning system: Slat conveyor, including return conveyor belt for
transporting workpieces back to the operator

Optional Extras (Prices upon request!)
-----------------------------------------

Item 2: Weinig Univar 6 Rebating Machine
-----------------------------------------
Includes existing tooling

1. Profiling Spindle (Climb-milling spindle with automatic plunge-in)
> Climb-milling for tear-out-free rebating
> Position: Vertical right
> Number of tools: 1
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 120 mm
> Max. tool diameter: 232 mm
> Motor: 7.5 kW

2. Profiling Spindle
> Position: Vertical right
> Number of tools: 3 (with 95 mm stroke)
> Axial/radial adjustment range: 240/80 mm
> Axial adjustment: Pneumatic
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 320 mm
> Max. tool diameter: 232 mm
> Motor: 11 kW

3. Profiling Spindle (Hardware Routing Unit)
Position: Vertical right
Spindle diameter: 40 mm
Tool clamping height: 160 mm
Motor: 3 kW
Axial adjustment range: 90 mm

Additional Features
> Screen-based control system for 99 window types.
> Milling carriage for milling sash frame widths
under 500 mm. Manual clamping and operation.

-----------------------------------------
Item 3: Götzinger PowerDrill Drilling and Milling Center for Windows & Doors
-----------------------------------------
Includes existing drill bits and milling cutters, as well as 2 interchangeable heads for
corner bearings and espagnolette handles. The machine underwent a factory overhaul by Götzinger in 2017. With the Götzinger PowerDrill, depending on the specific model and configuration, you can:

- Perform face and edge drilling operations
- (Drilling for dowel joints in entrance doors, sub-frames, and transoms)
- Create freely programmable drilling patterns
- Drill holes for handle olives and corner bearings using quick-change
multi-spindle drilling heads
- Mill and drill for lock cases, door handles, profile cylinders (PZ), and
3D hinges
- The machine features both a horizontal and a vertical milling unit
- An intuitive control system allows you to create, save, and easily
recall drilling and milling programs

Robust base frame construction, clad in sheet metal

Table surface: 1500 x 200 mm

Processing Unit:
X-axis: 500 mm effective travel
Y-axis: 0–150 mm
Z-axis: 0–120 mm (above table level)

Horizontal Units:
1 Horizontal drilling unit (left-side dowel drilling unit)
1 Horizontal milling unit for lock cases
1 Horizontal drilling unit (right-side dowel drilling unit)

Vertical Units:
1 Vertical drilling unit

1 Vertical drilling unit — equipped with a quick-change drilling head system
--------------------------
1 Drilling head (BKF 2/3) for ROTO NT corner bearings, incl. drill bit set
(other hardware systems available upon request!), quick-change compatible
1 Drilling head (BKF 3) for handle olives, incl. drill bit set, quick-change compatible

1 Vertical milling unit for lock cases

1 Set of length stops (right and left), effective length 2.8 m, NC-controlled

PowerDrill Control Cabinet (Upgraded in 2017):
- Completely rebuilt with a new DC power supply unit
- New stepper motor controllers
- 3 B&R stepper motors (X, Y, and Z axes) Axis
- 1 B+R 10 Touch Panel

Complete machine, CE-compliant, ready for connection

Shipping dimensions:
Machine L x W x H = 2.50 x 1.50 x 2.30 m, Weight: 850 kg
Length stop L x W x H = 6.00 x 0.30 x 0.30 m, Weight: 100 kg

-----------------------------------------
Price for the above-mentioned machines available upon request!

Detailed descriptions of the machines are provided as PDF attachments.

(Technical specifications provided by the manufacturer –
subject to change/without guarantee!)
Tools are sold in the condition, scope, and with the accessories currently
available at current location. Note regarding cross-sections, tool drawings, and
tool system listings:
Engelfried assumes no warranty that the actual tools on hand correspond
to the systems specified and depicted in the drawings.
