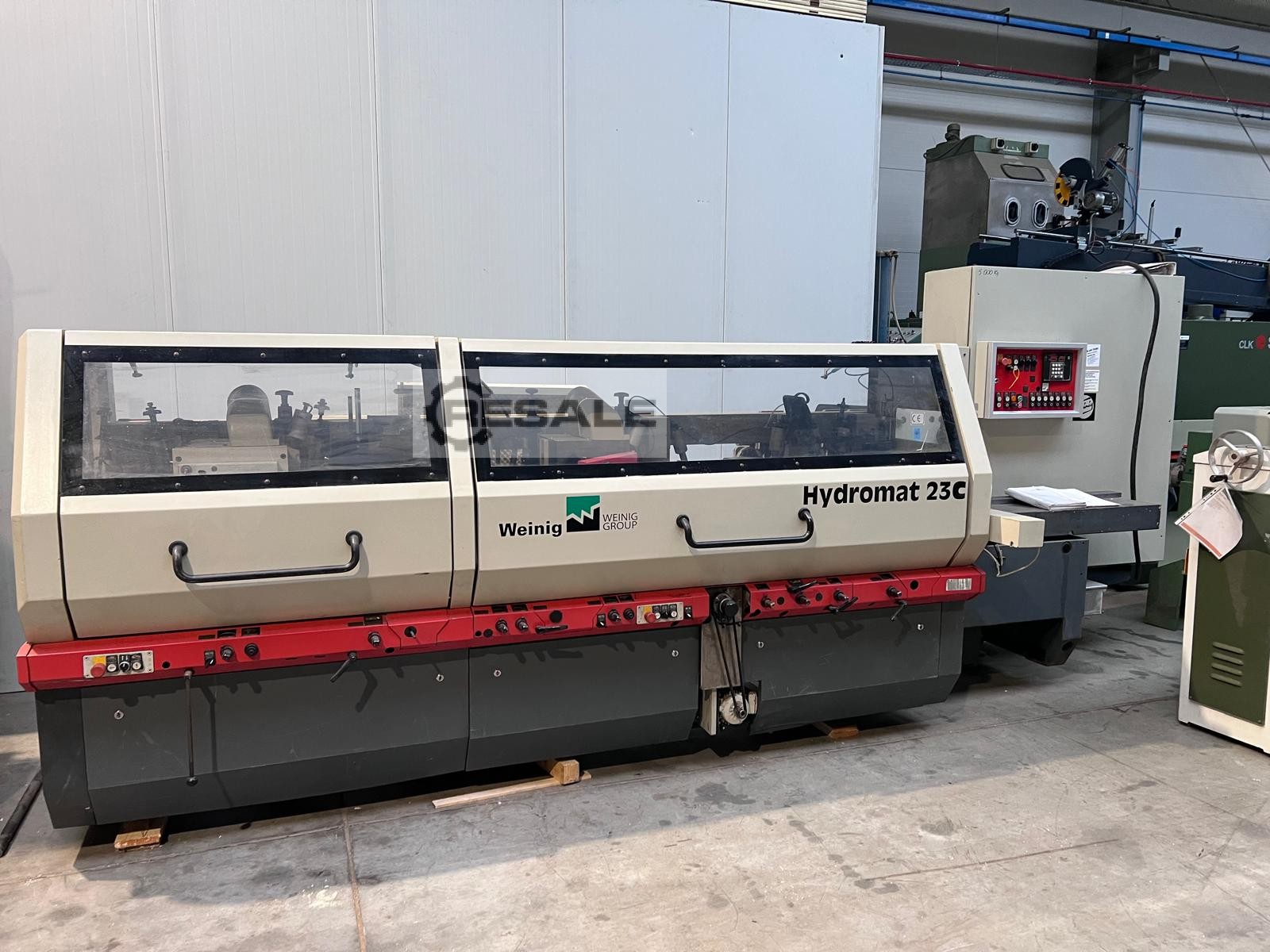

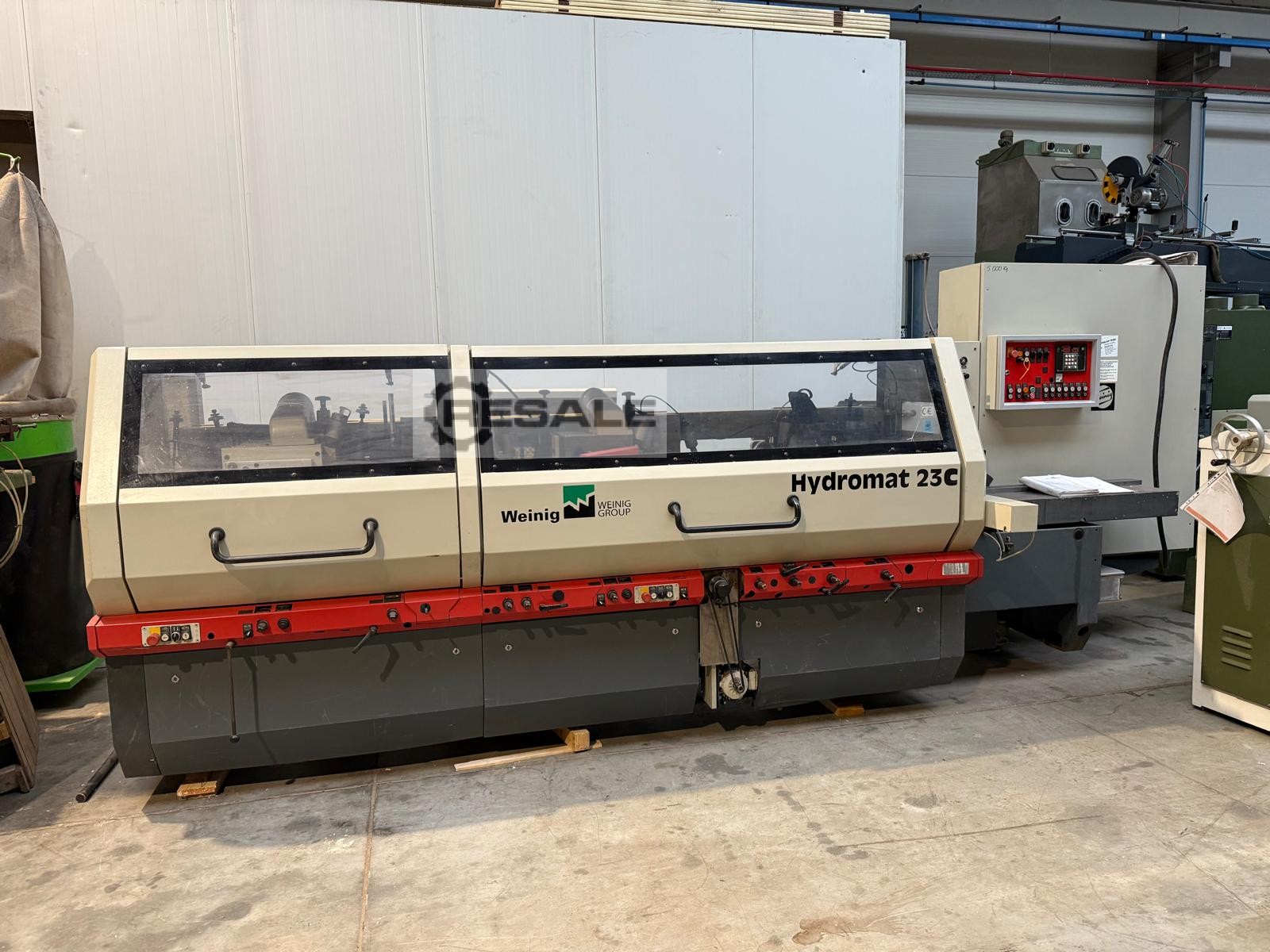

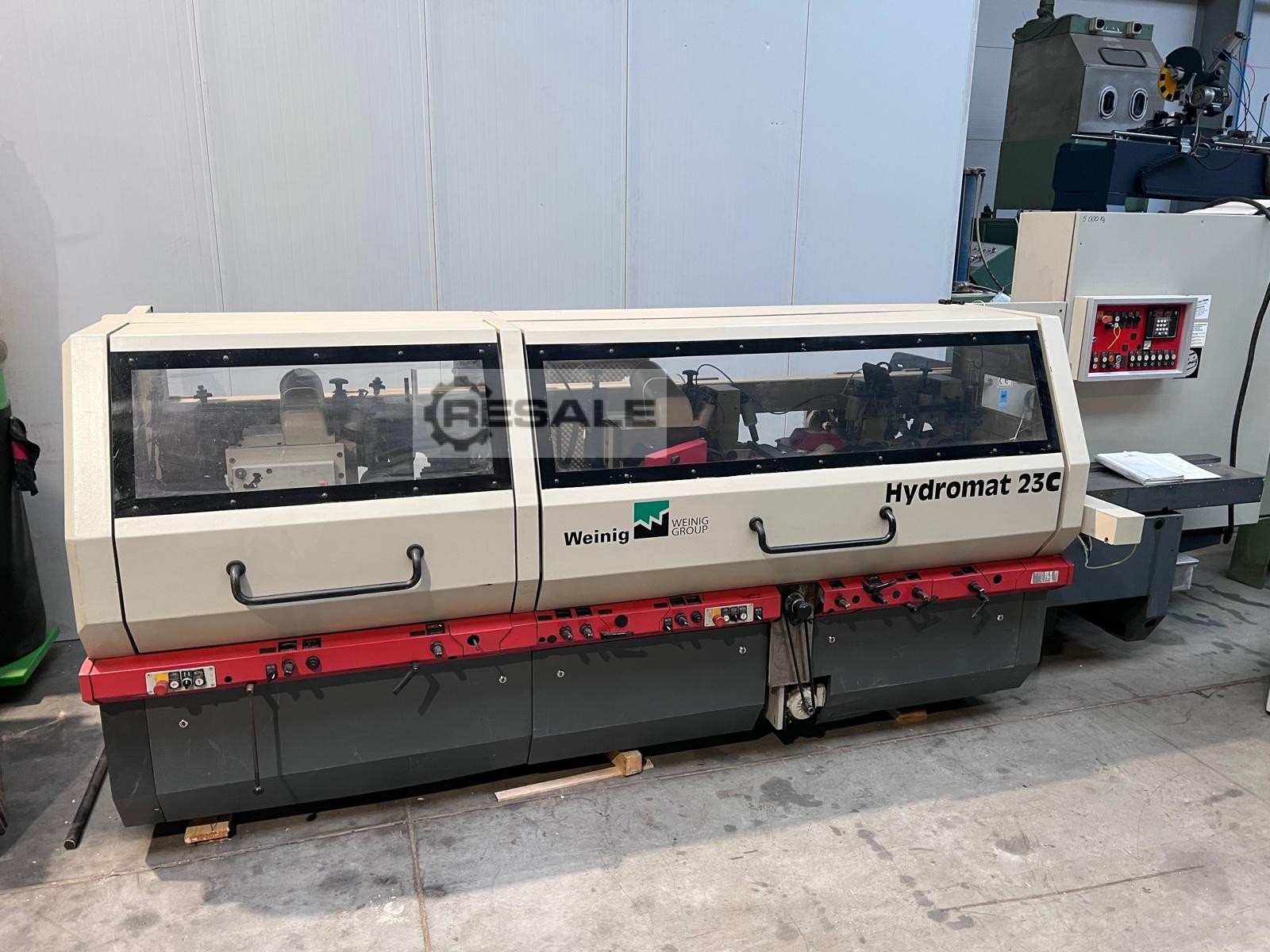

Four-sided planing machines WEINIG Hydromat 23C
wood working machines / planing machines / Four-sided planing machines
Weinig Hydromat 23C four-sided planer Working width 230mm Working height 160mm Number of spindles 7 Spindle layout: 1.Down 15kw 2.7.5kw rights 3.Left 7.5kw 4.Top 15kw 5.Lower 30kw (multi-saw) 6.Lower 7.5kw (hydro support) 7.Upper 7.5kw (hydro support) Spindle speed 6000r.p.m Spindle Diameter 50mm 4 ...
Manufacturer: WEINIG
Model:Hydromat 23C
Type of machine: Four-sided planing machines
item-No.: 168294364
Quantity: 1
Date: 15.07.2026
Year of manufacture:
Location:
Poland
34-23 JUSZCZYN
Price:
Weinig Hydromat 23C four-sided planer
Working width 230mm
Working height 160mm
Number of spindles 7
Spindle layout:
1.Down 15kw
2.7.5kw rights
3.Left 7.5kw
4.Top 15kw
5.Lower 30kw (multi-saw)
6.Lower 7.5kw (hydro support)
7.Upper 7.5kw (hydro support)
Spindle speed 6000r.p.m
Spindle Diameter 50mm
4 pulling rollers in the working table
Inverter-adjustable feed speed up to 36m/min
Cardan shaft driven feed
Pneumatic Clamps
Technical documentation
Working width 230mm
Working height 160mm
Number of spindles 7
Spindle layout:
1.Down 15kw
2.7.5kw rights
3.Left 7.5kw
4.Top 15kw
5.Lower 30kw (multi-saw)
6.Lower 7.5kw (hydro support)
7.Upper 7.5kw (hydro support)
Spindle speed 6000r.p.m
Spindle Diameter 50mm
4 pulling rollers in the working table
Inverter-adjustable feed speed up to 36m/min
Cardan shaft driven feed
Pneumatic Clamps
Technical documentation
