CNC Portal Milling Machines WALDRICH COBURG PowerTec 4500

X-travel: 20000 mm Y-travel: 7900 mm Z-travel: 2500 mm CNC Gantry Milling Machine

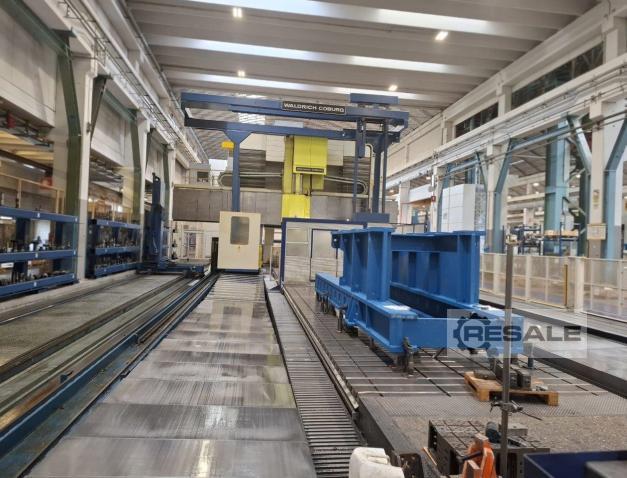

Waldrich Coburg PowerTec 4500

Built in 1999 with Siemens 840C CNC control

X 20,000 mm (longitudinal gantry)

Y 7,900 mm (transverse travel of the milling ram)

Z 2,500 mm (vertical travel of the milling ram)

W 2,500 mm (transverse beam perpendicular)

Distance between uprights 4,380 mm

Distance from spindle to table max. 4,000 mm

Spindle overhauled in 2023

Spindle motor power 105 KW

Spindle speeds 2 – 2,500 rpm (2-stage gearbox)

Torque S1 9,000 Nm

Spindle holder ISO 60 / ISO 50

405-speed tool changer

5 milling heads

Universal milling head automatic indexing 1° / 1°

Offer number V(F)-7155
seller offer No. resale V(F)-7155
