W+H Olympia 736 ST

Reference ID PP-62026
Category Flexo Printer
Manufacturer Windmöller & Hölscher
Model Olympia 736 ST
Year Built 1986
Color 6
Impression -
Working Hours -
Speed - -
Max. size 1320 mm
Min. Size -
Condition Good
Location Europe
Availability Immediately
Machine Description
Manufacturer: Windmöller & Hölscher
Model: Olympia 736 ST
Year of production: 1986

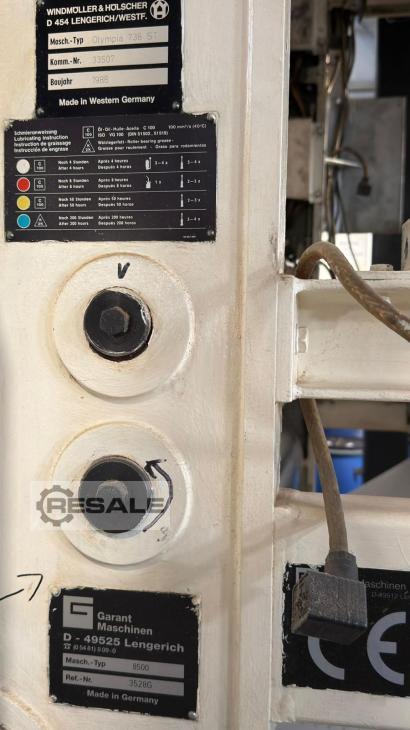

Refurbished by Garant with newer technology
Color change modification
Electrical panel control replaced with Siemens
BST web guiding system, purchased in 2018
Inspection camera
Section 5 converted into a glue section
Additional guide rollers installed
Two guide rollers added in front of the knife section for processing thinner paper
Inspection platform installed on top of the machine
Display above the rewinder showing printing speed
Replaced Parts
Drive belt for the rubber paper pulling rollers
Drive belt for the rewinder rotation
Bearings on the unwinder
Main Technical Specification
Central drum
6 colors
Gear-driven system
Water-based inks
Max. material width: 1320 mm
Max. printing width: 1270 mm
Min. – max. print repeat: 300 – 910 mm
Gear pitch: 10 mm
Max. mechanical printing speed: 250 m/min
Suitable Materials
Paper: 50 – 130 g/m²
HDPE: 0.010 – 0.040 mm
Polyethylene / LDPE: 0.020 – 0.150 mm
Laminated films: up to 0.100 mm
PP
Cellophane and similar materials: 0.012 – 0.100 mm

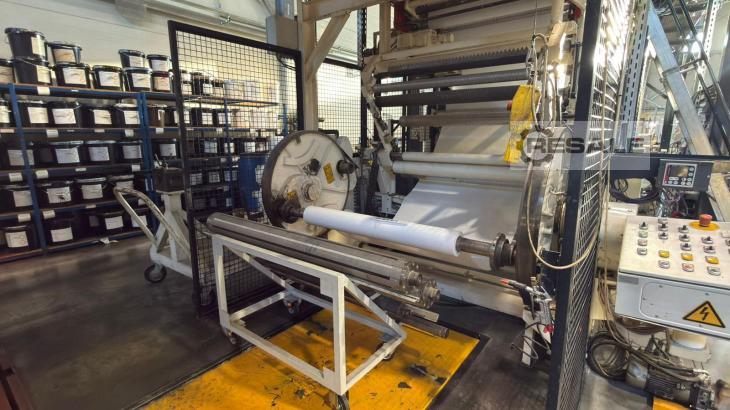

Unwinder / Rewinder
Max. reel diameter unwinder: 1000 mm
Max. reel diameter rewinder: 1000 mm
Inner core diameter unwinder: 76 mm
Inner core diameter rewinder: 76 mm
Min. – max. web tension unwinder: 25 – 270 N
Min. – max. web tension rewinder: 30 – 350 N
Printing Cylinders
16 cylinders in total : 5 x 310, 6 x 520, 5 x 580
Anilox Rolls
7 anilox rolls in total: 3 x 80, 1 x 120, 1 x 160, 2 x 200
Gears
157 gears in total
7 x 31, 8 x 32, 6 x 33, 6 x 34, 6 x 35, 6 x 36, 6 x 37, 6 x 38, 6 x 39, 4 x 40, 5 x
42, 6 x 44, 6 x 46, 6 x 49, 5 x 50, 6 x 52, 5 x 54, 5 x 57, 6 x 58, 5 x 59, 6 x 60, 6
x 61, 8 x 62, 5 x 64, 6 x 66, 1 x 70, 3 x 71, 3 x 75, 3 x 76

Sleeves Included – Inner / Outer Diameter
78 sleeves in total
9 x 310/320, 1 x 310/330, 5 x 310/340, 3 x 310/350, 4 x 310/360, 3 x 310/390, 5
x 310/380, 5 x 310/400, 2 x 310/420, 2 x 310/440, 1 x 310/450, 2 x 310/460, 1 x
310/490, 4 x 310/500, 4 x 520/520, 1 x 520/560, 5 x 520/570, 4 x 580/590, 2 x
580/600, 3 x 580/610, 2 x 580/620, 1 x 580/640, 4 x 580/660, 2 x 580/750, 3 x
580/760
Additional Information
Registration accuracy front/back: ± 1 mm
Siemens 5 electronic system
Explosion-proof: to be confirmed
Chiller available, not connected
Gas burner drying system available, not connected because the machine is
currently used for paper
Manuals and electrical diagrams available
Overall dimensions (L x W x H): 17 x 8.30 x 5.20 m
Machine can be seen in production
Immediately available
