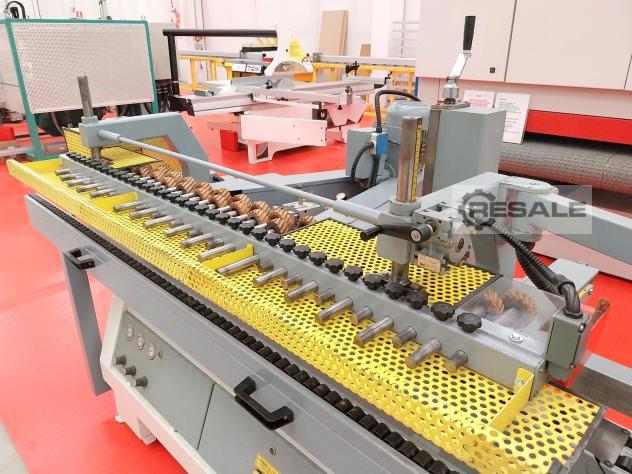

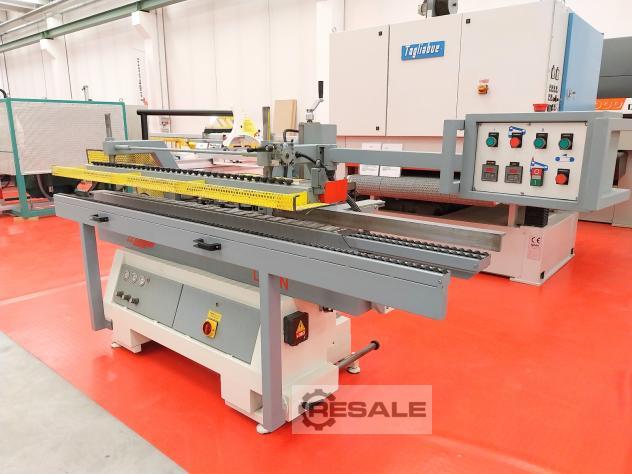

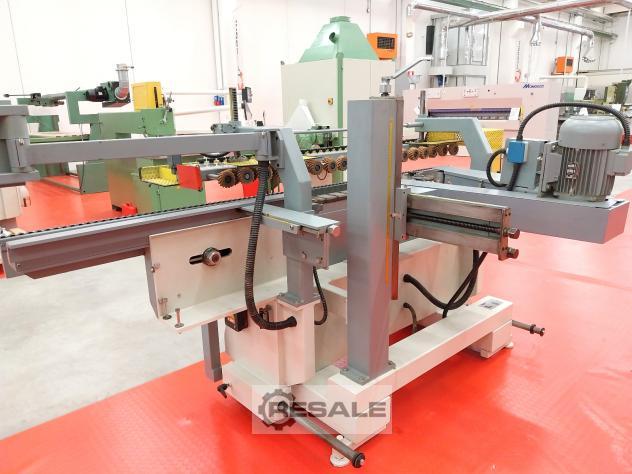

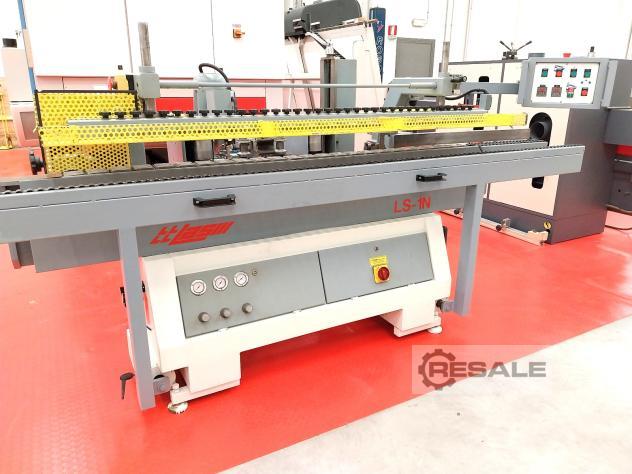

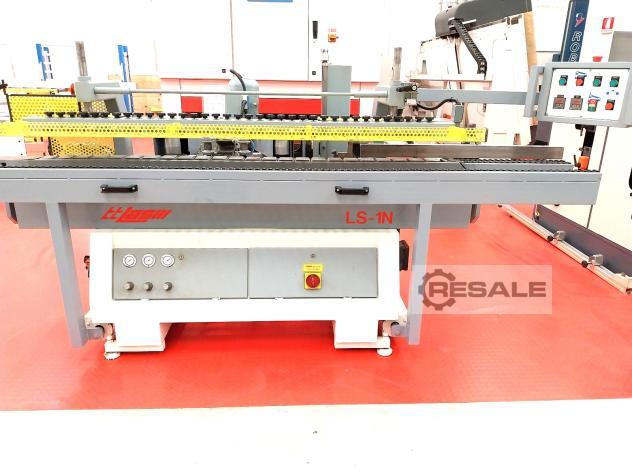

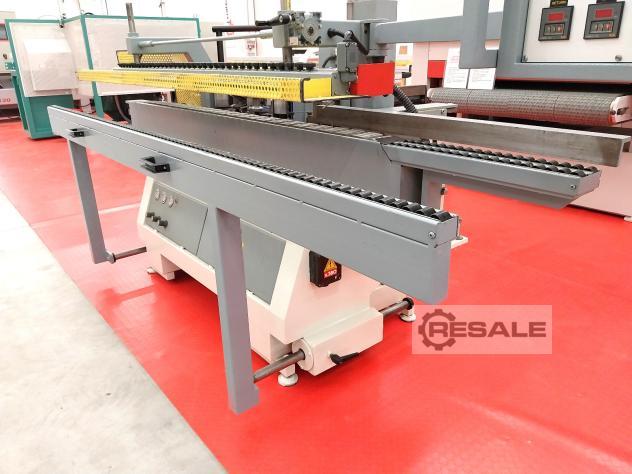

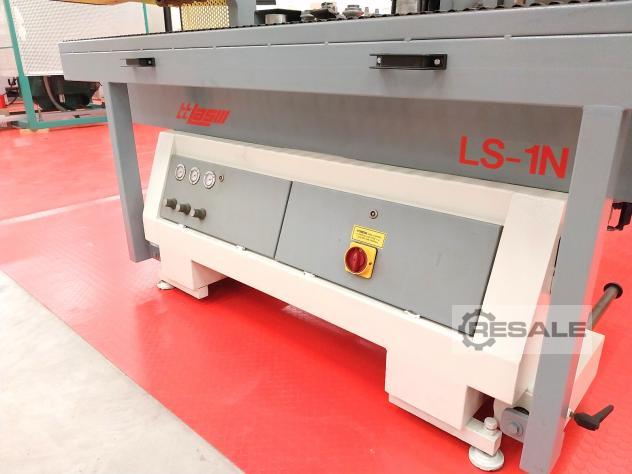

Edge sanding machines VOLPATO LS - 1N

Code: 0351
Brand: VOLPATO
Model: LS - 1N - CE Standard

Automatic edge sanding machine for edges and profiles in wood, solid wood, veneer, painted and various materials - CE Standard

Technical data
Max working height mm 110
Min working length mm 100
Variable-speed belt feed 5–30 m/min – Motor Kw 1,5
Tilting oscillating sanding unit – 2-speed motor 700–1400 rpm – Power 2 Hp Pneumatic belt tensioner – Timed entry and exit of the pad
Mechanical oscillation of abrasive belt 0/20 mm
Lifting and tilting via handwheel with special key
Removable support for large panels
Abrasive belt dimensions 80 x 2450 mm
Suction inlet diameter 100 mm
Compressed air 5–6 atm
Overall dimensions mm 2600 x 1400 x 1500 h
Weight kg 720



seller offer No. resale Code: 0351
