Backflow Preventer VAG Top-Stop
process engineering / machines and plants for process engineering
Two identical VAG diaphragm check valves are available. Nominal size: DN350, pressure rating: PN10, max. operating pressure: 10bar, max. operating temperature: 50°C, medium: water (1st stage filtrate), face-to-face length: 800mm, flange outside diameter: 505mm, flange thickness: 30mm, bolt circle ...
Manufacturer: VAG
Model:Top-Stop
Type of machine: Backflow Preventer
item-No.: 169838695
Quantity: 1
Date: 10.07.2026
Year of manufacture: 2021
Location:
Germany
Deutschland
Price:
Machine in stock:No
Seller-item-No.:INNO31884

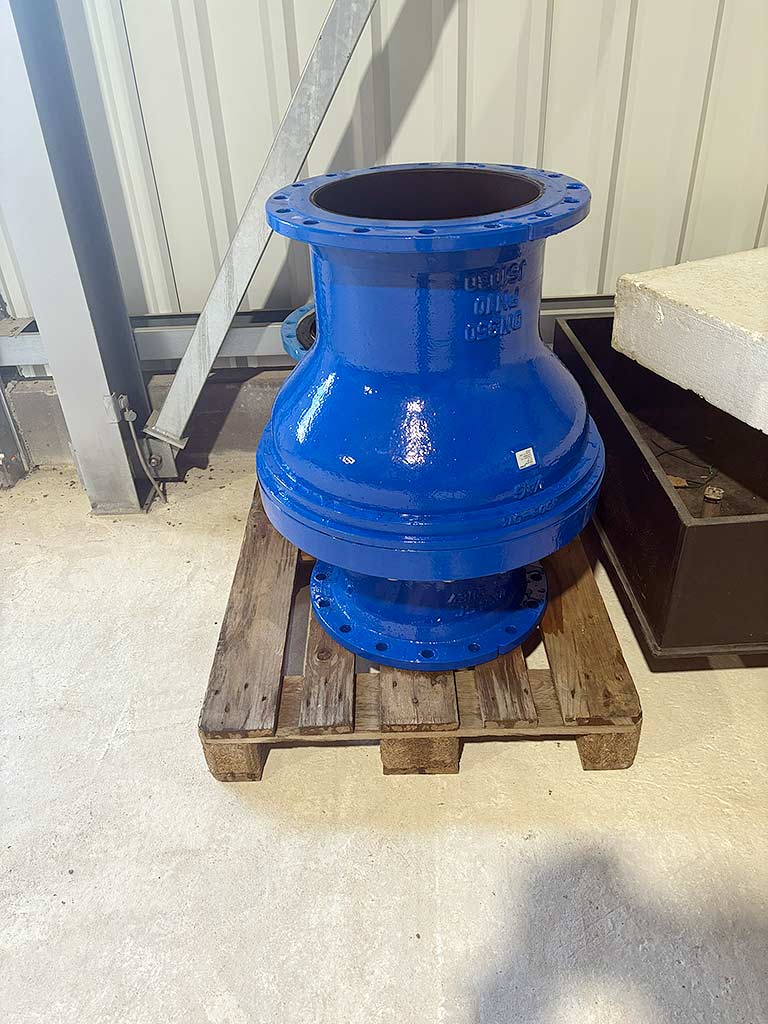

Two identical VAG diaphragm check valves are available. Nominal size:
DN350, pressure rating: PN10, max. operating pressure: 10bar, max.
operating temperature: 50°C, medium: water (1st stage filtrate),
face-to-face length: 800mm, flange outside diameter: 505mm, flange
thickness: 30mm, bolt circle diameter: 460mm, weight: approx. 280kg.
Including two flange-to-flange pipe sections. Both items were only in
contact with 1st stage filtrate in a drinking water treatment plant.
Documentation available. An on-site inspection is possible.
