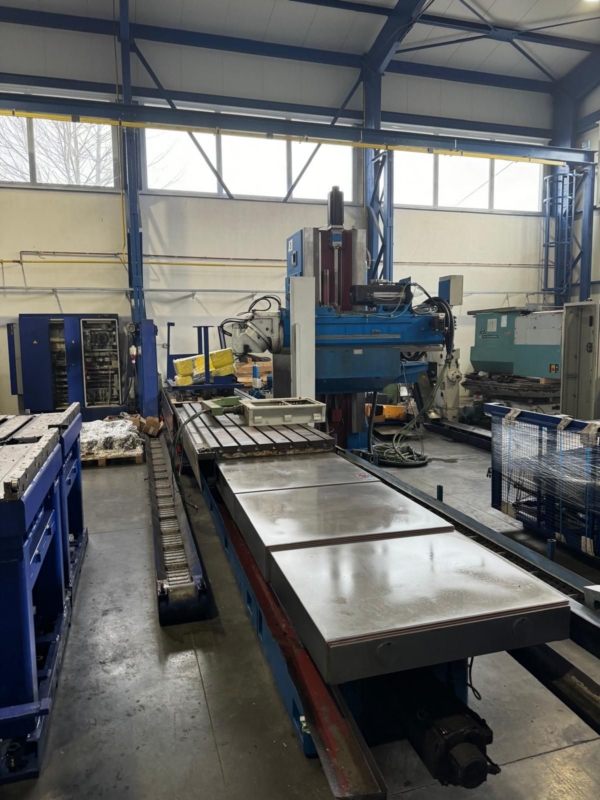

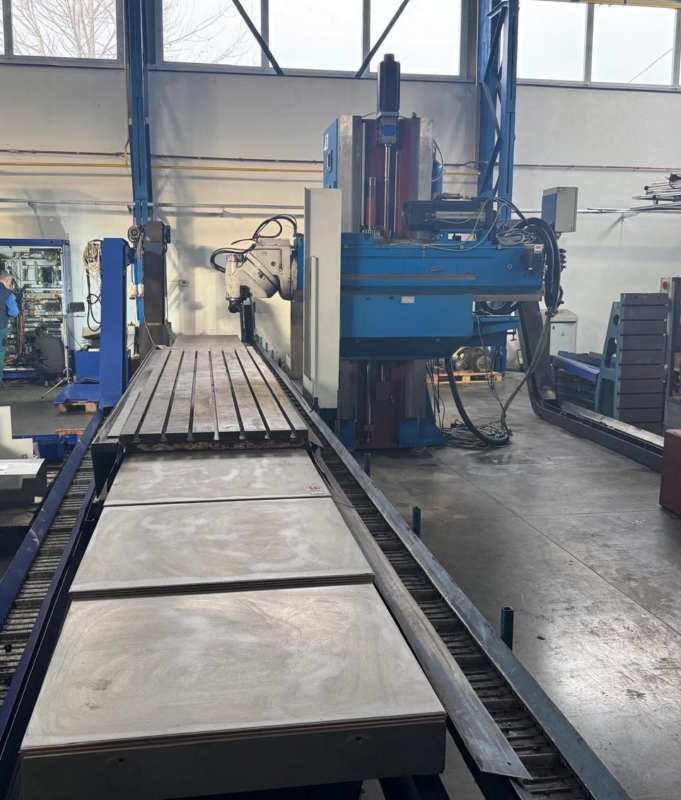

CNC Bed Milling Machines TOS-KURIM FSQ 100 OR/A5 CNC

x-travel: 5000 mm
y-travel: 1000 mm
z-travel: 1400 mm
tool taper: ISO 50
spindle turning speed - stepless: 18 - 4000 U/min
spindle motor: 22 kW
table surface area: 5000 x 1000 mm
table load: 10,5 t
Control: Heidenhain TNC 530
A-Axis: +177,5 / - 180 °
rapid traverse: 1 - 5000 mm/min
distance spindle /table: 125 - 1525 mm
total power requirement: 50 kVA
weight of the machine ca.: 29 t
dimensions of the machine ca.: 13,1 x 5,4 x 3,86 mm
medium overhaul in 2023/24, the spindle head and the mechanical components of the machine were refurbished.

5-axis machine
- CNC control Heidenhain TNC 530
- MILLING HEAD O - FSQ 4000/750
-- 4000 rpm
-- single spindle head with automatically adjustable spindle
In a vertical or horizontal position the head can swivel around the cross axis from +177,5° to –180° by 2,5°.
Swiveling around cross axis and H/V positioning comes from a regulatory servodrive of the spindle.
The moving head parts are positioned by consolidation into a toothed rim.

- tool magazine for 24 places
- coolant
- chip conveyor
