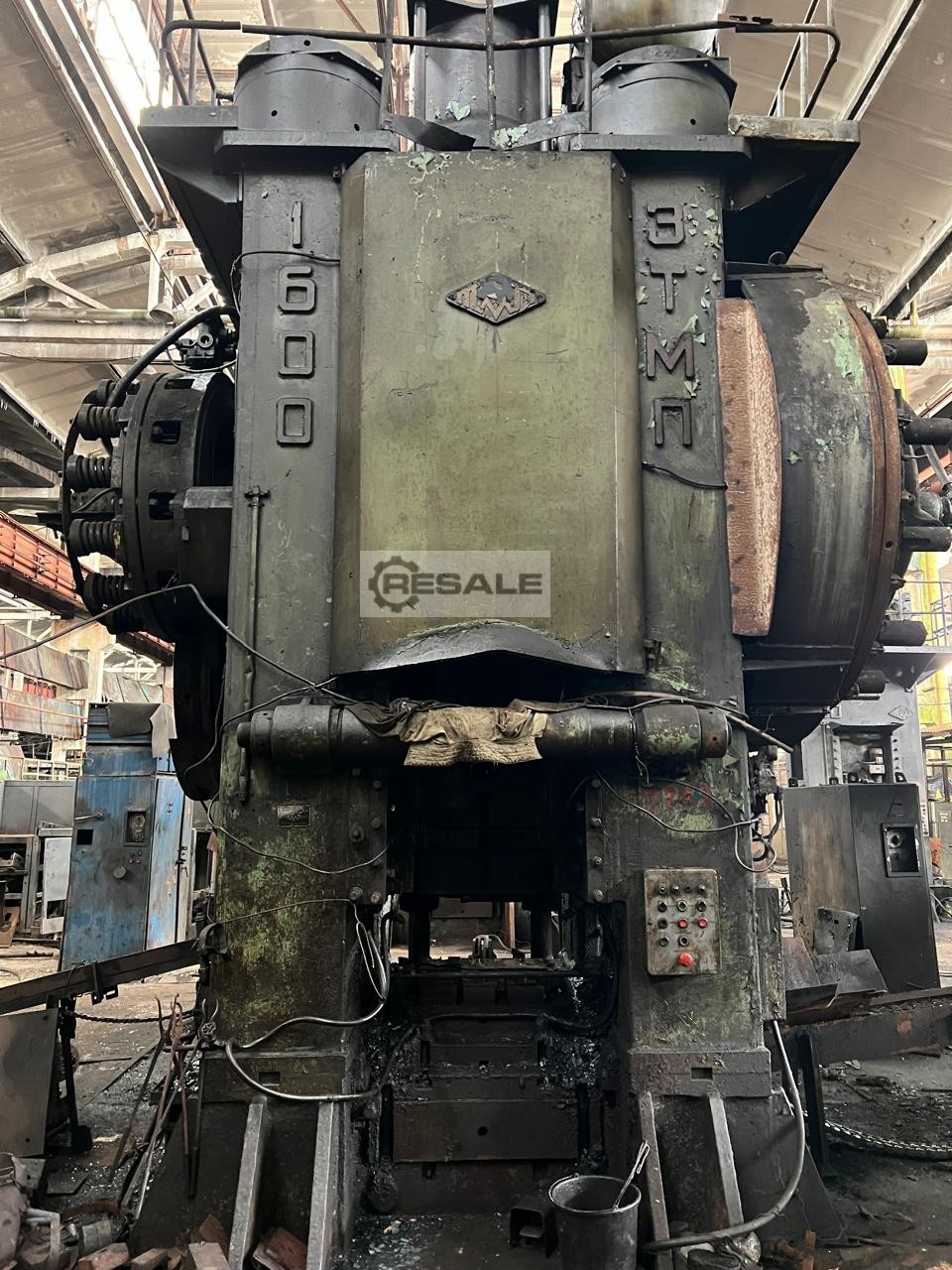

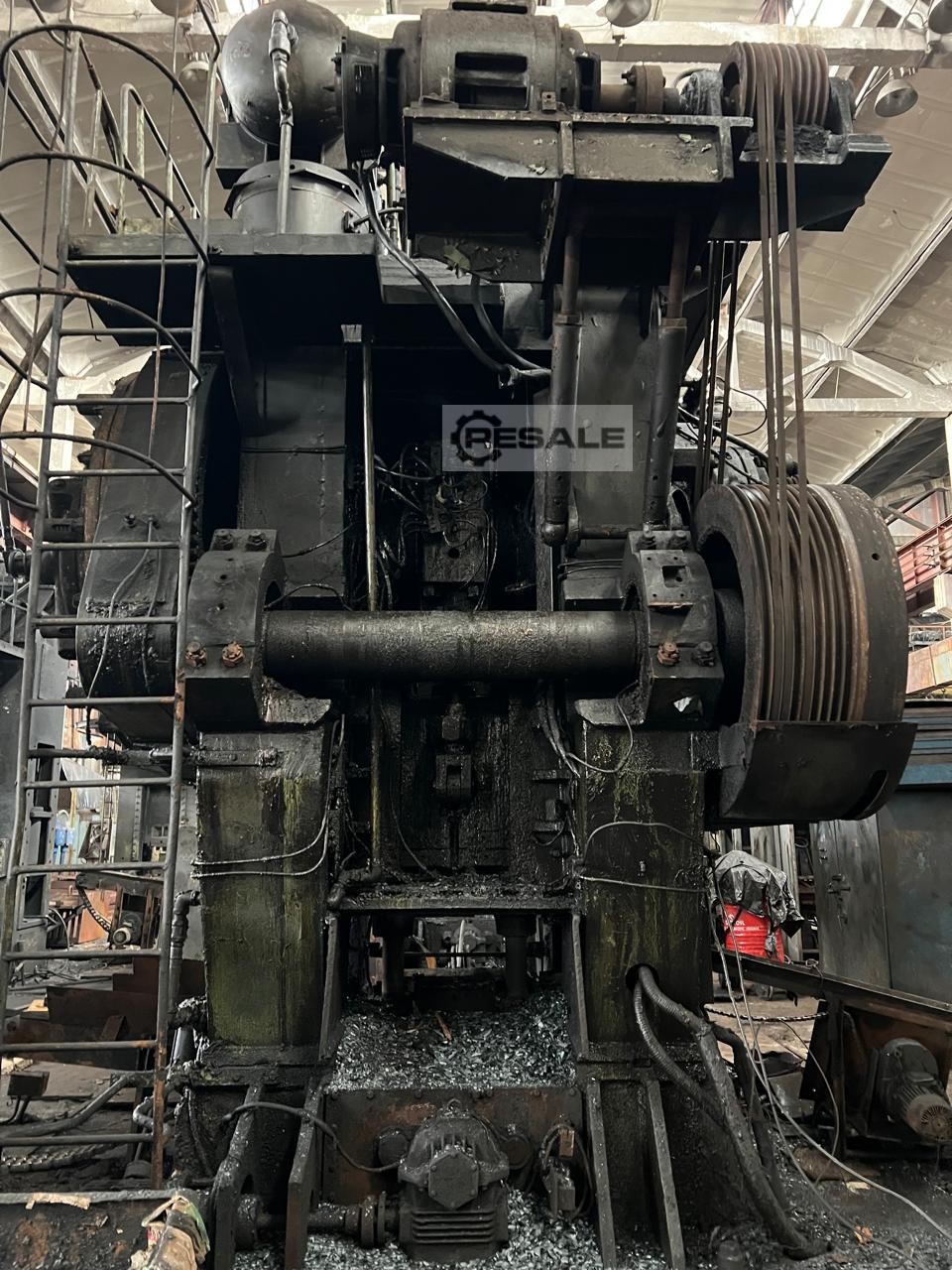

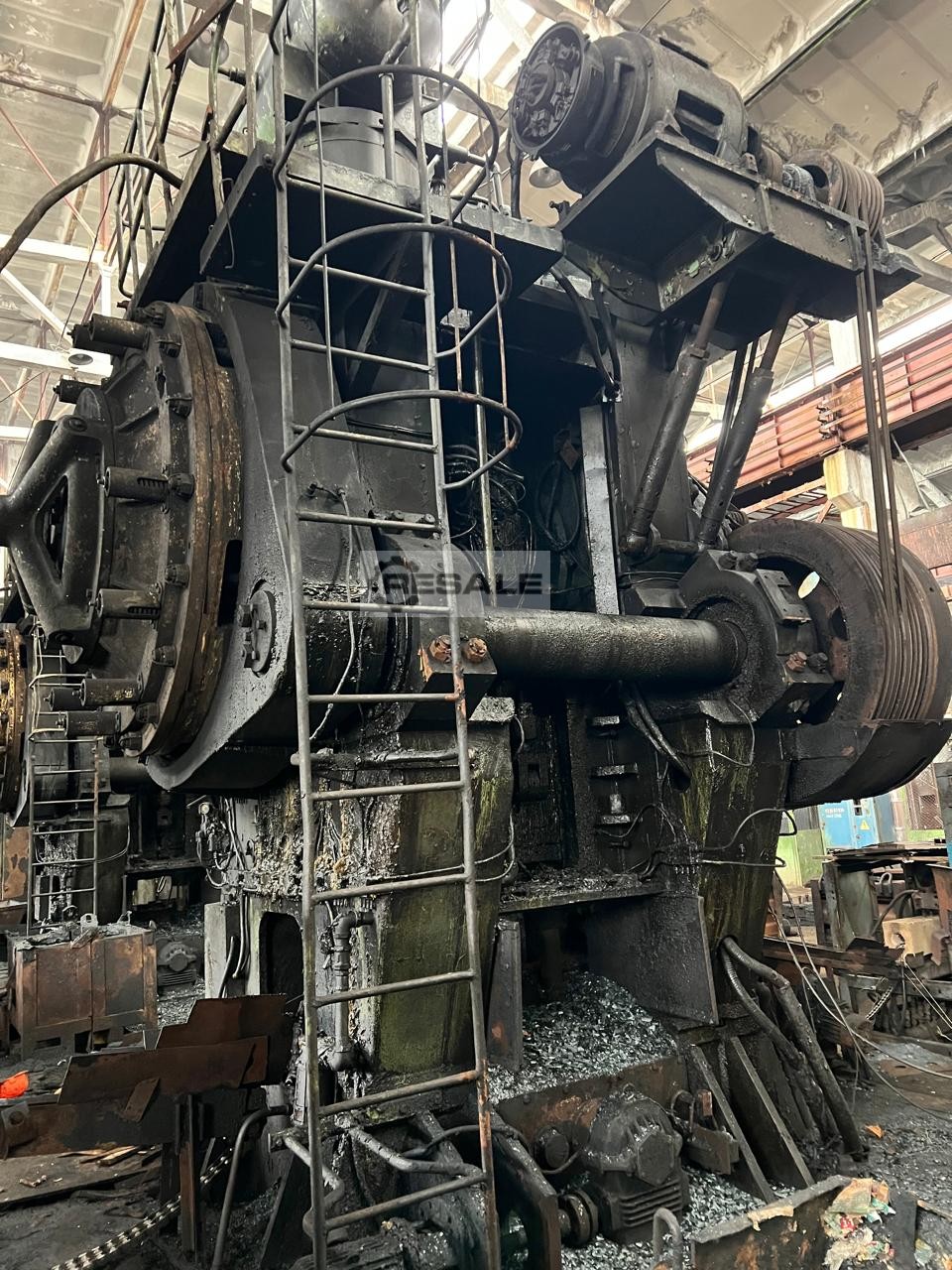

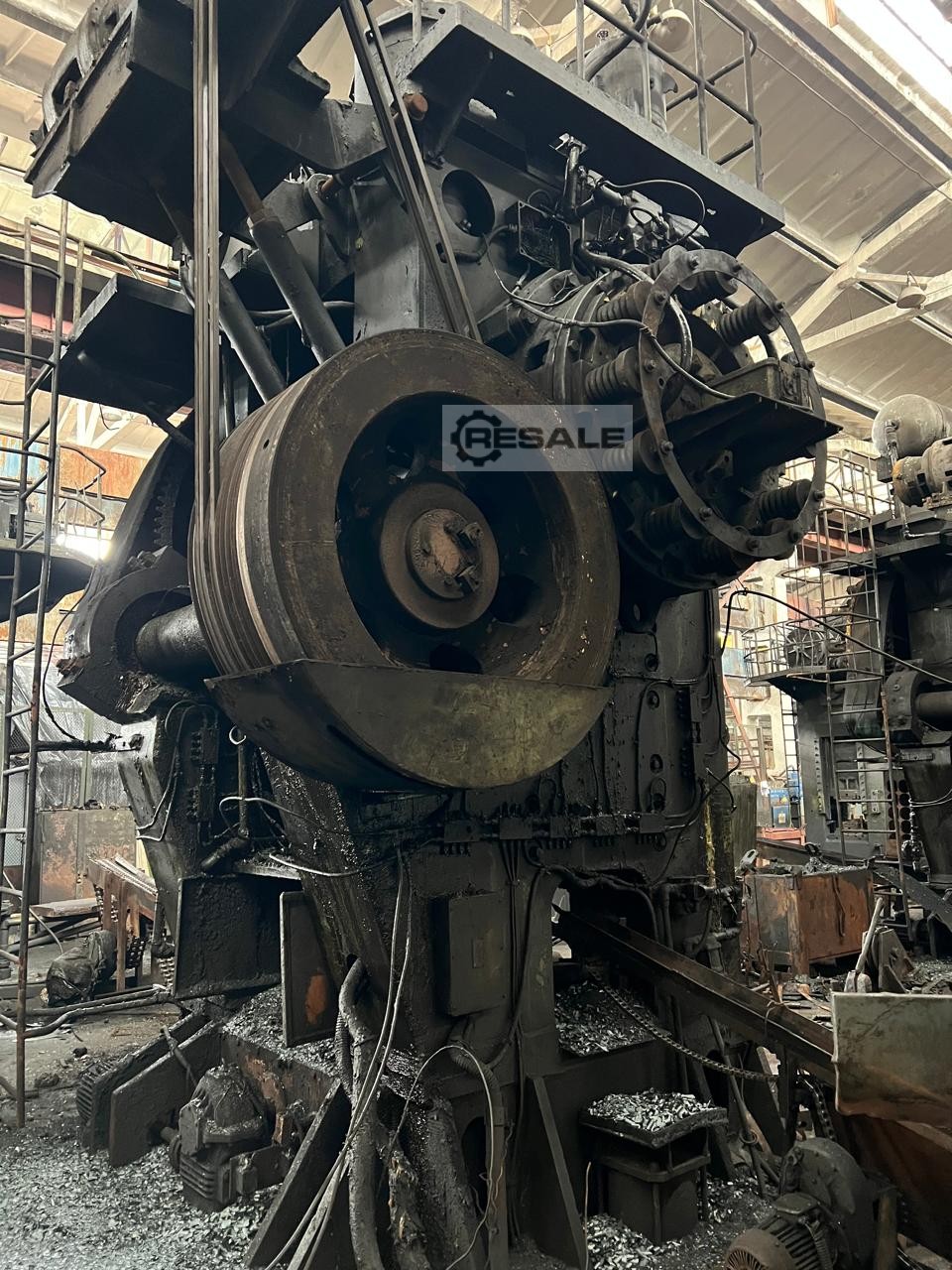

Mechanical forging press TMP K8542 1600t
metal working machines / presses
Manufacturer: TMP
Model:K8542 1600t
Type of machine: Mechanical forging press
item-No.: 168723552
Quantity: 1
Date: 11.02.2026
Year of manufacture: 1981
Location:
Ukraine
Price:
Machine in stock:Yes
Capacity: 1600 tons
Slide stroke: 300 mm
Slide stroke length at maximum force: 0,16 mm
Distance adjustment between table and slider: 10 mm
Slide stroke number in 1 min: 75
Length of a rod: 920 mm
The closed height: 660 mm
Table overall dimensions: 940x1200 mm
Table height above floor level: 450 mm
Slide overall dimensions: 860x910 mm
The size of lateral windows:
-Height: 560 E6331468 mm
-Width: 600 mm
Main motor: 110 kW
Press overall dimensions:
-Length: 5060 mm
-Width: 3940 mm
-Height above floor level: 5125 mm
Press weight: 120 tons
Slide stroke: 300 mm
Slide stroke length at maximum force: 0,16 mm
Distance adjustment between table and slider: 10 mm
Slide stroke number in 1 min: 75
Length of a rod: 920 mm
The closed height: 660 mm
Table overall dimensions: 940x1200 mm
Table height above floor level: 450 mm
Slide overall dimensions: 860x910 mm
The size of lateral windows:
-Height: 560 E6331468 mm
-Width: 600 mm
Main motor: 110 kW
Press overall dimensions:
-Length: 5060 mm
-Width: 3940 mm
-Height above floor level: 5125 mm
Press weight: 120 tons
