Heat exchangers TALLERES MAC
process engineering / machines and plants for process engineering / Heat exchangers
Vertical heat exchanger made of stainless steel from the brand TALLERES MAC of 48.5 m2. Year 2001. Material Stainless steel Technical characteristics Year of manufacture 2001 Number of tubes 203 Working temperature of the tubes 230 ºC Working pressure of the tubes -1 bar Working temperature of the ...
Manufacturer: TALLERES MAC
Model:
Type of machine: Heat exchangers
item-No.: 169415379
Quantity: 1
Date: 29.04.2026
Year of manufacture: 2001
Location:
Spain
08520 Les Franqueses del Valles
Price:
Machine in stock:Yes
Seller-item-No.:C14271

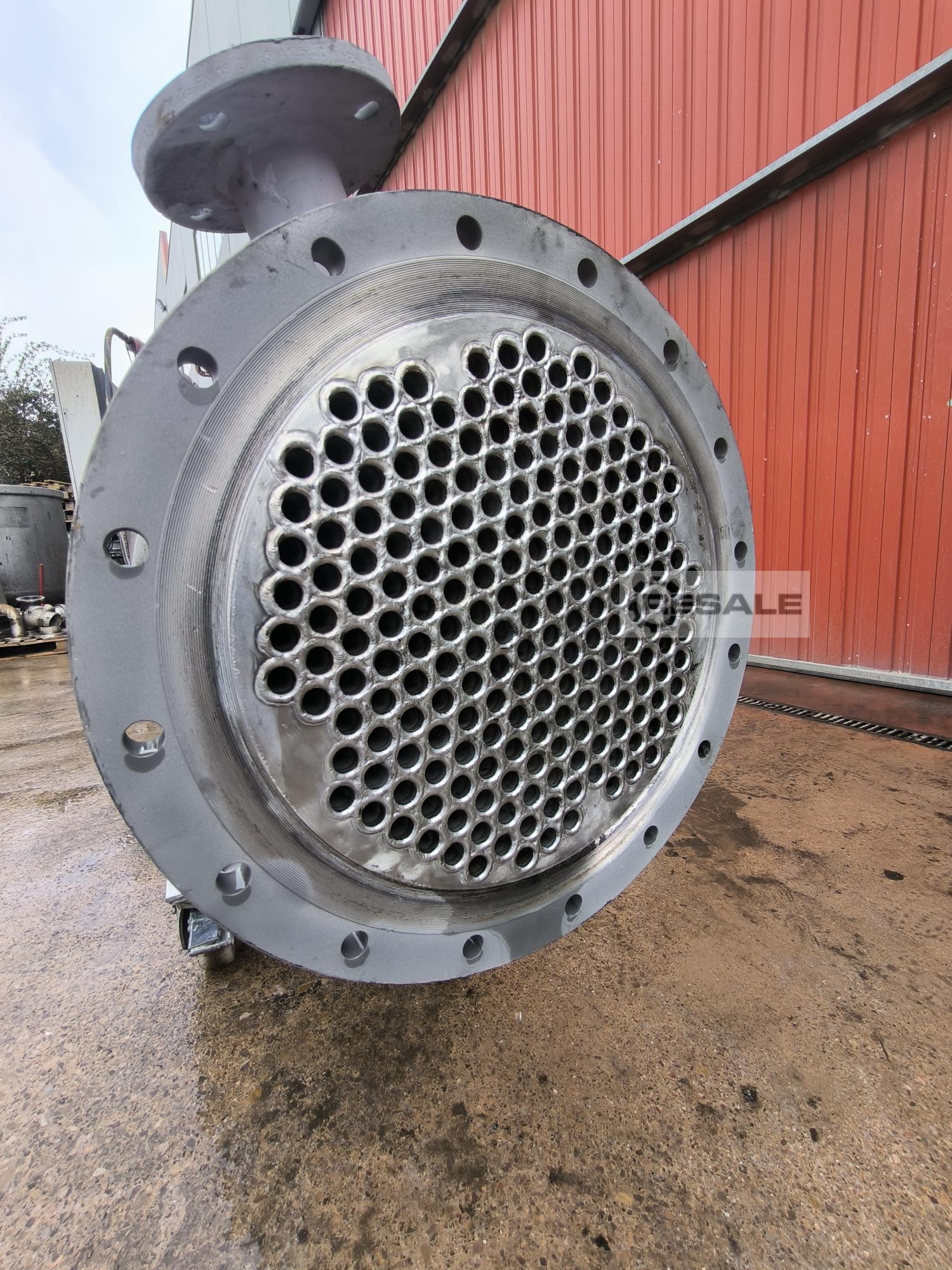

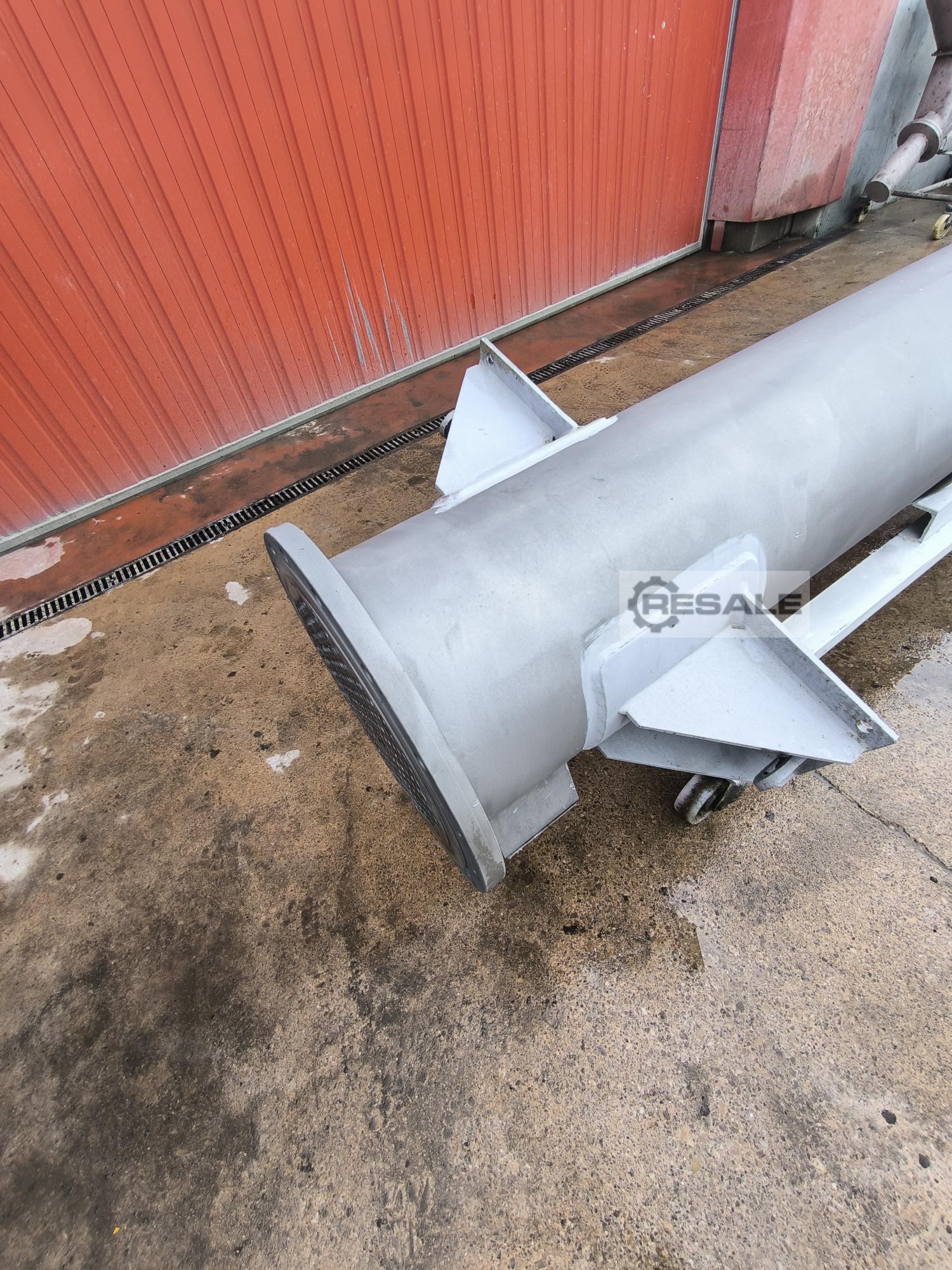

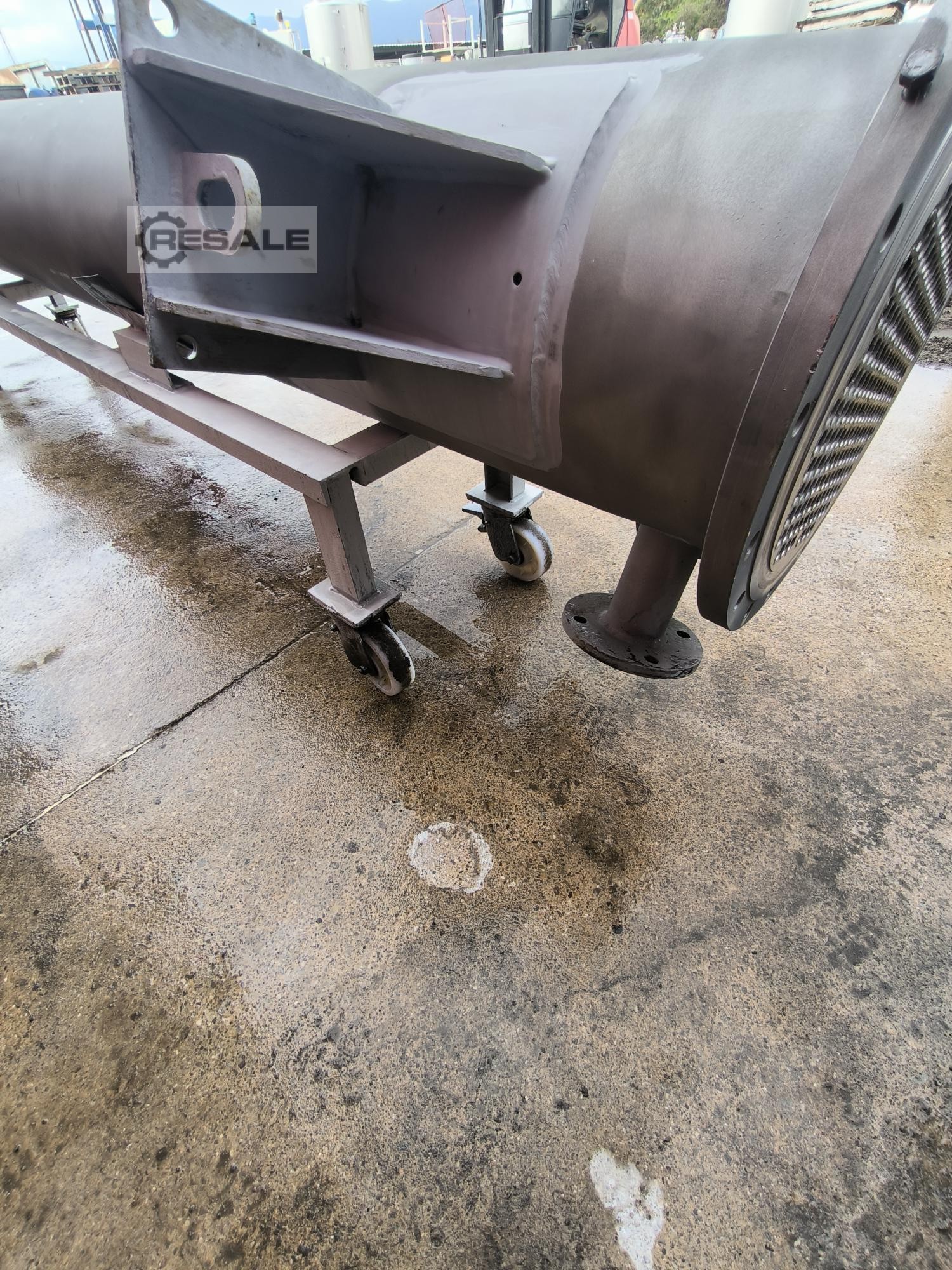

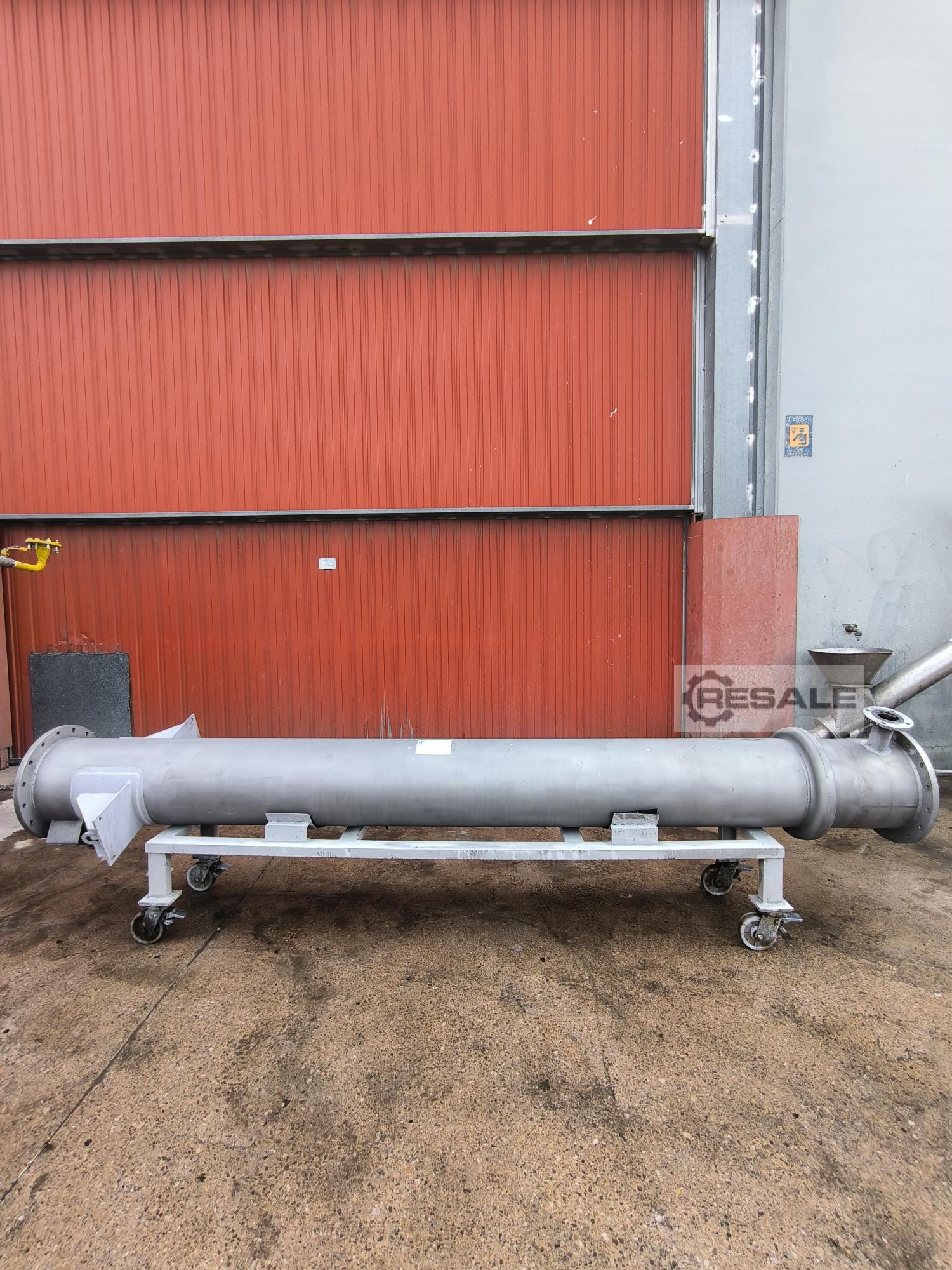

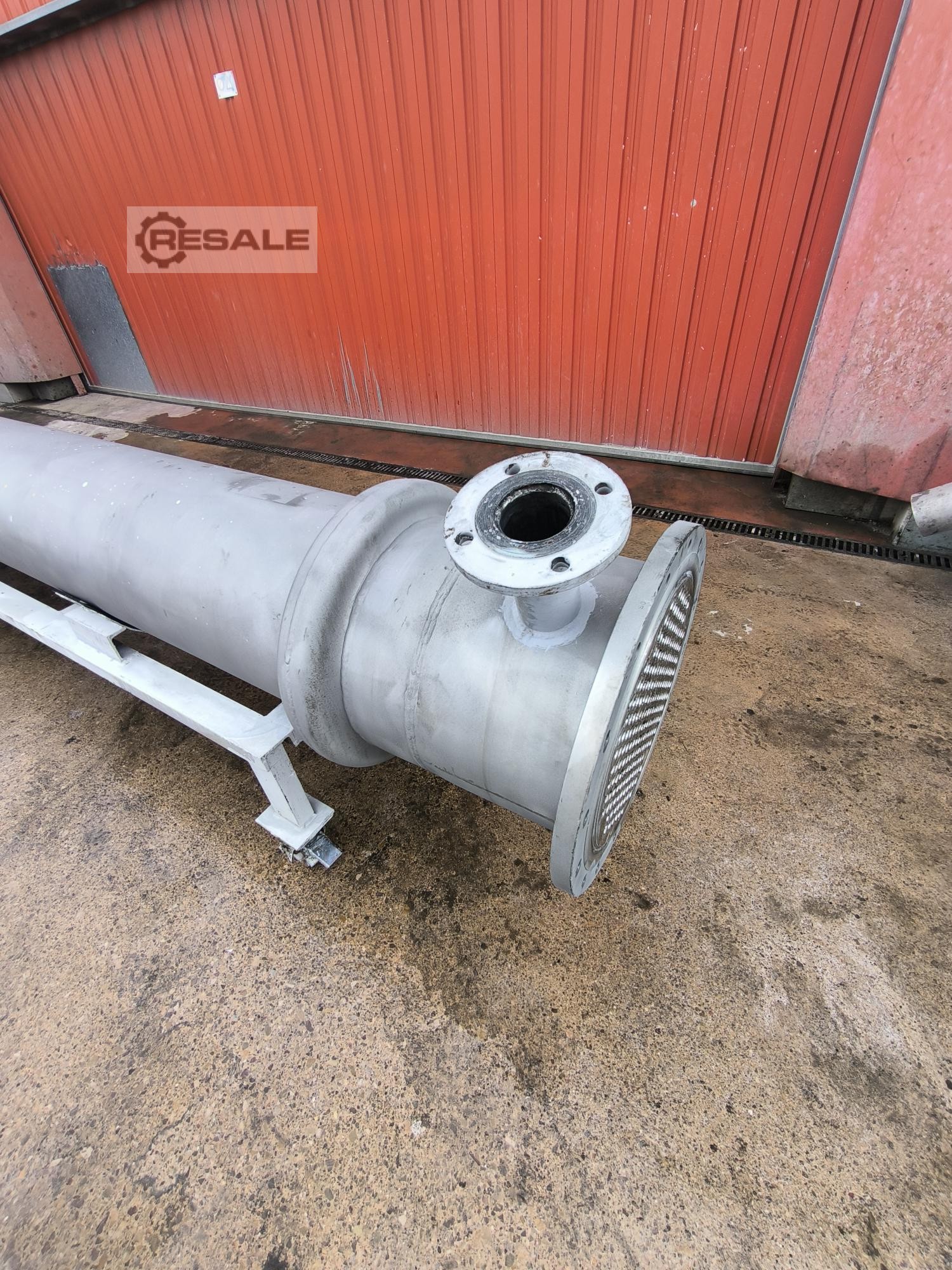

Vertical heat exchanger made of stainless steel from the brand
TALLERES MAC of 48.5 m2.
Year 2001.
Material
Stainless steel
Technical characteristics
Year of manufacture
2001
Number of tubes
203
Working temperature of the tubes
230 ºC
Working pressure of the tubes
-1 bar
Working temperature of the housing
310 ºC
Working pressure of the housing
5.39 bar
Equipment dimensions
Length of the tubes
4000 mm
Outer diameter tubes
19.05X1.65 mm
Transportation Information
Length
4000 mm
Width
850 mm
Weight
1300 Kg
Documentation
Plans
Exchange Surface
Exchange Surface
48.50 m2
Status
Reviewed
Manufactured by
Mac Workshops
Year 2001.
Material
Stainless steel
Technical characteristics
Year of manufacture
2001
Number of tubes
203
Working temperature of the tubes
230 ºC
Working pressure of the tubes
-1 bar
Working temperature of the housing
310 ºC
Working pressure of the housing
5.39 bar
Equipment dimensions
Length of the tubes
4000 mm
Outer diameter tubes
19.05X1.65 mm
Transportation Information
Length
4000 mm
Width
850 mm
Weight
1300 Kg
Documentation
Plans
Exchange Surface
Exchange Surface
48.50 m2
Status
Reviewed
Manufactured by
Mac Workshops
