Mixers SYMEX P1000

SYMEX P 1000 Agitator Tank

Technical data:
• Max. filling volume: 1000 l usable volume
• Min. filling volume: approx. 250 l (minimum usable volume)
• Product: pharmaceutical liquids, aqueous solutions
• Operating voltage: 400 V, 50 Hz, PEN
• Agitator: 4 kW
• Permissible operating overpressure interior: -1 ... +1 bar,
• Permissible operating temperature indoors: 95 °C

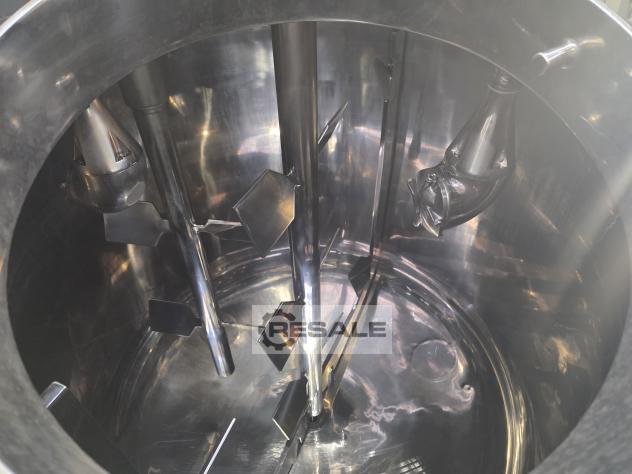

Agitator system
• Design: slow-running armature agitator (simplified comb bucket agitator without scraper system) with one (1) • • piece of current breaker;
• Possibility to permanently dismantle the agitator and the current jammer when it is not needed.
• Stirring tool: armature stirrer, central installation in the container lid

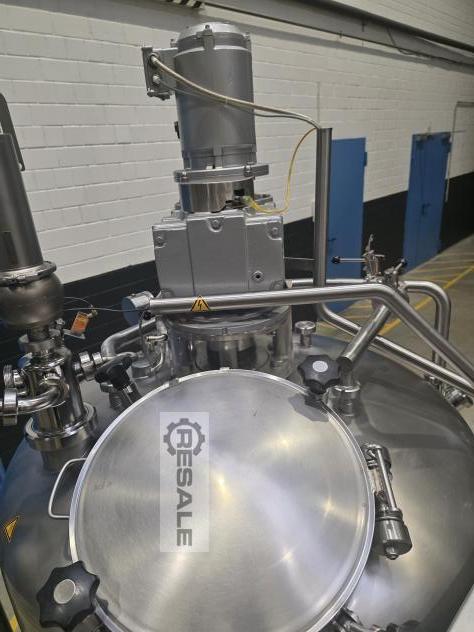

• Drive: Bevel gear
• Drive power: approx. 4 kW
• Speed: approx. 5 ... 20 min-1; Adjustable via frequency converter

Current breakers
• One (1) piece of current breaker, geometrically adapted to the rotating stirring tool (armature) so that optimal mixing of the product is achieved or no layer formation can S6349597 occur.

CIP
• S6349597 with rotating spray nozzles in the lid and a fixed washing ball in the collecting nozzle, as well as a fixed washing ball in the manhole DN 450.
• Number of spray nozzles: 4 pieces
• Rotation: self-rotation due to water pressure
• Spray angle: 360°
• Make: Toftejorg, Sani- Midget
• Changeover valves: 2 DN 40 changeover valves for alternating feeding

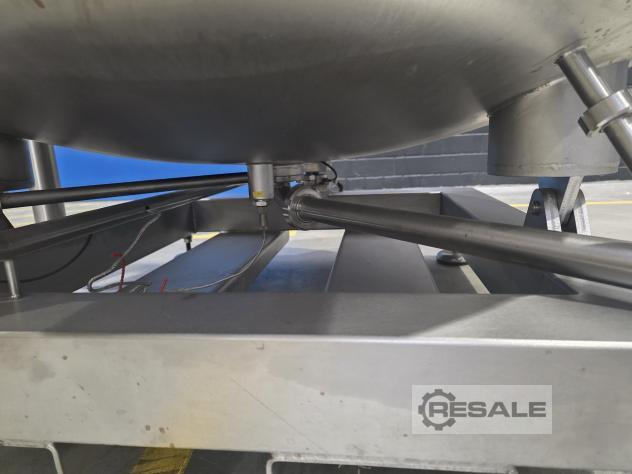

Load cells for determining the filling weight in the container
