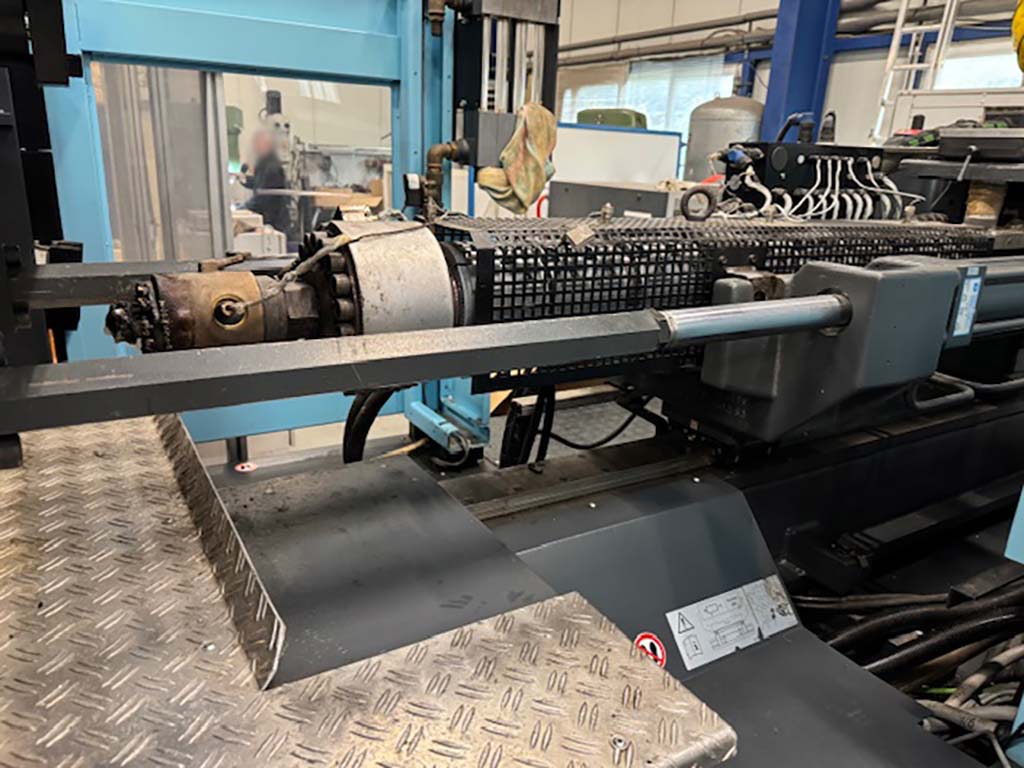

Injection Moulding Machine SUMITOMO DEMAG EL EXIS S 200/560-840

Clamping force: 2000kN, locking force: 2200kN, max. opening stroke: 570mm, min. mould installation height: 310mm, max. mould installation height: 660mm, max. distance between mould platens: 1230mm, mould platen dimensions: 830x830mm, distance between tie bars: 560x560mm, max. mould weight: 3.3t, max. weight on moving mould platen: 1.7t, max. weight on fixed mould platen: 2.5t, ejector stroke: 180mm, ejector force: 69kN, ejector return force: 31kN, screw diameter: 45mm, L/D ratio: 20, injection pressure at 400°C: 2402bar, shot volume: 358cm³, shot weight (PS): 330g, max. metering stroke: 225mm, max. nozzle stroke: 400mm, nozzle immersion depth (SVO): 20mm, nozzle contact force: 80kN, installed barrel heating capacity: 13kW, material hopper capacity: 70l, oil tank capacity: 500l, screw drive: 32kW, clamping unit drive: 32kW, pump unit power: 15kW, total installed power: 92kW, continuous sound pressure level: 74dB(A), length: 5700mm, width: 1700mm, height: 2200mm, weight: 11t, operating hours according to PLC: 36,734h, barrel heating: 25,665h, pump: 18,222h, documentation available. An on-site inspection is possible. A Wittmann robotic cell is also optionally available.
seller offer No. resale INNO31484
