Universal Milling Machines STIMIN UWF 220

x-travel: 280 / 300 mm
y-travel: 250 / 270 mm
z-travel: 300 / 310 mm
turning speeds: 45 - 2240 U/min
turning speeds: 18 Stufen
spindle taper ISO: 40
quill stroke: 60.0 mm
table:: 670 x 320 mm
table load: 150 kg
feed range: 12.5 - 630 mm/min
feed: 18 Stufen
rapid traverse: 1.200 mm/min
workpiece weight: max. 150 kg
T-slots: 5x 12 x 63 mm
total power requirement: 1.6 kW
weight of the machine ca.: 1100 kg
range L-W-H: 1265 x 1080 x 1620 mm
New price ~ 25.000 Euro ()
Special price upon request

- in checked conditions - machinevideo -
https://www.youtube.com/watch?v=7IsC5cg9WlI

Features:
- Robust electric-driven universal milling machine
- ACURITE 3-axis digital display
with pivoting control panel, front right
including emergency stop button
- Electric adjustment of all axes (X/Y/Z axes)
Rapid traverse in all 3 directions
- Pivoting milling spindle guard
- Coolant system
- Lower chip tray

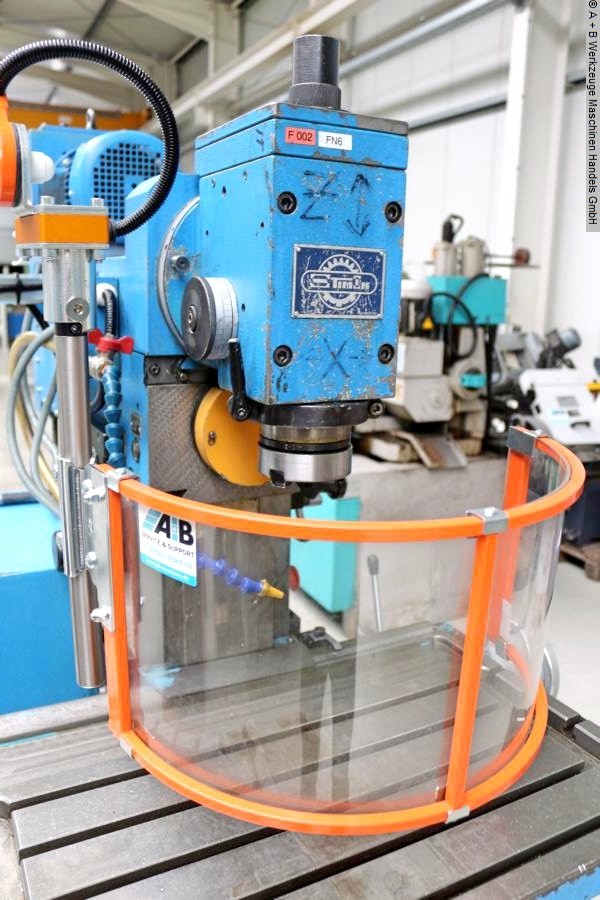

- Vertical milling head with quill adjustment
Milling head rotation 90°
Tool holder ISO / DIN 40 / 2080

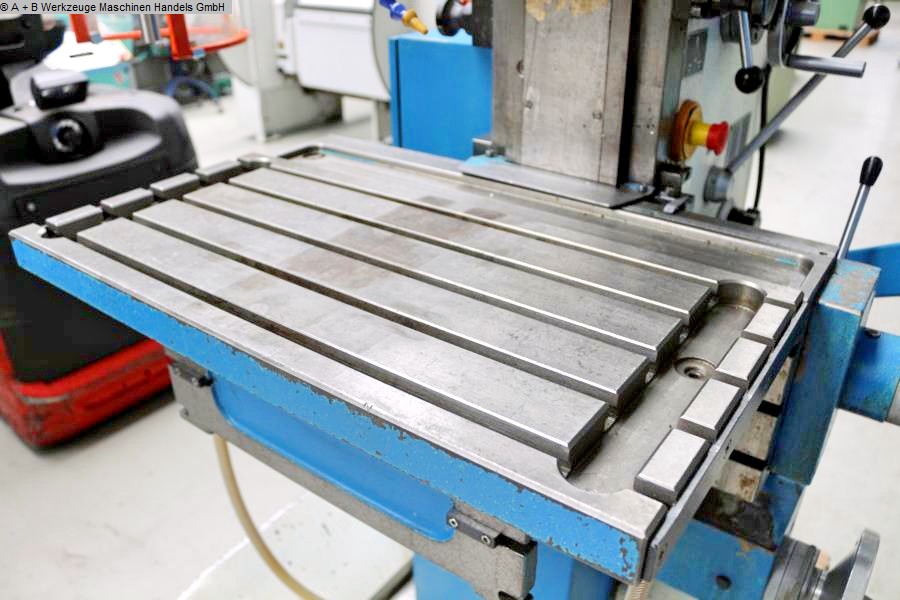

- Fixed angle table 670 x 320 mm
T-slot width x spacing 12 x 60 mm
Minimum distance between base table and spindle axis
- 4 machine feet
- Electrical diagram
