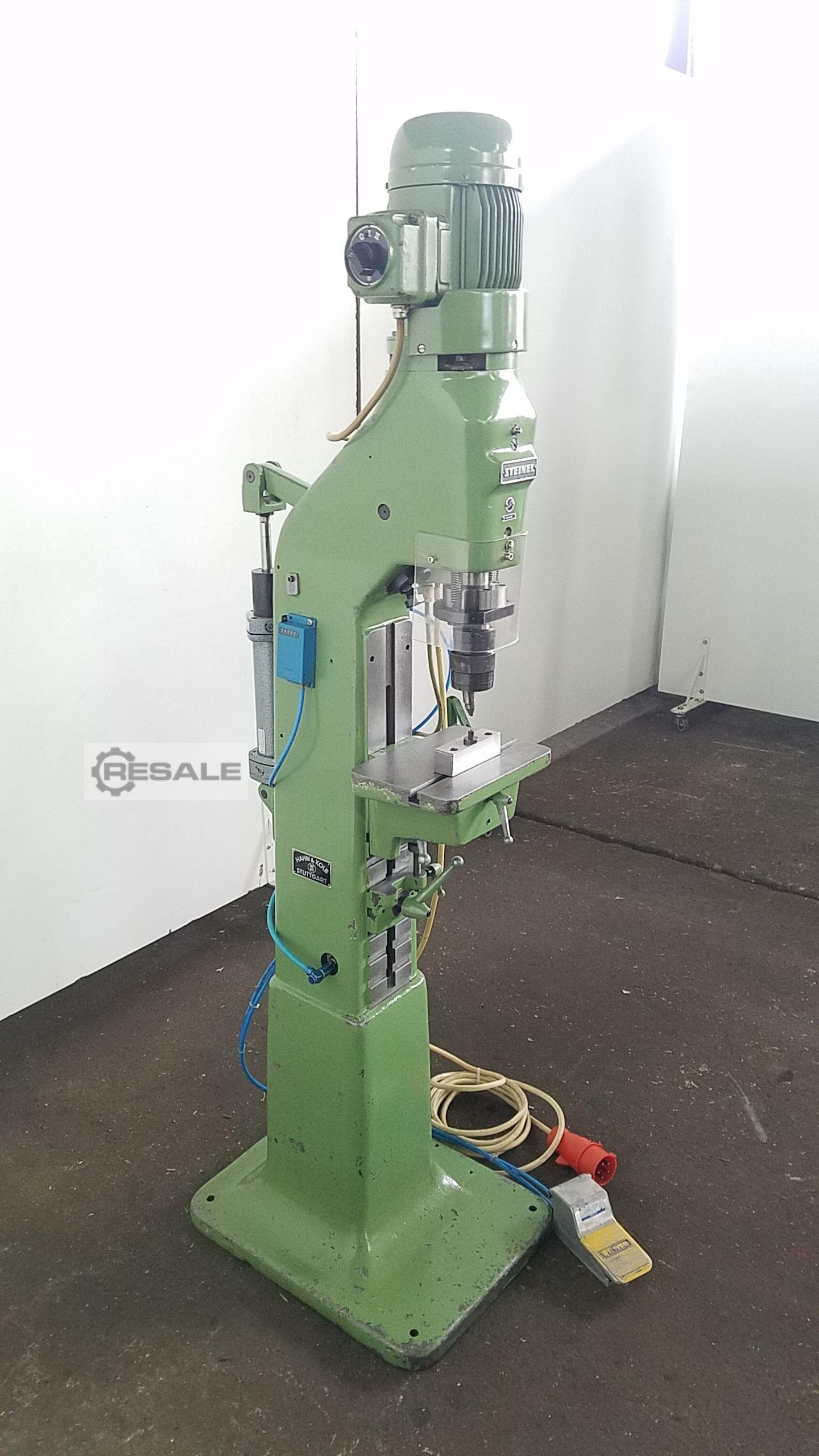

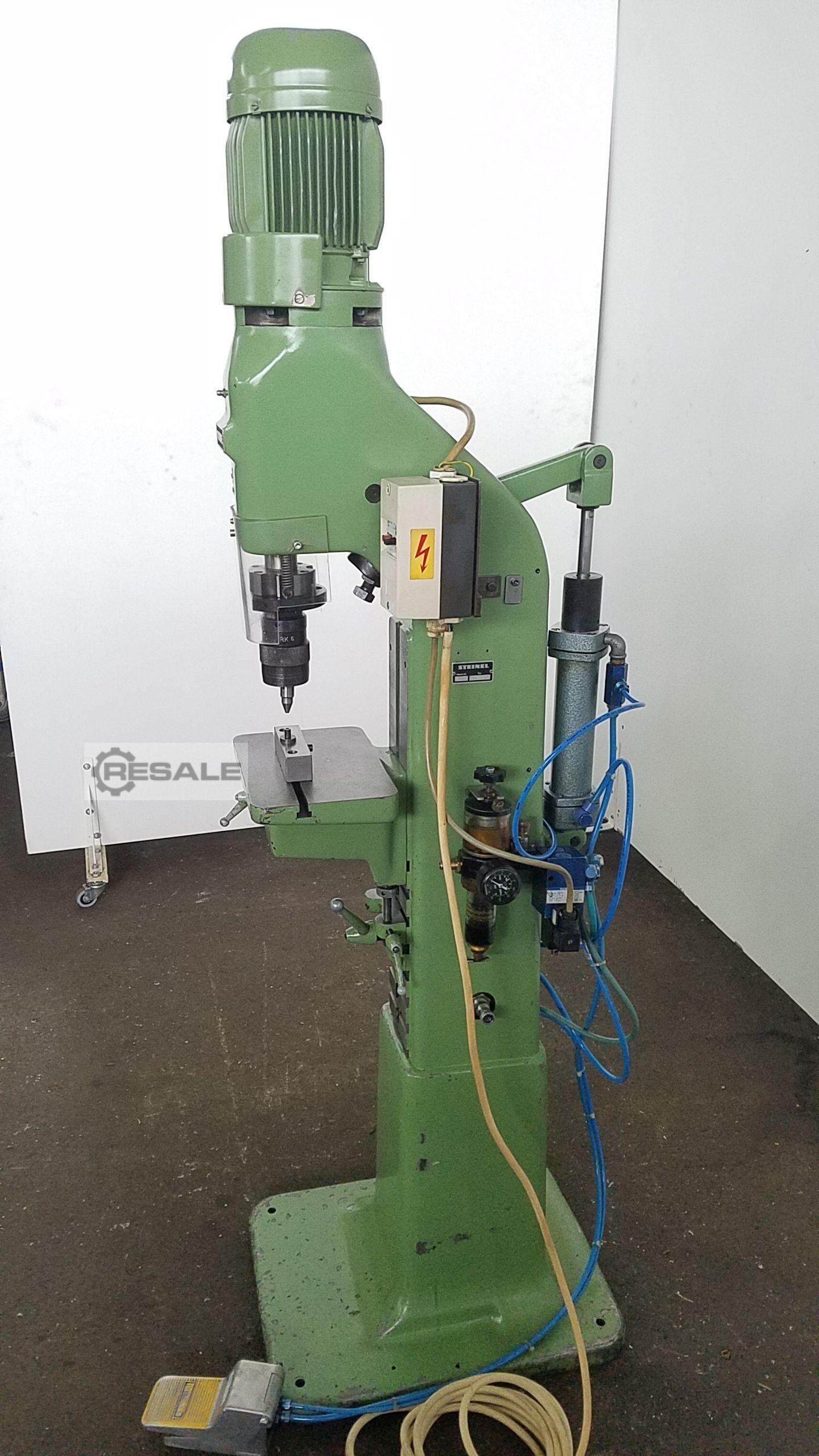

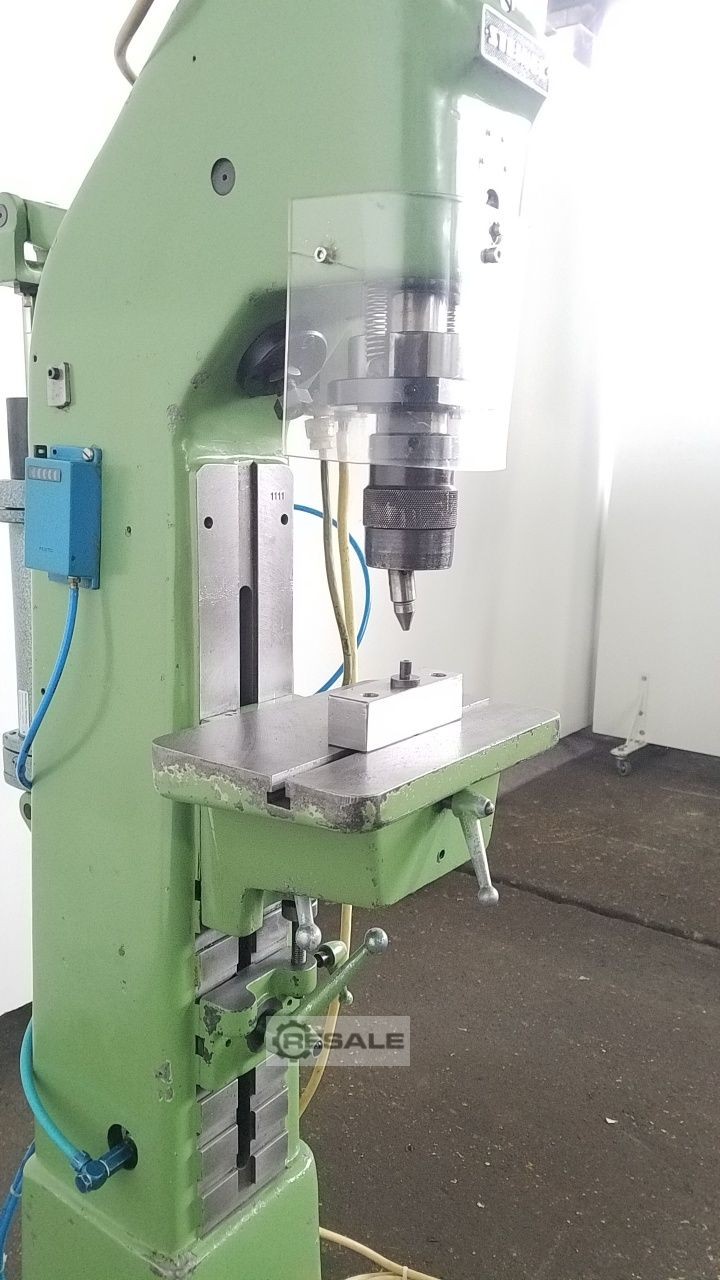

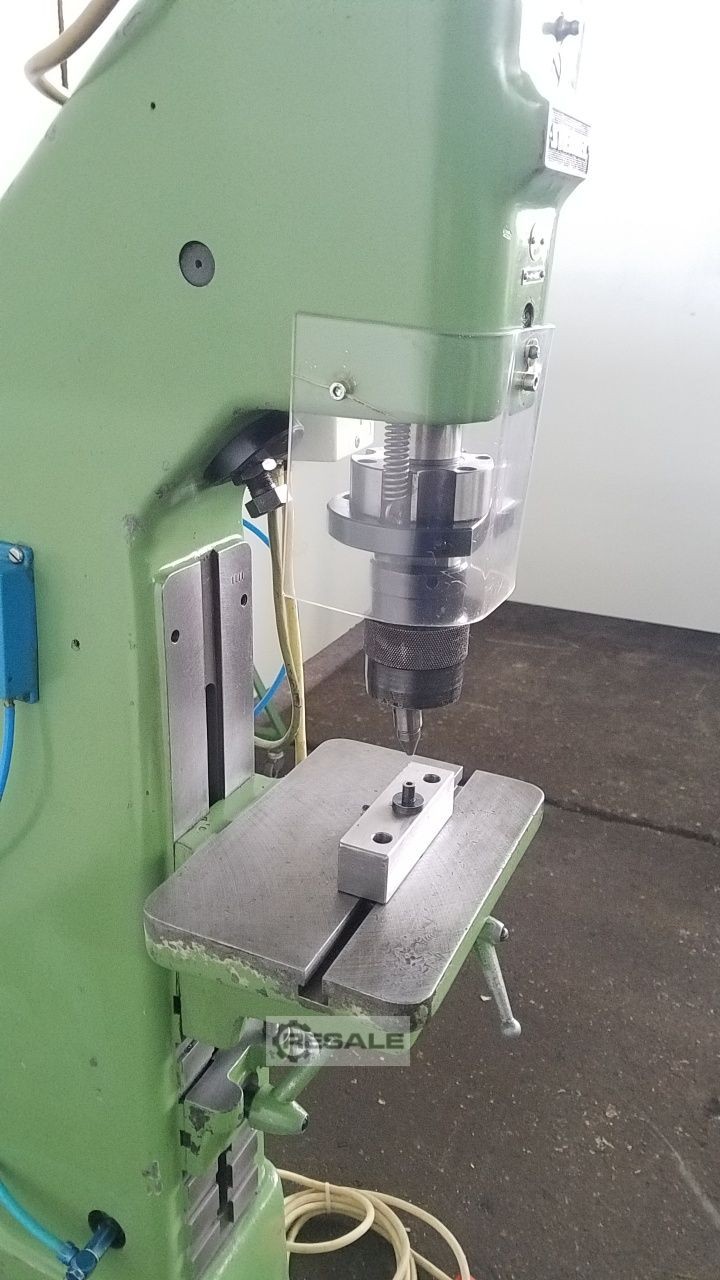

Wobble Riveting Machines STEINEL NR 6
metal working machines / other metal working machines / Wobble Riveting Machines
Offer 24093 Technical data: - Rivet shank diameter max. 6 mm - Feed force 1200 daN - Rivet time setting 0 - 10 sec - Projection 140 mm - Table size 250 x 175 mm - Installation height / table height adjustable - Stroke 40 mm - Operating pressure 5 bar - Pressure reducer - Drive 400 V / 0.6 / 0.75 kW ...

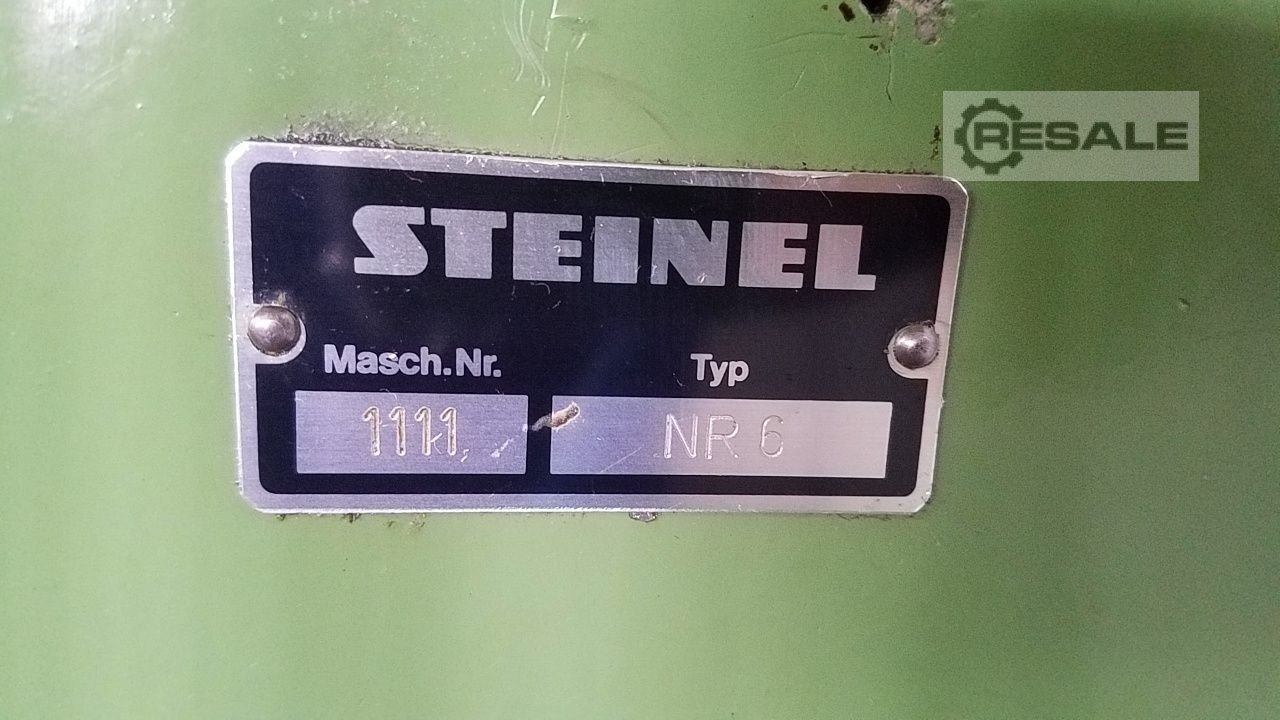

Manufacturer: STEINEL
Model:NR 6
Type of machine: Wobble Riveting Machines
item-No.: 169422081
Quantity: 1
Date: 30.04.2026
Year of manufacture: 1986
Location:
Germany
63322 Rödermark
Price:
Seller-item-No.:Lg.-Nr. 24093
Offer 24093
Technical data:
- Rivet shank diameter max. 6 mm
- Feed force 1200 daN
- Rivet time setting 0 - 10 sec
- Projection 140 mm
- Table size 250 x 175 mm
- Installation height / table height adjustable
- Stroke 40 mm
- Operating pressure 5 bar
- Pressure reducer
- Drive 400 V / 0.6 / 0.75 kW
- Space requirement approx. W 500 x H 1650 x D 650 mm
- Weight approx. 480 kg
Technical data:
- Rivet shank diameter max. 6 mm
- Feed force 1200 daN
- Rivet time setting 0 - 10 sec
- Projection 140 mm
- Table size 250 x 175 mm
- Installation height / table height adjustable
- Stroke 40 mm
- Operating pressure 5 bar
- Pressure reducer
- Drive 400 V / 0.6 / 0.75 kW
- Space requirement approx. W 500 x H 1650 x D 650 mm
- Weight approx. 480 kg
