Bed Milling Machines SORALUCE TR 35 TR 35
metal working machines / milling machines / Bed Milling Machines
x-travel: 3.500 mmy-travel: Quer 1.300 mmz-travel: Senkr. 1.600 mmtable-size: 3.800 x 1.200 mmT-slots: 7 x 22 H12 T-slot - distance: 140 mmMain drive: ED, 43 kWspeeds: 20 - 4.000 U/minTorque: 900 Nmtool taper: ISO 50 DIN 69871 feeds: 16.000 mm/minrapid traverse feeds: 35.000 mm/minControl: ...
Manufacturer: SORALUCE TR 35
Model:TR 35
Type of machine: Bed Milling Machines
item-No.: 169688544
Quantity: 1
Date: 13.06.2026
Year of manufacture: 2018
Location: Abgeber Deutschland
Price:
Machine in stock:Yes
Seller-item-No.:1120-3001
x-travel: 3.500 mm
y-travel: Quer 1.300 mm
z-travel: Senkr. 1.600 mm
table-size: 3.800 x 1.200 mm
T-slots: 7 x 22 H12
T-slot - distance: 140 mm
Main drive: ED, 43 kW
speeds: 20 - 4.000 U/min
Torque: 900 Nm
tool taper: ISO 50 DIN 69871
feeds: 16.000 mm/min
rapid traverse feeds: 35.000 mm/min

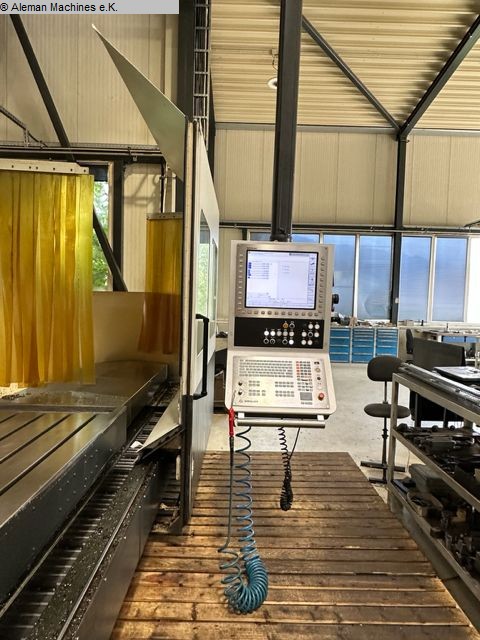

Control: HEIDENHAIN TNC 640
handwheel: HR 510
milling head -swivable: 2,5 x 2,5 Grad
Main drive: 43 kW
Internal cooling system: 5/20 bar
chip conveyor: Scharnierband Inkl.
: 40 fach
Machine on: 11.584
Spindle hours: 4.222 h
total power requirement: kW
weight of the machine ca.: ca. 24 t t
dimensions of the machine ca.: m

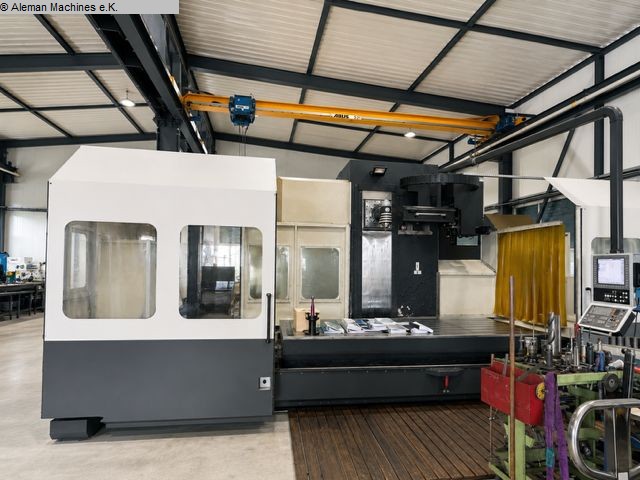

SORALUCE TR 35 – HEIDENHAIN TNC 640
Like-New Condition – Only 4,222 Spindle Hours
High-quality CNC bed milling and boring center featuring extensive equipment
and the latest HEIDENHAIN TNC 640 control system.
Technical Specifications
Travels: X 3,500 / Y 1,300 / Z 1,600 mm
Table Size: 3,860 × 1,200 mm
Spindle Power: 43 kW / 900 Nm
Spindle Speed: 20 – 4,000 rpm
Spindle Taper: ISO 50
Equipment & Features

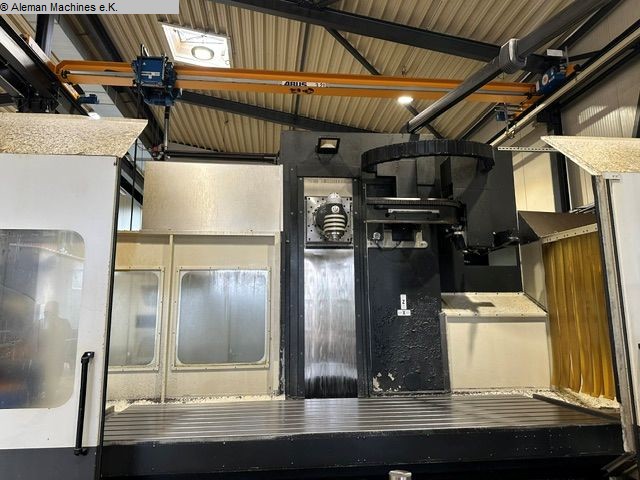

H200 Universal Milling Head, 2.5° × 2.5° indexing
40-position Automatic Tool Changer (ATC)
5-axis interpolation
DCM collision monitoring system
Interpolation turning
M&H wireless touch probe
Through-spindle coolant (20 bar)
Paper band filter with magnetic separator
Full machine enclosure
3 chip conveyors
Condition
Exceptionally well-maintained machine with very low spindle usage of only 4,222
spindle hours. The machine is under power, ready for immediate operation, and
available for inspection and demonstration at any time.
Location: Baden-Württemberg, Germany.
