Travelling column milling machine SORALUCE FP 6000

x-travel:6000 mm
y-travel:2100 mm
z-travel:1500 mm

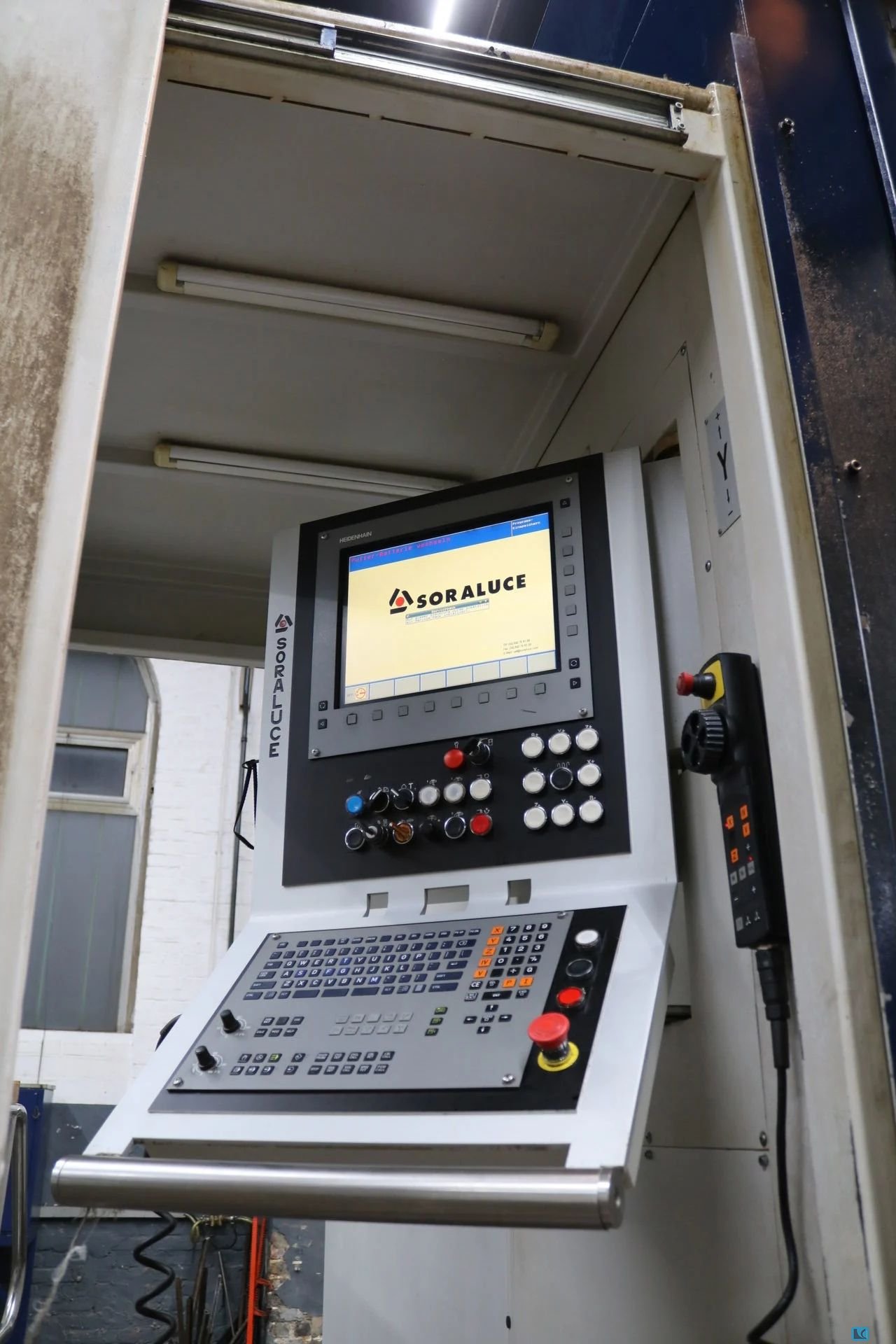

Controls:HEIDENHAIN iTNC 530
BASIC DESIGN:.
- basic design : travelling column :.
WORKING RANGE -MILLING-:.
- x-axis travel:6000 mm
- y-axis travel:2100 mm
- z-axis travel:1500 mm
WORKING SPINDLE / HEAD:.
- spindle type : orthogonal head :.
- tilting range:360 °
- - mode of operation : automatic :.
- - positioning/indexing:1 °
- tilting range (2nd axis):270 °
- - mode of operation : automatic :.
- - positioning/indexing:1 °
- spindle revolutions (min):20 /min
- spindle revolutions (max):4000 /min
- spindle diameter:90 mm
- taper fixture : ISO SK 50 :.
- spindle power (continuous):32 kW
- torque (max.):910 Nm
AXIS DRIVES:.
- feed velocity (min):2 mm/min
- feed velocity (max):20000 mm/min
- rapid traverse:25000 mm/min
ELECTRICAL SPECIFICATIONS:.
- total power consumption:79 kW
- mains voltage:400 V
- mains frequency:50 Hz
DIMENSIONS / WEIGHTS:.
- space requirements length:13536 mm
- height above floor level:3820 mm
- total weight approx.:55000 kg
ATTACHMENTS:.
- coolant unit : yes :.
- high pressure cooling syst. (through spindle) : yes :.
- closed cabin : yes :.
- chip conveyor : yes :.
- hydraulic system : yes :.
- central lubrication system : yes :.

Technical description :

Traveling column milling machine with Heidenhain TNC530 control, coolant system, chip conveyor

- NOTE: The floor plate,the clamping table, the clamping angle, are NOT included in the scope of delivery.



seller offer No. resale 1048-7-46688
