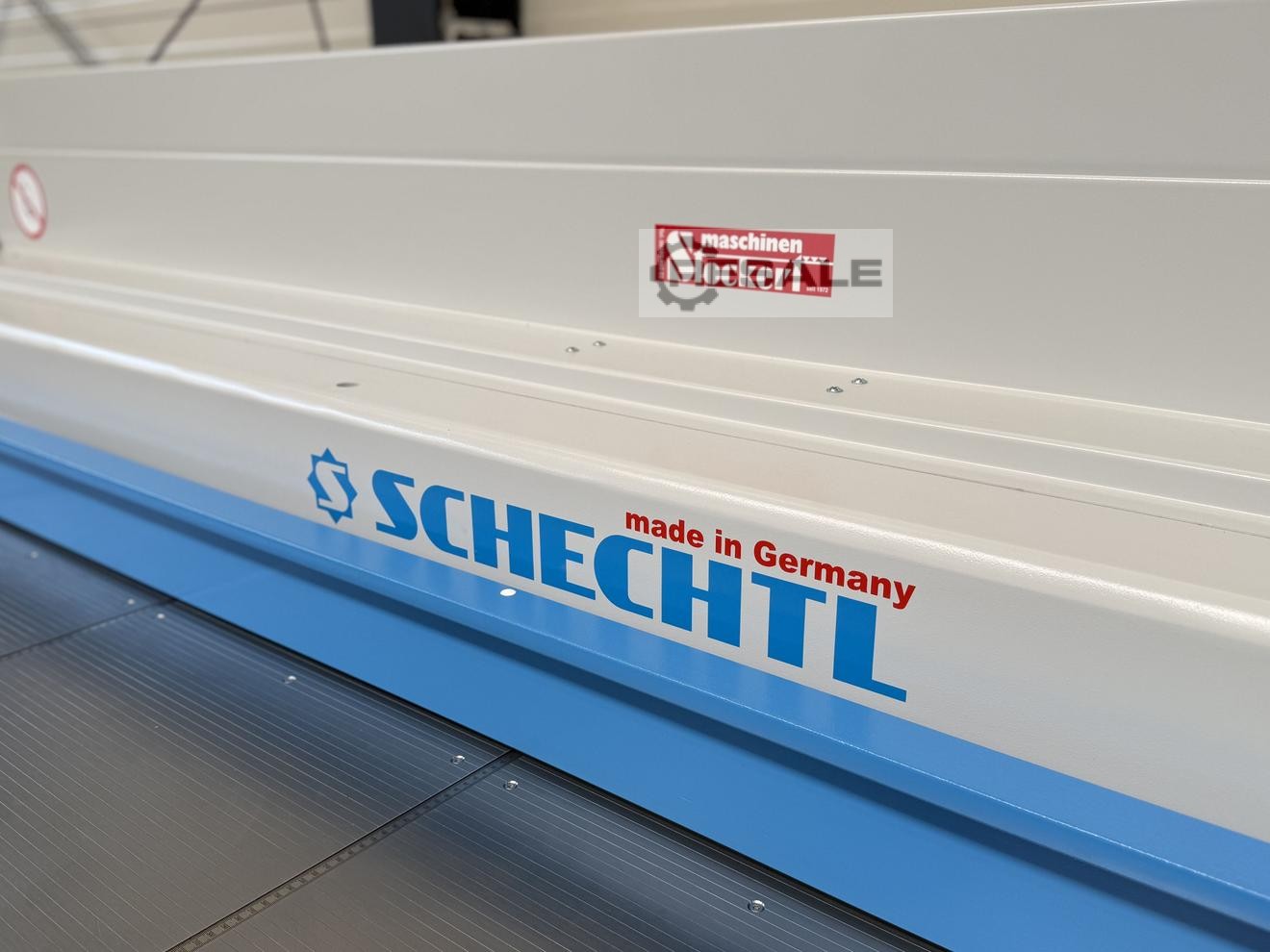

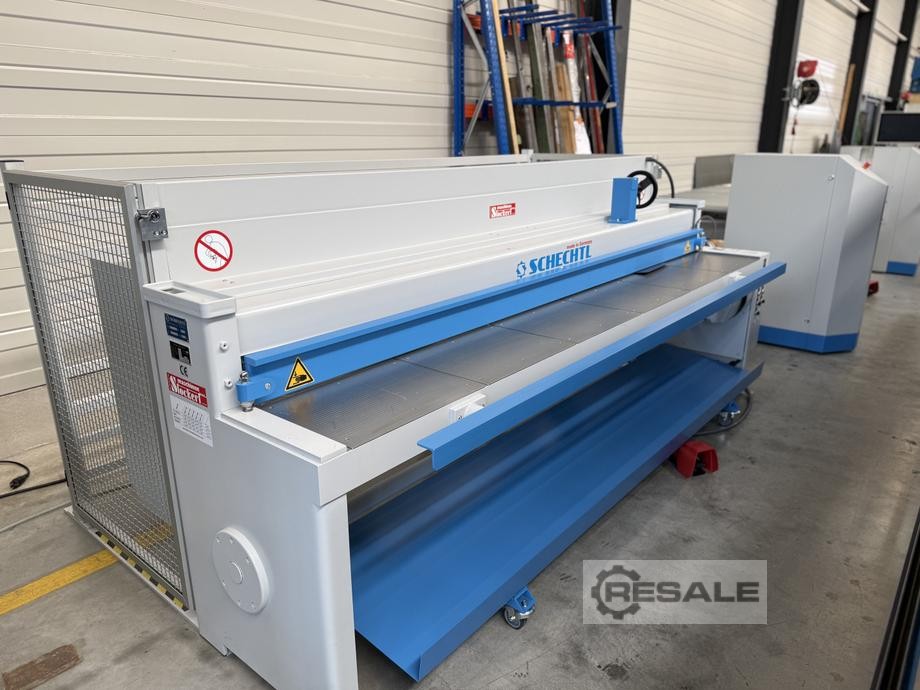

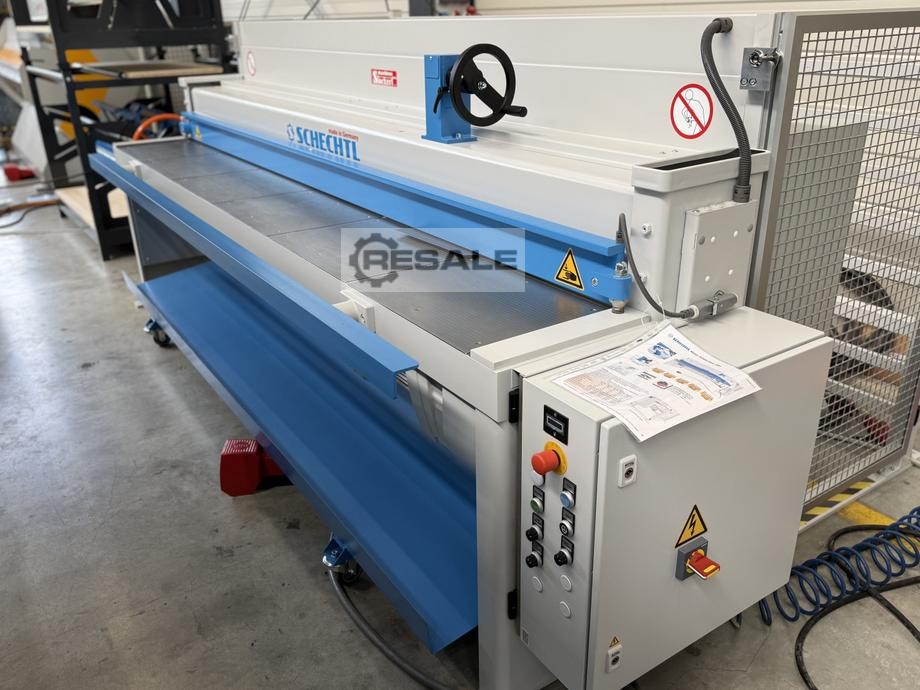

Hydraulic Shear SCHECHTL SMT 310 / BV

Sheet width: 3140 mm Plate thickness: 1 mm new Schechtl motorized guillotine shears, with the following equipment:
- within the EU: 32 amp connection plug with 5 m cable
- 1 pair of steel scissor knives (single-edged)
- Manual depth stop 0-750 mm with pneumatically operated tilting table,
Laying down to the front

- Support plates with 10 mm graduation and tape measure
- Footswitch

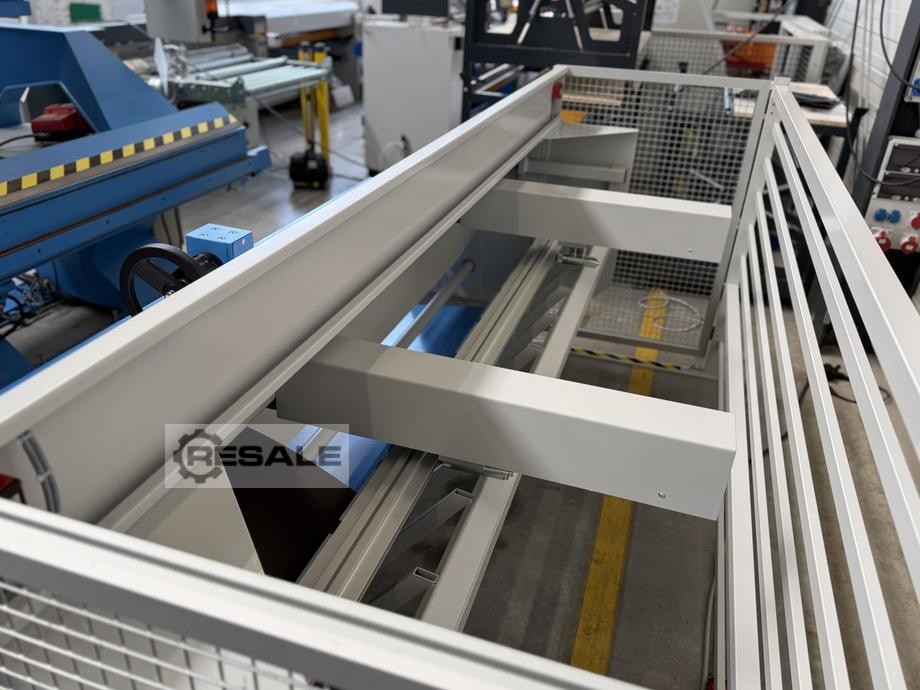

- Three-sided safety cage around the depth stop
- Compressed air must be available: min. 6 bar, max. 10 bar - approx. 50 l/min
- Cut-gap illumination

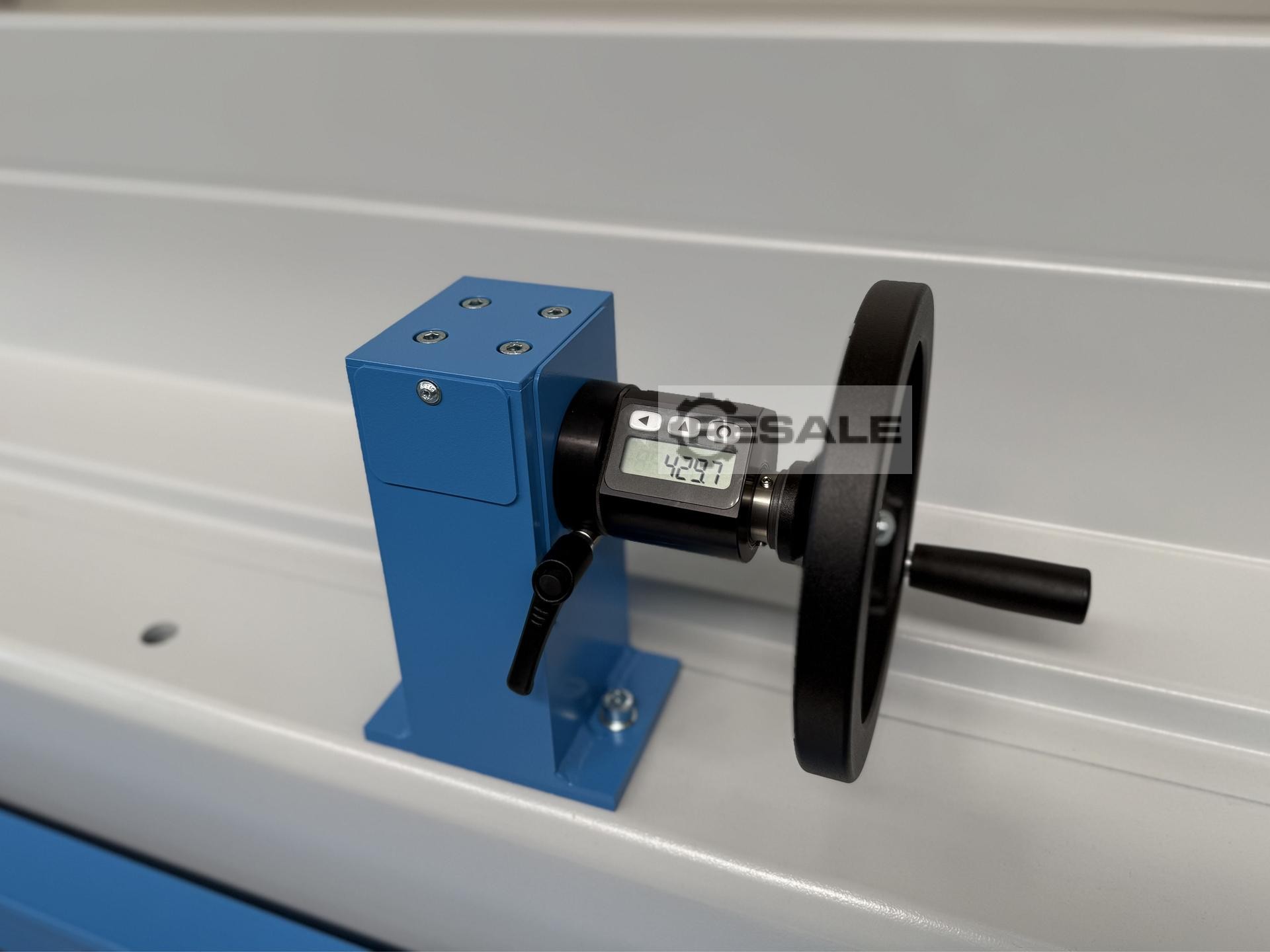

- Electronic position display
- Contact stroke counter tico 731.3
- Sheet metal stacking trolley light max, load capacity 300 kg

Working length 3140 mm
20 Sheet thickness steel 1.5 mm
30 Sheet thickness Alu 2.25 mm
40 Blechdicke VA/Sheet thickness stainless 1,0 mm
50 Maschinennummer/Machine number MT 13952

Working length: 3140 mm
Sheet thickness steel: 1.5 mm
Sheet thickness aluminium: 2.25 mm
Sheet thickness front: 1.0 mm
Colour: grey/blue
Total power requirement: 3 kW
Machine weight: 1325 kg
Dimensions: 3500 x 1920 x 1500 mm
with cutting gap adjustment
Connected voltage: 3 x 400 V, 50 hz
Automatic hold-down
Speed :35 stroke/min
with angle stop

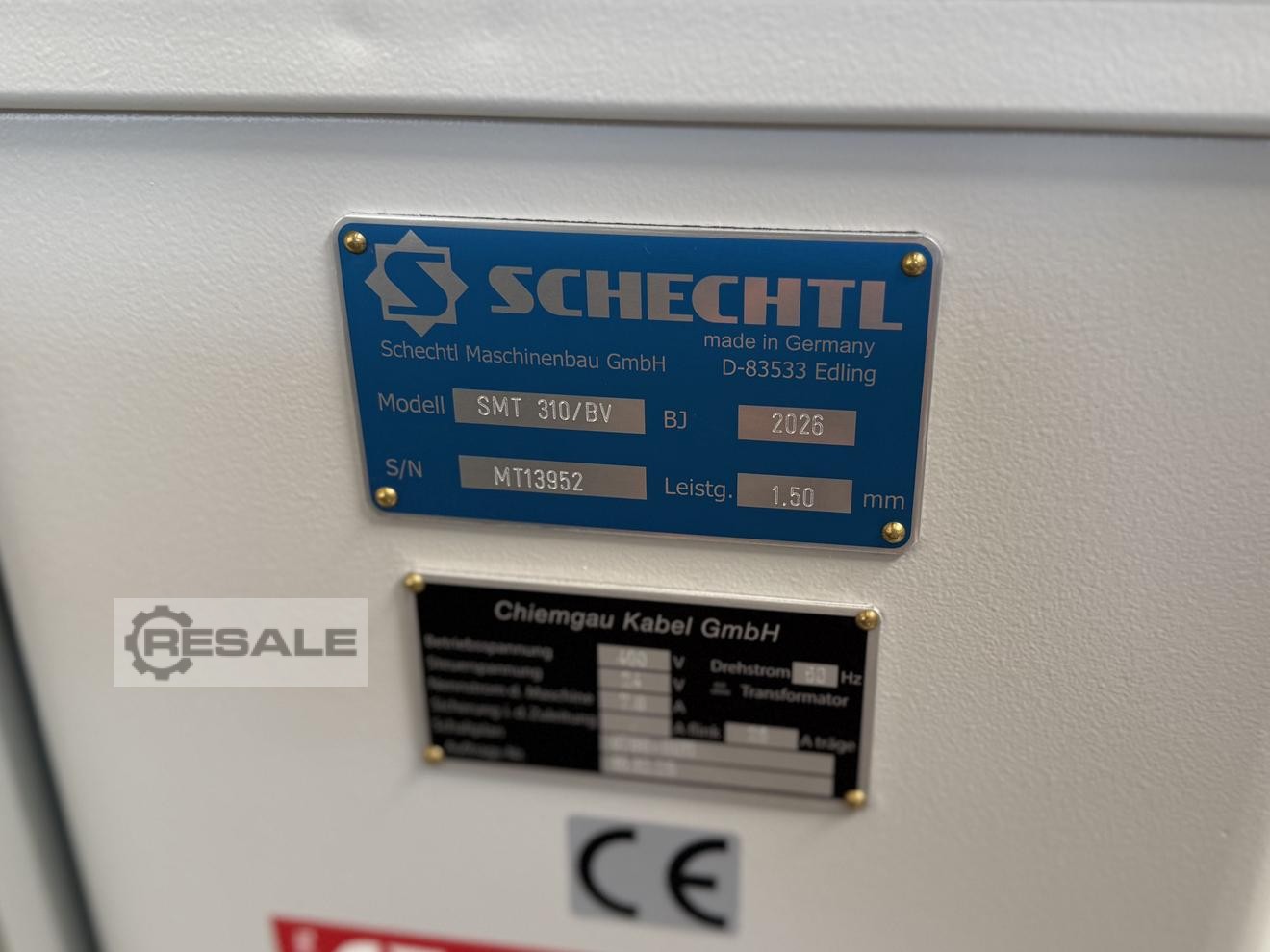

Machine number: MT 13952
seller offer No. resale 1136-300093
