Reagent Production Unit RR MECHATRONICS RPU-2100R

Mechatronics RPU-2100R Reagent Production Unit

The Mechatronics RPU-2100R is a reagent production unit used in the field of hematology to optimize reagent logistics in laboratories.
The instrument is manufactured by RR Mechatronics and is often used in combination with Sysmex hematology analyzers.

Purpose and function

The RPU-2100R (Reagent Production Unit) is designed to automatically dilute concentrated reagents (such as Cellpack S Conc.) and produce large quantities of ready-to-use reagent on-site in the laboratory.

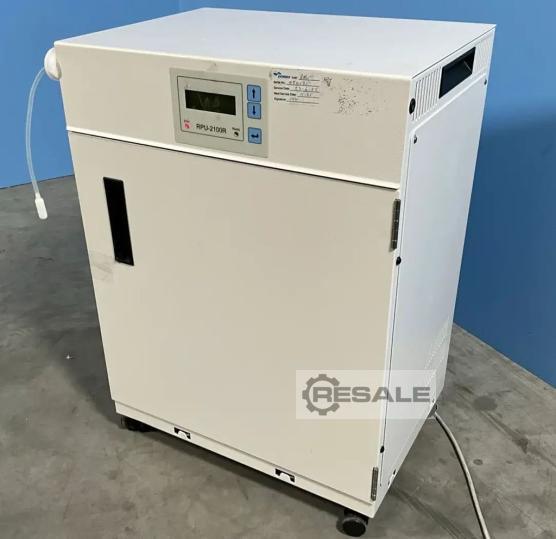

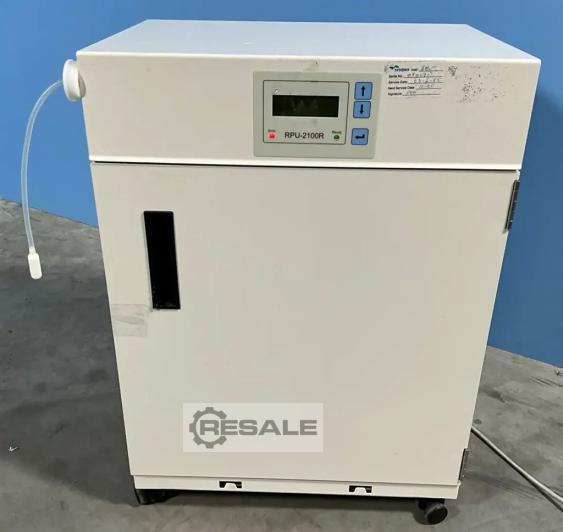

The RPU-2100R is a stand-alone device whose components are all housed in a closed housing.
The housing features removable, epoxy-coated sheet metal covers.

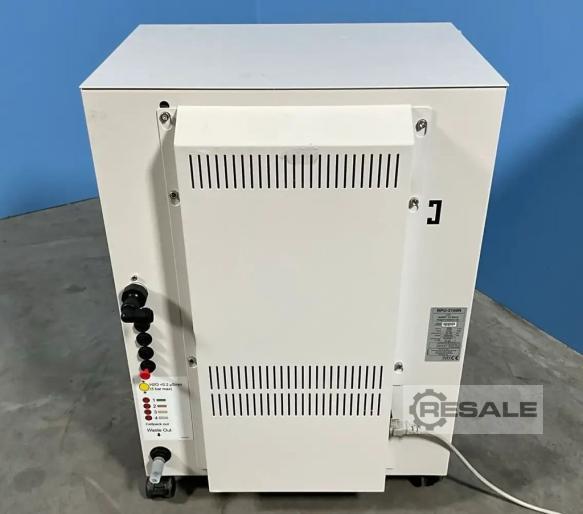

All external connections as well as the ON/OFF switch are located on the back of the device.
All components that can be serviced and replaced by the user are accessible through the front door.
The trolley for the Cellpack concentrate (here e.g. Cellpack-S® Conc.) can optionally be coupled to 3 sides of the device.

Features and Capacities

The RPU-2100R focuses on optimizing reagent management for high-throughput laboratories:
Reagent concentrates: Uses Cellpack S Conc. in 10L and 20L containers.

Throughput per concentrate:
With a 10L container, up to 8,250 blood counts can be carried out per month without changing the reagent.
With a 20L container, up to 16,500 blood counts per month are possible.
Shelf life: The mixed reagent has a shelf life of 30 days after opening.

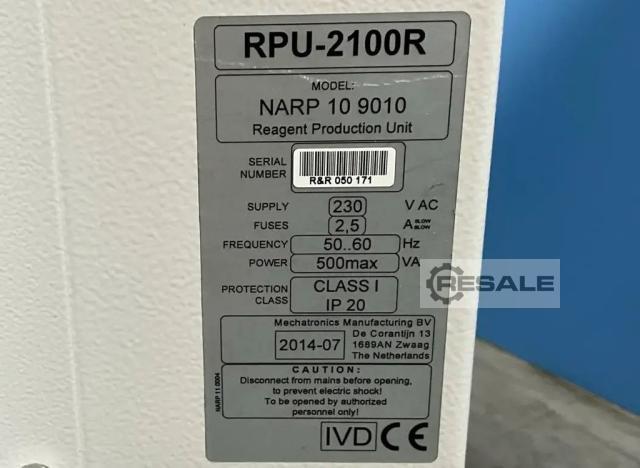

Manufacturer: RR Mechatronics
Model No.: RPU-2100R
Catalog number: NARP109010

External connections
Power supply, Euro power plug
Ethernet/USB (NARP109010 only) RJ45/USB-B
RS-232 (NARP109000 only) 9 Pin SUB D bushes

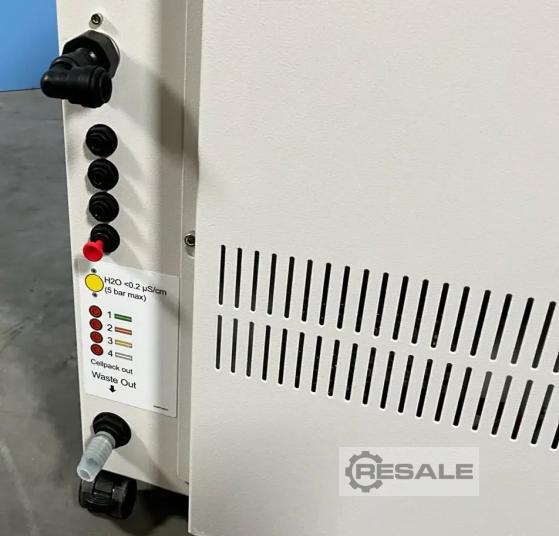

External connections (liquids)
Water connection: G 3/4" inch thread
Reagent collection connection (4x)
Push-in hose connection, outer diameter 6 mm
Waste connection (1x) hose sleeve, hose inner diameter 12 mm

Reagent Concentrate Maximum Size: 390 x 260 x 300 mm (W x D x H)
Reagent: K6327004 SYSMEX Cellpack K6327004 Concentrate

Reagent peak sampling: 0.5 liters/minute 6 minutes max.
(with full supply and overflow tank and new pre-filter) 1 litre/minute 2 minutes max.

Filtration Air Filter Bacterial Filter, Pore Size 0.2 μm
Liquid pre-filter Particulate filter (sterilized), pore size 0.8+0.45 μm, self-venting
Liquid final filter Bacterial filter (sterilized), pore size 0.2 μm, self-ventilating

System dimensions
Width: 500 mm
Height: 700 mm
Depth: 430 mm

Weight: approx. 50 kg
Water tank volume: 2.5 litres
Storage container: 2.5 litres
Mixing tank: 0.6 litres
Overflow tank: 0.6 liters

Language selection available de, en, es, fr, hu, it, nl, sk,
SV (expandable)

Voltage: 230 VAC (+/- 10%)
Frequency: 50-60Hz

YOC 2014
