Sheet Metal Bending Machines ROUNDO PASS 205 CNC 4-Walzen

For sale is a new ROUNDO PASS 205 4-roll sheet metal bending machine from the Swedish manufacturer ROUNDO AB. The machine was delivered in 2011 and has a working size of 3000 × 4 mm.

Machine data:
Manufacturer: ROUNDO AB, Hässleholm, Sweden
Model: PASS 205 wCNC²
Machine Type: 4 Roll Sheet Metal Bending Machine
Machine No.: 06764
Year of delivery: 2011
Operating hours: 216 h
Capacity: 3000 × 4 mm
Control: CNC

- Hydraulic roller adjustment
- Top roll diameter: Ø 205 mm
- Pinch roll diameter: Ø 205 mm
- Side roll diameter: Ø 160 mm
- Motor power: 5.5 KW

Minimum bending diameter: approx. 225 to 290 mm (strongly dependent on sheet thickness and material properties; usually 1.1 to 1.4 times the upper roll diameter)

Weight: approx. 5,500 kg

Features & Features:
-Modern CNC control for precise and reproducible bending processes
-Programmable bending programs
-Precise positioning of the rollers
-Hydraulic adjustment of the rollers
-Security and monitoring features
- Upper support
- Side support
- Cone bending device

Control & Functions: wCNC²:

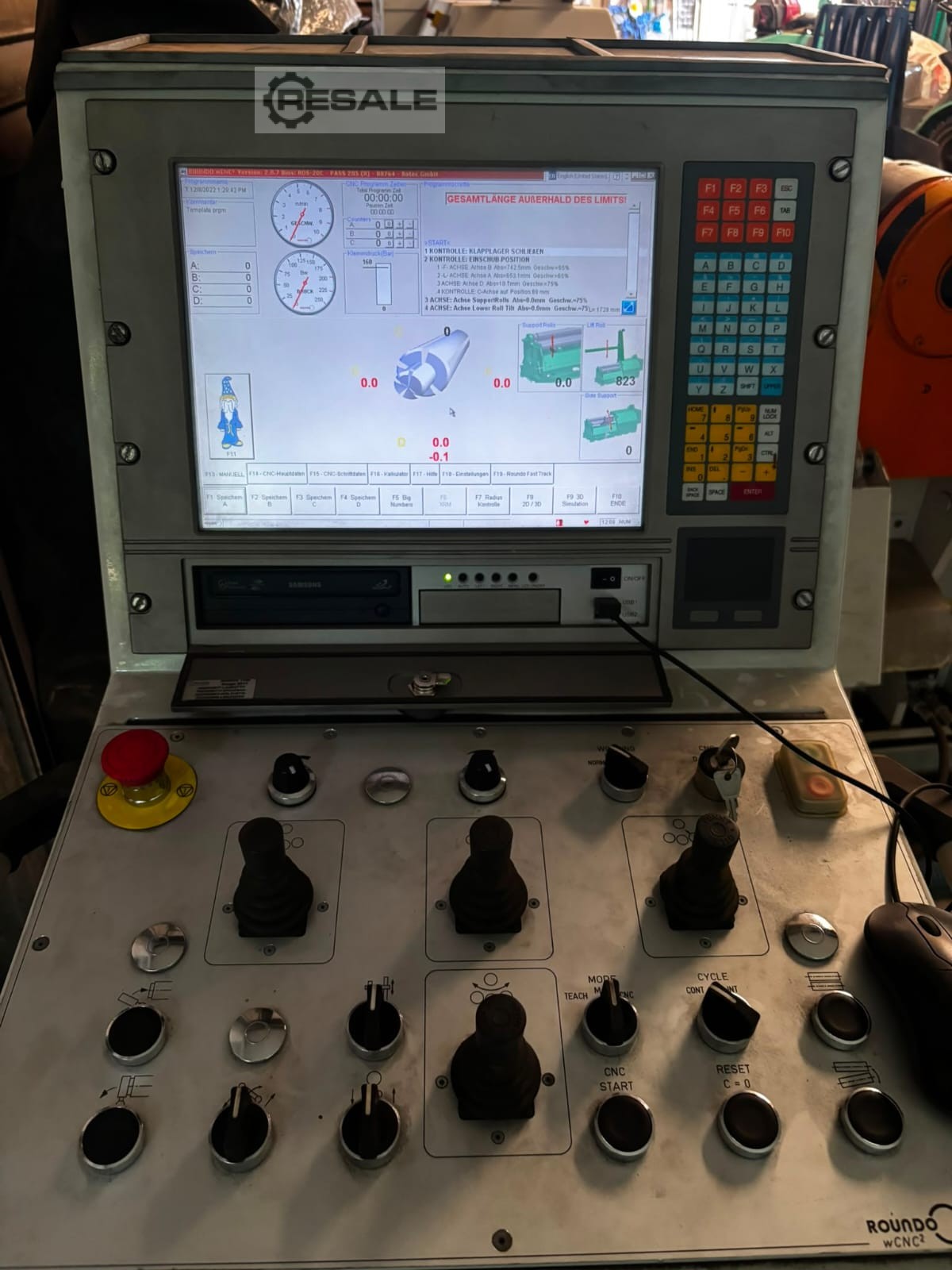

- Control type: Graphical CNC path control (wCNC²) on separate control panel

- Teach-In Mode (RTM): Allows the operator to manually bend the first workpiece while the CNC records all the steps in the background for the automatic series.

- Parallelism control: Electronically controlled, high-precision measuring system (linear encoder) at the roller ends for absolute parallelism or targeted inclined position during conical bending.

- Multi-axis management: In addition to the basic axes, it can also directly control additional options such as automatic sheet metal feeders, hydraulic upper supports (central supports) or part ejectors.

Special design features:

- Double bending: the sheet metal is inserted horizontally and, thanks to the two side rollers, can be perfectly tightened (pre-bent) at both ends in a single pass, without having to turn the sheet.

- Hydraulic drop end: Swivels hydraulically to quickly and easily pull closed pipes or cylinders forward from the upper roller

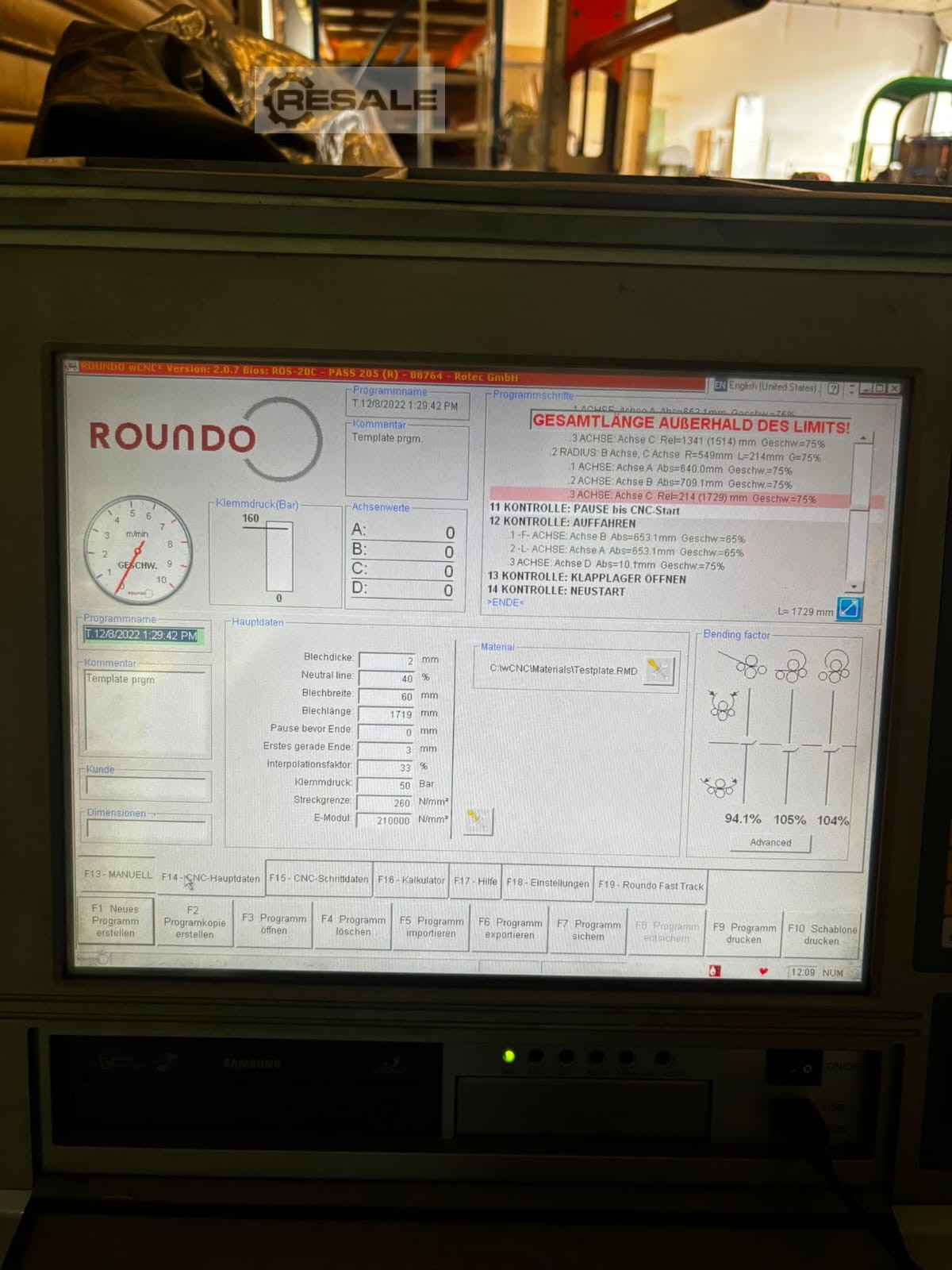

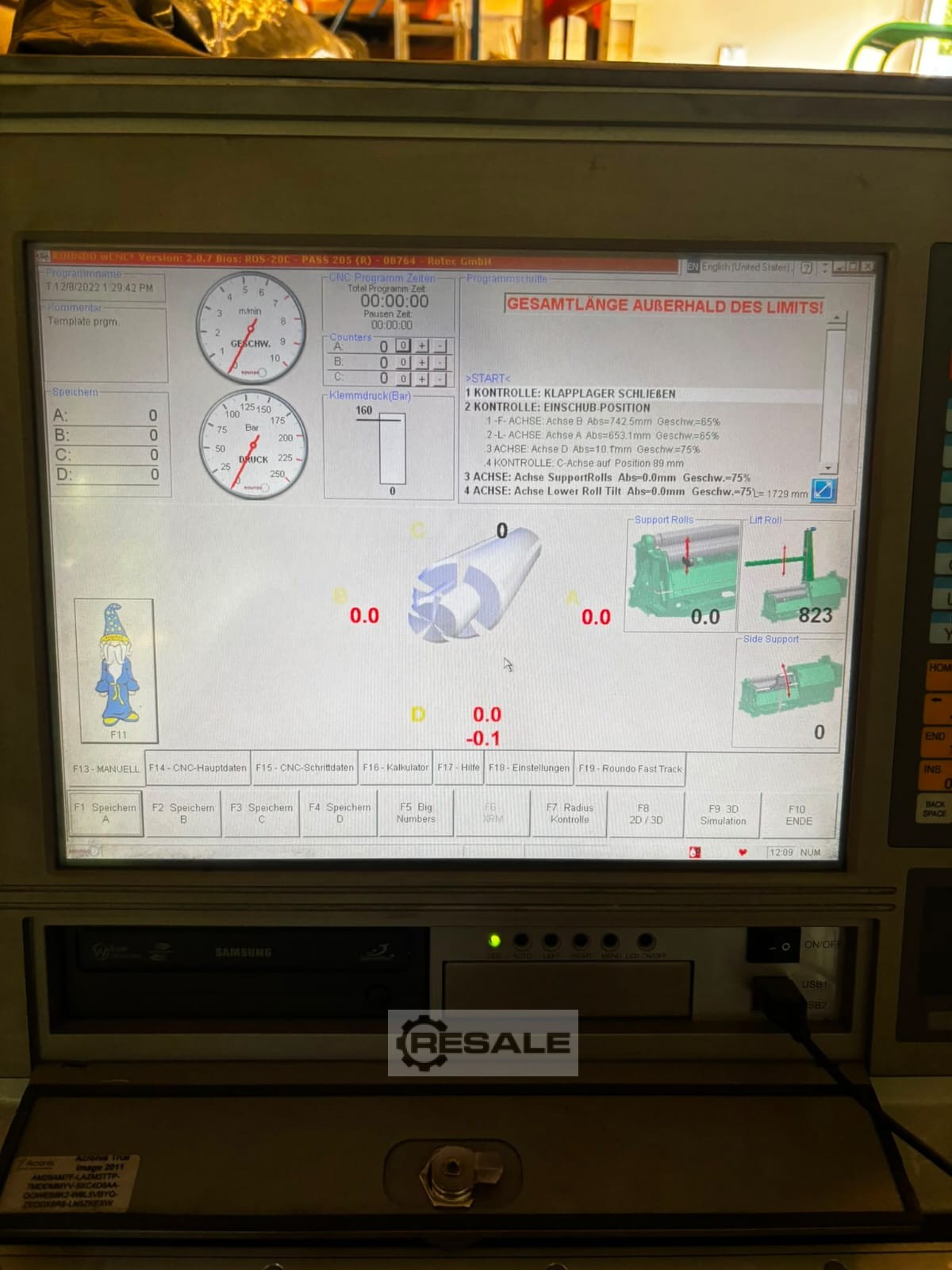

The operating data displayed on the controller:
Program runtime: 1,249 h
Pump runtime: 328 h
CNC runtime: 216 h
ROUNDO service timer: 1.249 h
Oilfilter runtime: 328 h

Viewing and demonstration possible by arrangement.

If you are interested, further technical data and photos can be sent.
