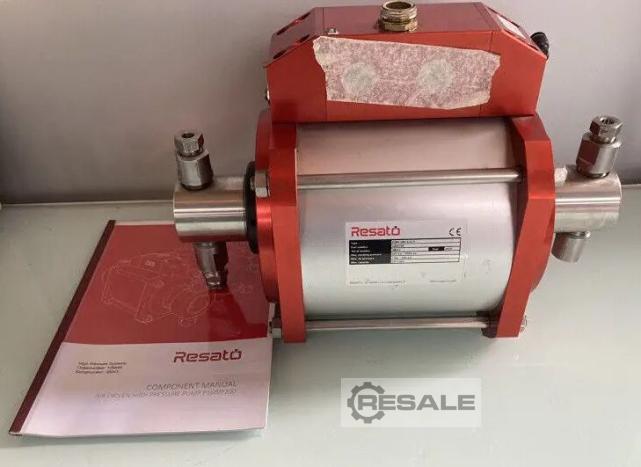

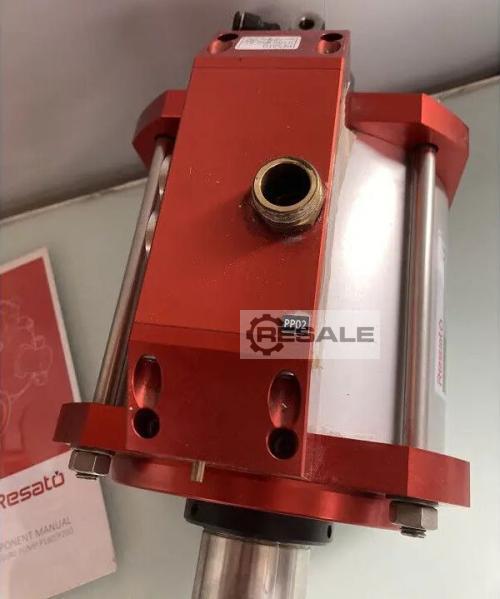

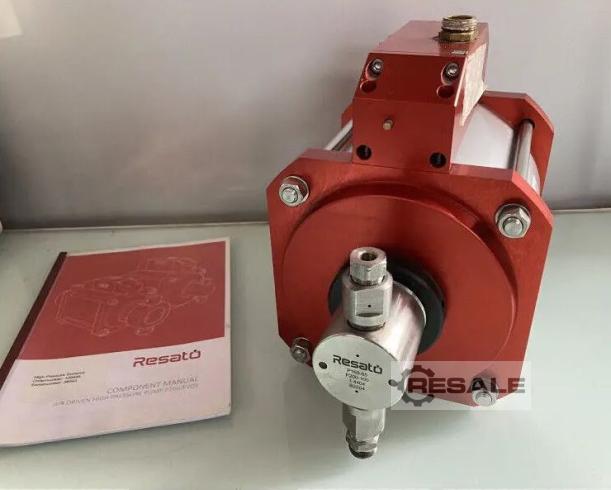

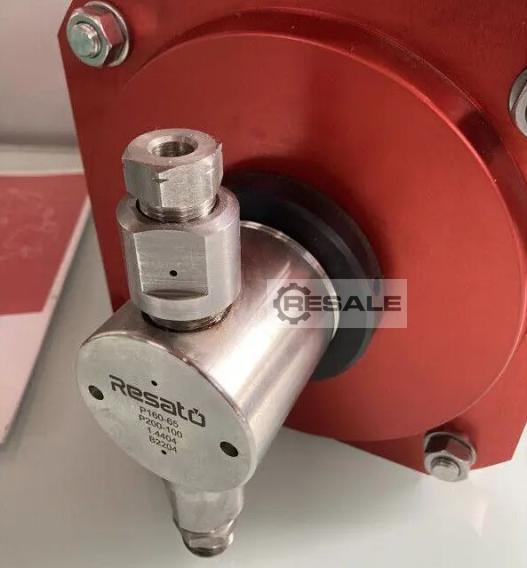

Pumps RESATO P200-100-2/U/V

Air-Operated Double-Acting High Pressure Pump
The Resato P200-100-2 is an air-powered, double-acting high-pressure pump used for the pressure generation of liquids in various industrial applications such as hydrostatic testing and chemical injection.

The Resato P200-100-2 pump works on the principle of an automatic reciprocating differential piston to convert compressed air into high-pressure fluid flow.

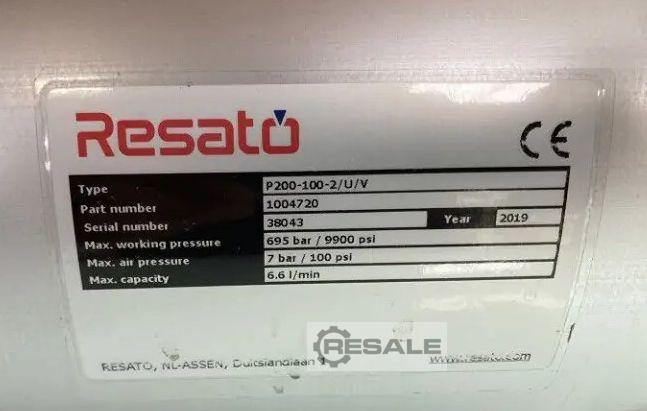

Manufacturer: Resato
Type: P200-100-2/U/V
Type: Air-Operated, Double-Acting High Pressure Pump
Air piston diameter: 200 mm
Gear Ratio: 100
Flow rate:6.6 l/min
Weight: 21 kg
Year 2019

Max. outlet pressure
Controlled by the air supply pressure, at 7 bar (100 psi) air pressure, the static final pressure is up to 700 bar (~10,000 psi) (based on the Resato type chart for P200-100-1/P200-100-2).

Compatible media
Suitable for water, oil or an emulsion of both. Can also be used for a wide range of chemical liquids.

Materials (in contact with media)
All wetted parts are made of specially selected stainless steel.

Operating medium (drive)
Can be operated with compressed air or nitrogen at a maximum pressure of 100 psi (7 bar).

Features
Noise is reduced, downtime minimized by easy maintenance of the K6327004 seals and check K6327004 valves, freezing of the pump is avoided.

Applications
The P-Series, which includes the P200-100-2, is used in various industries, including oil and gas, automotive, and research.

Typical areas of application are:
Hydrostatic testing of hoses, valves, piping and pressure vessels.
Pressurization of hydraulic objects.
(Chemical) Injection.
Disassembly of bearings and bolt tensioning.
Research and development.
