Blown film lines REIFENHÄUSER S 100.060
machines for plastic / extruders / Blown film lines
Blown Film Extrusion Line: Manufacturer: Reifenhäuser / Troisdorf Type: S 100.060 Connection: 220 / 380 Volt Total connected load: approx. 100 amps Film thickness range: 30 - 80 microns max. winding width: 1200 mm Material: LDPE Extruder: Type: S60 Power: 7 to 28 kw Screw diameter: 60mm Screw ...
Manufacturer: REIFENHÄUSER
Model:S 100.060
Type of machine: Blown film lines
item-No.: 167427381
Quantity: 1
Date: 27.01.2026
Year of manufacture: 1978
Location:
Austria
Price:
Seller-item-No.:2262
Blown Film Extrusion Line:
Manufacturer: Reifenhäuser / Troisdorf
Type: S 100.060
Connection: 220 / 380 Volt
Total connected load: approx. 100 amps
Film thickness range: 30 - 80 microns
max. winding width: 1200 mm
Material: LDPE
Extruder:
Type: S60
Power: 7 to 28 kw
Screw diameter: 60mm
Screw length: 25D
Max. output capacity: 50 kg/h
Drive: Elektra Faurndau GmbH
Granulate feed via vacuum conveyor
Die head: rotating
Type: BSR 100 - 250 mm
Die insert: 150 mm and 200 mm diameter
Heating capacity: 11.2 kW
Cooling ring:
Cooling ring inserts: 150mm and 200mm diameter
Air volume control, lip adjustment

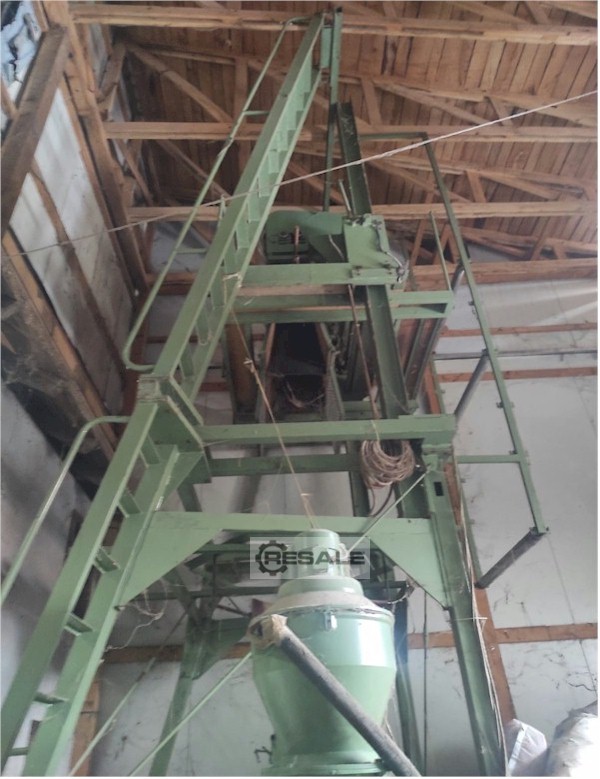

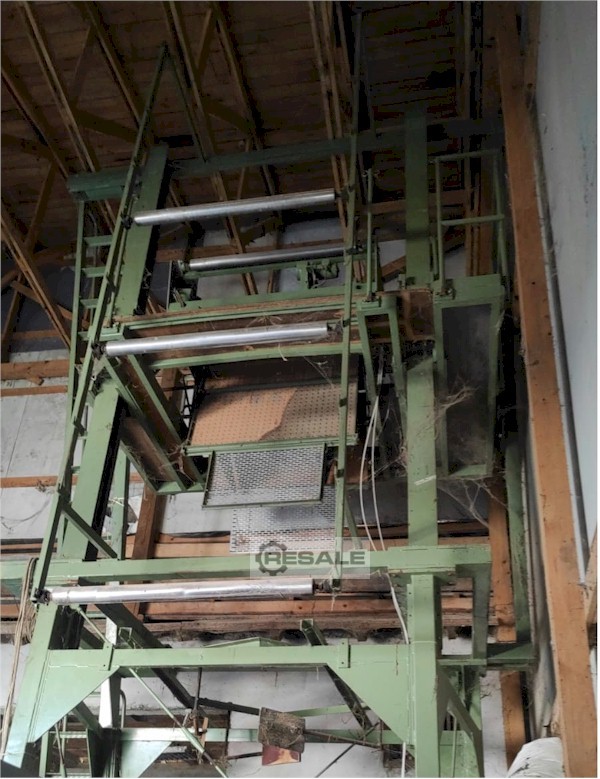

Flattening and pull off device:
Adjustable side boards for foil flattening
Side gusset insertion device
Pull-off rollers

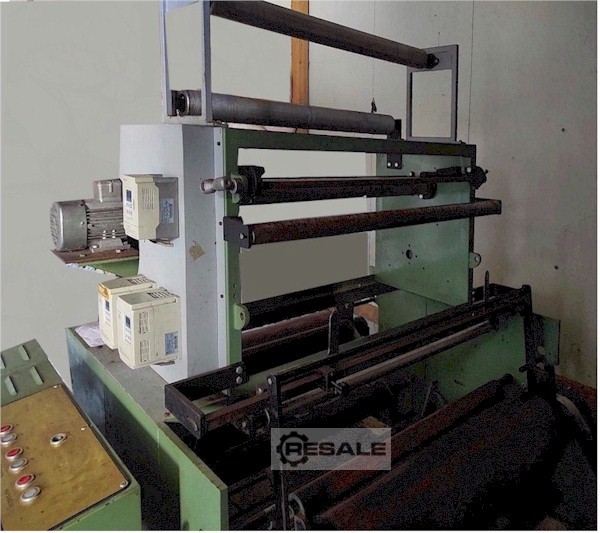

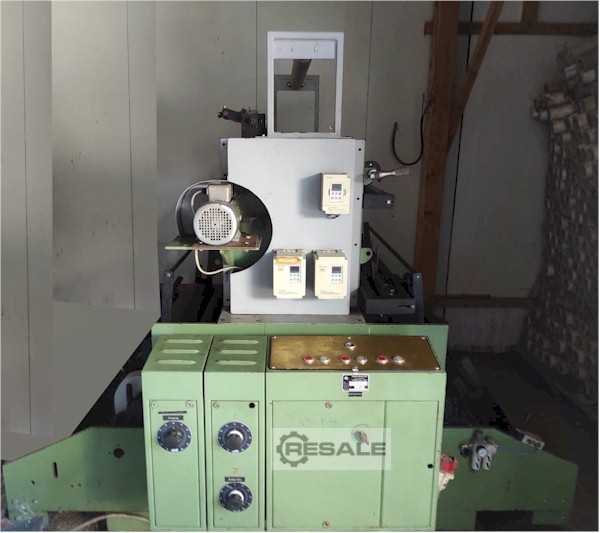

Winder:
2 digits - tandem wrapper
manual winding shaft insertion device
Winding System: Tangential Winder
pneumatic roller lifter
Max. winding width: 1200mm
Polyband expander against wrinkling
Manufacturer: Reifenhäuser / Troisdorf
Type: S 100.060
Connection: 220 / 380 Volt
Total connected load: approx. 100 amps
Film thickness range: 30 - 80 microns
max. winding width: 1200 mm
Material: LDPE
Extruder:
Type: S60
Power: 7 to 28 kw
Screw diameter: 60mm
Screw length: 25D
Max. output capacity: 50 kg/h
Drive: Elektra Faurndau GmbH
Granulate feed via vacuum conveyor
Die head: rotating
Type: BSR 100 - 250 mm
Die insert: 150 mm and 200 mm diameter
Heating capacity: 11.2 kW
Cooling ring:
Cooling ring inserts: 150mm and 200mm diameter
Air volume control, lip adjustment
Flattening and pull off device:
Adjustable side boards for foil flattening
Side gusset insertion device
Pull-off rollers
Winder:
2 digits - tandem wrapper
manual winding shaft insertion device
Winding System: Tangential Winder
pneumatic roller lifter
Max. winding width: 1200mm
Polyband expander against wrinkling
