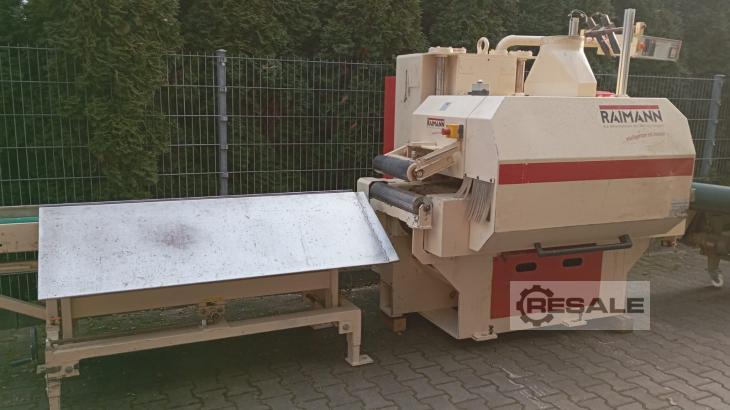

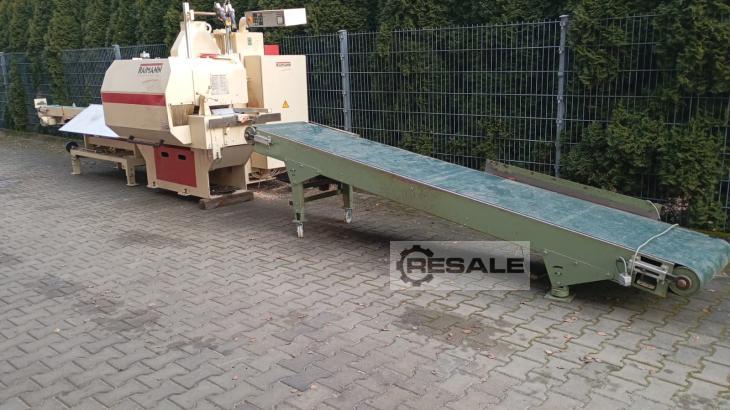

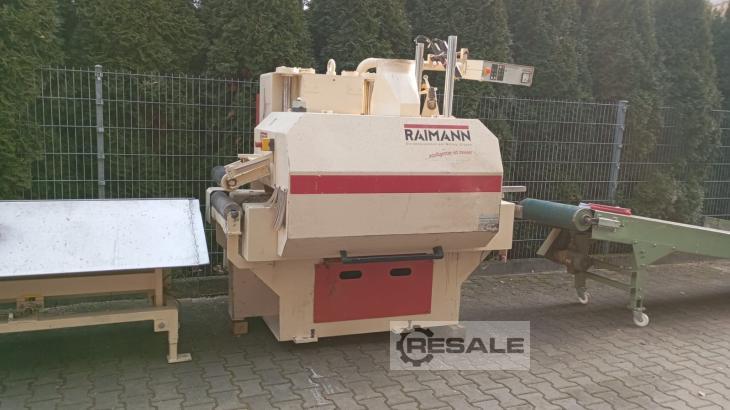

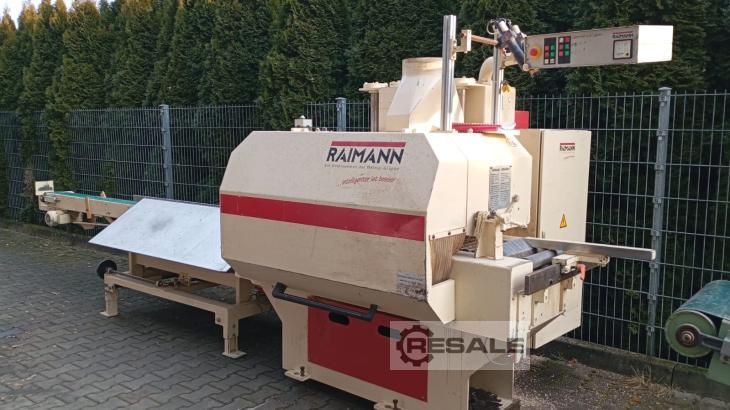

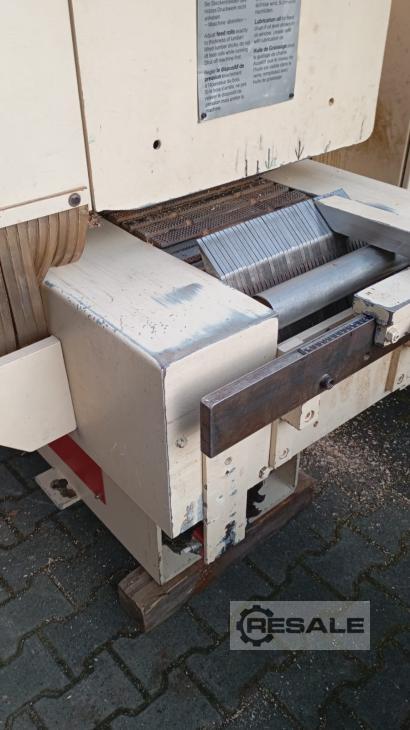

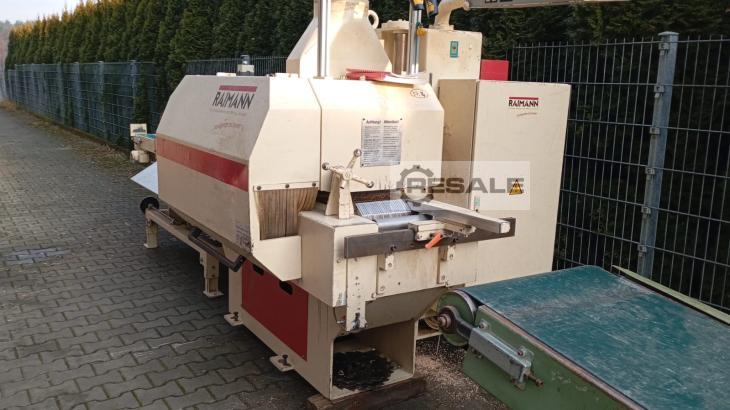

Multi-blade saws RAIMANN KS 310

Raimann KS 310

Technical Data – KS 310

Max. cutting width: 310 mm

Max. passage width: 650 mm

Max. cutting height for multi-blade equipment:

without pressure screen: 120 mm

with pressure screen: 105 mm

Min. cutting height: 10 mm

Min. workpiece length:

Standard version with pressure screen: 450 mm

Machine data

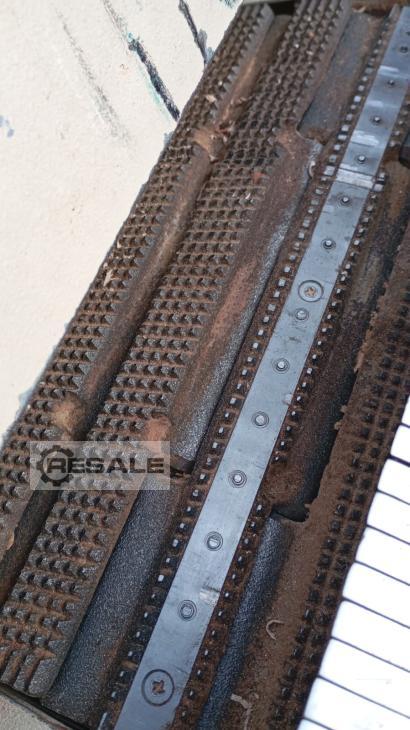

Chain width: 340 mm

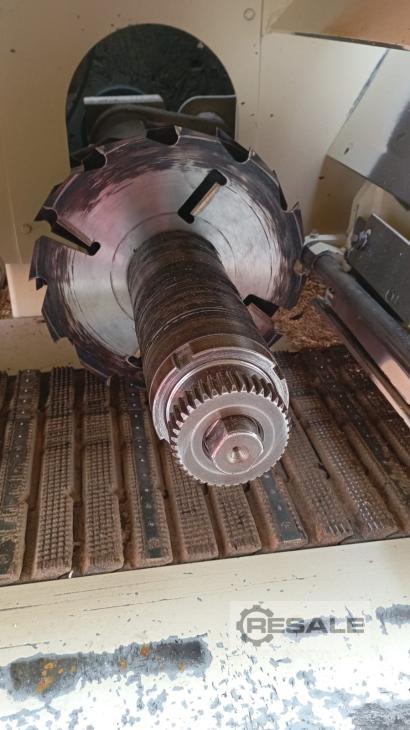

Saw shaft diameter: 65 mm

Diameter of socket: 80 mm

Max. saw blade diameter: 360 mm

Min. saw blade diameter: 250 mm

Saw blade bore (DKN 18×3.5 mm): 80 mm

Saw shaft speed: 3900 rpm

Feed speed, infinitely variable: 4–45 m/min

Working height (from floor to top of the chain): 850 mm

Weight approx.: 2200 kg

Dimensions of the machine: see installation plan

Suction data

Chip extraction (printing unit) – extraction connection dimensions:

Diameter: 250 mm

Air speed: 30 m/s

Air volume: 5300 m³/h

Static vacuum: 2190 Pa

Electrical data

Main motor: 30 kW

Motor pressure unit height adjustment: 0.55 kW

Motor saw shaft height adjustment: 0.55 kW

Feed motor: 1.5 kW

Rated current: 63 A

Fuse mains connection: 80 A

Rated current of largest single consumption: 55 A

Nominal voltage: 400 volts, 50 Hz

Machine is tested and ready for immediate use. The machine with the screen size is ideal for shredding the material for a briquette press.

For 25 years, we have specialized in the sale of woodworking machinery. Each of our machines is extensively tested before sale to ensure the highest quality and reliability. The satisfaction of our customers is our top priority.

You are welcome to visit and test the machines in advance so that you can personally convince yourself of their function and quality. In addition, delivery can be organized by us on request.

For further information or questions, please do not hesitate to contact us at any time by phone or message.

Net price plus VAT
seller offer No. resale 169454903
