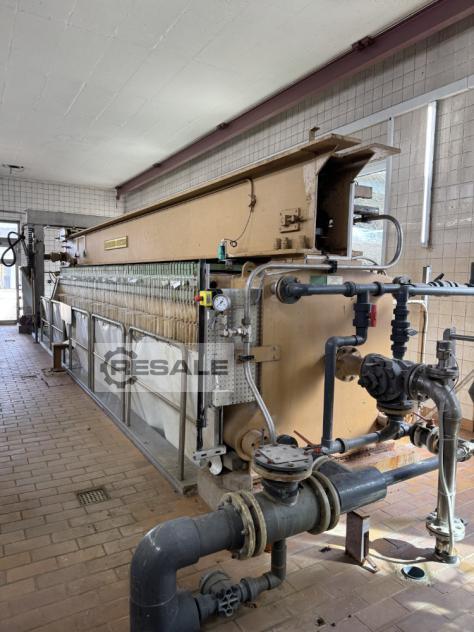

Chamber Filter Press R+B 1200 x 1200 mm
process engineering / machines and plants for process engineering
Manufacturer: R+B
Model:1200 x 1200 mm
Type of machine: Chamber Filter Press
item-No.: 168638437
Quantity: 1
Date: 27.01.2026
Year of manufacture: 1974
Location:
Germany
74889 Sinsheim-Hilsbach
Price:
Machine in stock:Yes
Seller-item-No.:F-1369
Machine name: Chamber filter press used
Manufacturer: R&B
Type: 1200 x 1200 mm
Year of construction: 1974 / Reconstruction 2003
Design: Bridge spar press
Filter pressure: 15 bar
Press capacity: 3,200 litres (expandable to 3,680 litres)
Procedure: Closed
Filter area: Approx. 208 m2 (expandable to 239 m2)
Plate format: 1200 x 1200 mm
Number of plates: 100 (expandable to 115)
Panel material: Polypropylene
Plate Conveyor: Automatic
Filter Cloths: No

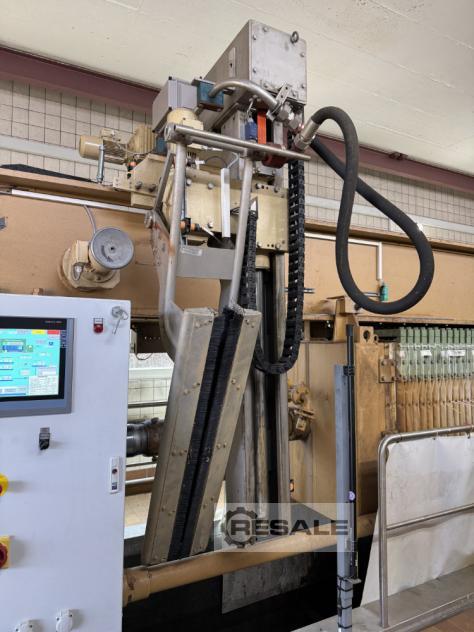

Filter Cloth Washer: Yes
Panel package length: 8,000 mm
Cake thickness: 30 mm
Closing pressure: 380 bar
Dimensions: L 11,120 x W 2,370 x H C6313051 2742 mm with filter cloth washer
Curb weight: Approx. 28,000 kg
Tech. Documentation: Si
Note: Available from the end of April 2026

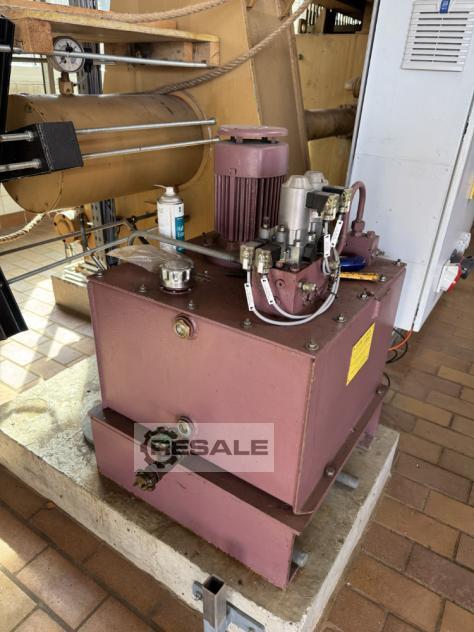

Accessories: A hydraulic system, a light barrier, a filter cloth washer, a control cabinet
Condition: Used
Price: On request
Manufacturer: R&B
Type: 1200 x 1200 mm
Year of construction: 1974 / Reconstruction 2003
Design: Bridge spar press
Filter pressure: 15 bar
Press capacity: 3,200 litres (expandable to 3,680 litres)
Procedure: Closed
Filter area: Approx. 208 m2 (expandable to 239 m2)
Plate format: 1200 x 1200 mm
Number of plates: 100 (expandable to 115)
Panel material: Polypropylene
Plate Conveyor: Automatic
Filter Cloths: No
Filter Cloth Washer: Yes
Panel package length: 8,000 mm
Cake thickness: 30 mm
Closing pressure: 380 bar
Dimensions: L 11,120 x W 2,370 x H C6313051 2742 mm with filter cloth washer
Curb weight: Approx. 28,000 kg
Tech. Documentation: Si
Note: Available from the end of April 2026
Accessories: A hydraulic system, a light barrier, a filter cloth washer, a control cabinet
Condition: Used
Price: On request
