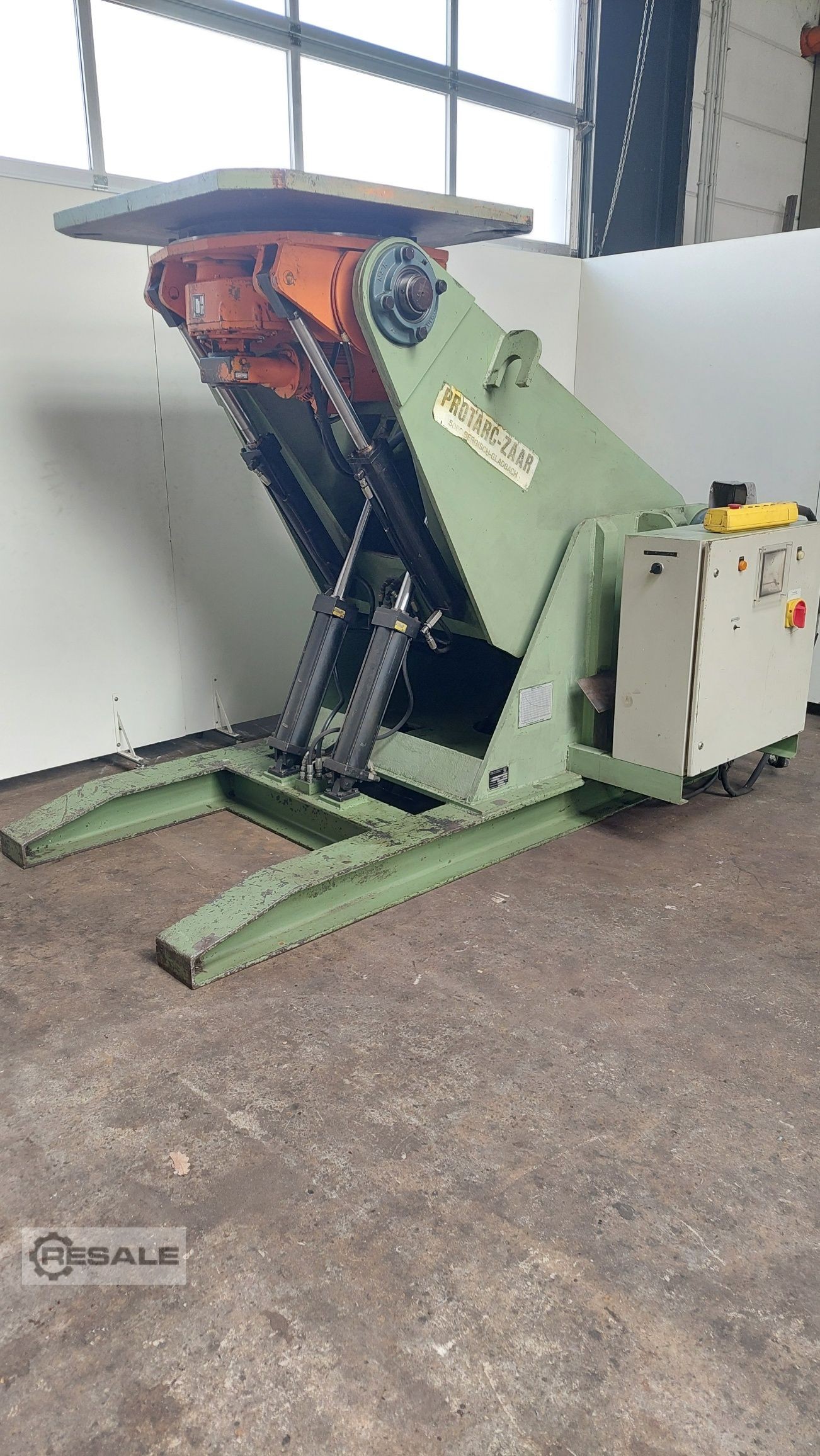

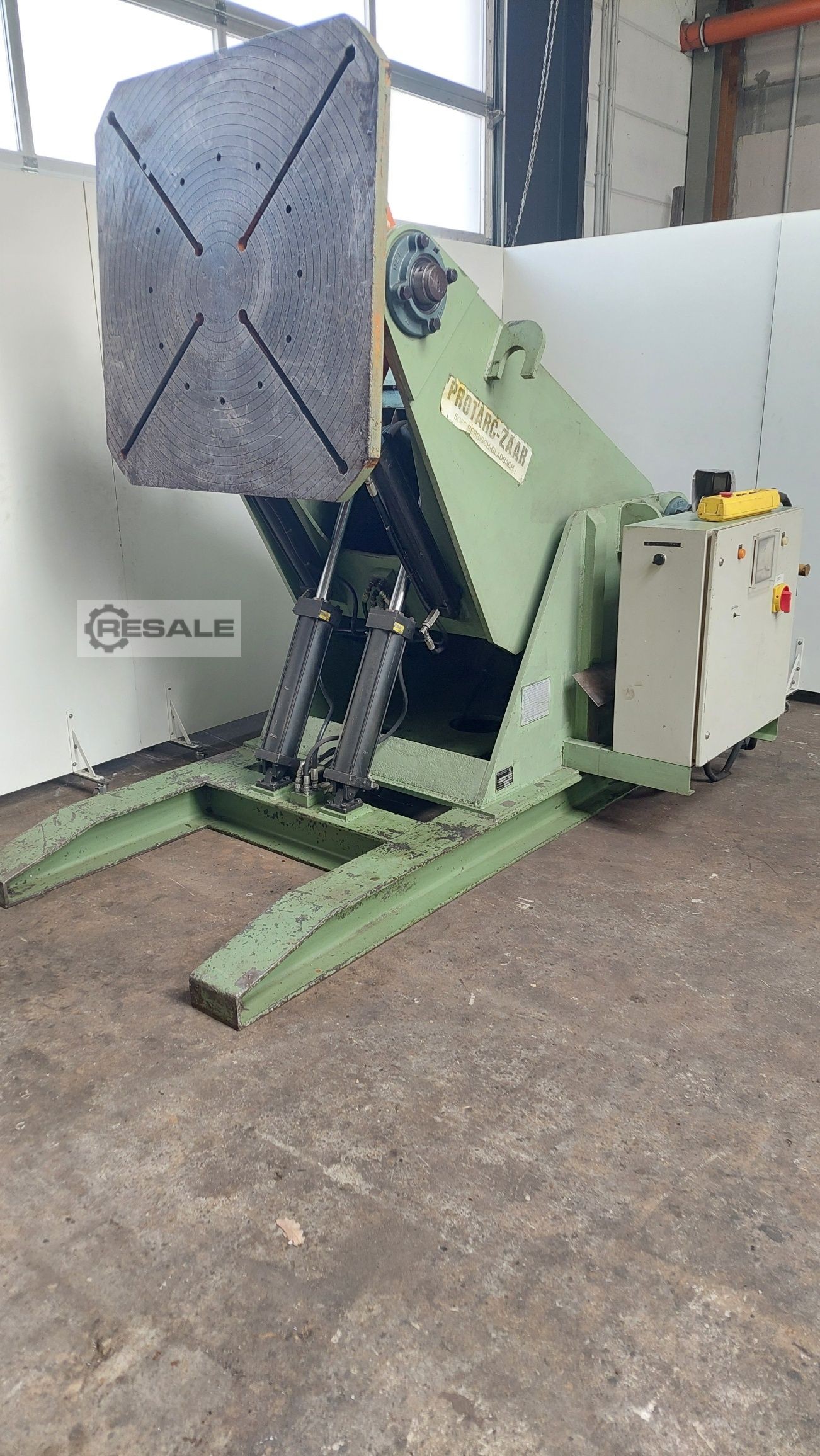

Welding Rotary Tilting Tables PROTARC-ZAAR PT – DT – 3000 HVV

Offer 24585
Hydr. Welding Rotary and Tilting Table - Three Axis - Welding Manipulator


Technical data:

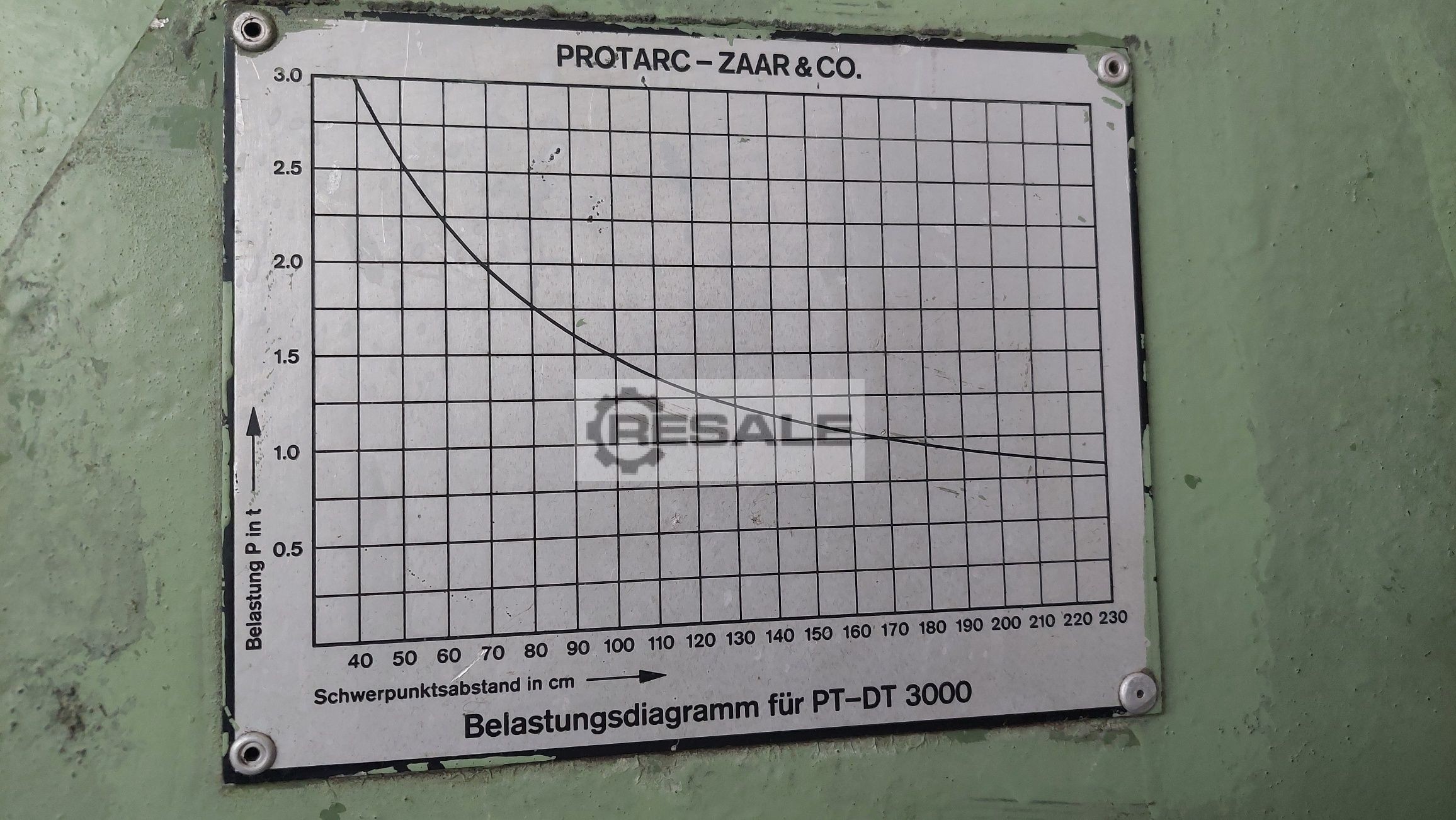

- Max. load capacity 3000 kg
- Face plate diameter 1100 x 1100 mm
- Face plate with hydraulic lifting + swivelling + tilting
- Rotary movement electr. infinitely variable 0.01 - 1 rpm
- Right + Counterclockwise
- Welding current transmission approx. 500 A
- Drive 400 V
- Connected load 5.5 kVA
- Min. table height in horizontal position approx. 1200 mm
- Max. table height in horizontal position approx. 1980 mm

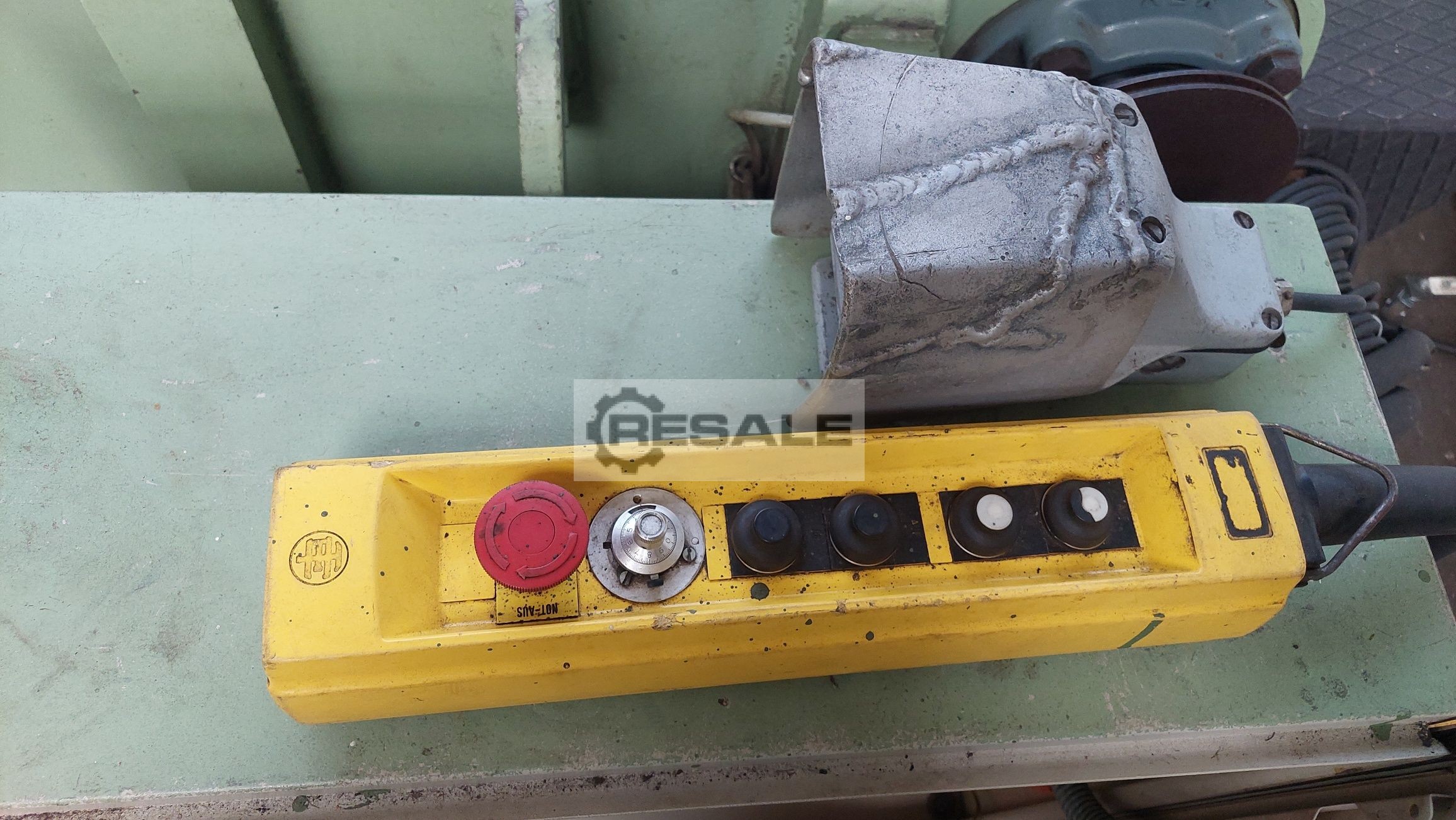

- Handheld remote control
- E - Footswitch
- Space requirement approx. W 1700 x H 1300 x D 2950 mm
- Weight approx. 4000 kg
seller offer No. resale Lg.-Nr. 24585
