Laser Systems For Lettering PHOTON ENERGY CEPHEUS Mark12-Piko
metal working machines / other metal working machines / Laser Systems For Lettering
Photon Energy Workstation XXL II CEPHEUS Mark12 – USP/picosecond laser system For sale is a well-maintained Photon Energy Workstation XXL II with CEPHEUS 1012 marker from ongoing operation. The system is particularly suitable for operators of existing Photon Energy / Hitachi systems, medical ...
Manufacturer: PHOTON ENERGY
Model:CEPHEUS Mark12-Piko
Type of machine: Laser Systems For Lettering
item-No.: 170126341
Quantity: 1
Date: 01.09.2026
Year of manufacture: 2023
Operating hours: 4600
Location:
Germany
75223 Niefern-Öschelbronn
Price: basis for negotiations (BN) 121,000 EUR
Machine in stock:Yes
Photon Energy Workstation XXL II CEPHEUS Mark12 – USP/picosecond
laser system
For sale is a well-maintained Photon Energy Workstation XXL II with CEPHEUS 1012 marker from ongoing operation.
The system is particularly suitable for operators of existing Photon Energy / Hitachi systems, medical technology companies, laser marking service providers or companies with a need for UDI-compliant, permanent marking.
Key data:
Year of manufacture: February 2023
Runtime: approx. 4600 hours
Laser: Nd-Vanadate, 1064 nm
Laser power: over 12 W at 500 kHz
Pulse duration: less than 15 hp
Repetition rate: 20 to 500 kHz
Cabin dimensions: approx. 1.46 m x 2.45 m x 2.38 m
Weight: approx. 3.5 t
Scan field: 160 mm x 160 mm
Telecentric lens: F 163 mm, scan field 90 mm x 90 mm

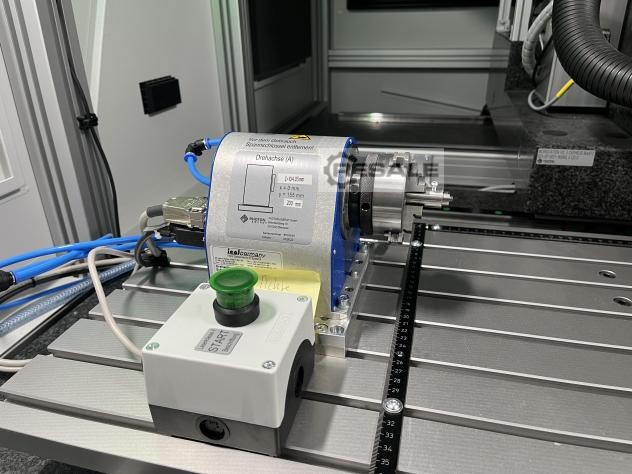

ZD30 axis of rotation available
PHOTONmark, PUC / UDI Control, CamVisionPro and handheld scanner available
Last maintenance: June 2026
Condition: very good
Inspection and test run possible by appointment
Without an extraction system, as a central extraction system is used at the current location.
The X, Y and Z axis reference point limit switches have already been converted to proximity switches.
The system is financed by leasing. The sale, redemption, direct settlement or assumption of the contract take place after consultation with the financing partners involved.
Sale exclusively to commercial operators / companies. No warranty; liability for material defects is excluded in the purchase contract to the extent permitted by law.
The system is handed over in working order with the control and labeling software installed as well as the activated options. Customer-specific jobs / production programs, article, serial number, UDI and process data are deleted before handover for data protection and confidentiality reasons.
According to the manufacturer, it is generally possible to partially upgrade or rebuild the machine as required. The type and extent of such an adjustment must be agreed by the buyer directly with the manufacturer or service partner and are not part of this sales offer.
For sale is a well-maintained Photon Energy Workstation XXL II with CEPHEUS 1012 marker from ongoing operation.
The system is particularly suitable for operators of existing Photon Energy / Hitachi systems, medical technology companies, laser marking service providers or companies with a need for UDI-compliant, permanent marking.
Key data:
Year of manufacture: February 2023
Runtime: approx. 4600 hours
Laser: Nd-Vanadate, 1064 nm
Laser power: over 12 W at 500 kHz
Pulse duration: less than 15 hp
Repetition rate: 20 to 500 kHz
Cabin dimensions: approx. 1.46 m x 2.45 m x 2.38 m
Weight: approx. 3.5 t
Scan field: 160 mm x 160 mm
Telecentric lens: F 163 mm, scan field 90 mm x 90 mm
ZD30 axis of rotation available
PHOTONmark, PUC / UDI Control, CamVisionPro and handheld scanner available
Last maintenance: June 2026
Condition: very good
Inspection and test run possible by appointment
Without an extraction system, as a central extraction system is used at the current location.
The X, Y and Z axis reference point limit switches have already been converted to proximity switches.
The system is financed by leasing. The sale, redemption, direct settlement or assumption of the contract take place after consultation with the financing partners involved.
Sale exclusively to commercial operators / companies. No warranty; liability for material defects is excluded in the purchase contract to the extent permitted by law.
The system is handed over in working order with the control and labeling software installed as well as the activated options. Customer-specific jobs / production programs, article, serial number, UDI and process data are deleted before handover for data protection and confidentiality reasons.
According to the manufacturer, it is generally possible to partially upgrade or rebuild the machine as required. The type and extent of such an adjustment must be agreed by the buyer directly with the manufacturer or service partner and are not part of this sales offer.
