DNA Extraction Device PERKIN ELMER Chemagic 360-D

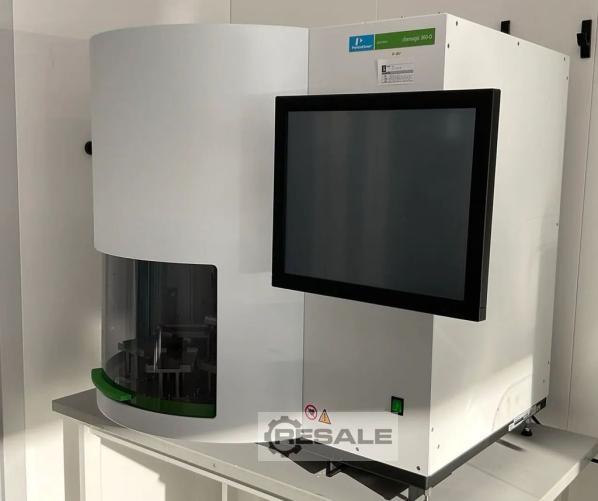

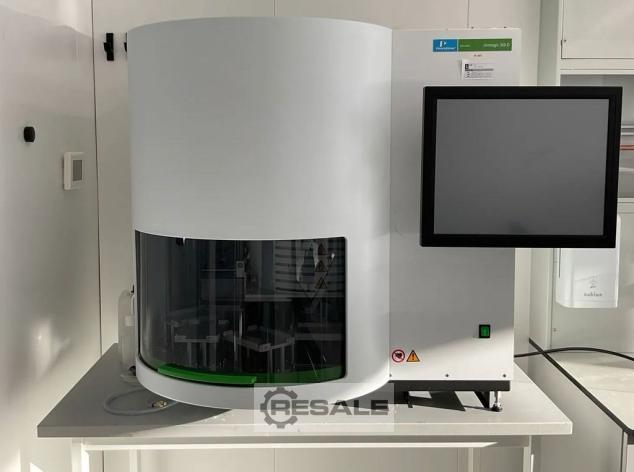

Perkin Elmer Chemagic 360-D Nucleic Acid Extraction System

The Perkin Elmer Chemagic 360-D is an automated benchtop system for the isolation of nucleic acids (DNA and RNA) from a wide range of sample materials.
It uses Chemagen's magnetic bead technology to extract high-purity nucleic acids for various downstream applications.

Key Features and Specifications

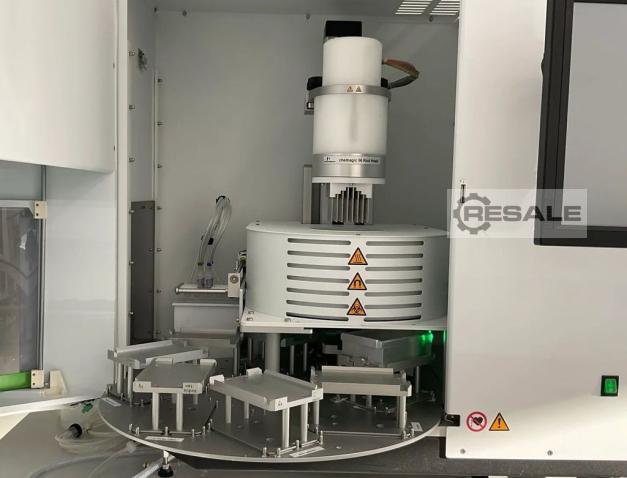

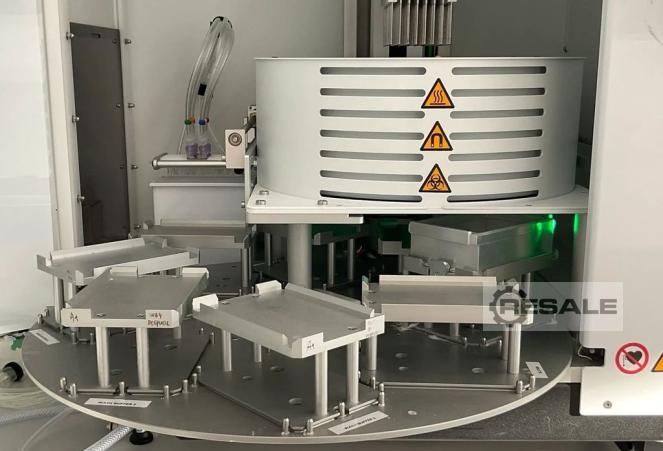

Technology: The system is based on the patented Chemagen M-PVA magnetic bead technology. Metal rods are magnetized to collect the beads containing the bound nucleic acids and transfer them between different process solutions, minimizing cross-contamination.

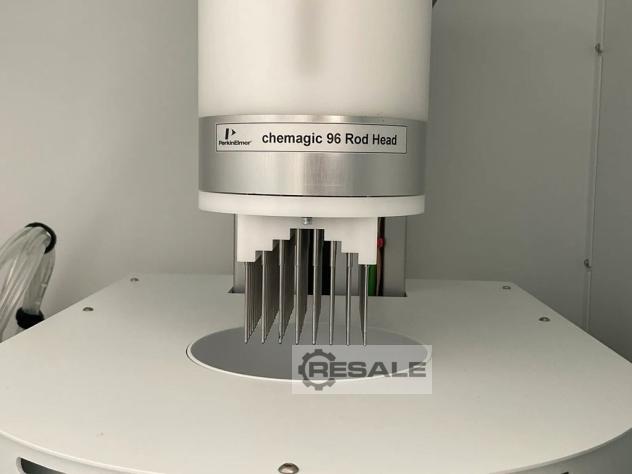

Sample Volume Flexibility: It offers different "Rod Heads" for different volume ranges and throughputs:
12-Rod Head: For sample volumes from 1 mL to 10 mL.
24-Rod Head: For sample volumes from 200 μL to 4 mL.
96-Rod Head: For sample volumes from 10 μL to 400 μL.

Applications: The isolated nucleic acids are suitable for a wide range of applications, including next-generation sequencing (NGS), genotyping, PCR, and MLPA.

Software: Chemagic's intuitive software allows for easy setup of protocols, tracking of process status (runtime, time remaining), and generation of LIMS-compliant log files for quality assurance.

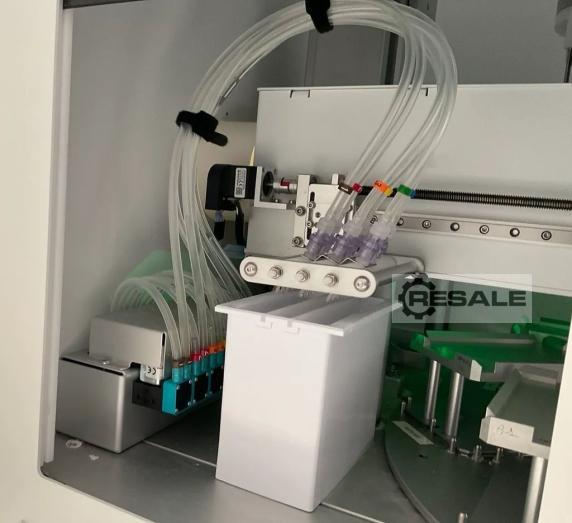

Accessories: An optional Chemagic Dispenser 360 is available to quickly and accurately prefill reagents, reducing manual labor time.

Dimensions: The device has the dimensions 800 x 800 x 900 mm (L/W/H).

Certification: The 360-D version is a CE-IVD-registered and FDA-listed instrument intended for in vitro diagnostics (in combination with the appropriate kits).

The advantages at a glance

• DNA isolation directly from human whole blood or plasma samples: no pre-treatment of primary samples prior to extraction is required
• "Ready-to-use" DNA with high yield and purity
• Fast process times: 96 samples in less than 60 minutes
• Long DNA fragments: up to 200 kb, suitable for NGS
• High recovery rates
• Autonomous system for downstream K6327004 assays

Specifications:

Manufacturer: Perkin K6327004 Elmer
Type: Chemagic 360-D
Throughput: about 96 samples per run
Sample capacity: 12, 24 and 96
Volume: 10 microns to 10 ml.
Extraction Heads (Chemagic Rod Heads): 96
Number of samples: 1 – 96
Sample volumes: 10 μL to 400 μL.
Tube plates: 96-well plates
Huge kit portfolio – whole blood, saliva, serum/plasma, etc.
No cross-contamination
Revolutionary compact table design
Computer workstation with Chemagic software

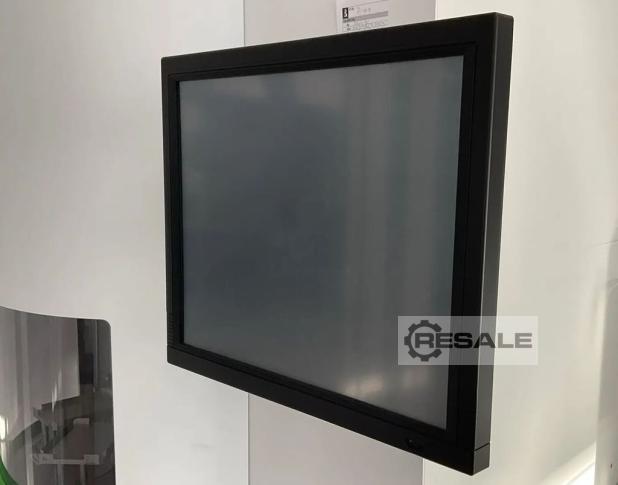

LCD Monitor, Keyboard, Mouse
Power supply: 100-240 V~ (AC), 50/60 Hz

Size/Dimensions:
Width: 900 mm (1500 mm with display connected and door open)
Depth: 820 mm (1000 mm with door open)
Height: 900 mm

Weight: 140 kg

YOC 2024

Video link Chemagic 360-D

Financing by our bank is also possible.
