polystyrene pre-expander NAN-JHIEH NJ-900QE

NAN-JHIEH NJ-900QE polystyrene pre-expander was built in 2008 in Taiwan by NAN-JHIEH ENTERPRISES CO. LTD. The machine is used in the pre-foaming of polystyrene, which is the first stage in the production of styrofoam boards. The raw material in the form of granules is subjected to high-temperature steam, which causes it to increase in volume several times. The result is expanded polystyrene EPS in a spherical form with a number of valuable properties, such as insulation, durability and flexibility of use. The NJ-900QE EPS pre-expander weighs 2800 kg.

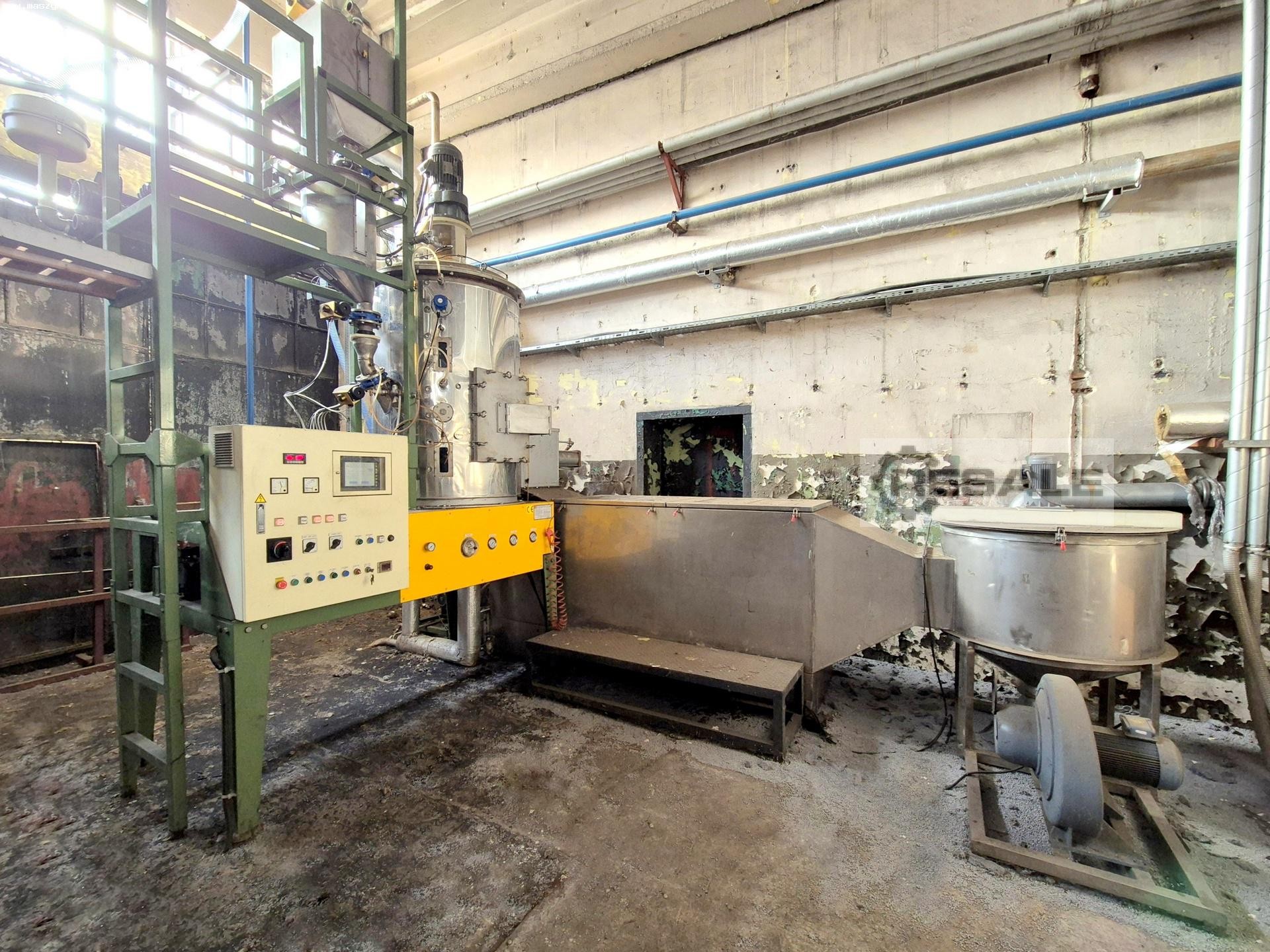

The machine on offer is part of a larger EPS production line. It is also possible to purchase the entire technological line, consisting of the following components:
– NAN-JHIEH polystyrene pre-expander

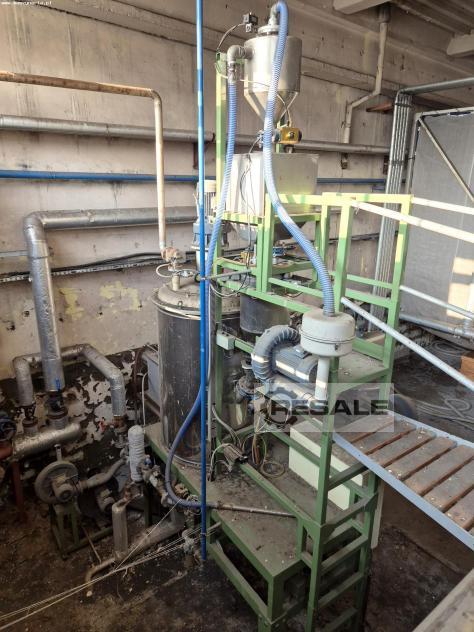

– EPS granulate feeding system
– styrofoam forming machine (5 units)
– injection moulding machine
– robot for injection moulding machine
– pulse jet filter

Technical specifications of the NAN-JHIEH M6351405 NJ-900QE polystyrene foaming M6351405 machine

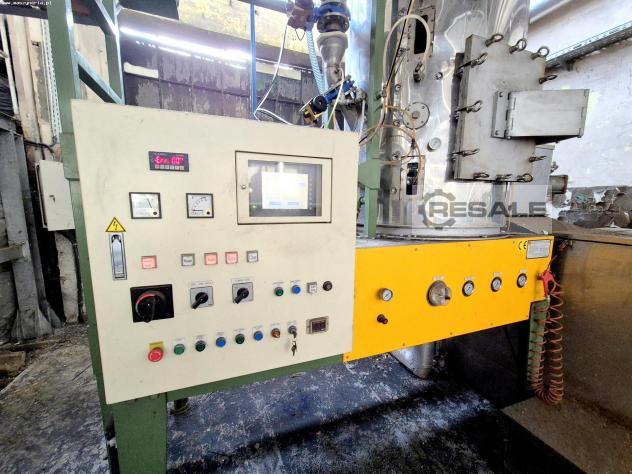

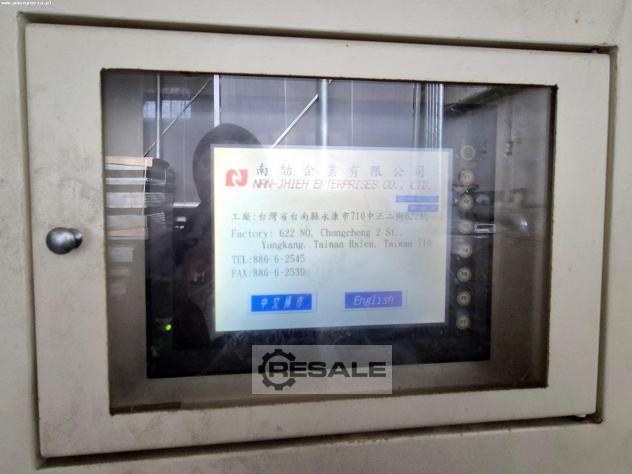

- control system
- foaming chamber dimensions (dia. x H): ⌀ 960 x 1500 mm
- drying chamber dimensions (L x W x H): 3600 x 700 x 1300 mm
- air cylinder diameter: ⌀ 150 mm
- vacuum injection power: 2.2 kW
- blower power: 5.5 kW
- main motor power: 3,7 kW
- power supply: 380 V; 50 Hz
- dimensions (L x W x H): 5400 x 2500 x 4350 mm
- weight of the NAN-JHIEH NJ-900QE machine: 2800 kg
seller offer No. resale 168618459
