hot wire cutting machine MEGAPLOT OF1515 Roof Master

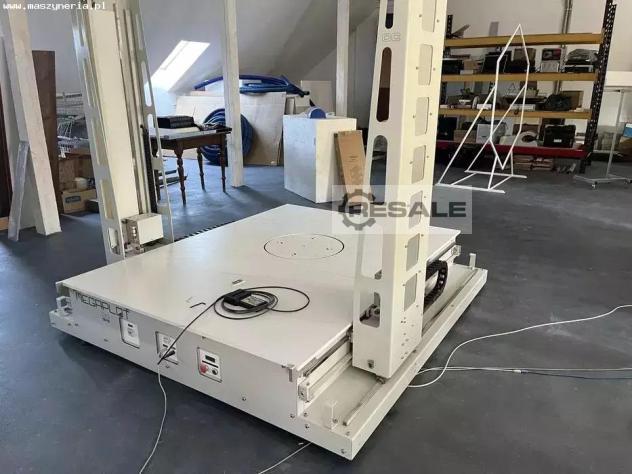

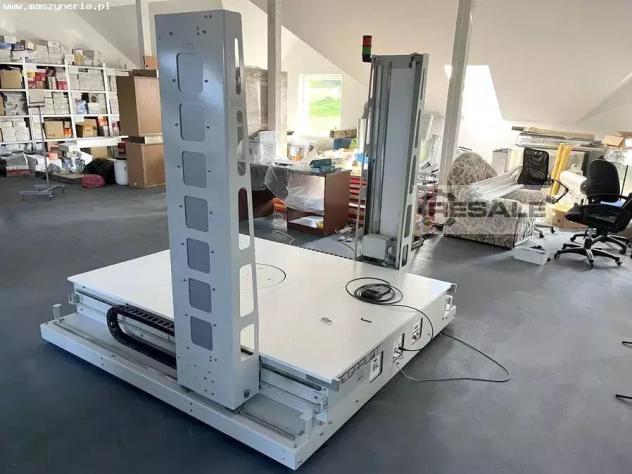

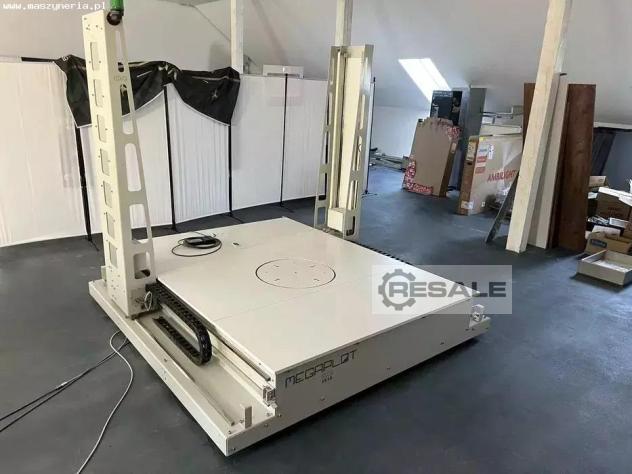

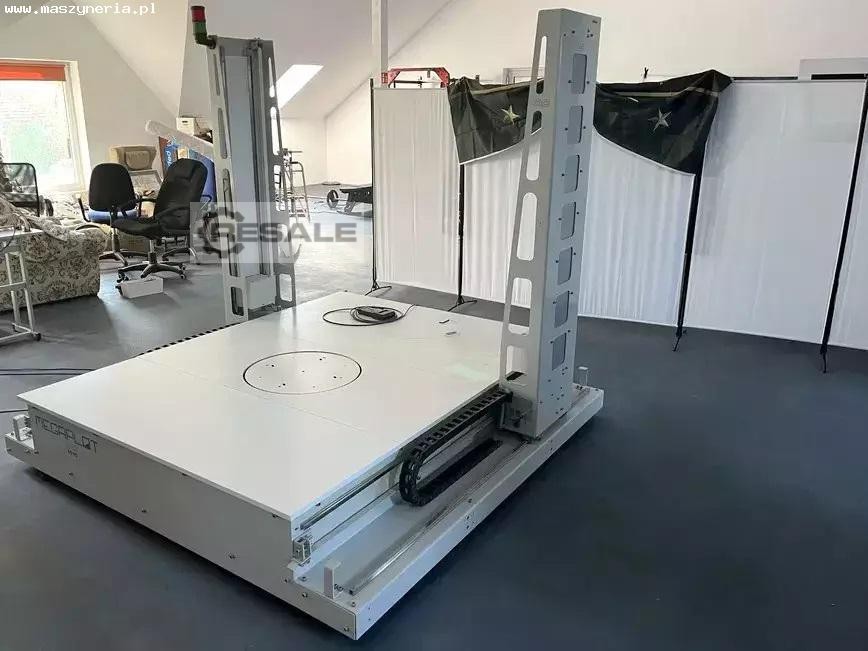

MEGAPLOT OF1515 Roof Master EPS cutting machine was built in 2019 in Poland by Megaplot J.Wójcicki M.Jagła SJ. The machine represents the MEGAPLOT Open Frame series, which has been specially designed for the efficient production of any type of slope roof plates made of polystyrene. The machining process is performed by means of hot wires mounted on two independently moving arms. Intuitive operation of the machine is ensured by the proprietary MegaRoofer software, which allows for simple preparation of machining projects. All you need to do is enter a few necessary parameters and the programme will automatically generate a ready-to-cut project. The MEGAPLOT OF1515 hot wire cutting machine is offered with a wide range of equipment, including a barcode scanner and rotary table.

Technical specifications of the MEGAPLOT OF1515 Roof Master polystyrene cutting machine
- work area (L x W x H): 1250 x 1550 x 1230 mm
- cutting wire M6351405 width: 1550 mm
- cutting M6351405 wire diameter: 0.3 mm
- type of cutting wire: TitaniumWire
- tension of cutting wire: electric
- maximum cutting speed: 10 m/min
- software resolution: 0.001 mm
- power supply of the OF1515 Roof Master machine: 110-240 V

Equipment of the MEGAPLOT EPS cutting machine
- software: iXshaper and MegaRoofer
- rotary table
- barcode scanner

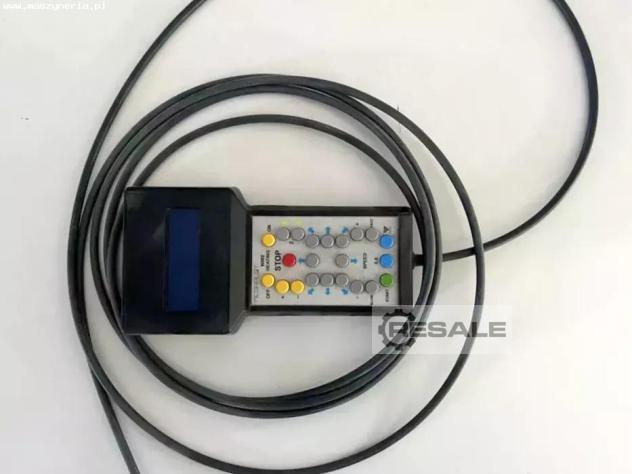

- portable control unit (pendant)


seller offer No. resale 168737872
