Band Saws MEBA - ECO 320 GA

cutting diameter: 325 mm
capacity 90 degrees: flat: 500 x 300 mm
capacity 90 degrees: square: 325 x 325 mm
cutting speed: 35 / 70 m/min
capacity 45 degrees: round: 300 mm
capacity 45 degrees: square: 300 x 300 mm
capacity 60 degrees: round: 200 mm
capacity 60 degrees: flat: 200 x 200 mm
capacity 60 degrees: square: 200 x 200 mm
saw band length: 4200 x 27 x 0.9 mm
work height max.: 750 mm
total power requirement: 2,2 kW
weight of the machine ca.: 1.300 kg.
range L-W-H: 2230 x 2100 x 1280 mm
Original price approx. 35.000 - 40.000 euros
Special price upon request
Machine from a workshop for people with disabilities

Features:
- Robust electro-hydraulic band saw - FULLY AUTOMATIC
With manual miter adjustment
- Continuously variable hydraulic adjustment of clamping pressure
- Control switch for manual functions
- Single/multiple stroke selectable
- Single cuts possible

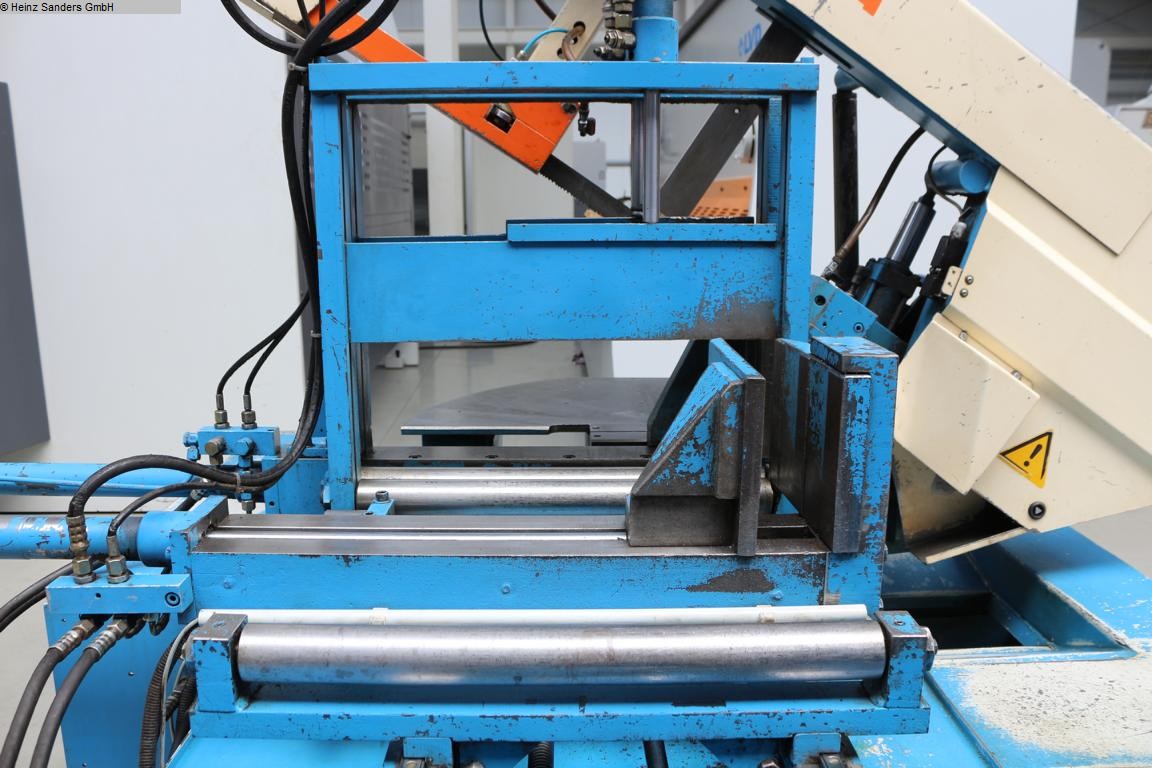

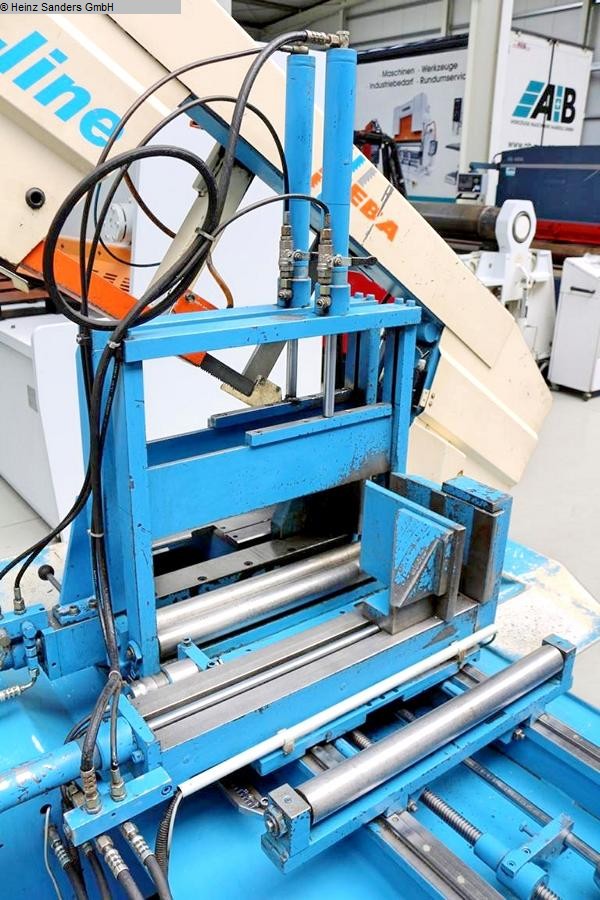

- 2x hydraulic vertical clamps (bundle clamping device)

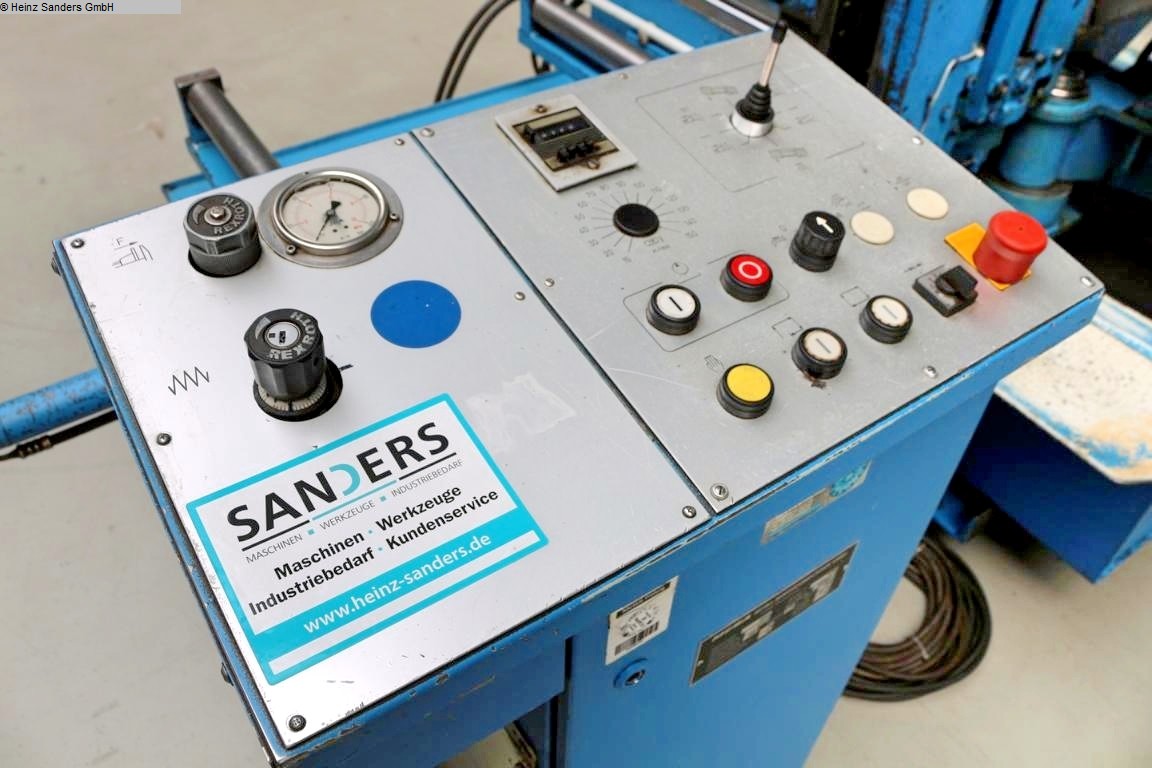

- Control panel on the front of the machine
- Operating instructions (PDF)

Additional technical data:
- Single stroke: 0 - 600 mm
- Multiple stroke: 0 - 6.000 mm
- Lowering speed: 0 - 300 mm/min. (continuously variable)
- Max. material weight: 250 kg/m.
