Heat exchangers MAFELCA
process engineering / machines and plants for process engineering / Heat exchangers
Stainless steel tubular heat exchanger from the MAFELCA brand with an exchange area of 43 m2. Year 2023. Connections DN50 PN16, DN150 PN16, DN450 PN10 Material Stainless steel Technical characteristics Year of manufacture 2023 Housing volume 875 L Volume of tubes 520 L Number of tubes 162 Working ...
Manufacturer: MAFELCA
Model:
Type of machine: Heat exchangers
item-No.: 169415381
Quantity: 1
Date: 29.04.2026
Year of manufacture: 2023
Location:
Spain
08520 Les Franqueses del Valles
Price:
Machine in stock:Yes
Seller-item-No.:C14272

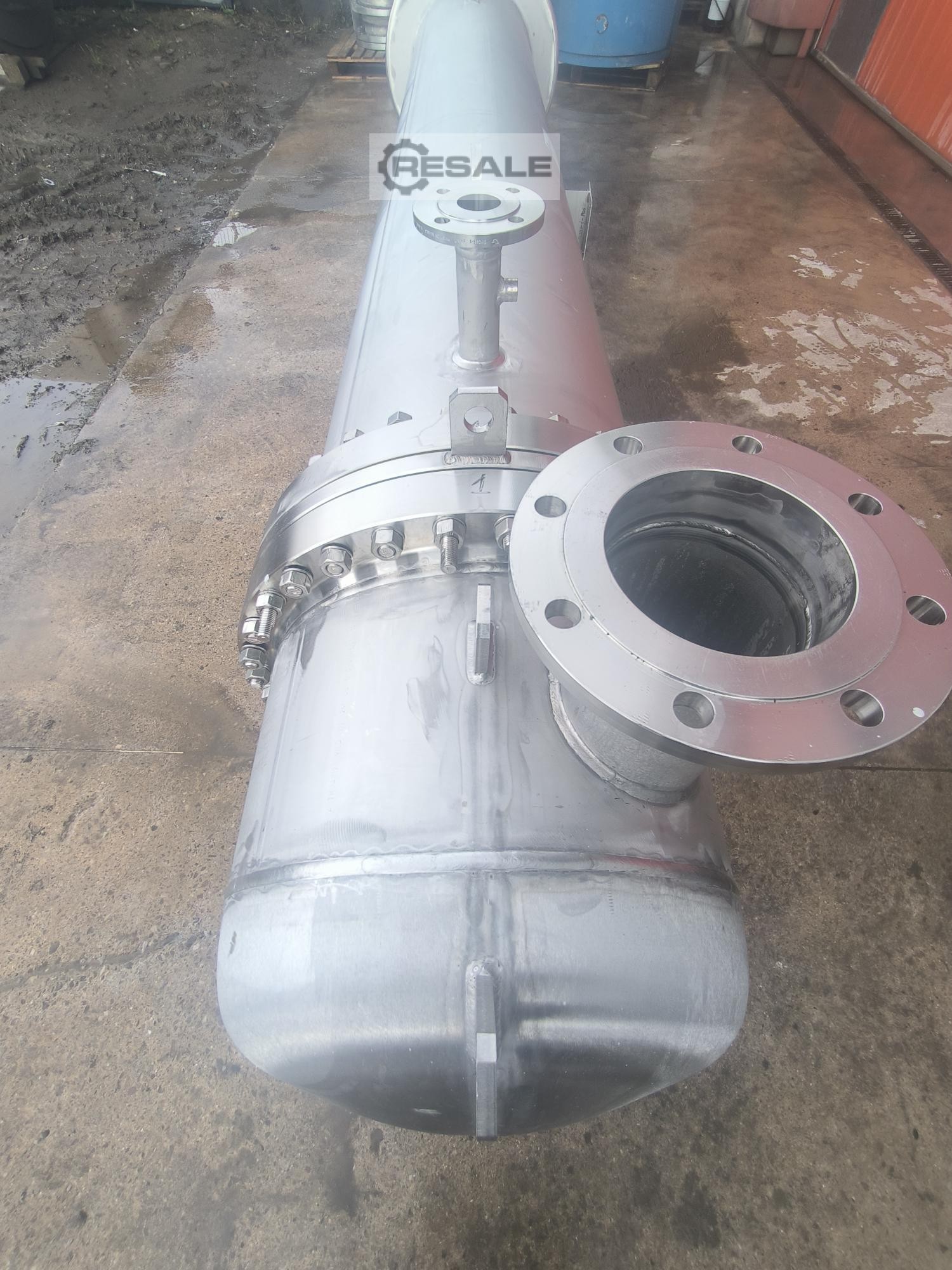

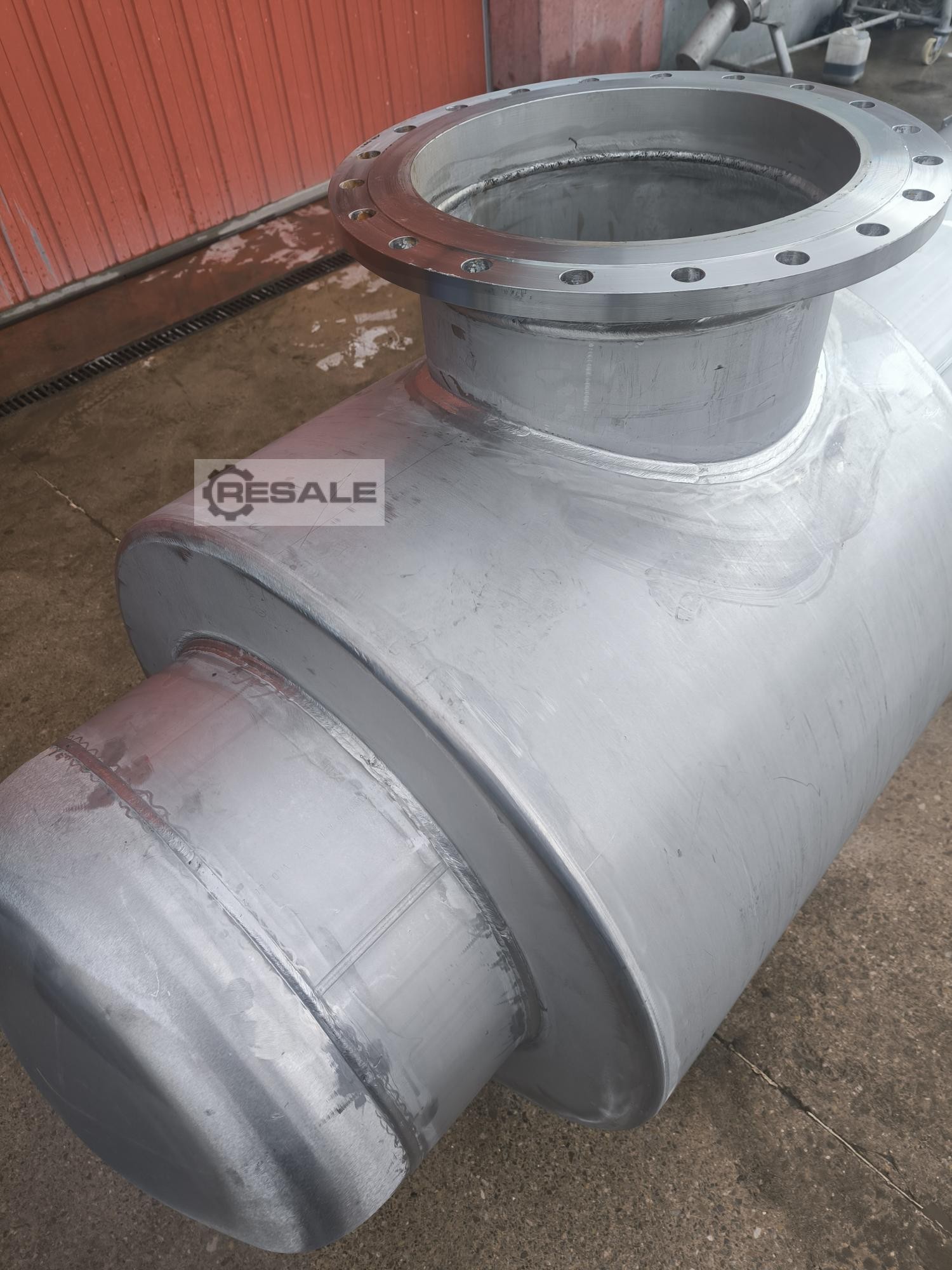

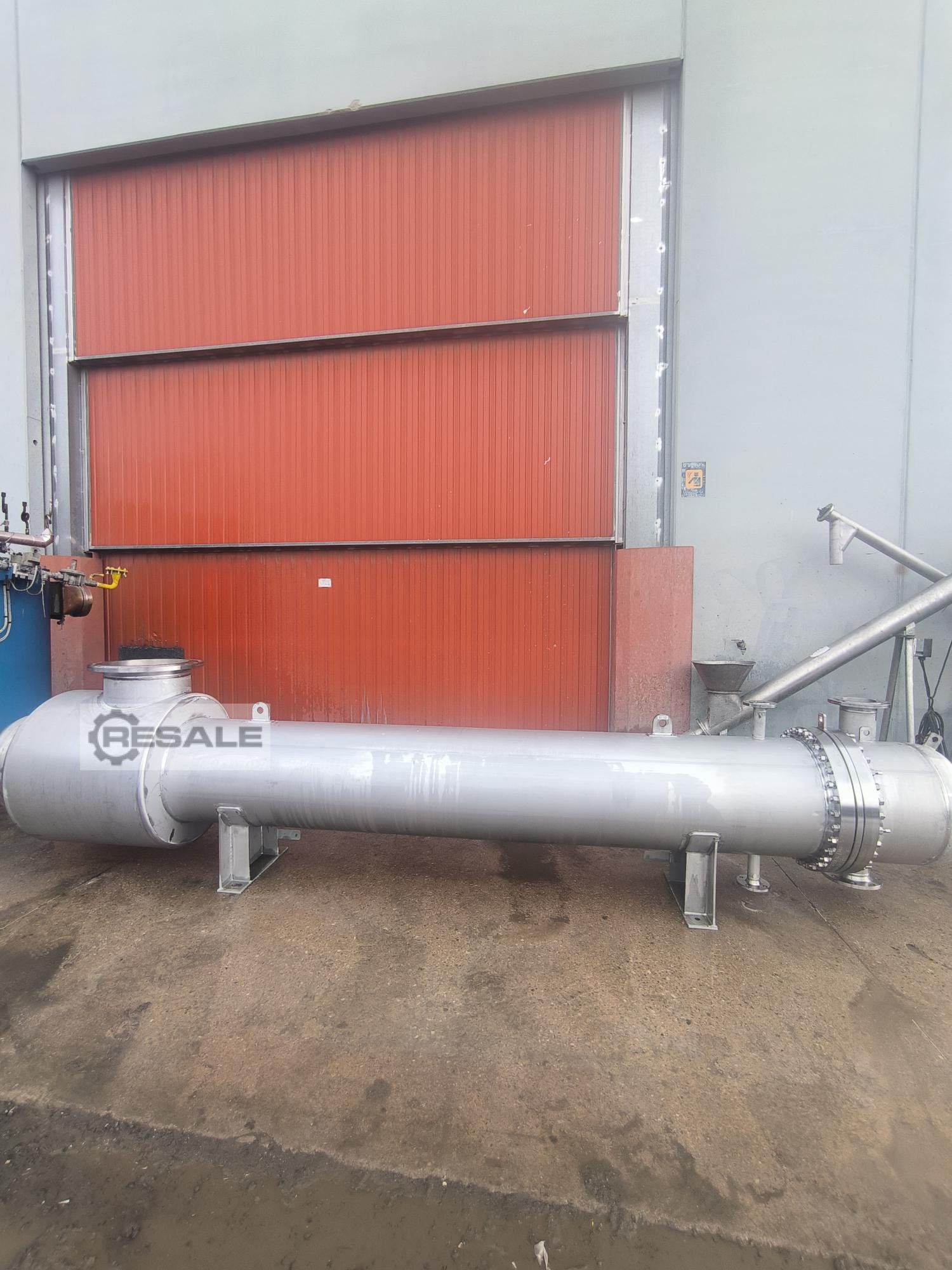

Stainless steel tubular heat exchanger from the MAFELCA brand with an
exchange area of 43 m2.
Year 2023.

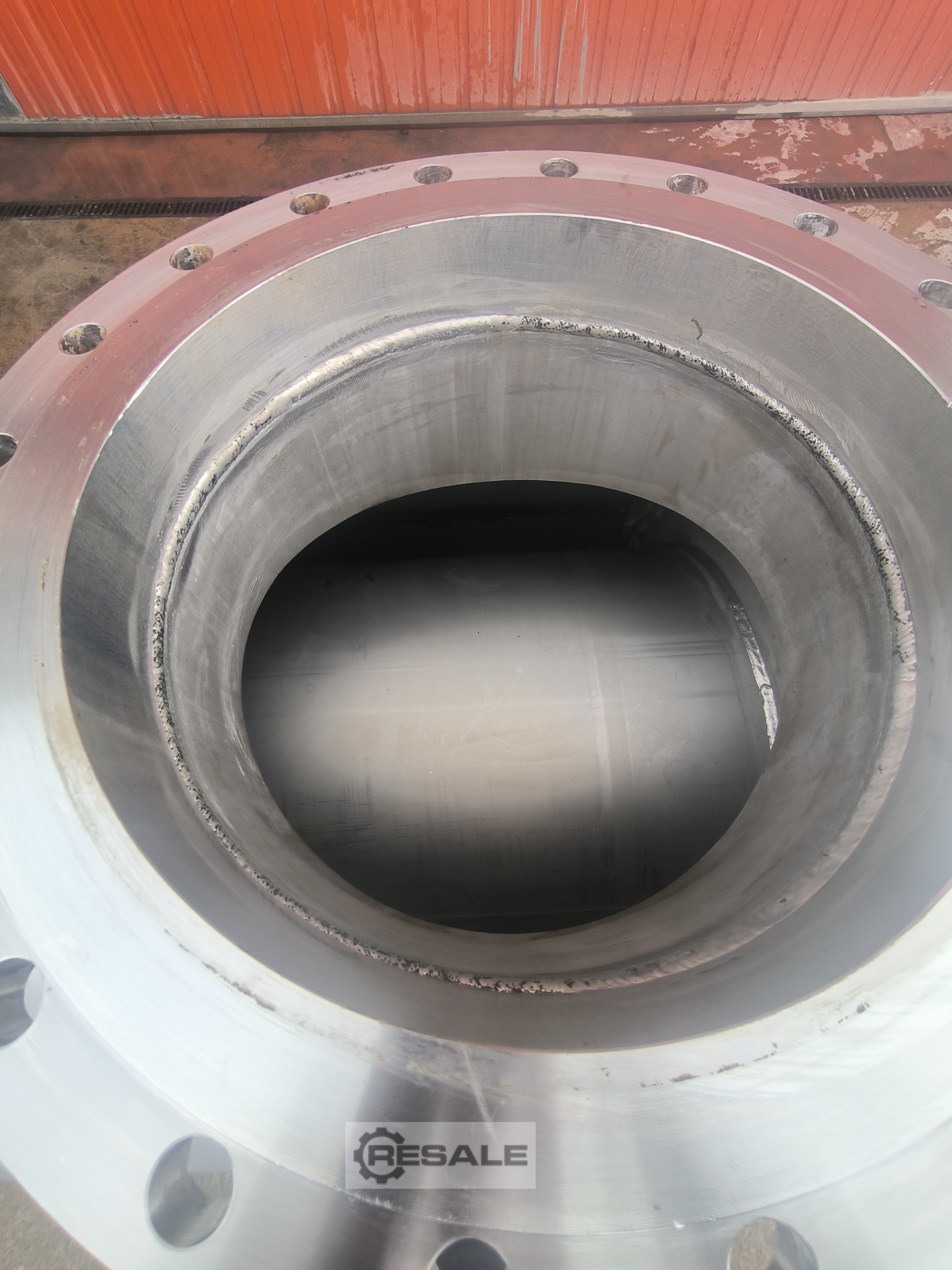

Connections DN50 PN16, DN150 PN16, DN450 PN10
Material
Stainless steel
Technical characteristics
Year of manufacture
2023
Housing volume
875 L
Volume of tubes
520 L
Number of tubes
162
Working temperature of the tubes
-10/50 ºC
Working pressure of the tubes
16 bar
Working temperature of the housing
-10/100 ºC
Working pressure of the housing
10 bar
Equipment dimensions
Length of the tubes
4402 mm
Outer diameter tubes
19.05 mm
Transportation Information
Length
5400 mm
Width
920 mm
Height
1250 mm
Weight
1887 Kg
Documentation
Plans
Exchange Surface
Exchange Surface
43 m2
Status
Reviewed
Manufactured by
Mafelca
Year 2023.
Connections DN50 PN16, DN150 PN16, DN450 PN10
Material
Stainless steel
Technical characteristics
Year of manufacture
2023
Housing volume
875 L
Volume of tubes
520 L
Number of tubes
162
Working temperature of the tubes
-10/50 ºC
Working pressure of the tubes
16 bar
Working temperature of the housing
-10/100 ºC
Working pressure of the housing
10 bar
Equipment dimensions
Length of the tubes
4402 mm
Outer diameter tubes
19.05 mm
Transportation Information
Length
5400 mm
Width
920 mm
Height
1250 mm
Weight
1887 Kg
Documentation
Plans
Exchange Surface
Exchange Surface
43 m2
Status
Reviewed
Manufactured by
Mafelca
