Heat exchangers MAFELCA

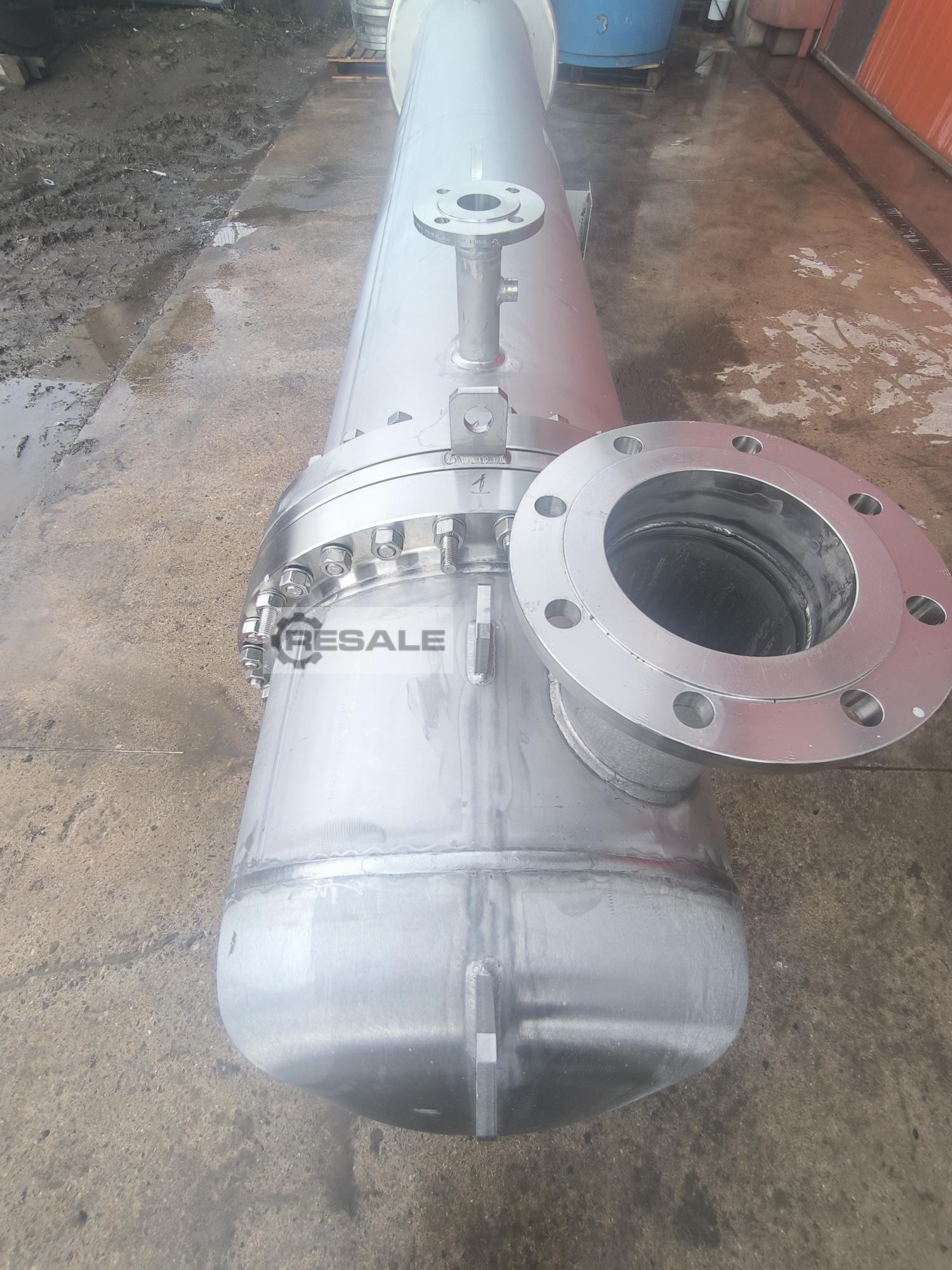

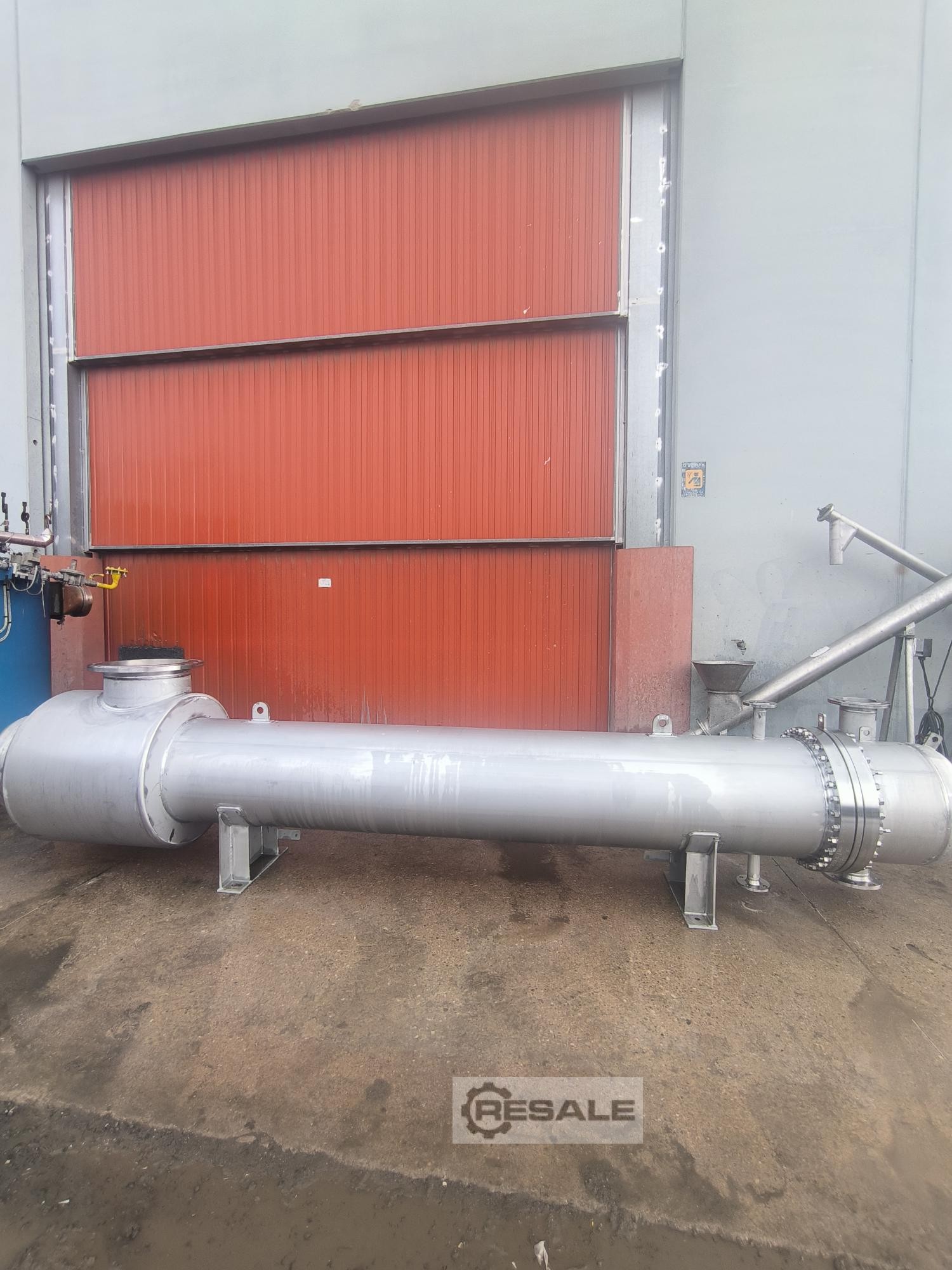

MAFELCA brand stainless steel tubular heat exchanger of 43 m2
Year 2023.

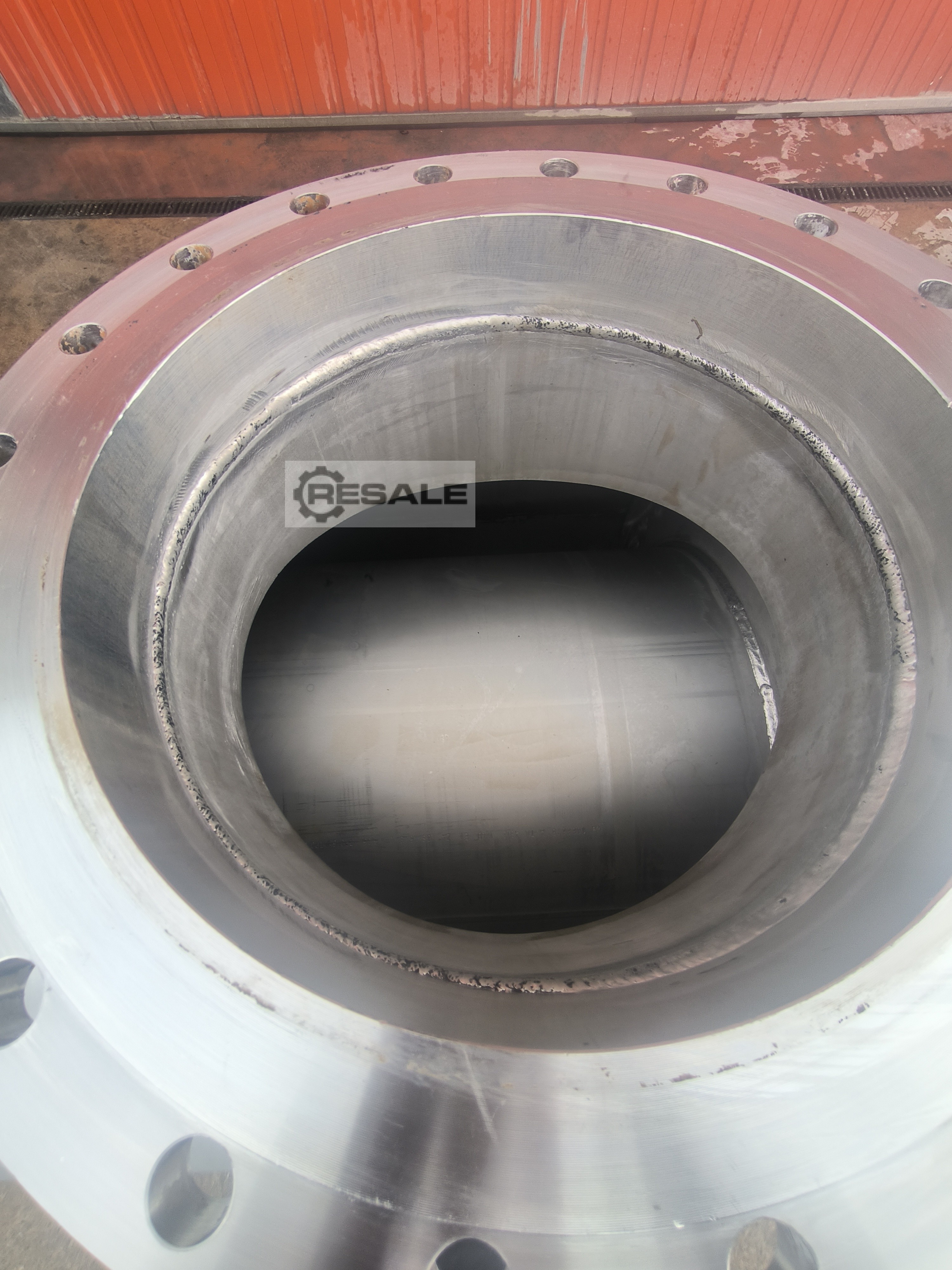

Connections DN50 PN16, DN150 PN16, DN450 PN10
Material
Stainless steel
Technical characteristics
Year of manufacture
2023
Housing volume
875 L
Volume of tubes
520 L
Tube Steps
2

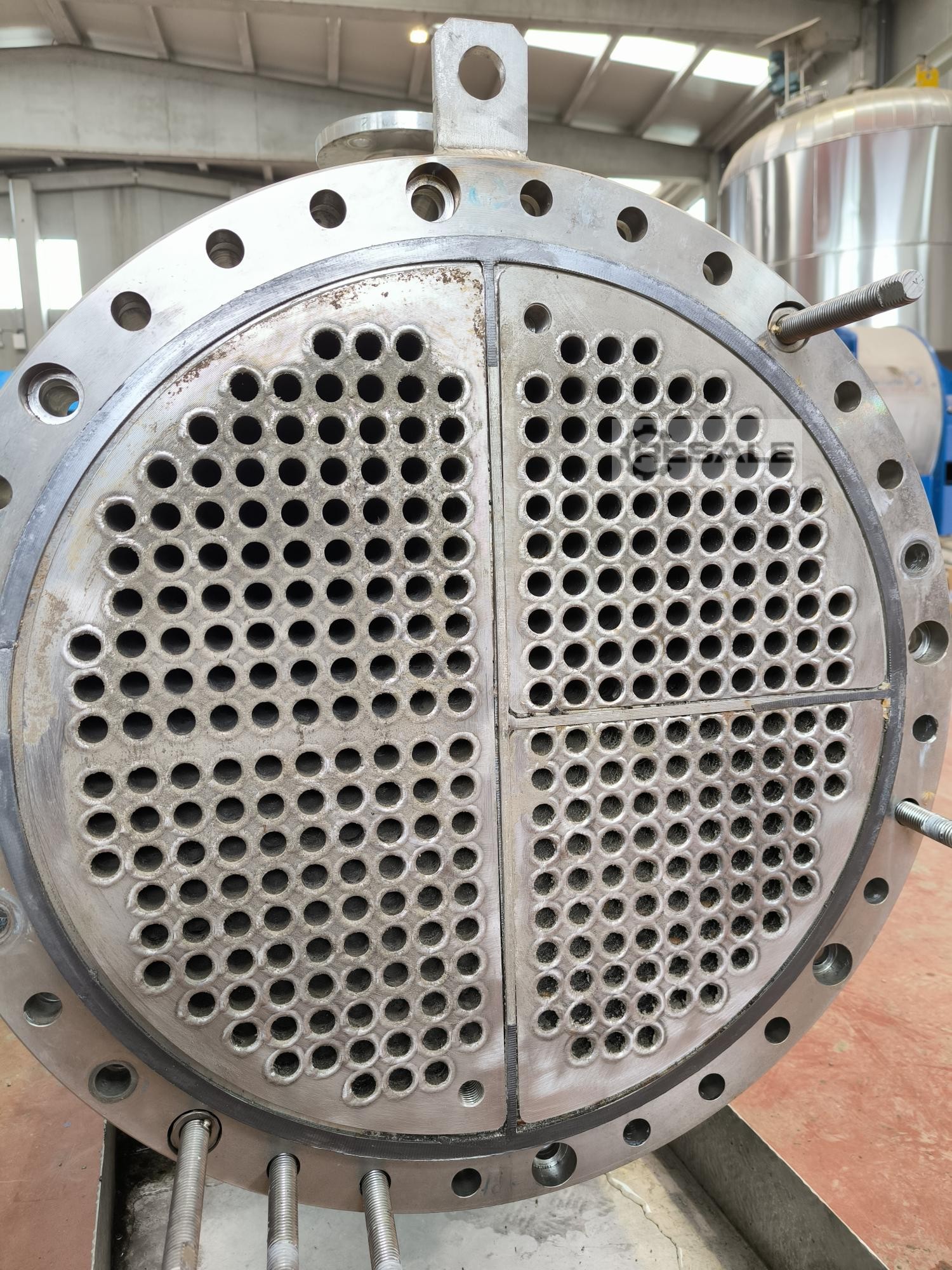

Number of tubes
162
Working temperature of the tubes
-10/50 ºC
Working pressure of the tubes
16 bar
Working temperature of the housing
-10/100 ºC
Working pressure of the housing
10 bar
Equipment dimensions
Length of the tubes
4402 mm
Inner diameter tubes
17 mm
Transportation Information
Length
5400 mm
Width
920 mm
Height
1250 mm
Weight
1887 Kg
Exchange Surface
Exchange Surface
43 m2
Status
In your state
Manufactured by
Mafelca
seller offer No. resale C14273
