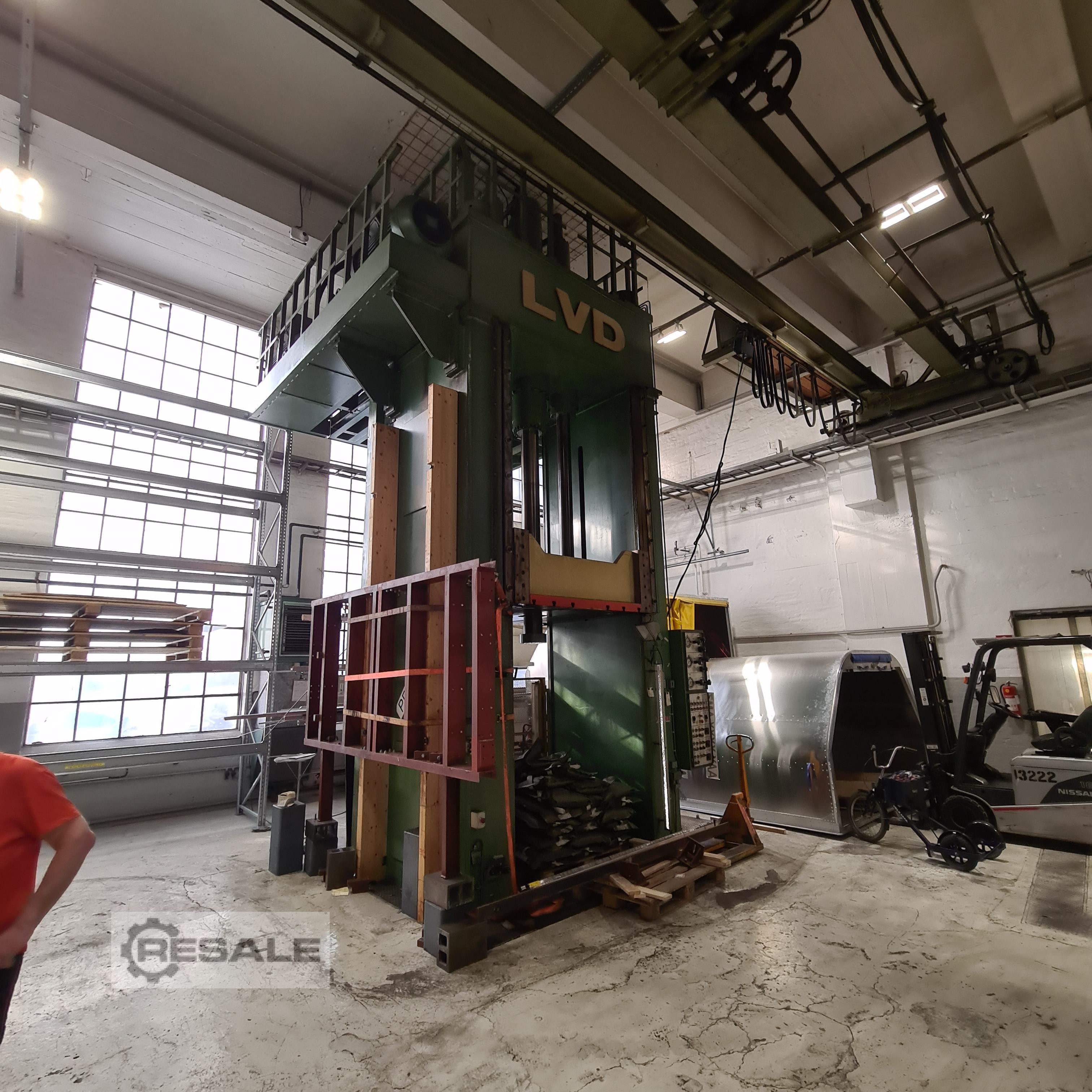

Deep drawing press LVD CO. EMF-TWI-200SP
metal working machines / presses
Manufacturer: LVD CO.
Model:EMF-TWI-200SP
Type of machine: Deep drawing press
item-No.: 168628510
Quantity: 1
Date: 25.01.2026
Year of manufacture: 1982
Location:
Germany
61381 FRIEDRICHSDORF
Price:
Seller-item-No.:PRESSDEEP220501
Qty.1 Second-hand deep drawing press
Mfc.: LVD Co. Type: EMF-TWI- 200SP Built: 1982
Stopped production in 2002 Tested in 2012 In operation condition!
Max. pressure: 200 T (2000 kN) Max. oil pressure: 300 bar
Max. hydr. stroke: 2300 mm Max. distance table – ram: 4500 mm
Motor power: 250 HP (187 kW) Table & ram dim.: dia. 300 mm
Closing speed: 160/80 mm/sec. Working speed: 3507175 mm/sec.
Cushion Max. capacity: 2 x 1000 kN
Max. oil pressure: 300 bar Max. hydr. stroke: 2000 mm
Table dim.: 1800 x 1800 mm Motor power: 75 HP (56 M63809 kW)
Plate holder
Plate holder dim.: 250 mm Plate holder stroke: 1000 mm
Motor power: 25 HP (19 kW), 3 x220 V
Weight: 75 Ton
Pumps
Main pump: 3 x A7V355LV 1RPFHO
Pilot pump: Vickers V210-5-1A-10-5214
Tank Volume: 3350 L
Mfc.: LVD Co. Type: EMF-TWI- 200SP Built: 1982
Stopped production in 2002 Tested in 2012 In operation condition!
Max. pressure: 200 T (2000 kN) Max. oil pressure: 300 bar
Max. hydr. stroke: 2300 mm Max. distance table – ram: 4500 mm
Motor power: 250 HP (187 kW) Table & ram dim.: dia. 300 mm
Closing speed: 160/80 mm/sec. Working speed: 3507175 mm/sec.
Cushion Max. capacity: 2 x 1000 kN
Max. oil pressure: 300 bar Max. hydr. stroke: 2000 mm
Table dim.: 1800 x 1800 mm Motor power: 75 HP (56 M63809 kW)
Plate holder
Plate holder dim.: 250 mm Plate holder stroke: 1000 mm
Motor power: 25 HP (19 kW), 3 x220 V
Weight: 75 Ton
Pumps
Main pump: 3 x A7V355LV 1RPFHO
Pilot pump: Vickers V210-5-1A-10-5214
Tank Volume: 3350 L
