Longitudinal Cutting Lines used for sale (15)

Longitudinal cut-to-length line for the sheet metal industry 1,500 x 1.5 mm Belt width 1,500 mm Band thickness 0.4 -1.5 mm Longitudinal sections 3 Coil weight 3,000 kg# Speed 15 m/min. 3 unwinders Machine very well maintained, immediately ready for use, ex site

: gebraucht : 2023 : 9676 : prompt, Zwischenverkauf v : Deutschland : 13700 €: 1 : 1250 mm: 1.25 mm: 1,25 mm bei 1 Messerpaar, : 0.37 kW: 36 m/min: 70 mm: 1900 mm: 1600 mm: 1000 mm: 350 kgdemo machine / mint condition - fixprice3 pairs of bladesLength measuring by wheelDigital preselection of one positionBrake motorRubber feeding rollsManual crosscutting equipment in front and behind blade shaftwith 1 cutting slide which alternaingly can be used on front and backsideUser manual in GERMANOPTIONS:Additional pair of bladesDecoilerThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Belt width 1,500 mm. Strip thickness 0.5 -3.0 mm, coil weight 7 to. Longitudinal cuts 4 pcs., straightening rollers 7 pcs., coil inside dia. 508 mm, coil outside diam. 1,600 mm Facility consists of: Decoiler Pallet truck Pressing arm Overflow table Straightener Longitudinal shears Cross shears Scrap Wrapper Side table

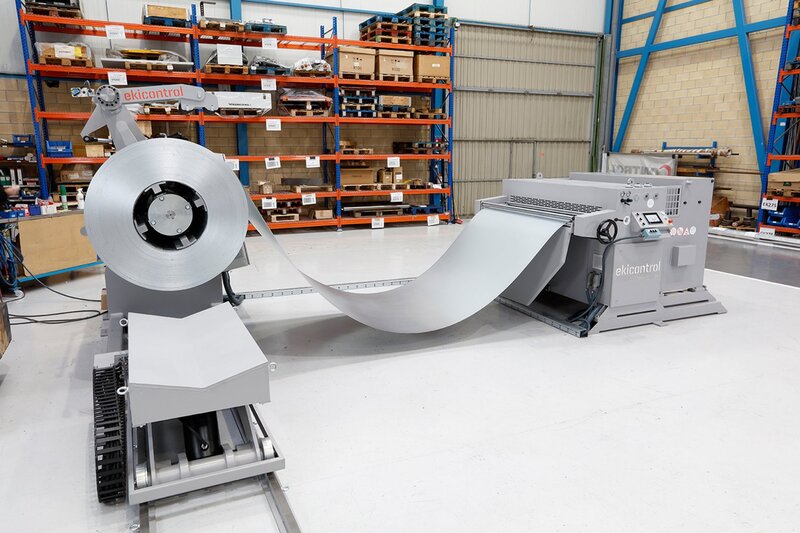

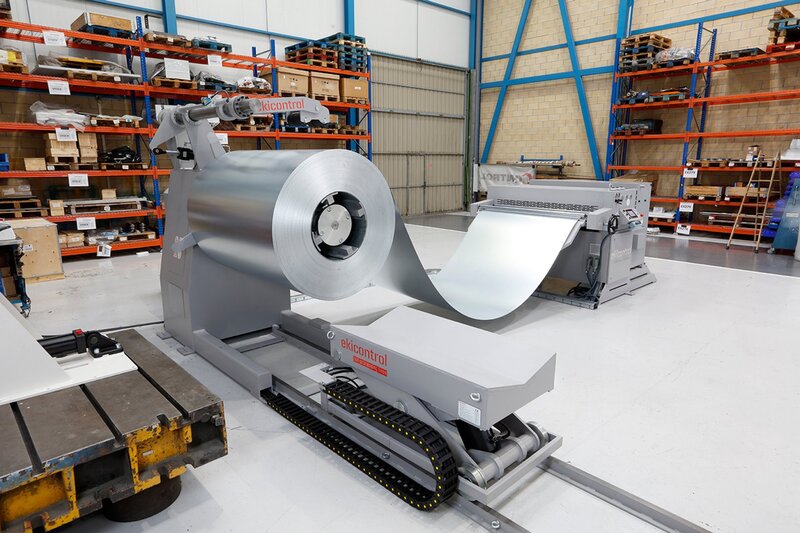

: neu : ca. 6 Monate ab Auftragse : Spanien STANDARD EQUIPMENT• Uncoiler• Coil car• Pneumatic input table• Entry guide• 7 Straightening rolls• Slitting shaft with 3 sets of quickly adjustable circular blades• Cut-to-length shears• ServomotorOPTIONS• Hydraulic input table• Film plastic device• Scrap rewinders• Additional circular blades• Stacking tables• Packers Model: Width to process: Cutting thickness (mm): Coil weight (kg) Number of straightening rolls: Cutting accuracy: Number of straightening rolls: Production speed: TwinCut 20 DM6 100012501500 0`5 - 2 6.000 3 - 6+/? 0`5 mm 2 + 7 20 m/min TwinCut 20 DM10 10.000 TwinCut 20 DM15 15.000 MATERIAL TO BE PROCESSED: THICKNESS: N OF SIMULTANEOUS CUTS: Steel 420 Nw/mm2 2`00 mm 3 1`50 mm 4 0`50 mm 6 Steel 700 Nw/mm2 1`25 mm 3 1`00 mm 4 0`50 mm 6 Steel 200 Nw/mm2 4`00 mm 3 2`00 mm 5 1`00 mm 6IF YOU ARE INTERESTED, P ...

Belt width 1,500 mm, strip thickness 0.5, - 2.0 mm, coil weight 7 tons, straightening rollers 7 pcs. , Longitudinal sliced 4 x , Coil inside diam. 508 mm, coil outer diam.1,600 mm

Strip width 1,500 mm, strip thickness 0.5-1.5 mm, coil weight 10 tons. Longitudinal sections 4, straightening rollers 7, coil inside diameter. 508 mm Coil Outside Diam. 1,600 mm

Slitting line 2,100 x 14 mm Bandwidth... 2,100 mm Strip thickness 4-14 mm Coil weight.. 35 tons. Coil Diam. I 508-810 mm Coil Diam. Rewinder 750 mm Coil A Dia. 2,000 mm Knife shafts diameter 380 mm Connected load 660 KW

Slitting line 500 x 0.3-2.5 mm Coil weight . 7 to. Coil I diam 508 mm Coil A Dia. 1,300 mm Coil I Dia. Expenditure. 400 mm Strip number 2-25 Speed 1-150 m/min. Working Guidelines right/left

Coil turner, usable as a stand-alone machine for dressing coils of all kinds, or at the end of a slitting line for setting up sliced coils as a transfer for a coil packaging system.

Compact slitting line, with uncoiler, loading prism, pressure arm AH 1500/5000 kg, clamping range 480 - 550 mm, with 3 arched tables, with 4 overflow tables, with 2 bases, with 2 stairs, with guillotine shears for cutting to length, foil holder with brake, with 5 pairs of knives Machine is repaired, checked, cleaned by a professional and is then fully functional. Test run is carried out. Sheet width: 1500 mm Sheet thickness steel: 1.5 mm Sheet thickness aluminium: 2.5 mm Sheet thickness front: 1.0 mm Color: Blue Total power requirement: 3 x 400 V Machine weight: 9100 kg Dimensions: 11541 x 5300 x 1770 mm Coil weight: 5000 kg Straightening rollers: 7 Number of blades: 5 pairs Straightening rollers at the top: 3 Straightening rollers at the bottom: 4 Speed: 35 m/min Machine Number: K08258

Bandwidth. 500 mm Strip thickness.. 0.3-2.5mm Coil weight. 5,000 kg Velocity. 70 - 120 m/min. Coil I Diameter.. 508 mm Coil A diameter. 1,500 mm

CINCINNATI ACW6 slitting line is used in the processing of thin steel sheets with a maximum thickness of 4 mm. The process consists in gradually unrolling the sheet coils towards cutting rollers with special roller knives with a thickness of 5 to 30 mm, and then passing the sheet between the rollers for precise slitting. After the slitting process, the sheet is wound onto coils ready for further processing. The ACW6 slitting line guarantees the highest product quality while making optimum use of the raw material. The CINCINNATI coil slitting line consists of: – sheet decoiler – sheet metal winder – roller knives (thickness 5 mm, 10 mm, 12 mm, 20 mm, 25 mm, 30 mm) – ejector spacers (width 10 mm, 12 mm, 20 mm, 25 mm, 30 mm) – slitting aggregate unit – brake Technical specifications of the CINCINNATI ACW6 slitting line - maximum sheet thickness: 4 mm - minimum shee ...

Stock number: 3778 CUTTING LINE Manufacturer: MORGAN , Type: 1330 x 0.7 - 3.2 mm Specifications: Size scissors length 1330 mm Size sheet thickness 0.7 - 3.2 mm - Roller feed 2 pc dia. 100 rools Composed of: - Straightening machine 5 pc. dia 100 Reels - Drain reel 5 ton dia. 530-610 mm tone - Scissors Morgan 1500 x 3.2 mm Accessories: Coil trolley 5 ton Length: 6500 mm, Height: , Width: 33.00 mm, Weight:

Unwinding reel / decoiler â?¢ Bandwidth / strip width max. 1,500 mm â?¢ Tape thickness / strip thickness (430 N/mm2) 0.5-2.0 mm â?¢ Coil outer diameter / coil outer - 1,300 mm â?¢ Coil inner diameter / coil inside - 470-520 mm â?¢ Coil weight / coil weight 10,000 kg â?¢ Side shift / side shift . . . . . . . . . . . . . . . . .

2 Coilhaken 1 x 9 t 1 x 1 t
