Four-sided planing machines KUPER SWT XL-6 Fenster, CNC-Spindeln

Number of spindles: 6 St.
Working width: 15 - 250 mm
Working height: 10-200 mm
Length of the planing table: 2000 mm
Feed motor: 4 kW
Feed speed: 6-24 m/min.
Kuper SWT XL-6 Automatic Planer and Moulder (Window Version with Glazing Bead Separation)
------------------------------------

- Number of spindles: 6 (Bottom, Right, Left, Top, Top, Bottom)
- Working width: 15 - 250 mm
- Working height: 10 - 200 mm

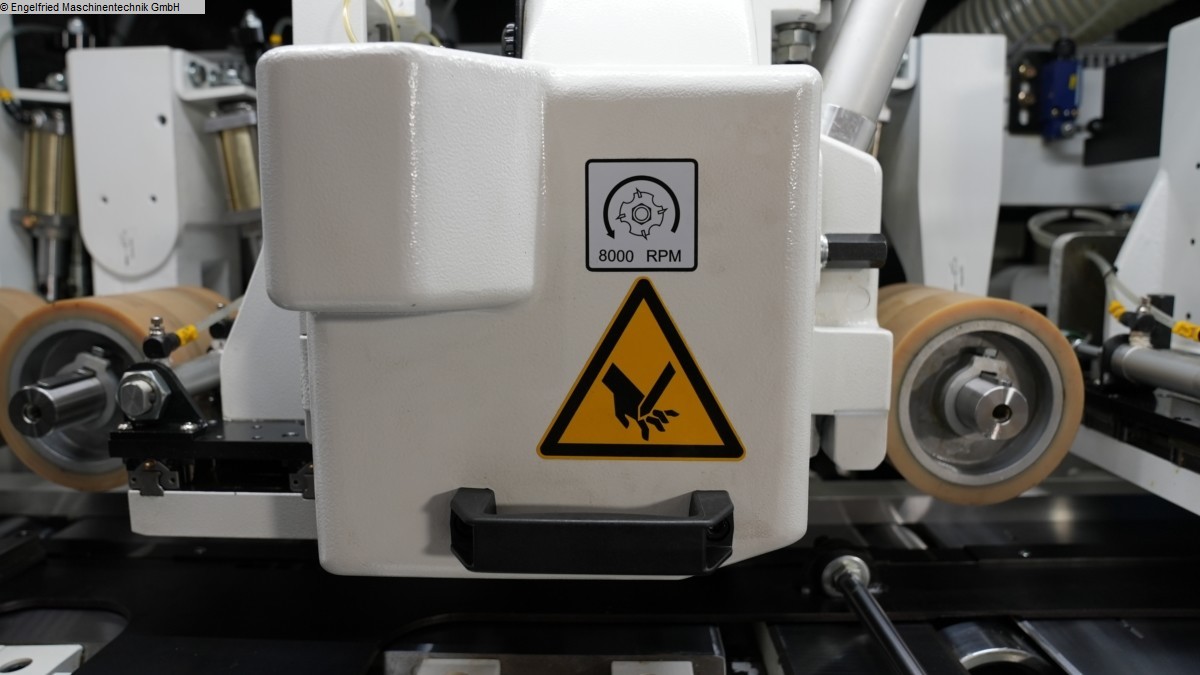

- Spindle speed: Frequency-controlled 4,000 - 8,000 rpm
- Feed speed: 6 - 24 m/min, infinitely variable
- Feed motor with electronic brake: 4 kW
- Equipped for glazing bead separation in window production
- Motorized axial and radial spindle adjustment

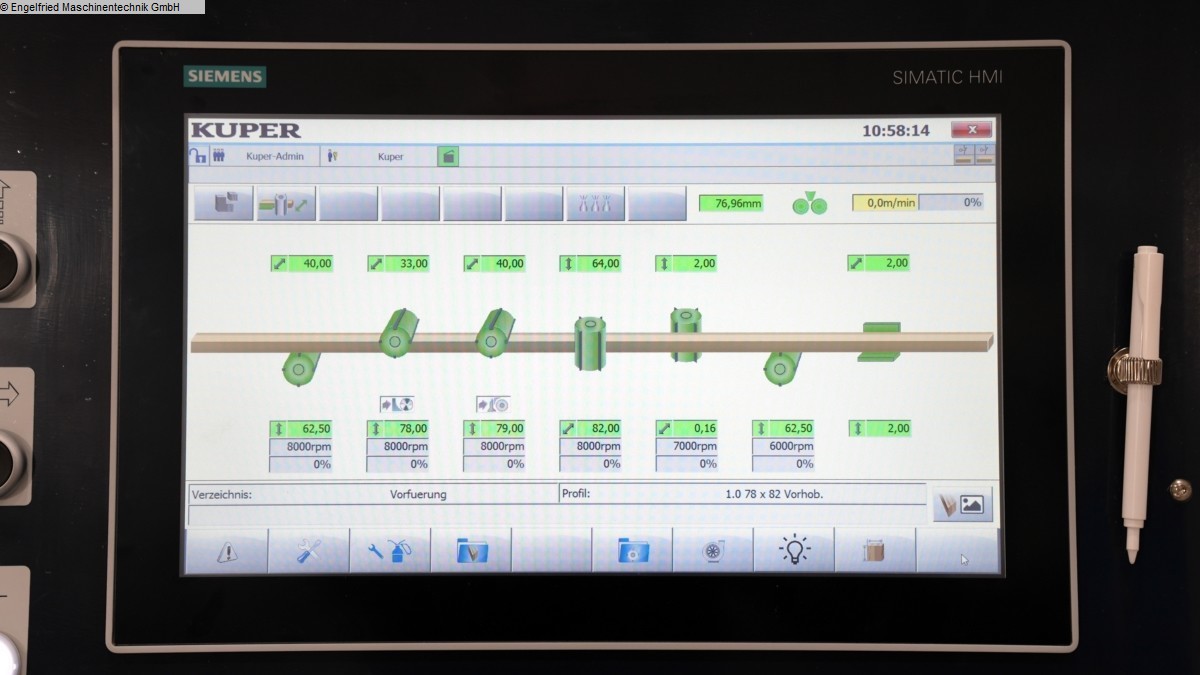

- K2 Comfort Control, Professional - 9 Touchscreen

Manufacturers Description (Summary):
------------------------------------

1st Spindle: HORIZONTAL BOTTOM
------------------------------------
Siemens IE3 motor with inverter brake: 7.5 kW
Diameter: 40 mm
Spindle length: 275 mm
Speed, frequency-controlled: 4,000 - 6,000 rpm
Tool cutting circle: 125 - 160 mm
Rebating unit: 20–25 mm diameter difference relative to planing head
Important: Machine cannot be operated without the jointing/rebating cutter
Extraction nozzle: D = 125 mm
Pro-Lock tool clamping system

2nd Spindle: VERTICAL RIGHT
------------------------------------
Siemens IE3 motor with inverter brake: 7.5 kW
Diameter: 40 mm
Spindle length: 176 mm
Clamping length (effective length): 170 mm
Speed, frequency-controlled: 6,000 - 8,000 rpm
Tool cutting circle: 112 - 200 mm
Axial adjustment range: 60 mm Table plate adjustable to tool radius
Standard profile depth 20 mm
Extraction nozzle dia. 125 mm
Extraction, individually adjustable chip deflector
Pro-Lock tool clamping system
Motorized radial positioning
Motorized axial positioning

3rd Spindle: VERTICAL LEFT:
------------------------------------
Siemens IE3 motor with inverter brake, 7.5 kW
Diameter 40 mm
Spindle length 176 mm
Clamping length (effective length) 170 mm
Speed, frequency-controlled 6,000 – 8,000 rpm
Tool cutting circle 112 – 200 mm
Axial adjustment range 60 mm
Standard profile depth 20 mm
Table plate adjustable to tool radius
Extraction nozzle dia. 125 mm
Extraction, individually adjustable chip deflector (chips discharged downwards)
Pro-Lock tool clamping system
Motorized radial positioning
Motorized axial positioning

4th Spindle: HORIZONTAL TOP:
------------------------------------
Siemens IE3 motor with inverter brake, 7.5 kW
Diameter 40 mm
Spindle length 260 mm
Speed, frequency-controlled 6,000 – 8,000 rpm
Tool cutting circle 112 – 200 mm
Axial adjustment range 20 mm
Pneumatic pressure shoe, dynamically adjustable via linear guides
Pressure lips in front of the spindle: pneumatically sprung, externally adjustable,
with path control
Standard profile depth 20 mm
Extraction nozzle dia. 125 mm
Extraction, individually adjustable chip deflector
Pro-Lock tool clamping system
Motorized radial positioning
Motorized axial positioning

5th Spindle: HORIZONTAL TOP:
------------------------------------
Siemens IE3 motor with inverter brake 7.5 kW
Diameter 40 mm
Spindle length 260 mm
Speed, frequency-controlled 6,000 – 8,000 rpm
Tool cutting circle 112 – 200 mm
Axial adjustment range 20 mm
Standard profile depth 20 mm
Extraction nozzle dia. 125 mm
Extraction: individually adjustable chip deflector
Pro-Lock tool clamping system
Motorized radial positioning
Motorized axial positioning

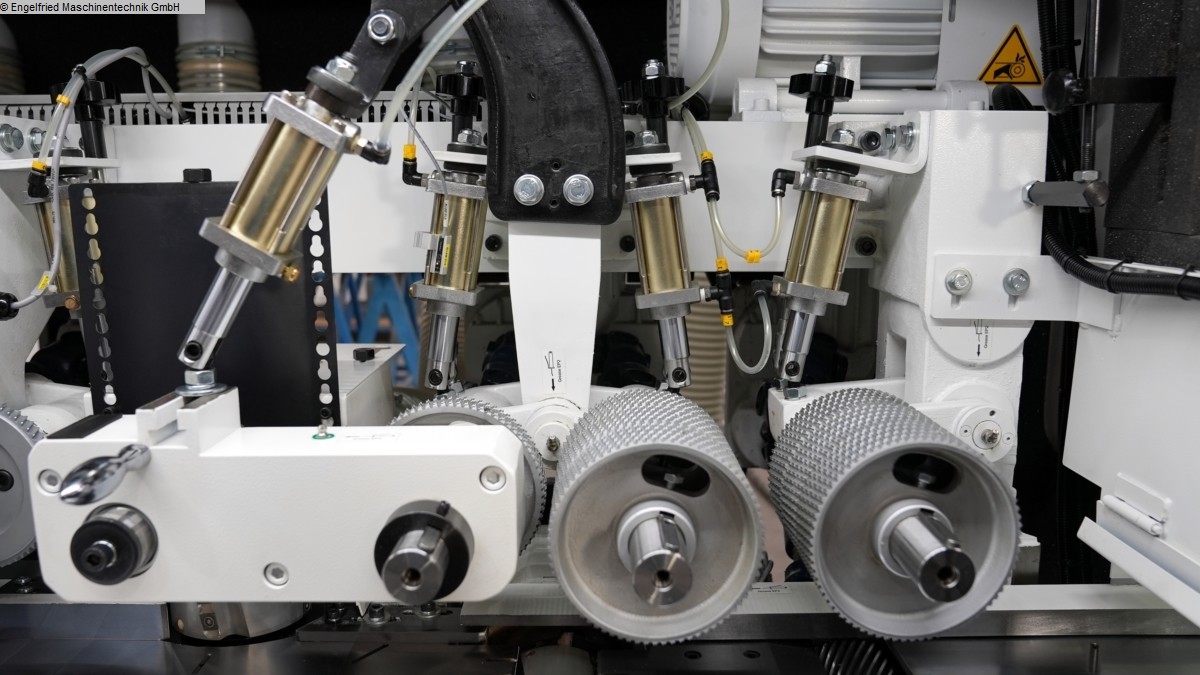

Glass bead separation:
top pressure shoe with lateral control, moving riving knife, anti-kickback device

6th Spindle: HORIZONTAL BOTTOM:
------------------------------------
Siemens IE3 motor with inverter brake 5.5 kW (7.5 HP)
Diameter 40 mm
Spindle length 246 mm
Clamping length (effective length) 240 mm
Speed, frequency-controlled 6,000 – 8,000 rpm
Tool cutting circle 112 – 200 mm
Axial adjustment range 20 mm
Extraction nozzle dia. 125 mm
Pro-Lock tool clamping system
Electronic dual display (radial)
Motorized axial positioning

Additional features:
------------------------------------
- K2 Comfort Control, Professional – 9 touch screen
- 5x 4.3 LCD displays (Schneider)
- Left-hand width-controlled pressure fence
- Motorized positioning of the feed beam

Further options on request:
------------------------------------
HSK tool holders instead of standard spindles

Detailed description with individual prices available on request!

(technical specifications according to the manufacturer – subject to change!)
