Long belt grinding machines JOHANNSEN T 88 K-pneuma

Long belt sanding machine Johannsen
With extraction system
Type T 88 K-pneuma
Machine No. 10771

For sanding, matting and polishing wood and lacquer surfaces,
Wooden and plastic window frames

Table size 2850 mm x 1400 mm
For grinding long parts that extend beyond the machine
Workpiece height maximum 500 mm

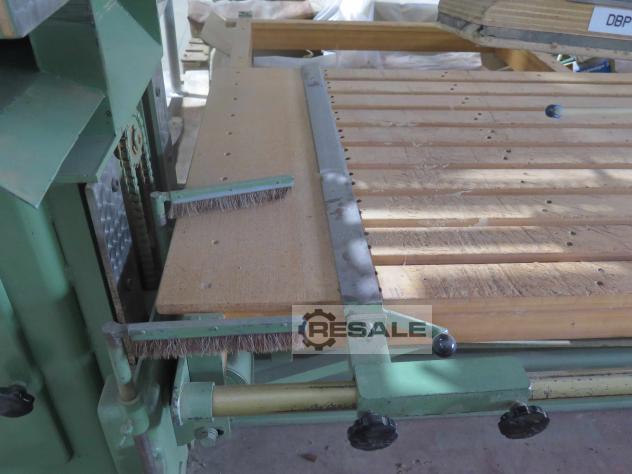

2 scraper brushes on the table

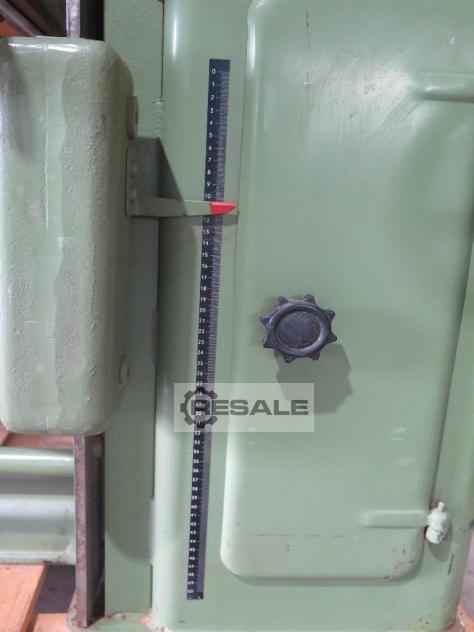

Table height adjustment by means of handwheel
Motor power 6/8 kW

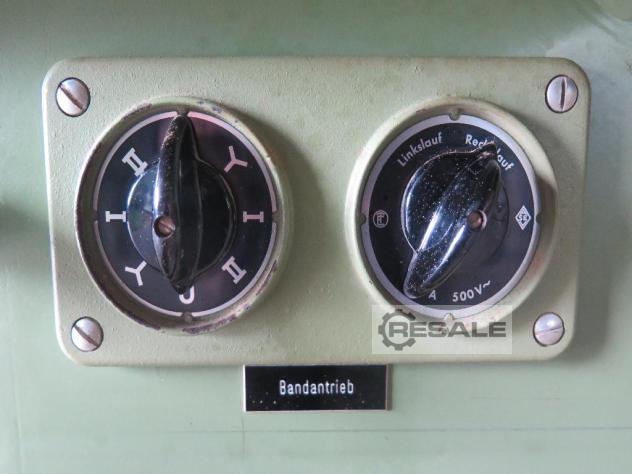

Sanding belt left and right rotation
Including sanding pad 640 x 140 mm

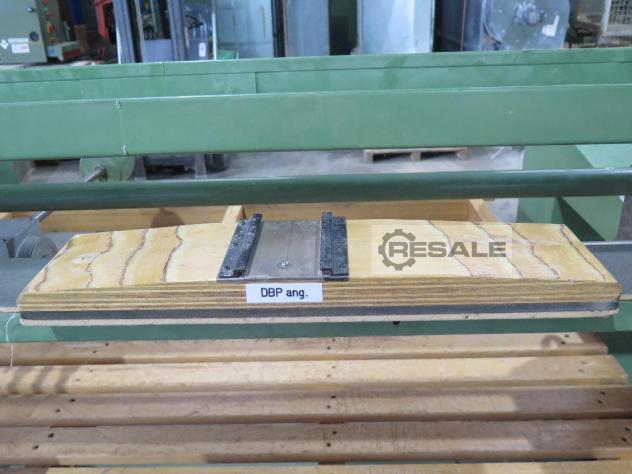

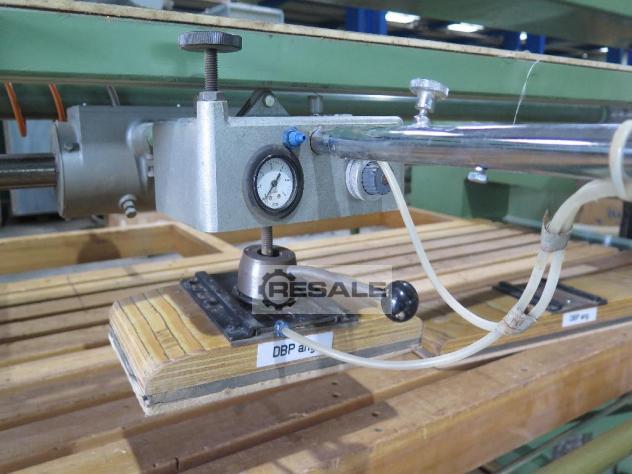

Including pneumatic sanding shoe 300 x 140 mm
Upper sanding support throughout
Foldable with cover for upper sanding pad

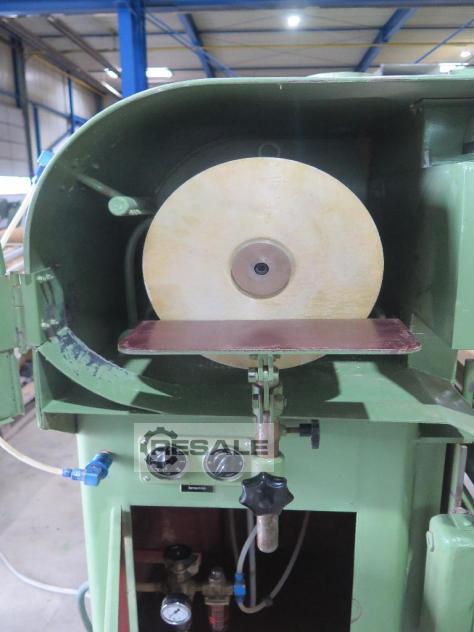

Disc diameter 280 mm
with support 300 mm x 140 mm
Sanding belt dimensions 7800 mm x 150 mm
Belt speed 11/22 m/sec.
With belt blow-out nozzle
With extraction fan
Suction nozzle diameter 180 mm

With extraction system
Extraction system with 9 filters, cotton filter and 1 chip bag
Chip bag connection diameter 500 mm
Filter area 6.5 m², capacity 700 m³/h
Extraction connection diameter 160 mm

Space requirement grinding machine 4200 mm x 2600 mm
Dimensions 4000 mm x 1700 mm x H 1460 mm
Weight approx. 1400 kg

Dimensions extraction system
800 mm x 650 mm x height 2550 mm

seller offer No. resale 9308
