Tube Filling Line IWK TFS80-1/TZ204

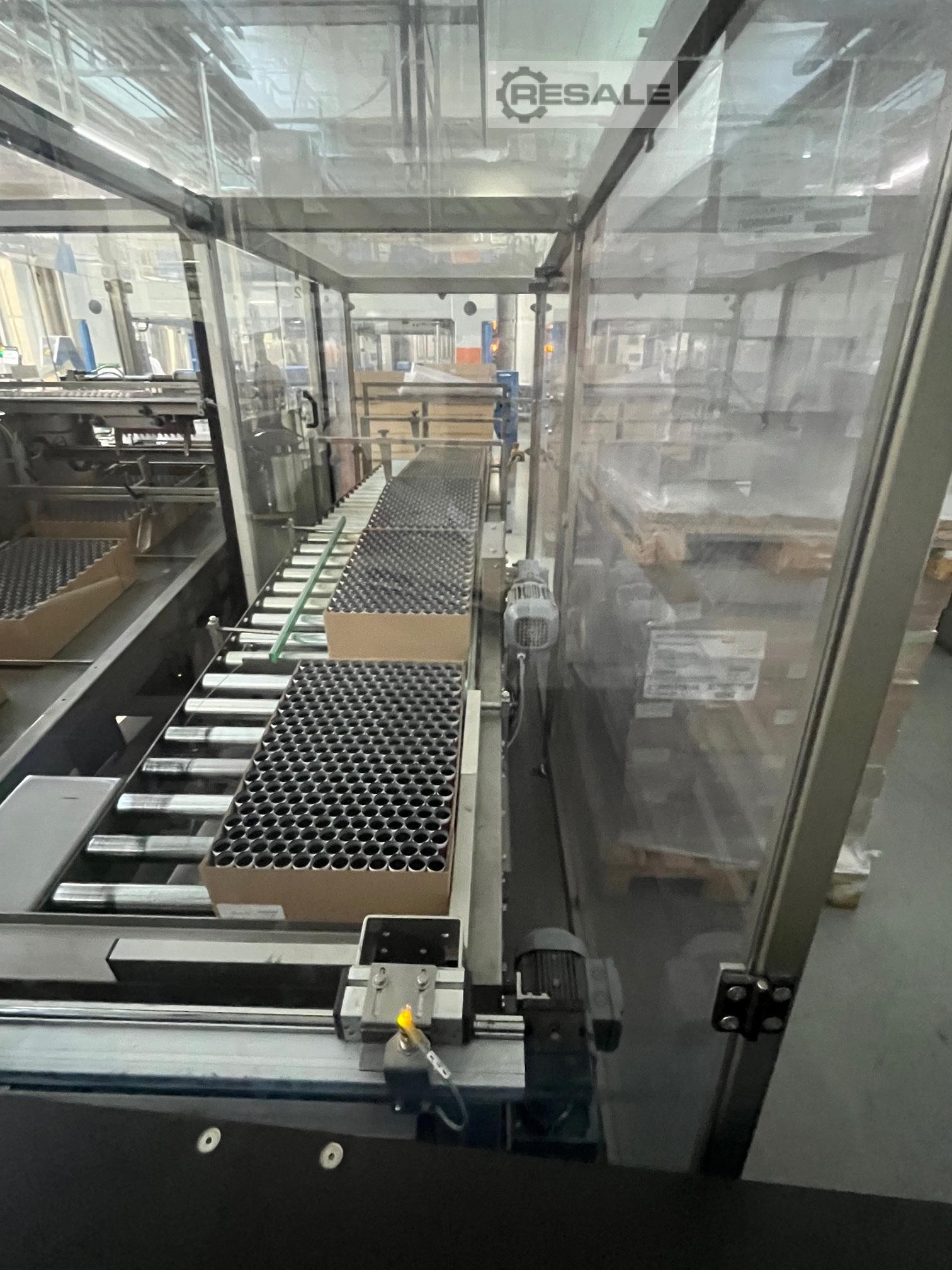

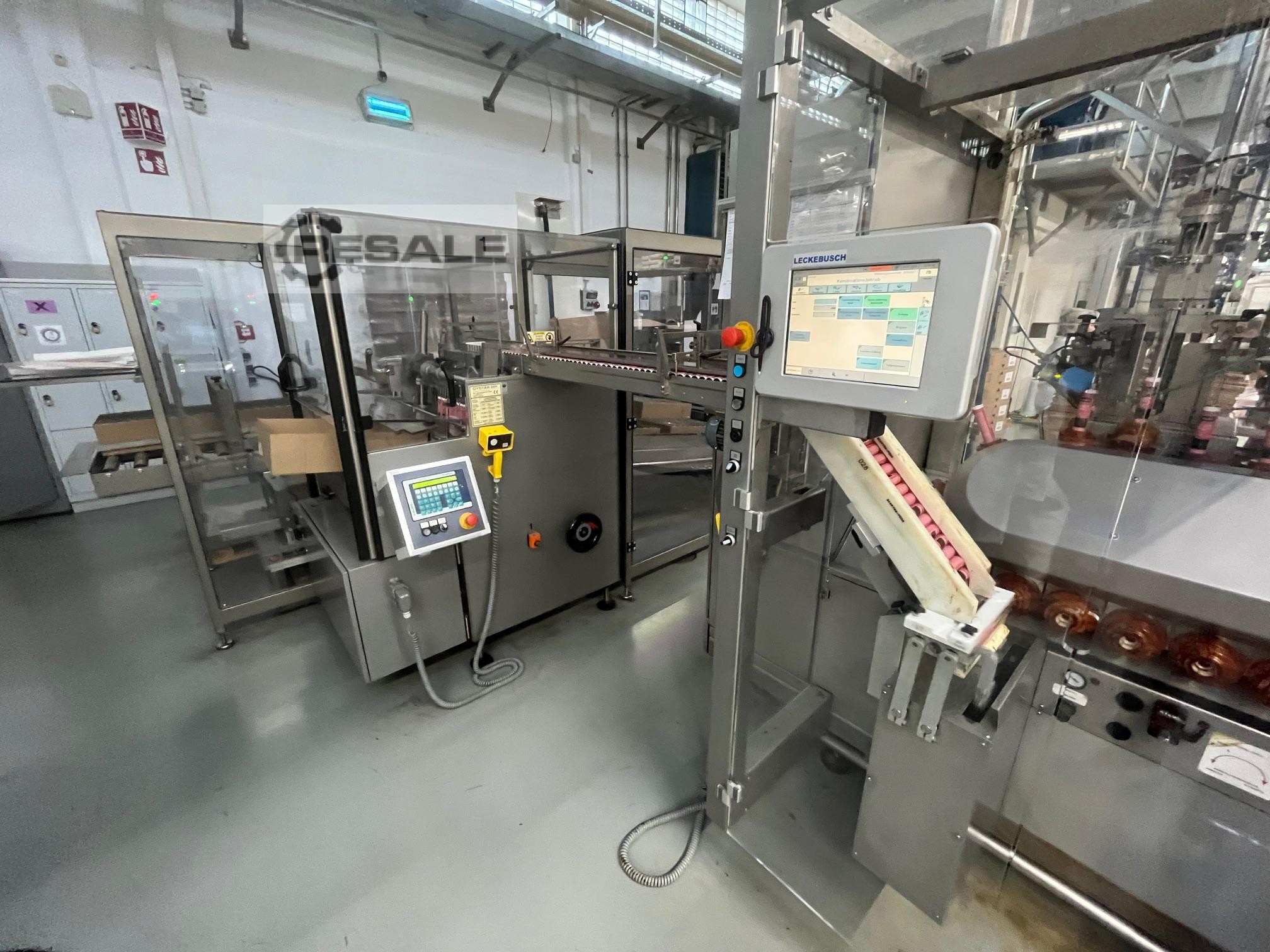

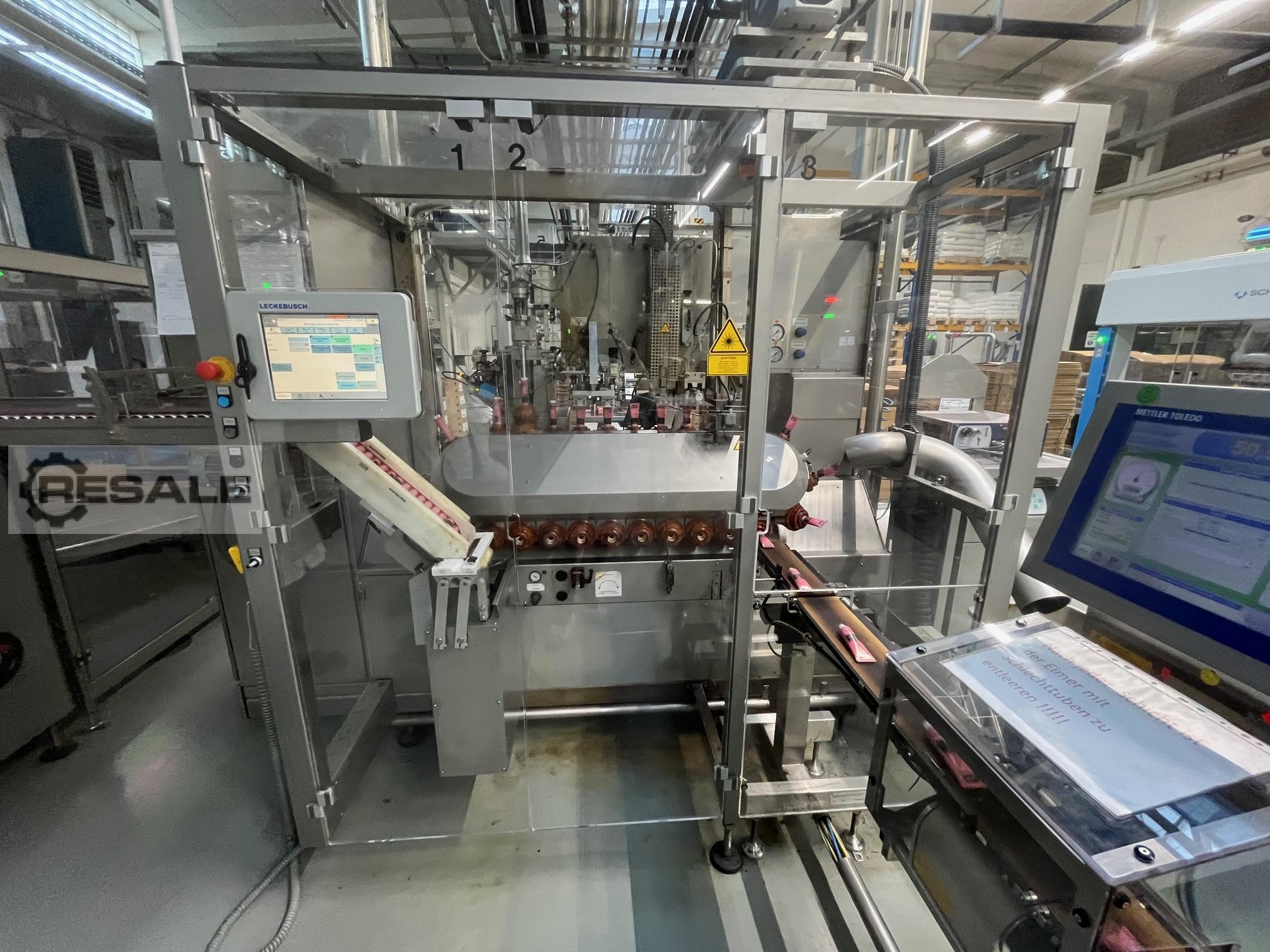

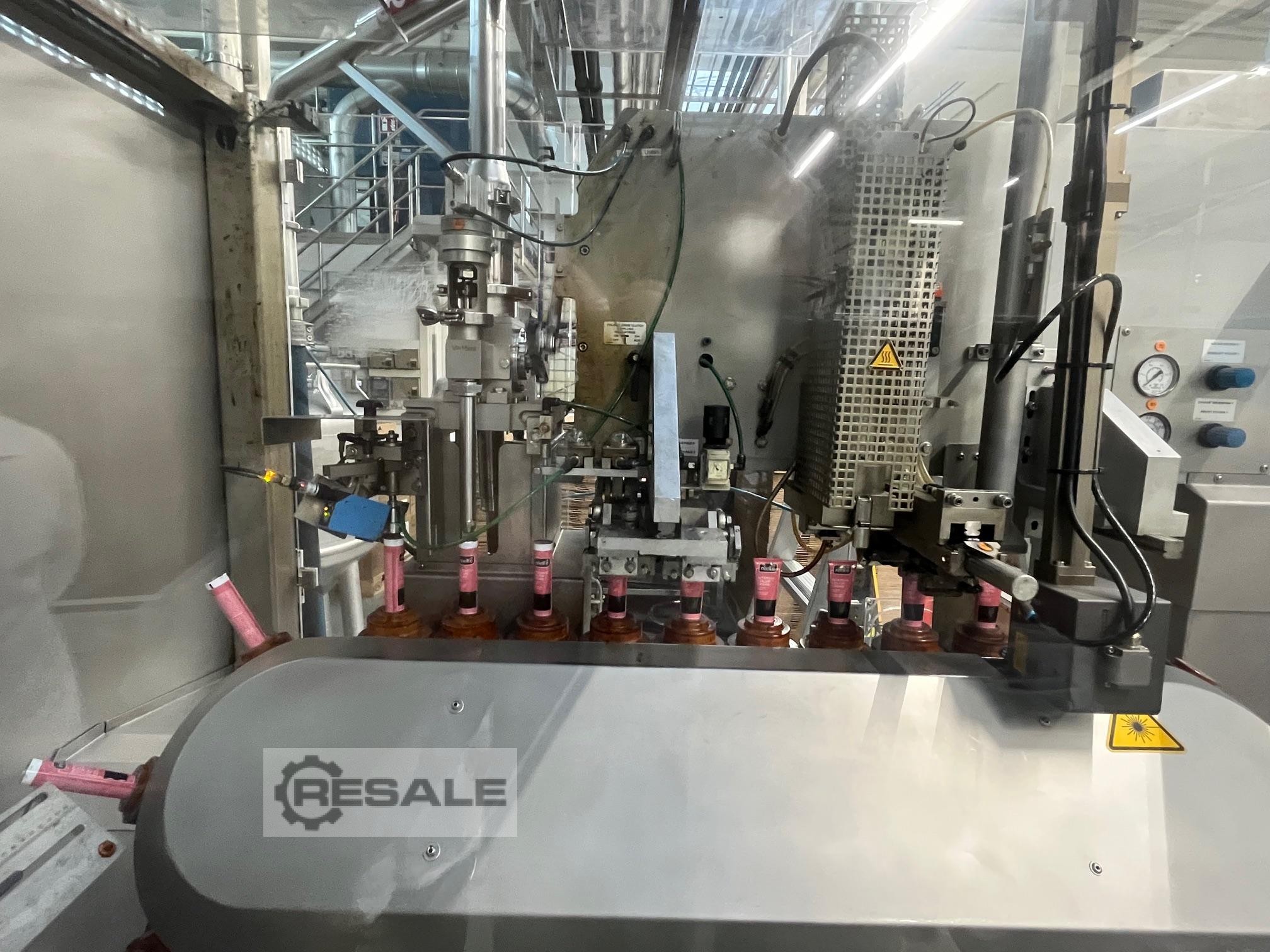

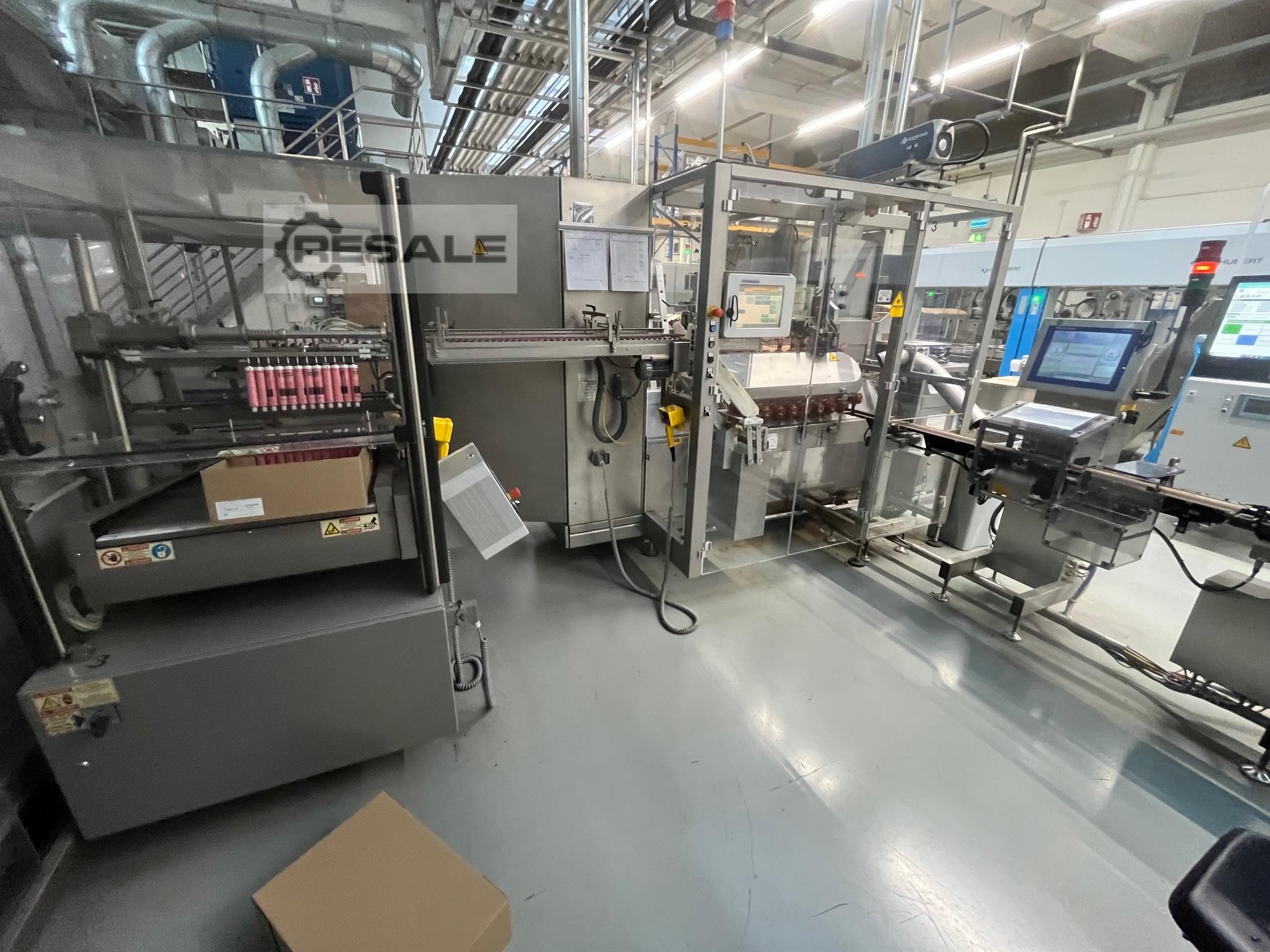

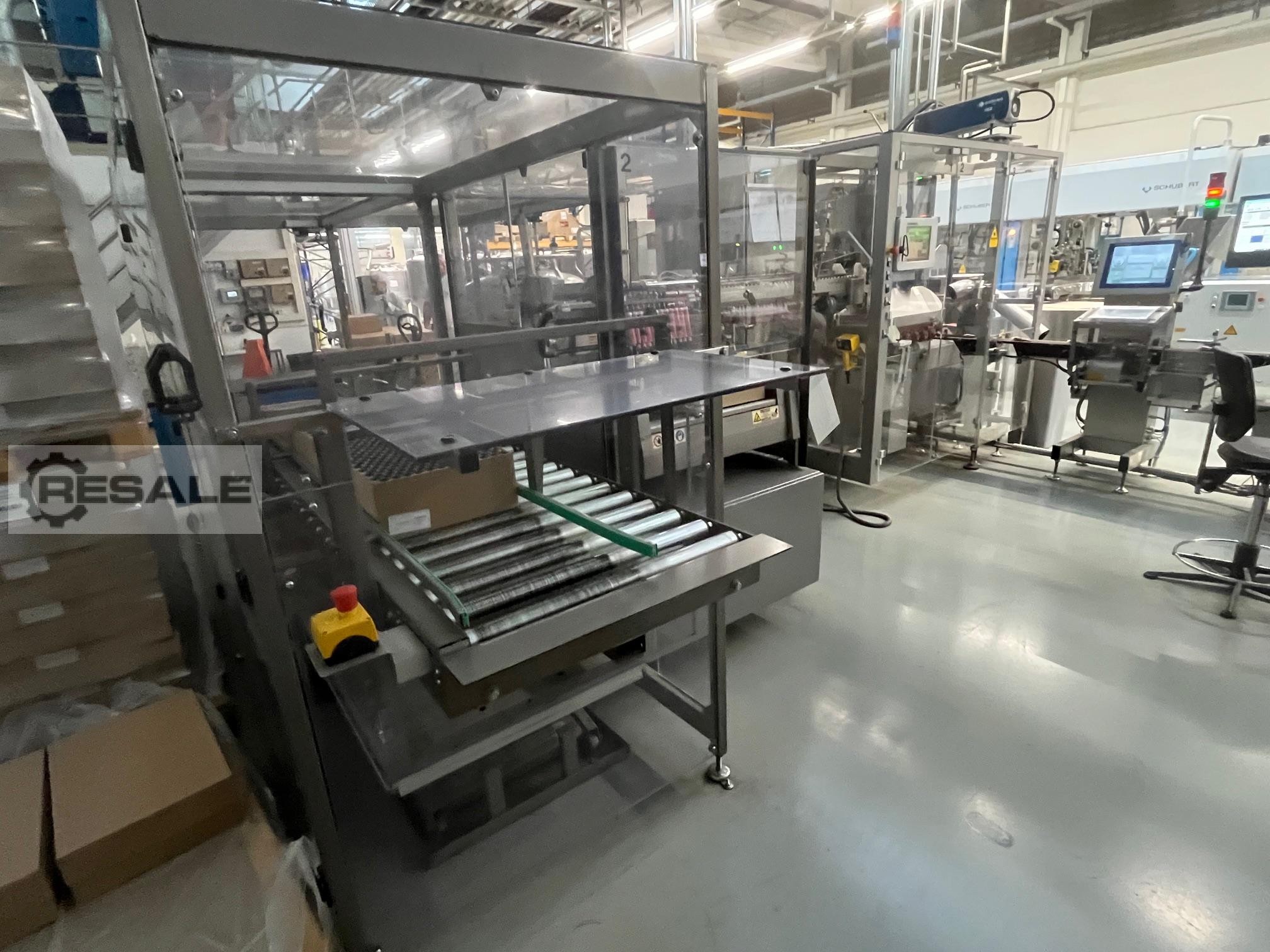

IWK TFS80-1/TZ204 tube filling line for processing tubes made of aluminium, PE, PP, PVC, PE laminate and aluminium laminate consisting of IWK TFS80-1 tube filling and closing machine for possible tube diameters 11 to 60.0 mm, total tube length from 60.0 to 285.0 mm, tube shell length (cylindrical length) from 50 to 250 mm, filling volume with corresponding dosing pumps from 1.0 to 400.0 ml, 26 tube holders, tube holder pitch 110.0 mm, tube orientation, pre- and post-gassing with nitrogen, double folding of aluminium tubes and hot air sealing for plastic tubes, Domino D Series CO2 laser coder for marking the tube fold with the variable data with DPX 1000 laser extraction system, electrical connection 3x400V/50Hz/3Ph, power 16.0 kW, machine net weight approx. 2400 kg, machine output up to 100 tubes/min., including IWK TZ 204 fully automatic tube feeder for cylindrical tubes, possible tube diameters from 12.7 to 60.0 mm, total tube length from 75.0 to 235.0 mm, maximum carton size 600.0 x 650.0 x 265.0 (WxLxH), maximum nominal output 22 tube rows/min., operating pressure 6-8 bar, compressed air consumption max. 1NL/min., electrical connection H51215523 3x400V/50Hz/3Ph, power 2.5 kW, H51215523 machine net weight approx. 850 kg, tube discharge via conveyor belt and downstream Mettler-Toledo Garvens XS2 belt checkweigher with reject ejector and collection container, weighing range from 7 to 100 g, e=0.1 g, d=0.1 g, maximum belt speed 25 m/min., maximum throughput 80 pieces/min., running direction from left to right, the line includes format parts for processing aluminium tubes with a diameter of 22.0 and 28.0 mm
We will be pleased to send you an offer for this machine.
