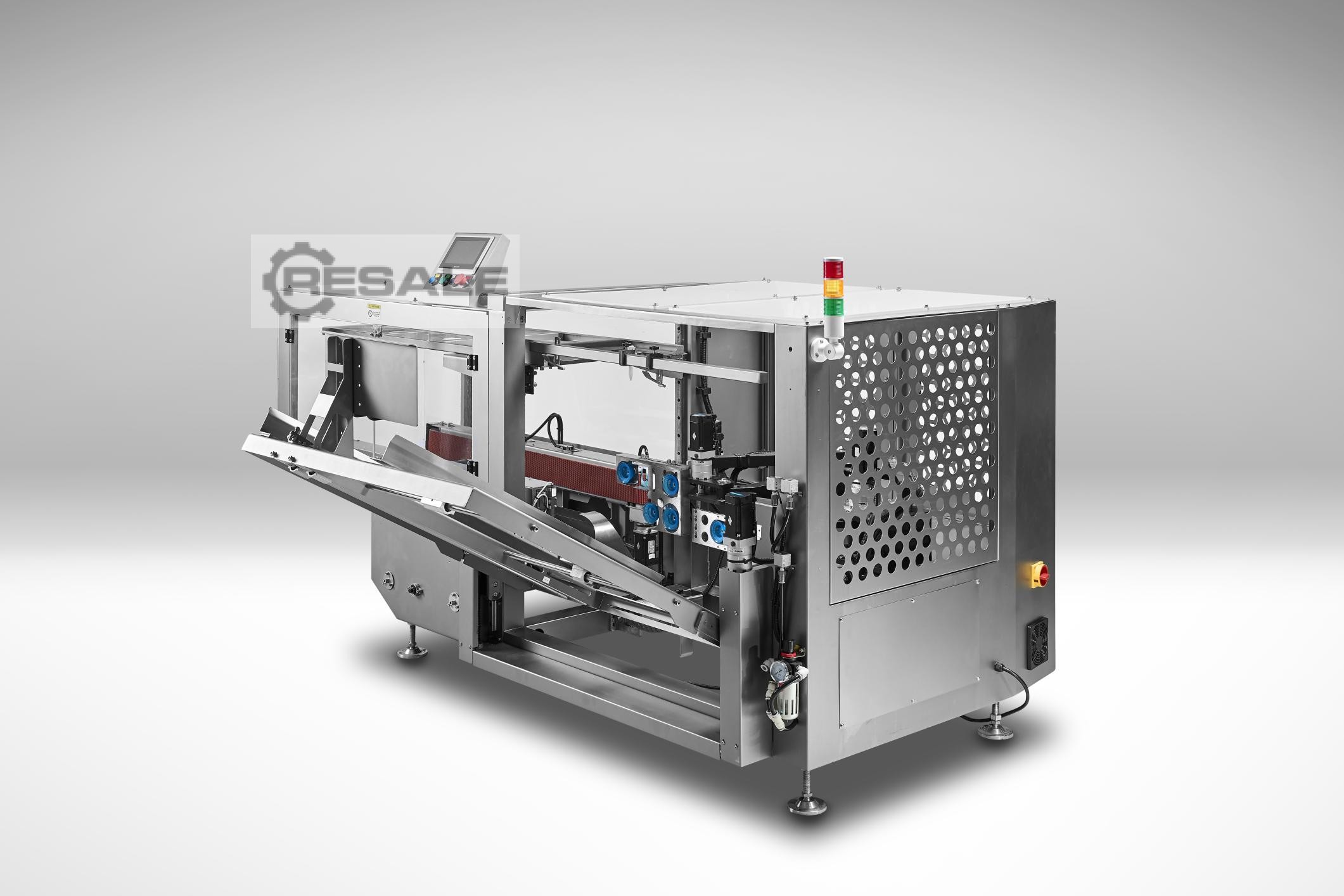

Carton erector IMPULS PACKAGING Kartonaufrichter Advanced
packaging machines / carton packaging machines
Manufacturer: IMPULS PACKAGING
Model:Kartonaufrichter Advanced
Type of machine: Carton erector
item-No.: 168613283
Quantity: 1
Date: 22.01.2026
Year of manufacture: new machine
Location:
Germany
61206 Wöllstadt
Price: 24,500 EUR
Machine in stock:Yes
Carton Erector Advanced 400 Fully Automatic
Net price: 24.500€
Features of the facility
1. Modern design with robot arm
2. Active servo-controlled carton folding 90⁰
3. Single Magazine Carton Feeder
4. Floor bonding by adhesive tape
5. Five servo control drives
6. Steel structure
7. HMI Control Panel
8. Standard running direction left to right, available in both running directions.
9. Documentation in local language
Technical Parameters
1 Product Length: L145-400mm - (650mm on request)
2 Product width: W80-350 mm - (500mm on request)
3 Product height: H150-350 mm - (500mm on request)
4 Packing speed: 5-30 cartons/min
5 Maximum adhesive tape width: max 48 mm - change on request
6 Terminal: 1Ph. 220V 50Hz
7 General power: approx. 2.1 kW
8 Machine weight: approx. 620 kg
9 machine dimensions: approx. 2450 x x 1380 mm
10 Air consumption depends on speed
Carton erector Advanced 500 fully automatic
Net price: 27.500€
Features of the facility
1. Modern design with robot arm
2. Active servo-controlled carton folding 90⁰
3. Single Magazine Carton Feeder
4. Floor bonding by adhesive tape
5. Five servo control drives
6. Steel structure
7. HMI Control Panel
8. Standard running direction left to right, available in both running directions.
9. Documentation in local language
Technical Parameters
1. Product length: L275-500mm - (650mm on request)
2. Product width: W140-400mm - (500mm on request)
3. Product height: H140-400mm - (500mm on request)
4. Packing speed: 5-30 cartons/min
5. Maximum adhesive tape width: max 58 mm - change on request
6. Connection voltage: 1Ph. 220V 50Hz
7. General power: about 2.1kw
8. Machine weight: about 620kg
9. Machine dimensions: about 2850 x 2000 x 1400 mm
10. Air consumption is dependent on speed
Carton Erector Advanced 650 Fully I6164600 Automatic
Net price: 29.900€
Features of the facility
1. Modern design with robot arm
2. Active servo-controlled carton folding 90⁰
3. Single Magazine Carton Feeder
4. Floor bonding by adhesive tape
5. Five servo control drives
6. Steel structure
7. HMI Control Panel
8. Standard running direction left to right, available in both running directions.
9. Documentation in local language
Technical Parameters
1. Product length: L285-650mm
2. Product width: W280-500mm
3. Product height: H150-500mm
4. Packing speed: 5-25 cartons/min
5. Maximum adhesive tape width: max 75mm
6. Connection voltage: 1Ph. 220V 50Hz
7. General power: about 2.35kw
8. Machine weight: about 620kg
9. Machine dimensions: about 2920 x 2100 x 1500 mm
10. Air consumption is dependent on speed
Net price: 24.500€
Features of the facility
1. Modern design with robot arm
2. Active servo-controlled carton folding 90⁰
3. Single Magazine Carton Feeder
4. Floor bonding by adhesive tape
5. Five servo control drives
6. Steel structure
7. HMI Control Panel
8. Standard running direction left to right, available in both running directions.
9. Documentation in local language
Technical Parameters
1 Product Length: L145-400mm - (650mm on request)
2 Product width: W80-350 mm - (500mm on request)
3 Product height: H150-350 mm - (500mm on request)
4 Packing speed: 5-30 cartons/min
5 Maximum adhesive tape width: max 48 mm - change on request
6 Terminal: 1Ph. 220V 50Hz
7 General power: approx. 2.1 kW
8 Machine weight: approx. 620 kg
9 machine dimensions: approx. 2450 x x 1380 mm
10 Air consumption depends on speed
Carton erector Advanced 500 fully automatic
Net price: 27.500€
Features of the facility
1. Modern design with robot arm
2. Active servo-controlled carton folding 90⁰
3. Single Magazine Carton Feeder
4. Floor bonding by adhesive tape
5. Five servo control drives
6. Steel structure
7. HMI Control Panel
8. Standard running direction left to right, available in both running directions.
9. Documentation in local language
Technical Parameters
1. Product length: L275-500mm - (650mm on request)
2. Product width: W140-400mm - (500mm on request)
3. Product height: H140-400mm - (500mm on request)
4. Packing speed: 5-30 cartons/min
5. Maximum adhesive tape width: max 58 mm - change on request
6. Connection voltage: 1Ph. 220V 50Hz
7. General power: about 2.1kw
8. Machine weight: about 620kg
9. Machine dimensions: about 2850 x 2000 x 1400 mm
10. Air consumption is dependent on speed
Carton Erector Advanced 650 Fully I6164600 Automatic
Net price: 29.900€
Features of the facility
1. Modern design with robot arm
2. Active servo-controlled carton folding 90⁰
3. Single Magazine Carton Feeder
4. Floor bonding by adhesive tape
5. Five servo control drives
6. Steel structure
7. HMI Control Panel
8. Standard running direction left to right, available in both running directions.
9. Documentation in local language
Technical Parameters
1. Product length: L285-650mm
2. Product width: W280-500mm
3. Product height: H150-500mm
4. Packing speed: 5-25 cartons/min
5. Maximum adhesive tape width: max 75mm
6. Connection voltage: 1Ph. 220V 50Hz
7. General power: about 2.35kw
8. Machine weight: about 620kg
9. Machine dimensions: about 2920 x 2100 x 1500 mm
10. Air consumption is dependent on speed
