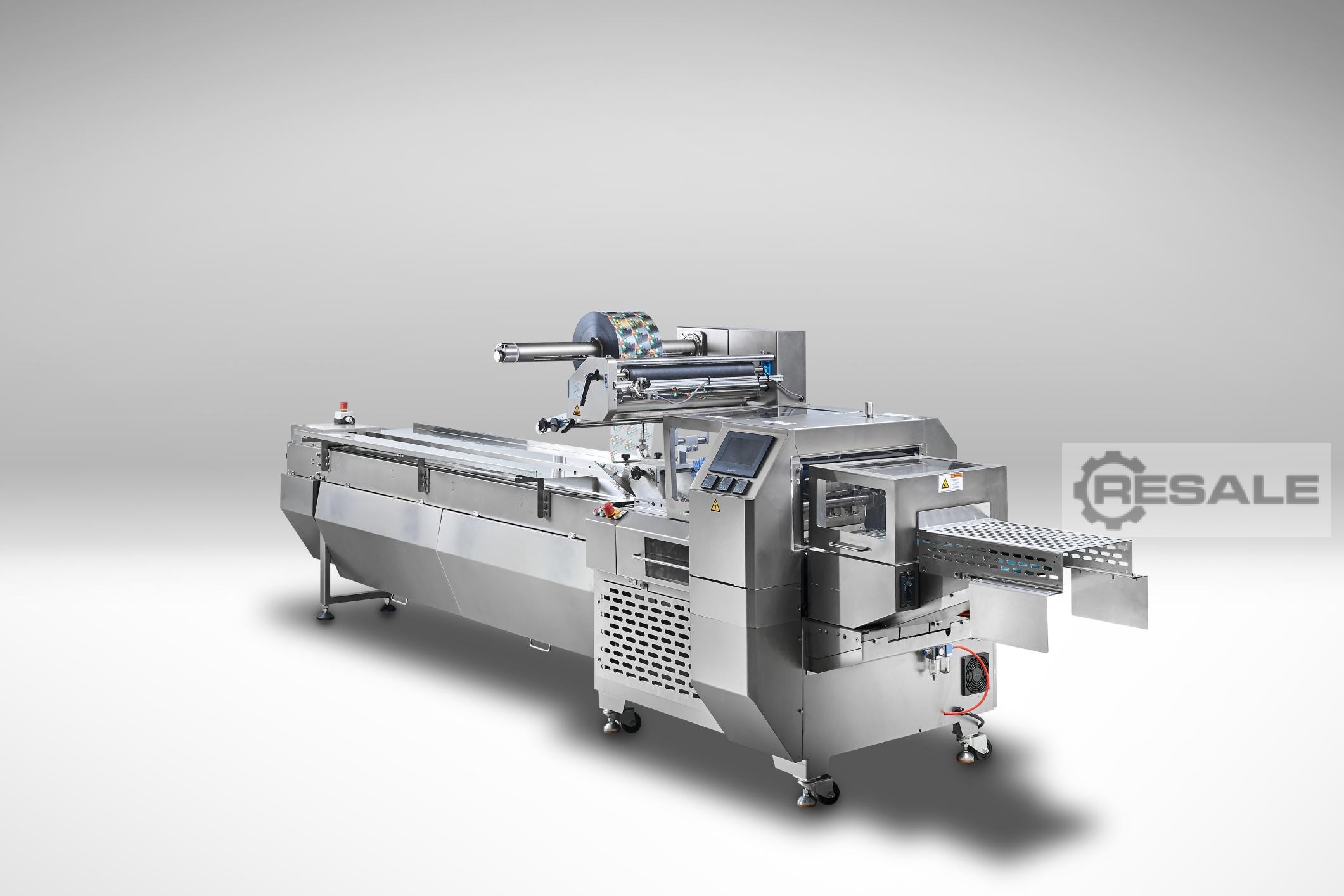

Flowpack IMPULS PACKAGING Flowpack Multitalent 304 TF

The all-rounder combines outstanding workmanship with a wide range of work. Our machine also offers intuitive operation that optimizes your packaging processes.

A high-quality material unwinder with double automatic roll centering ensures precise material guidance. In addition, our active material preference device ensures optimal web tension for flawless packaging results.
The extremely powerful brushless motors and the user-friendly color touchscreen control system give you maximum flexibility during format changes, greatly simplifying your packaging operations. The machine has memory slots for setting the machine parameters. Up to 50 different products can be stored.

For this packaging line, we also offer fully and semi-automatic feeders, which we can also integrate for you at a later date. The machine is available in both directions and has a rotary cross seal with electronic overload protection switch for maximum safety.

Thanks to its performance, versatility and technological advancement, our machine is ideal for packaging food products such as brioches, cakes, sweets, chocolates, chocolates, as well as pharmaceutical products and various gift items.

If you would like to optimise your packaging processes through a strong production output with high quality, we at Impuls Packaging are your ideal partner.

Features of the facility
1. Chain conveyor belt 2.6 meters long (other lengths possible on request)
2. Adjustable bag former

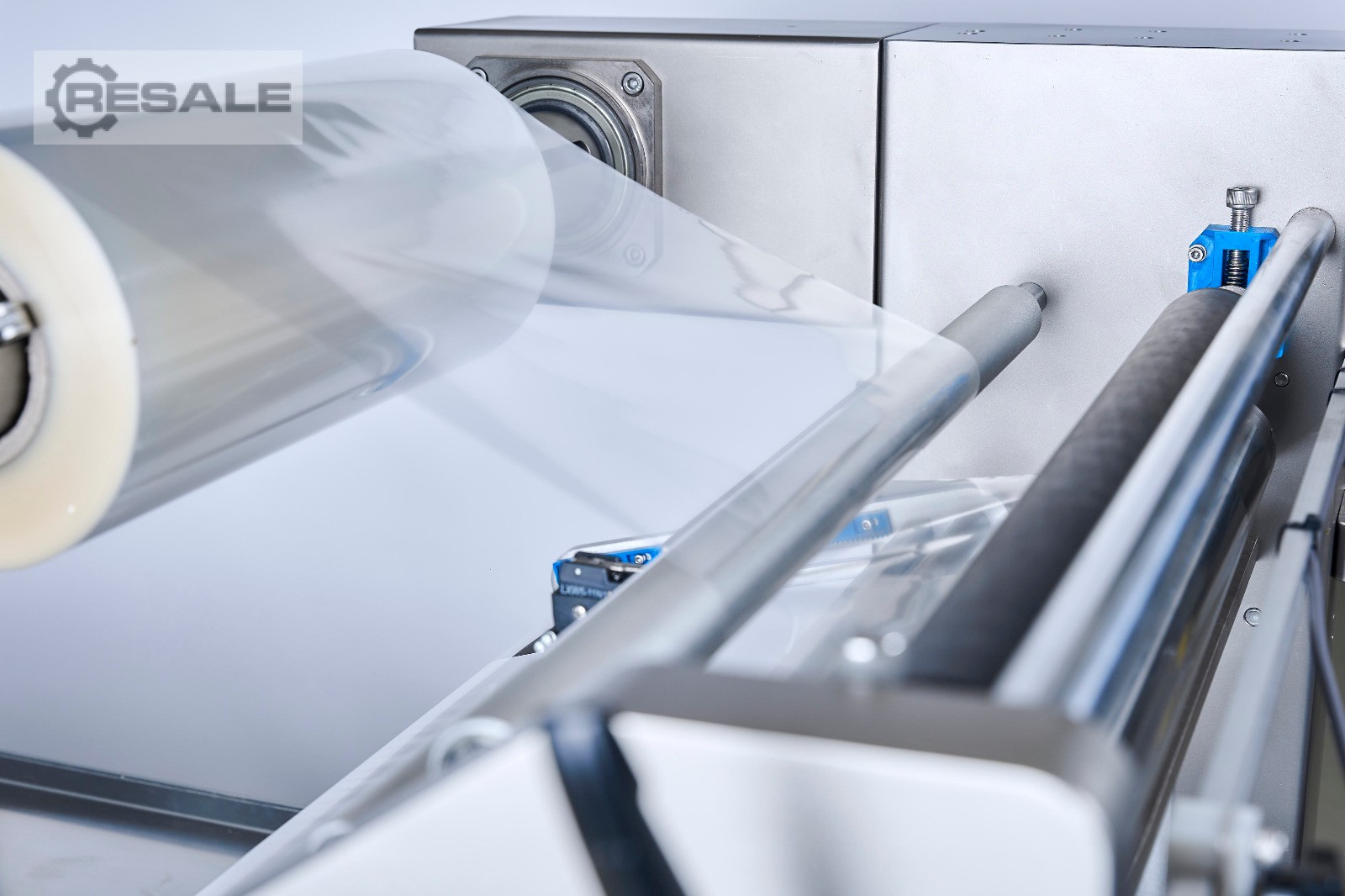

3. Single Film Loader + Automatic Film Centering Device

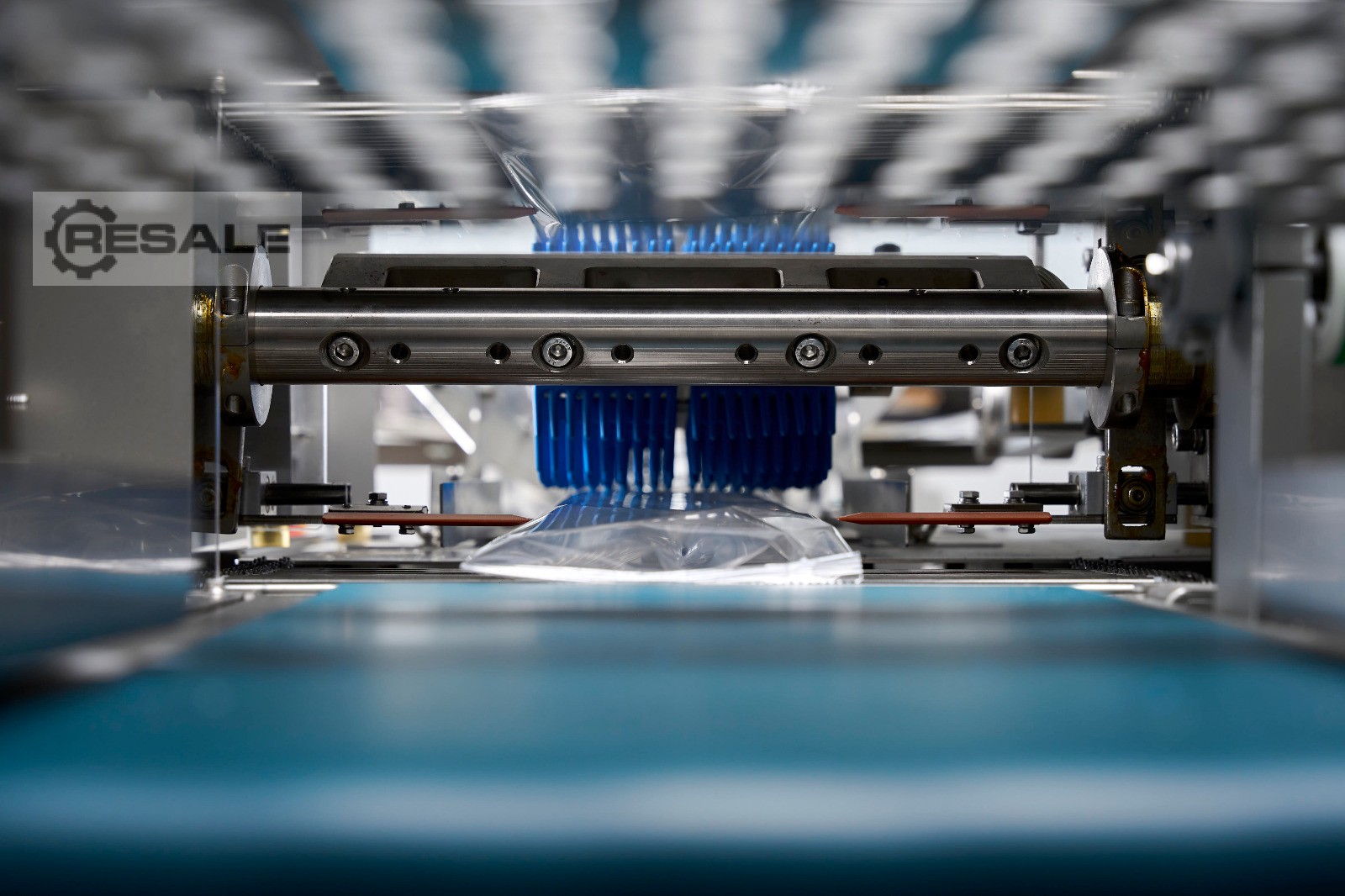

4. Rotary final sealing, single-sealing jaw
5. Solid, medium fin sealing structure
6. Four servo control drives
- Active material preference shaft
- Medium I6164600 sealing
- Final I6164600 sealing
- Conveyor belt
7. HMI Control Panel
8. Three individual temperature controllers
9. 304 stainless steel body
10. Documentation in local language
11. Print mark control
12. Bag length programmable or with fully automatic product length detection
13. Standard walking direction left to right

Technical Parameters
1. Product length: L120-500mm
2. Product width: W30-200mm
3. Product height: H10-80 mm
4. Packaging speed: up to 100 products/min (depends on product, bag length and material)
5. Maximum film width: 600mm
6. Connection voltage: 1Ph. 220V 50Hz
7. General power: about 4.8kw
8. Machine weight: about 550kg
9. Machine dimensions: about 4280 x 1200 x 1230 mm
seller offer No. resale 168613285
