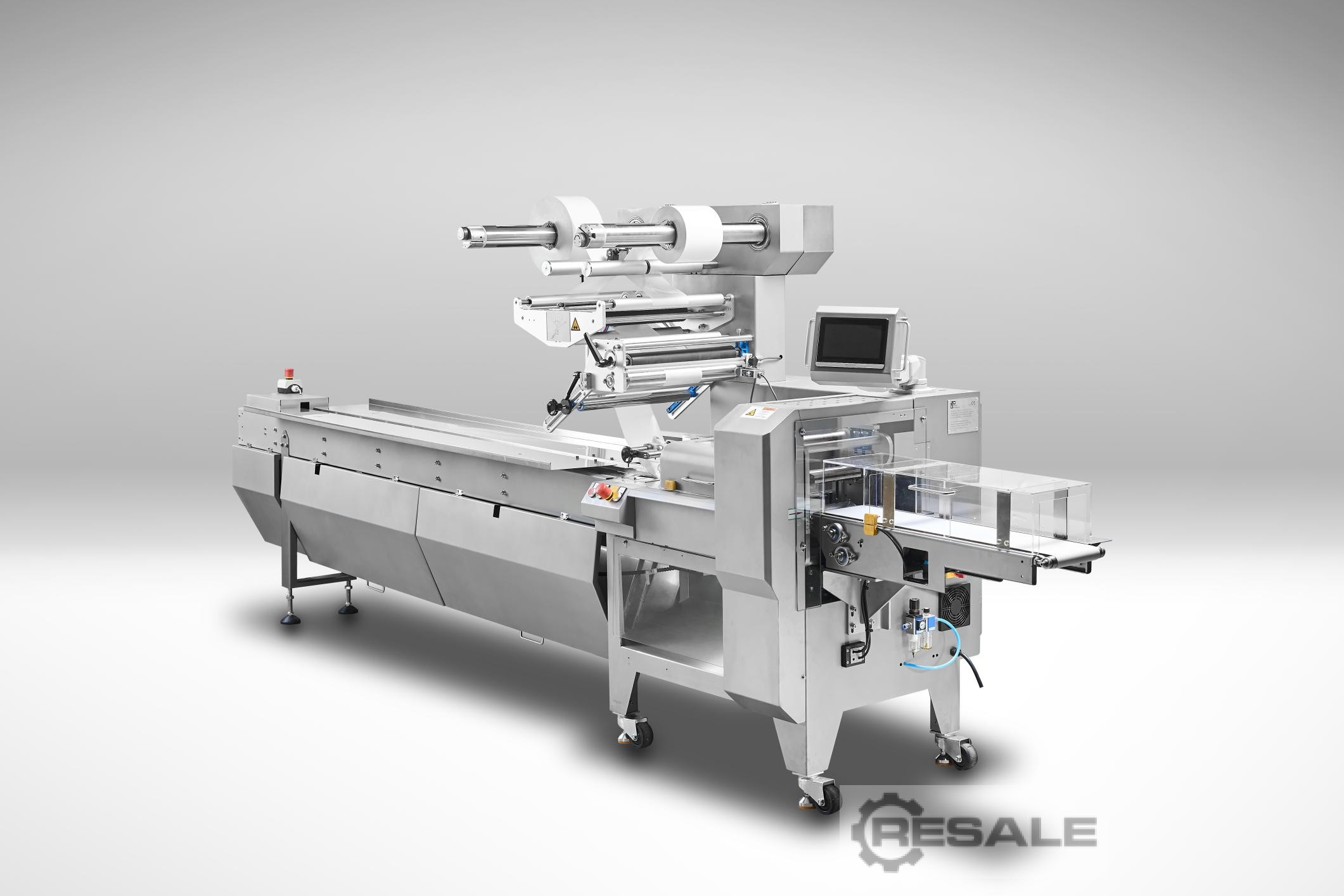

Flowpack IMPULS PACKAGING Flowpack Highspeed 304 TF

The machine is usually always in stock with us. Short delivery times are possible here.

Features of the facility
1. Chain conveyor belt 2.5 meters long (other lengths possible on request)

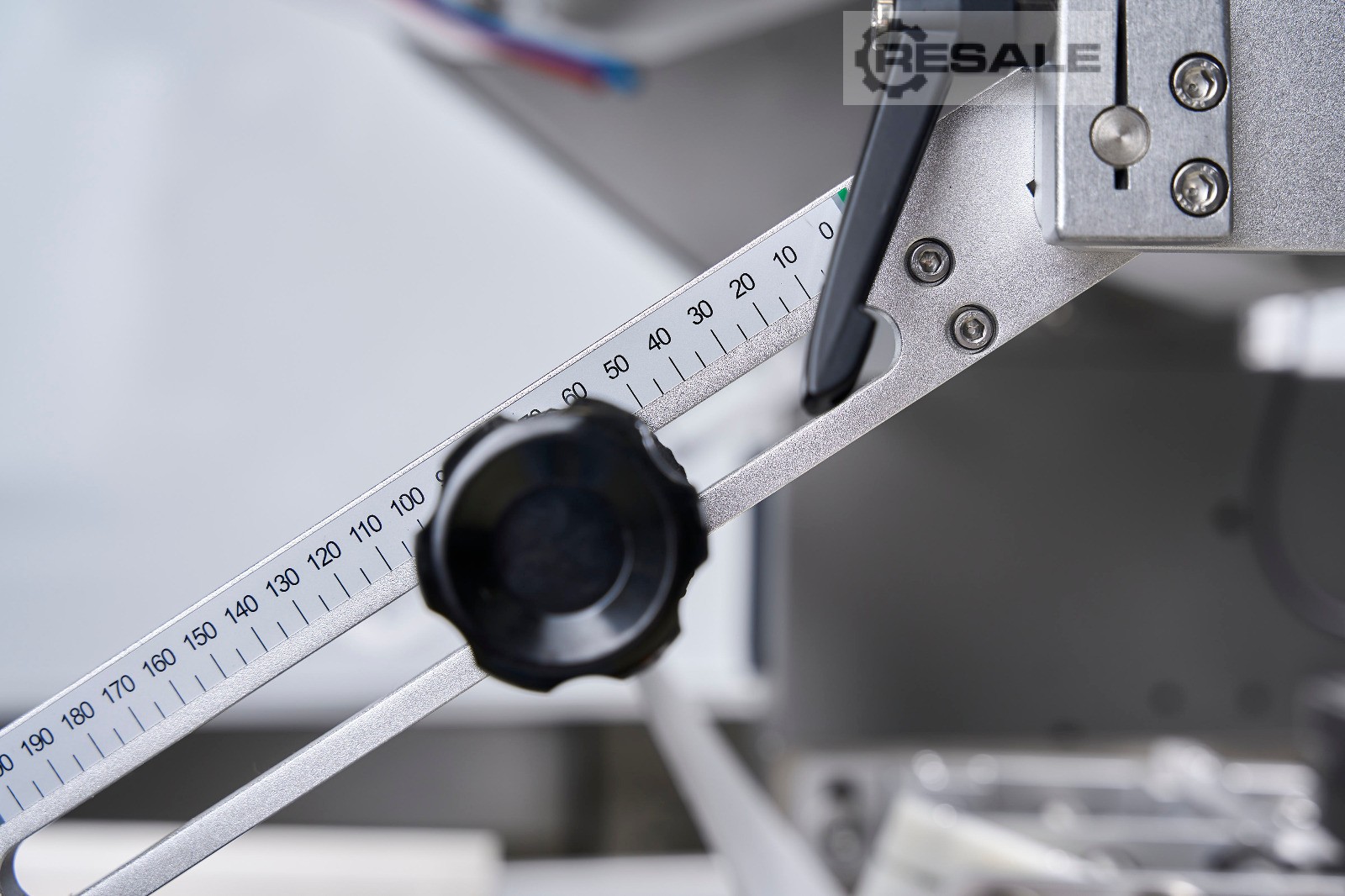

2. Adjustable bag former

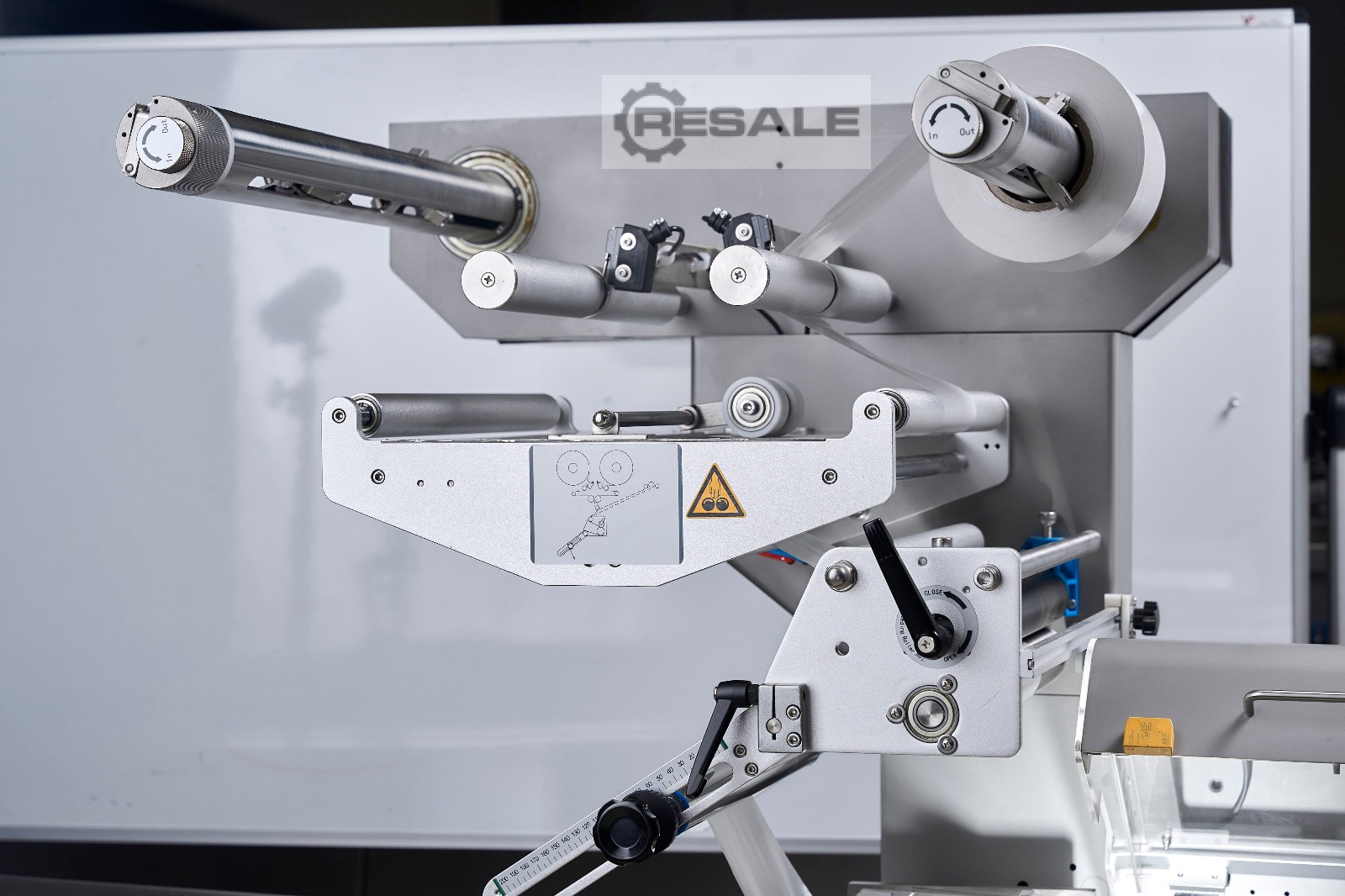

3. Double Film Loader + Automatic Film Centering Device

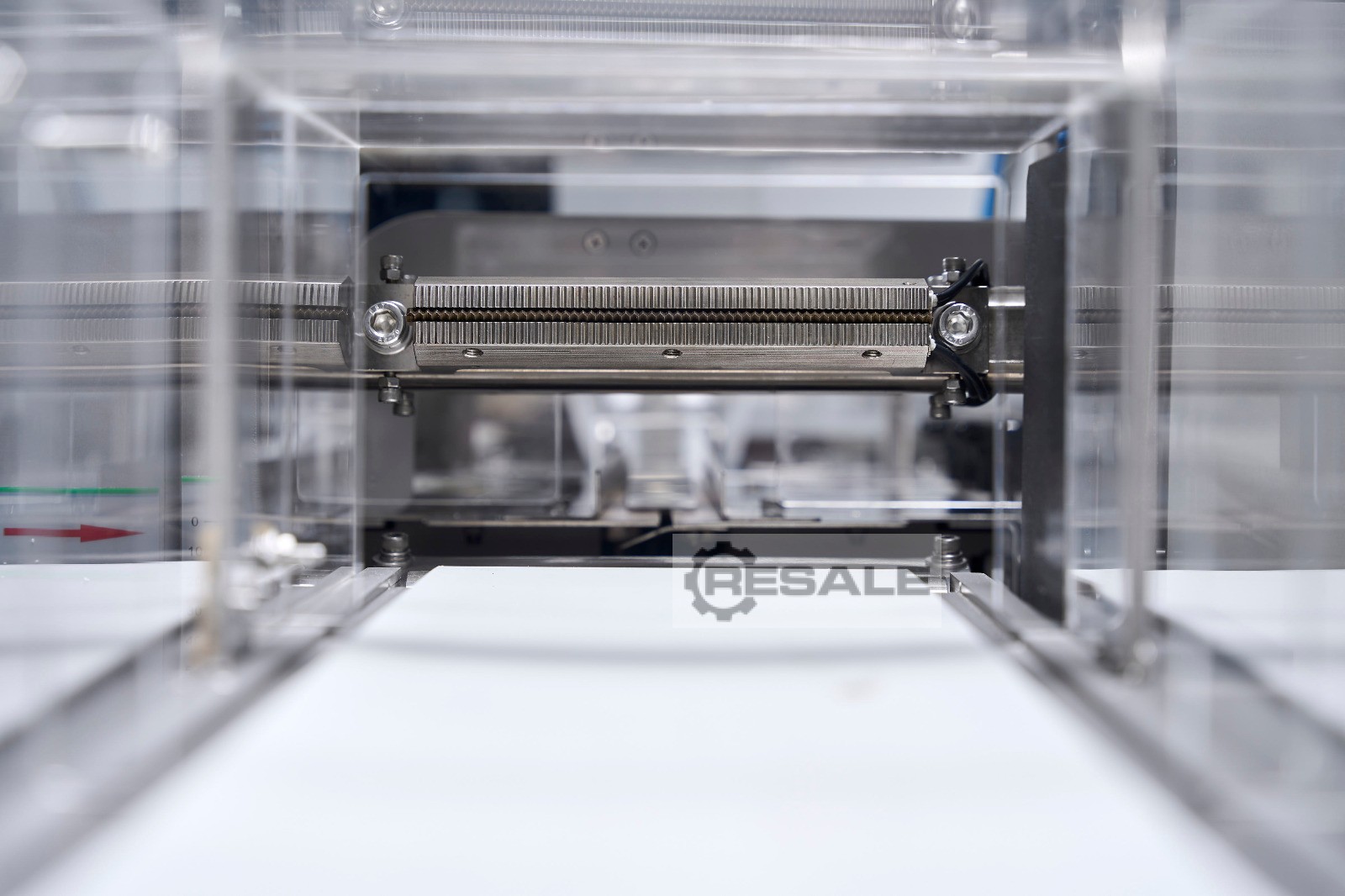

4. Rotary final sealing, single-sealing jaw
5. Solid, medium fin sealing structure
6. Four servo control drives
- Active material preference shaft
- Medium sealing
- Final sealing
- Conveyor belt
7. HMI Control Panel
8. Three individual temperature controllers
9. 304 stainless steel body
10. Documentation in local language
11. Print mark control
12. Bag length programmable
13. Standard walking direction left to right

Technical Parameters
1. Product length: L40 - 300 mm
2. Product width: W30 - 160 mm I6164600
3. Product height: I6164600 H5 - 60 mm
4. Packaging speed: up to 300 products/min (depends on product, bag length, material and number of sealing jaws)
5. Maximum film width: 500mm
6. Connection voltage: 1Ph. 220V 50Hz
7. General power: about 7.5kw
8. Machine weight: about 450kg
9. Machine dimensions: about 4250 x 990 x 1650 mm
