Edge gluing machines HOMAG/BARBARIC EDGETEQ S-240 / RTS 04

Used HOMAG EDGETEQ S-240 HIGHFLEX 1230 edge banding machine, built in 2019
with BARBARIC RETURN RTS 04 L COMPACT return system, year of manufacture 2022

Technical data edge banding machine:
- Workpiece width min:
- At workpiece thickness 8-22mm ¦ 70 mm
- For workpiece thickness 23-40mm ¦ 120 mm
- At workpiece thickness 41-60mm ¦ 150 mm
- Workpiece protrusion ¦ 38 mm
- Workpiece thickness ¦ 60 mm
- Edge height max. = workpiece height ¦ + 5 mm
- Edge material roll ¦ 0.4 - 3 mm
- Edge cross-section max.
- For PVC ¦ 135 mm²
- For veneer ¦ 100 mm²
- Roll diameter max. ¦ 830 mm
- Strip edge material ¦ 0.4-6.0 mm
- Edge cross-section max.
- For strips ¦ 165 mm²
- Feed speed ¦ constant 11m/min
- Working height ¦ 950 mm
- Pneumatic connection ¦ min. 6 bar
- Overall length ¦ 4740 mm

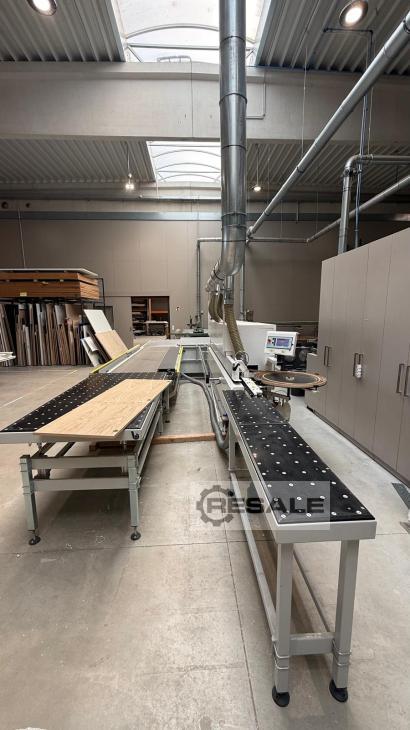

Equipment edge banding machine:
- Adjustable inlet ruler
- Pull-out workpiece support with ball sleeve
- Application unit QA65N
- Top roller pressure with toothed rubber rollers and manual height adjustment
- Release agent spray unit
- Joining milling unit 2 x 2.2 kW (milling cutter height 40 mm)
- Workpiece preheating heating heating shoe
- Pressure zone with pneum. pressurized main pressure roller, pneum. adjustable to 2 positions
- Cross-cut unit 2 x 0.22 kW
- Milling unit 2 x 0.27 kW, power manually adjustable, working position pneum. adjustable, adjustment of side and vertical keying manually (1-roll keying at the bottom and top)
- Shape milling unit 1 x 0.35 kW, for workpiece thickness up to 60 mm, with pneum. 2-point adjustment radius/chamfer, edge thickness max. 3 mm
- Profile scraper with pneum. Adjustment and tactile shoes at the top and bottom
- Glue joint scraper blade
- Detergent spray unit
- Buffing unit 2 x 0.09 kW
- EasyTouch control system with 7" touch display

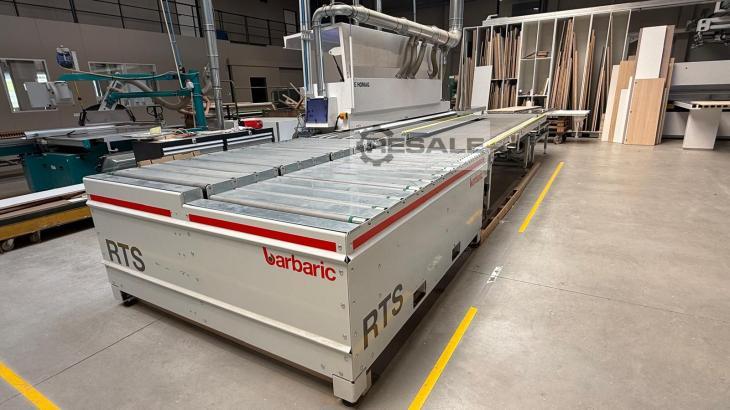

Technical data return system:
Load capacity
Part length <= 700 mm: max. 30kg
Part length > 700 mm: max. 60kg
Panel sizes for longitudinal edge banding
Min. plate size: 300 x 120mm
Max. plate size: 2800 x 1300mm
Panel thickness 8 - 60mm
Panel sizes for 4-sided edge banding
Min. plate size: 300 x 120mm
Max. plate size: 1300 x 1300mm
Panel thickness: 8 - 60mm
Throughput speed: infinitely adjustable from 7 – 20m/min
Cycle time: max. 10 parts/min
Part spacing: approx. 1000mm, possibly higher
Conveyor belt width 800mm

Further equipment of the repatriation system
- Roller conveyor and lifting unit to support large parts, part lengths: 300 - 1600mm and 2000 - 2400mm (plates between a length >1600mm and <2000mm cannot be supported on the front side of the return system), part widths: 200 - 800mm, plate thickness: 8 - 35mm (plates must be intrinsically stable)
- RTS Compact ergonomic package

Technical data and equipment subject to actual equipment
