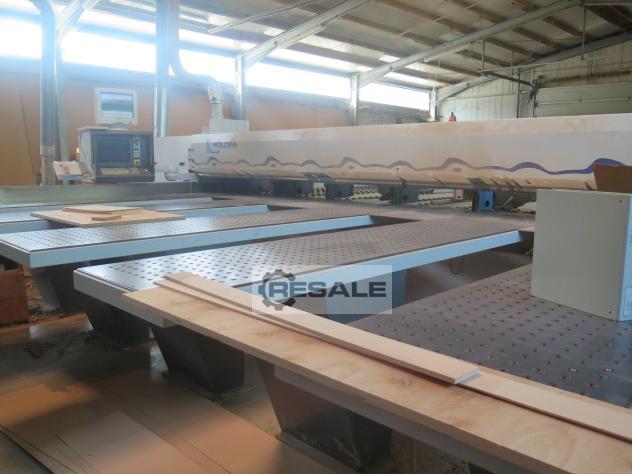

Panel saws HOLZMA HPL 11/X/56/27/L

Cutting length: 5600 mm Cutting height: 40 mm Holzma panel saw with lift table loading
Type: HPL 11/X/56/27/L
Year of Make: 2001

Plate format max. 5600 x 2700 mm, min. 1525 x 1220 mm
Plate thickness max. 40 mm, min. 3.2 mm
Package height max. 110 mm
Precast size min. 100 x 100 mm
Narrow strips up to 30 mm wide can be cut.
With lift table loading
Stacking height in the inlet and outlet max. 480 mm
Stacking offset max. 20 mm

Main saw motor 18 kW
Scoring saw motor 2.2 kW
Collet opening 130 mm
Saw blade diameter 450 mm
Saw blade protrusion 125 mm
Cutting length 5600 mm
Cutting width (program slide travel) 5600 mm
Lift table 5600 x 2700 mm, payload 10 to.
with driven roller conveyor and frequency converter
Stacking height lift table when installed at floor level max. 580 mm,
when installed in a pit max. 780 mm
9 collets, the first 3 of which are double-fingered, all others
Single pitch 75/275/475/950/1750/2550/3550/4150/4950
5 air cushion tables at the front of the machine 2810 x 650 mm
Each air cushion table with separate blower nozzle pitch 50 x 50 mm
1 HM 450 x 4.8 x 60 main saw blade
1 scoring saw blade HM 180 x 4.8 – 5.8 x 45
Left-hand version – angle stop on the left instead of the standard right.
Sawing direction from right to left in the direction of the angle cut.
Extension of lift table to 2700 mm insertion depth.
Second pair of forklift recesses.

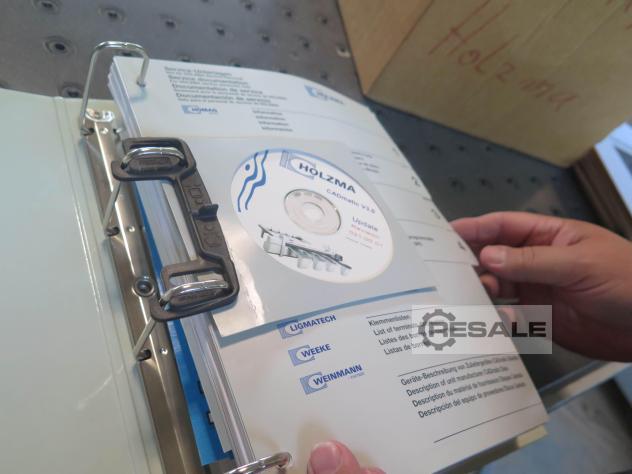

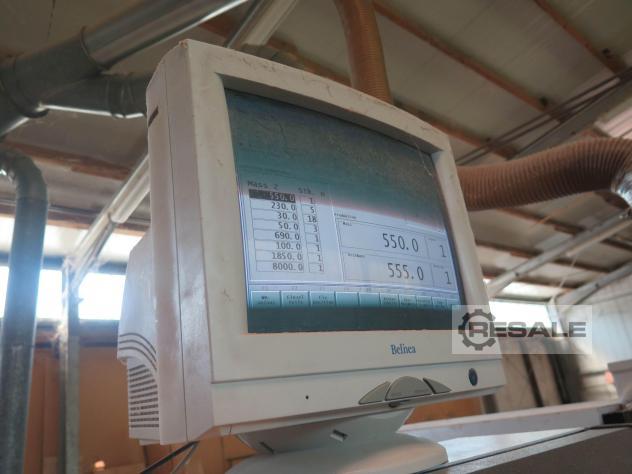

Electronic Control, CADmatic, Version 3.0
Lift Loading
Automatic cutting height adjustment
Automatic cutting length limitation
Automatic adjustment of the scoring saw
Automatic Angle Pressure Device – Double-Sided

Dimensions set-up: L 8539 mm x W = depth 13190 mm x H 1956 mm

seller offer No. resale 9834
