Beer tanks HOLVRIEKA CCT 540 hl

11092026 Cylindroconical Fermentation Tanks CCT 540 hl – Holvrieka

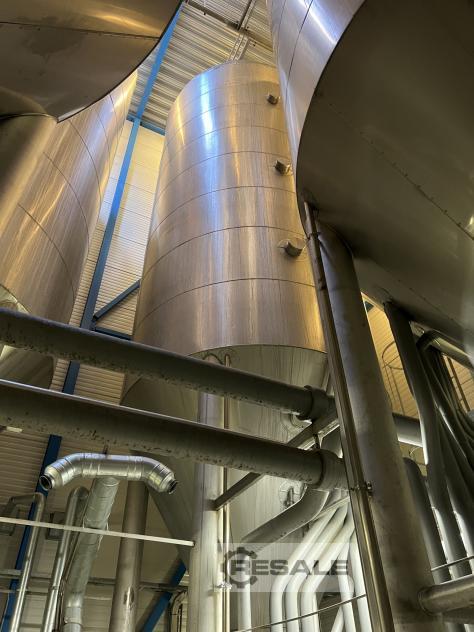

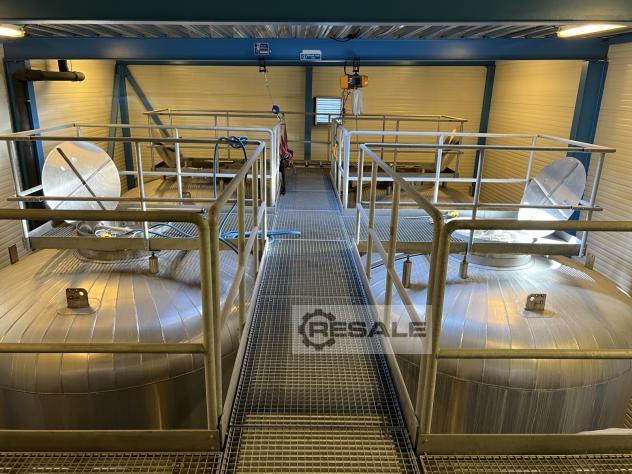

Six identical cylindroconical fermentation tanks manufactured by Holvrieka in 2002. Each tank has a gross capacity of 672 hl and a net working capacity of 540 hl. The tanks are designed for fermentation, maturation and storage of beer (combi tanks) under pressure, with each tank was accommodating approximately three brews.

The tanks are equipped with four independent cooling zones, allowing controlled product cooling throughout the fermentation and maturation process. The cooling system is suitable for operation with either a glycol solution or ammonia (NH₃), subject to the existing refrigeration system configuration. The cooling jackets have a pressure rating of 20 bar.

Tanks are standing on their own legs. Each tank is insulated with 100 mm polyurethane foam to reduce thermal losses and maintain stable process temperatures. The tanks have an internal diameter of approximately 3,200 mm and an overall height of approximately 12,803 mm. The empty weight of each tank is approximately 8,000 kg.
The tanks are suitable for use in industrial breweries requiring large-volume fermentation capacity, efficient temperature control and pressurised beer processing.

Technical Characteristics
Manufacturer Holvrieka
Manufacturing year 2002
Number of tanks 6 units
Tank type Vertical cylindroconical fermentation tank
Application Beer fermentation, maturation and storage
Gross capacity 672 hl per tank
Net working capacity 540 hl per tank
Tank working pressure 1.3 bar
Cooling jacket pressure max 20 bar
Cooling medium Glycol solution or ammonia (NH₃)
Number of cooling zones 3 + 1
Insulation material Polyurethane foam
Insulation thickness 100 mm
Cladding 1mm aluminium, cone stainless steel
Tank diameter 3,200 mm
Total height 12,803 mm
Empty weight Approximately 8,000 kg per tank
seller offer No. resale 11092026
