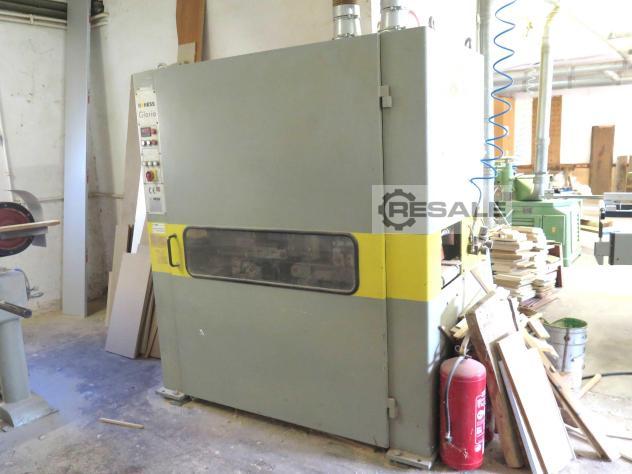

Wide belt grinding machines HESS GLORIA

Working width: 190 mm Number of sanding units: 2 st. Grinding Machine HESS Double-Sided Grinding Machine
Type: GLORIA
Year of Make: 1995 CE

Grinding width 190 mm
Grinding thickness 4 – 180 mm
Sanding shoe and brush from above
Sanding shoe and brush from below
Oxyd ceramics are wear-free and therefore maintenance-free

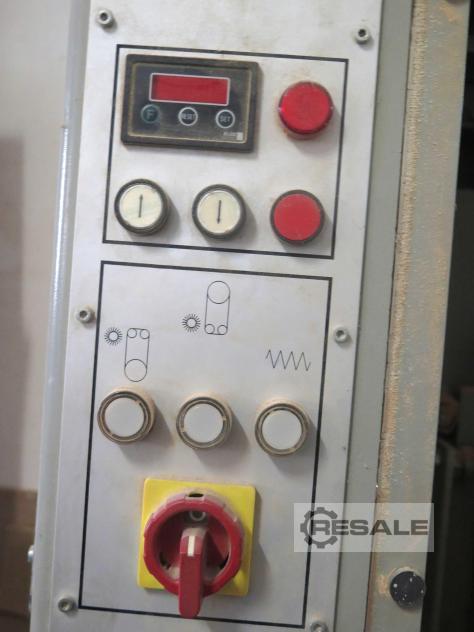

Motorized height adjustment with digital display
Shortest workpiece length 300 mm
oscillating abrasive belts
Sanding belt blow-off nozzle
Workpiece transport via conveyor belts
Sanding belt width 200 mm x sanding belt length 1600 mm
Grinding motor 2 x 4 kW
Feed speed infinitely variable 5-25 m/min.
Feed motor 0.75 kW
Height adjustment 0.18 kW
Sanding belt speed 24 m/sec.
Working height – table height 830 mm
Suction connection nozzle diameter 2 x 160 mm
Extraction air volume 2x2000-2500 m³/h

Machine dimensions:
Length 1660 mm x width 1030 mm x height 1820 mm
Height with suction nozzle 1930 mm
Weight: 1500 kg

seller offer No. resale 9773
